Enhanced magnetic anisotropy and high hole mobility in magnetic semiconductor Ga1-x-yFexNiySb

Zhi Deng; Hailong Wang; Qiqi Wei; Lei Liu; Hongli Sun; Dong Pan; Dahai Wei; Jianhua Zhao

doi:10.1088/1674-4926/45/1/012101

J. Semicond. > 2024, Volume 45 > Issue 1 > 012101

ARTICLES

Enhanced magnetic anisotropy and high hole mobility in magnetic semiconductor Ga_1-x-yFe_xNi_ySb

Zhi Deng^{1, 2}, Hailong Wang^{1, 2,}, Qiqi Wei^{1, 2}, Lei Liu^{1, 2}, Hongli Sun^{1, 2}, Dong Pan^{1, 2}, Dahai Wei^{1, 2} and Jianhua Zhao^{1, 2}

+ Author Affiliations

Corresponding author: Hailong Wang, allen@semi.ac.cn

DOI: 10.1088/1674-4926/45/1/012101

Abstract: (Ga,Fe)Sb is a promising magnetic semiconductor (MS) for spintronic applications because its Curie temperature (T_C) is above 300 K when the Fe concentration is higher than 20%. However, the anisotropy constant K_u of (Ga,Fe)Sb is below 7.6 × 10³ erg/cm³ when Fe concentration is lower than 30%, which is one order of magnitude lower than that of (Ga,Mn)As. To address this issue, we grew Ga_1-x-yFe_xNi_ySb films with almost the same x (≈24%) and different y to characterize their magnetic and electrical transport properties. We found that the magnetic anisotropy of Ga_0.76-yFe_0.24Ni_ySb can be enhanced by increasing y, in which K_u is negligible at y = 1.7% but increases to 3.8 × 10⁵ erg/cm³ at y = 6.1% (T_C = 354 K). In addition, the hole mobility (µ) of Ga_1-x-yFe_xNi_ySb reaches 31.3 cm²/(V∙s) at x = 23.7%, y = 1.7% (T_C = 319 K), which is much higher than the mobility of Ga_1-xFe_xSb at x = 25.2% (µ = 6.2 cm²/(V∙s)). Our results provide useful information for enhancing the magnetic anisotropy and hole mobility of (Ga,Fe)Sb by using Ni co-doping.

Key words: magnetic semiconductor, molecular beam epitaxy, Fe-Ni co-doping, magnetic anisotropy, hole mobility

References

[1]	Ohno H. Making nonmagnetic semiconductors ferromagnetic. Science, 1998, 281, 951 doi: 10.1126/science.281.5379.951
[2]	Dietl T, Ohno H, Matsukura F, et al. Zener model description of ferromagnetism in zinc-blende magnetic semiconductors. Science, 2000, 287, 1019 doi: 10.1126/science.287.5455.1019
[3]	Chiba D, Sawicki M, Nishitani Y, et al. Magnetization vector manipulation by electric fields. Nature, 2008, 455, 515 doi: 10.1038/nature07318
[4]	Jungwirth T, Wunderlich J, Novák V, et al. Spin-dependent phenomena and device concepts explored in (Ga, Mn)As. Rev Mod Phys, 2014, 86, 855 doi: 10.1103/RevModPhys.86.855
[5]	Dietl T, Ohno H. Dilute ferromagnetic semiconductors: Physics and spintronic structures. Rev Mod Phys, 2014, 86, 187 doi: 10.1103/RevModPhys.86.187
[6]	Ohno H, Munekata H, Penney T, et al. Magnetotransport properties of p-type (In, Mn)As diluted magnetic III-V semiconductors. Phys Rev Lett, 1992, 68, 2664 doi: 10.1103/PhysRevLett.68.2664
[7]	Koshihara S, Oiwa A, Hirasawa M, et al. Ferromagnetic order induced by photogenerated carriers in magnetic III-V semiconductor heterostructures of (In, Mn)As/GaSb. Phys Rev Lett, 1997, 78, 4617 doi: 10.1103/PhysRevLett.78.4617
[8]	Akai H. Ferromagnetism and its stability in the diluted magnetic semiconductor (In, Mn)As. Phys Rev Lett, 1998, 81, 3002 doi: 10.1103/PhysRevLett.81.3002
[9]	Oiwa A, Endo A, Katsumoto S, et al. Magnetic and transport properties of the ferromagnetic semiconductor heterostructures (In, Mn)As/(Ga, Al)Sb. Phys Rev B, 1999, 59, 5826 doi: 10.1103/PhysRevB.59.5826
[10]	Schallenberg T, Munekata H. Preparation of ferromagnetic (In, Mn)As with a high Curie temperature of 90K. Appl Phys Lett, 2006, 89, 042507 doi: 10.1063/1.2236210
[11]	Ohno H, Shen A, Matsukura F, et al. (Ga, Mn)As: A new diluted magnetic semiconductor based on GaAs. Appl Phys Lett, 1996, 69, 363 doi: 10.1063/1.118061
[12]	Matsukura F, Ohno H, Shen A, et al. Transport properties and origin of ferromagnetism in (Ga, Mn)As. Phys Rev B, 1998, 57, R2037 doi: 10.1103/PhysRevB.57.R2037
[13]	Chen L, Yang X, Yang F H, et al. Enhancing the curie temperature of ferromagnetic semiconductor (Ga, Mn)As to 200 K via nanostructure engineering. Nano Lett, 2011, 11, 2584 doi: 10.1021/nl201187m
[14]	Wang H L, Ma J L, Zhao J H. Giant modulation of magnetism in (Ga, Mn)As ultrathin films via electric field. J Semicond, 2019, 40, 092501 doi: 10.1088/1674-4926/40/9/092501
[15]	Wang H L, Ma J L, Wei Q Q, et al. Mn doping effects on the gate-tunable transport properties of Cd₃As₂ films epitaxied on GaAs. J Semicond, 2020, 41, 072903 doi: 10.1088/1674-4926/41/7/072903
[16]	Tu N T, Hai P N, Anh L D, et al. (Ga, Fe)Sb: A p-type ferromagnetic semiconductor. Appl Phys Lett, 2014, 105, 132402 doi: 10.1063/1.4896539
[17]	Tu N T, Hai P N, Anh L D, et al. Magnetic properties and intrinsic ferromagnetism in (Ga, Fe)Sb ferromagnetic semiconductors. Phys Rev B, 2015, 92, 144403 doi: 10.1103/PhysRevB.92.144403
[18]	Tu N T, Hai P N, Anh L D, et al. High-temperature ferromagnetism in heavily Fe-doped ferromagnetic semiconductor (Ga, Fe)Sb. Appl Phys Lett, 2016, 108, 192401 doi: 10.1063/1.4948692
[19]	Goel S, Anh L D, Ohya S, et al. Ferromagnetic resonance and control of magnetic anisotropy by epitaxial strain in the ferromagnetic semiconductor (Ga_0.8, Fe_0.2)Sb at room temperature. Phys Rev B, 2019, 99, 014431 doi: 10.1103/PhysRevB.99.014431
[20]	Goel S, Anh L D, Ohya S, et al. In-plane to perpendicular magnetic anisotropy switching in heavily-Fe-doped ferromagnetic semiconductor (Ga, Fe)Sb with high Curie temperature. Phys Rev Materials , 2019, 084417 doi: 10.1103/PhysRevMaterials.3.084417
[21]	Tu N T, Hai P N, Anh L D, et al. High-temperature ferromagnetism in new n-type Fe-doped ferromagnetic semiconductor (In, Fe)Sb. Appl Phys Express, 2018, 11, 063005 doi: 10.7567/APEX.11.063005
[22]	Nguyen T T, Pham N, Le D, et al. Electrical control of ferromagnetism in the n-type ferromagnetic semiconductor (In, Fe)Sb with high Curie temperature. Appl Phys Lett, 2018, 112, 122409 doi: 10.1063/1.5022828
[23]	Nguyen T T, Pham N H, Le D A, et al. Heavily Fe-doped n-type ferromagnetic semiconductor (In, Fe)Sb with high Curie temperature and large magnetic anisotropy. 2019 Compound Semiconductor Week (CSW), Nara, Japan, 2019, 1 doi: 10.1109/ICIPRM.2019.8819236
[24]	Sakamoto S, Tu N T, Takeda Y, et al. Electronic structure of the high-T_C ferromagnetic semiconductor (Ga, Fe)Sb: X-ray magnetic circular dichroism and resonance photoemission spectroscopy studies. Phys Rev B, 2019, 100, 035204 doi: 10.1103/PhysRevB.100.035204
[25]	Sriharsha K, Anh L D, Tu N T, et al. Magneto-optical spectra and the presence of an impurity band in p-type ferromagnetic semiconductor (Ga, Fe)Sb with high Curie temperature. APL Mater, 2019, 7, 021105 doi: 10.1063/1.5083175
[26]	Tanaka M. Recent progress in ferromagnetic semiconductors and spintronics devices. Jpn J Appl Phys, 2021, 60, 010101 doi: 10.35848/1347-4065/abcadc
[27]	Stefanowicz W, Śliwa C, Aleshkevych P, et al. Magnetic anisotropy of epitaxial (Ga, Mn)As on (113)A GaAs. Phys Rev B, 2010, 81, 155203 doi: 10.1103/PhysRevB.81.155203

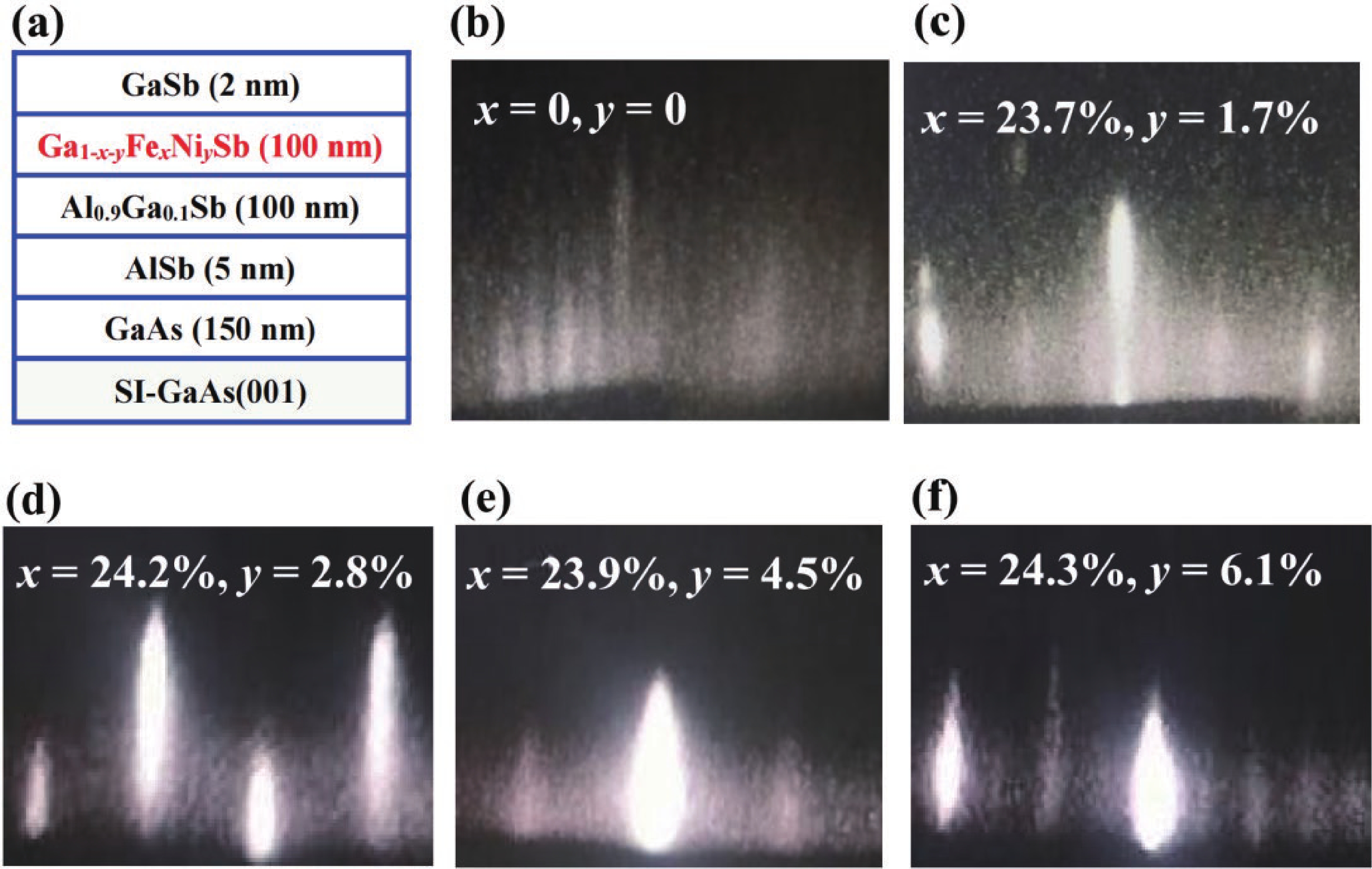

Fig. 1. (Color online) (a) Schematic layer structure of Ga_1-x-yFe_xNi_ySb samples. (b) The RHEED pattern of an undoped GaSb sample. (c)−(f) RHEED patterns taken along the [110] azimuth after the growth of Ga_1-x-yFe_xNi_ySb layers for samples B1−B4 (x ≈ 24%, y = 1.7%−6.1%).

DownLoad: Full-Size Img PowerPoint

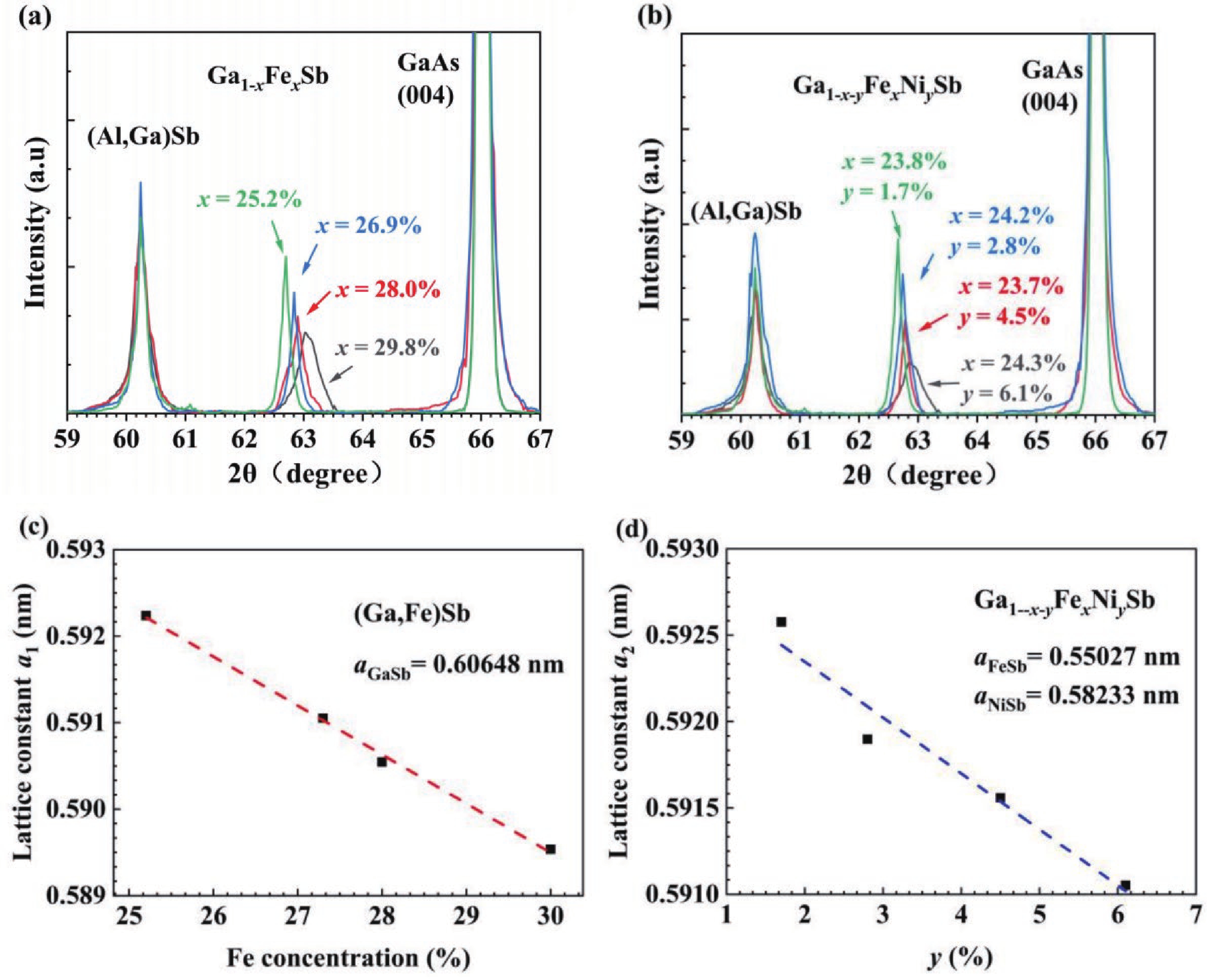

Fig. 2. (Color online) (a) XRD spectra of Ga_1-x-yFe_xNi_ySb samples A1−A4 (x = 25.2%−29.8%, y = 0). (b) XRD spectra of samples B1−B4 (x ≈ 24%, y = 1.7%−6.1%). (c) x dependence of the lattice constant of A1−A4. (d) y dependence of the lattice constant of B1−B4.

DownLoad: Full-Size Img PowerPoint

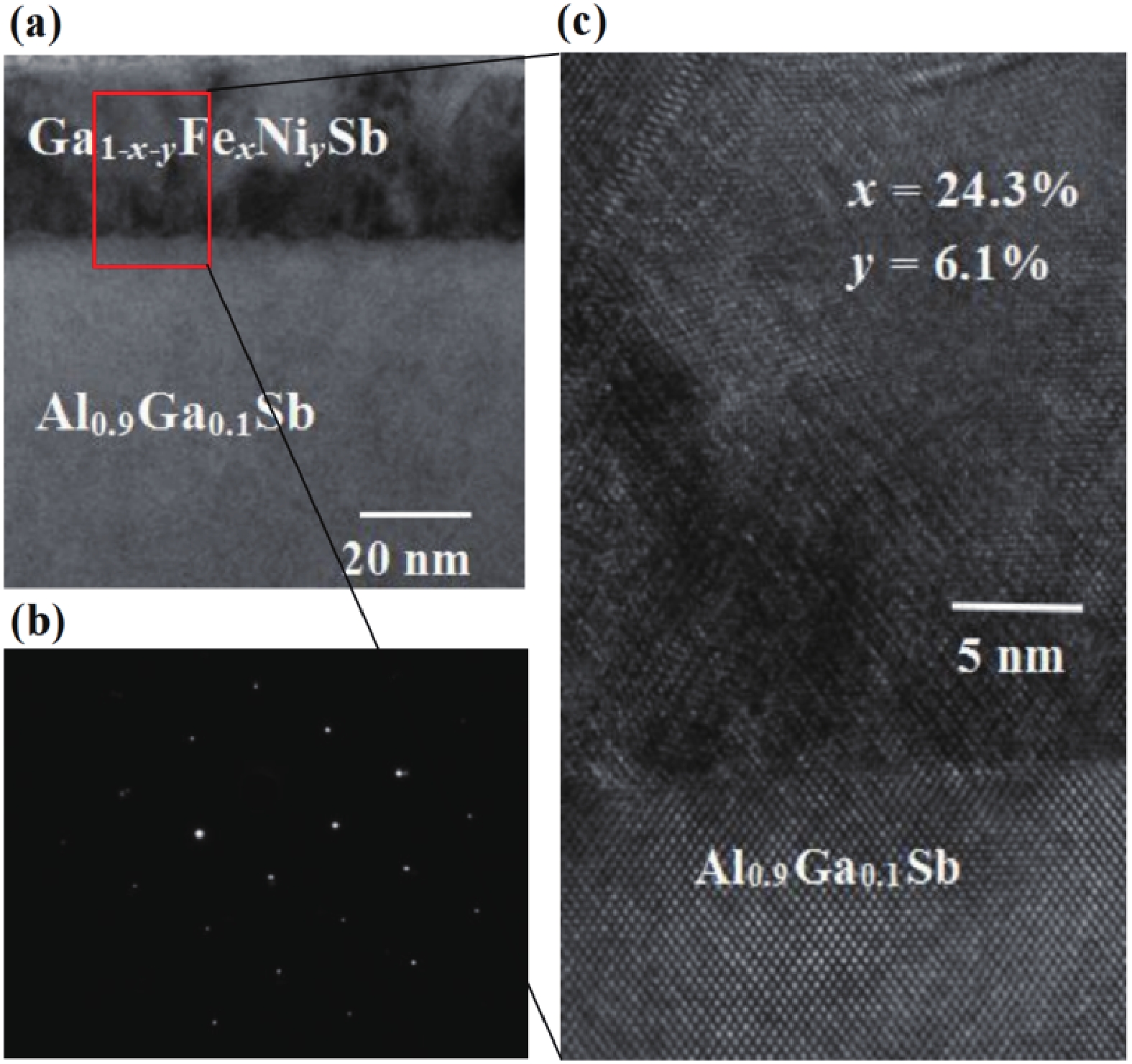

Fig. 3. (Color online) (a) The cross-sectional STEM image of typical Ga_1-_x-yFe_xNi_ySb sample B4 (x = 24.3%, y = 6.1%). (b) SAED pattern of the Ga_1-_x-yFe_xNi_ySb layers in sample B4. (c) The area marked by red rectangles shown in Fig. 3(a).

DownLoad: Full-Size Img PowerPoint

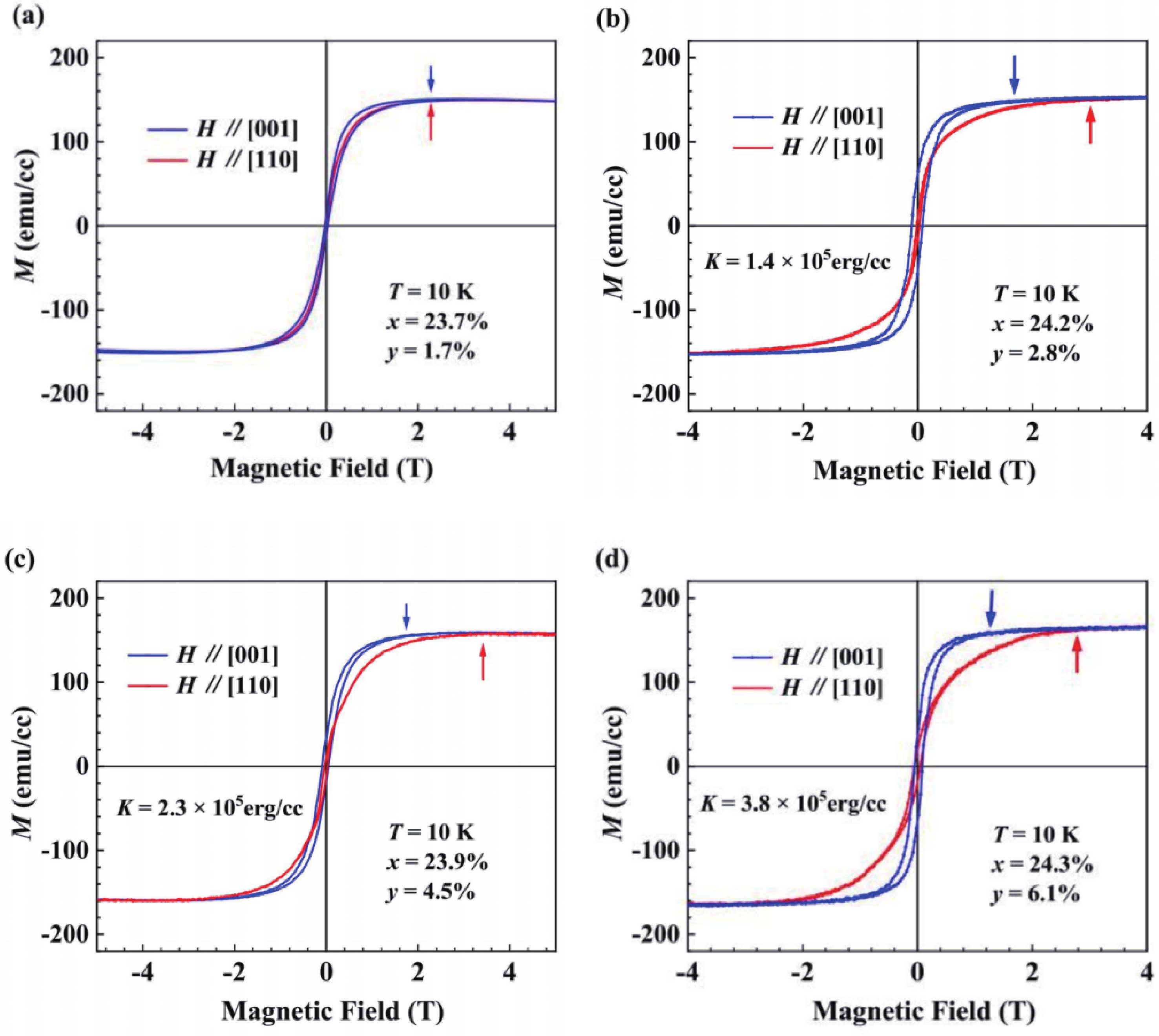

Fig. 4. (Color online) Magnetic hysteresis curves (M−H) measured at 10 K of samples B1−B4 (x ≈ 24%, y = 1.7%−6.1%) with a magnetic field applied along the [001] axis and the [110] axis. The blue and red arrows in (a)−(d) signify the perpendicular saturation magnetic fields and the positions of H_S.

DownLoad: Full-Size Img PowerPoint

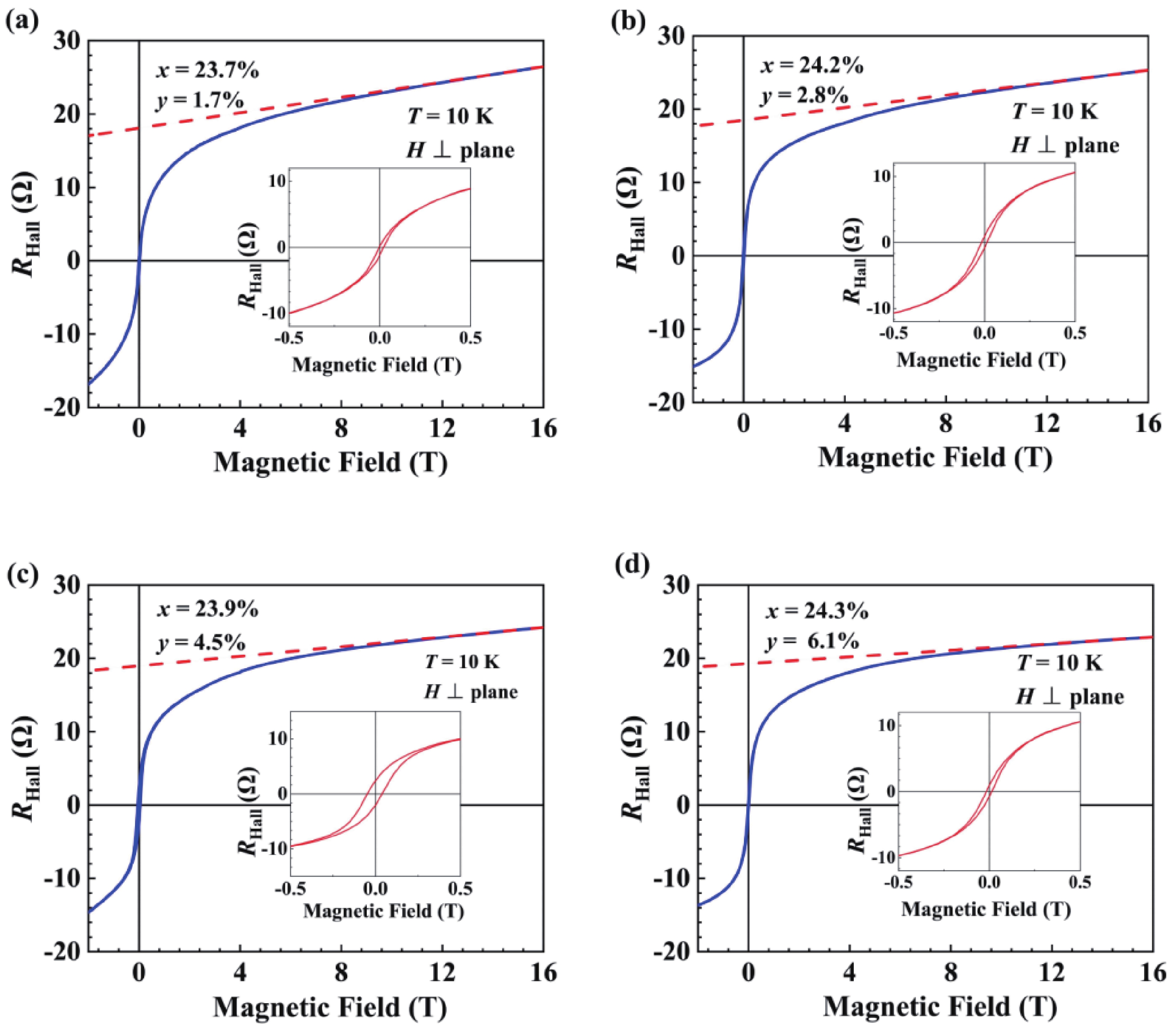

Fig. 5. (Color online) The magnetic field dependence of Hall resistance curves (R_Hall−H) of the samples B1−B4 (x ≈ 24%, y = 1.7%−6.1%) measured at 10 K.

DownLoad: Full-Size Img PowerPoint

Table 1. Curie temperature T_C, hole mobility μ at 10 K, saturation magnetization M_S and anisotropy constant K_u of Ga_1-x-yFe_xNi_ySb films with different Fe concentration x and Ni concentration y.

Sample	x (%)	y (%)	T_C (K)	μ (cm²/(V∙s))	M_S (emu/cc)	K_u (erg/cc)
A1	25.2	0	337	6.2	142	−1.8 × 10³
A2	26.9	0	351	3.4	144	1.2 × 10³
A3	28.0	0	362	1.9	147	4.5 ×10³
A4	29.8	0	375	1.1	151	7.6 ×10³
B1	23.7	1.7	319	31.3	148	−2.1 × 10³
B2	24.2	2.8	336	17.9	152	1.4 × 10⁵
B3	23.9	4.5	343	7.5	159	2.3 × 10⁵
B4	24.3	6.1	354	4.6	165	3.8 × 10⁵

DownLoad: CSV
