A 1.65 μm three-section distributed Bragg reflector (DBR) laser for CH4 gas sensors

Bin Niu, Hongyan Yu, Liqiang Yu, Daibing Zhou, Dan Lu, Lingjuan Zhao, Jiaoqing Pan and Wei Wang

+ Author Affiliations

 Corresponding author: Wang Wei, wwang@red.semi.ac.cn

DOI: 10.1088/1674-4926/34/10/104004

PDF

Abstract: A 1.65-μm three-section distributed Bragg reflector (DBR) laser for CH4 gas sensors is reported. The DBR laser has a wide tunable range covering the R3 and R4 methane absorption line manifolds. The wavelength tunability properties, temperature stability and laser linewidth are characterized and analyzed. Several advantages were demonstrated compared with traditional DFB lasers in harmonic detection.

Key words: CH4, DBR, DSH, gas sensor, InP, TDLAS



[1]
Rothman L S, Gamache R R, Tipping R H, et al. The HITRAN molecular database:editions of 1991 and 1992. J Quant Spectrosc Radiat Transfer, 1992, 48:469 doi: 10.1016/0022-4073(92)90115-K
[2]
Cassidy D T, Reid J. Harmonic detection with tunable diode lasers two-tone modulation. App1 Phys B, 1982, 29:279 doi: 10.1007/BF00689188
[3]
Whittaker E A, Gehrtz M, Bjorklund G C. Residual amplitude modulation in laser electro-optic phase modulation. J Opt Soc Am B, 1985, 2(8):1320 doi: 10.1364/JOSAB.2.001320
[4]
Whittaker E A, Shum C M, Grebel H, et al. Reduction of residual amplitude modulation in frequency-modulation spectroscopy by using harmonic frequency modulation. J Opt Soc Am B, 1988, 5(6):1253 doi: 10.1364/JOSAB.5.001253
[5]
Caponio N P, Goano M, Maio I, et al. Analysis and design criteria of three-section DBR tunable lasers. IEEE J Sel Areas Commun, 1990, 8:1203 doi: 10.1109/49.57827
[6]
Coldren L A. Monolithic tunable diode lasers. IEEE J Sel Topics Quantum Electron, 2000, 6(6):988 doi: 10.1109/2944.902147
[7]
Coldren L A, Fish G A, Akulova Y, et al. Tunable semiconductor lasers:a tutorial. J Lightwave Technol, 2004, 22(1):193 doi: 10.1109/JLT.2003.822207
[8]
Skogen E J, Barton J S, Denbaars S P, et al. A quantum-well-intermixing process for wavelength-agile photonic integrated circuits. IEEE J Sel Topics Quantum Electron, 2002, 8(4):863 doi: 10.1109/JSTQE.2002.800849
[9]
Zhang N, Rao W, Meng Z, et al. Linewidth study of the frequency-modulated laser based on the delayed self-heterodyne scheme. Opt Laser Technol, 2013, 45:267 doi: 10.1016/j.optlastec.2012.06.036

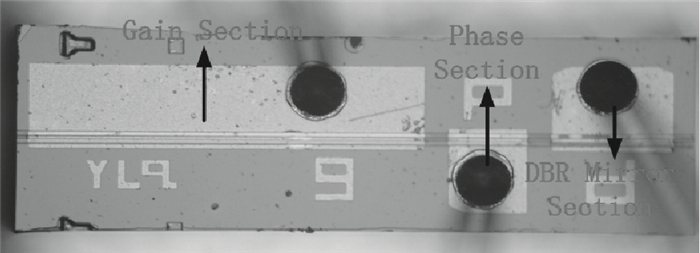

Fig. 1.  Microscope picture of the 1.65-$\mu m$ three-section DBR laser diode.

DownLoad: Full-Size Img PowerPoint

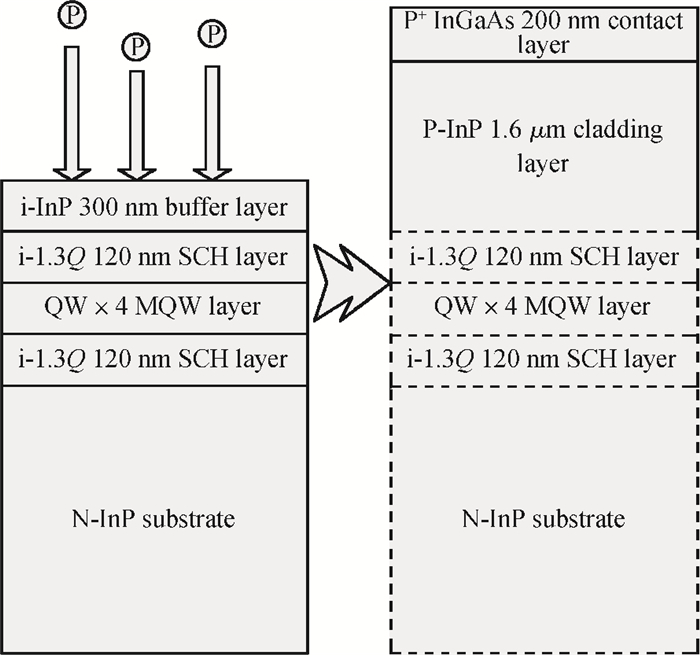

Fig. 2.  Epi-layer of the laser diode.

DownLoad: Full-Size Img PowerPoint

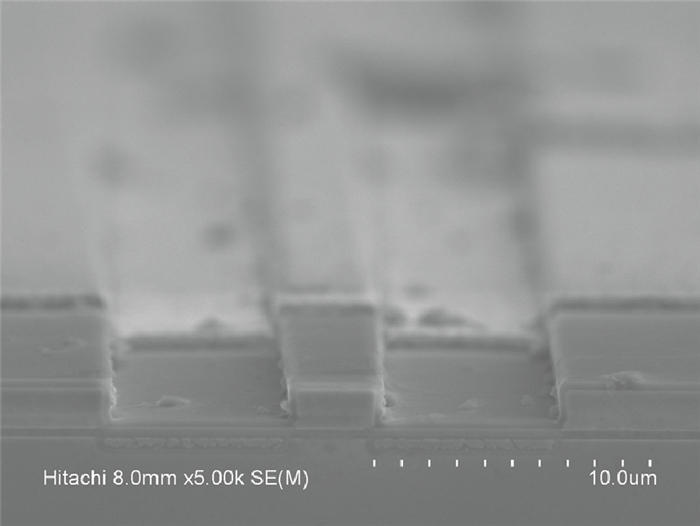

Fig. 3.  Cross section SEM picture of the waveguide.

DownLoad: Full-Size Img PowerPoint

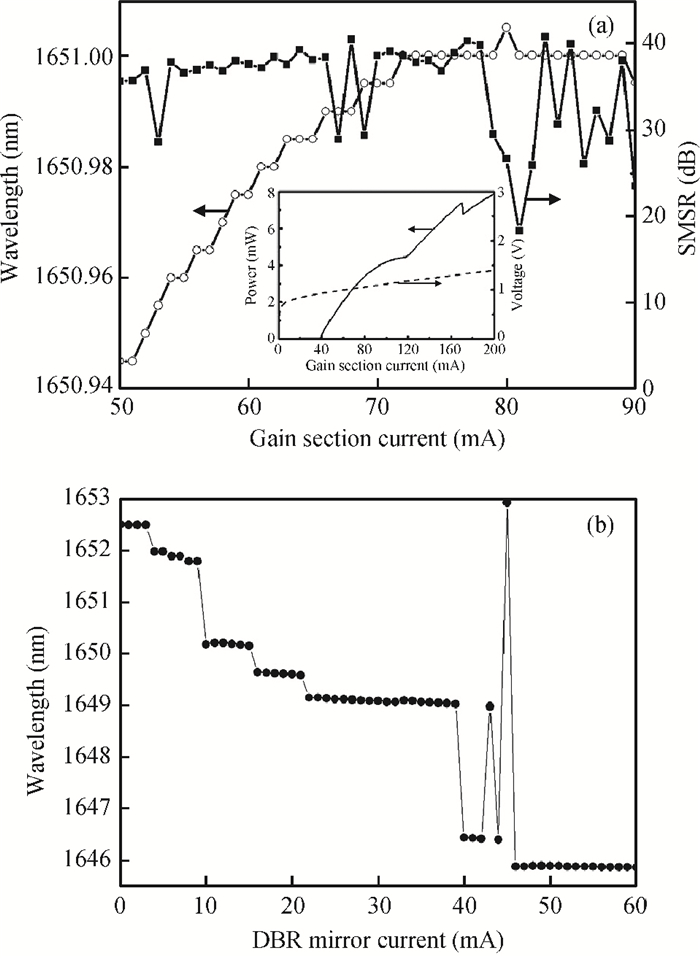

Fig. 4.  (a) Tuning rate and PIV curves of the gain section current when ${I_{\text{p}}}$ = 3.4 mA, ${I_{\text{d}}}$ = 10 mA. (b) Wavelength tuning range of ${I_{\text{d}}}$ when ${I_{\text{g}}}$ = 70 mA, ${I_{\text{p}}}$ = 0 mA

DownLoad: Full-Size Img PowerPoint

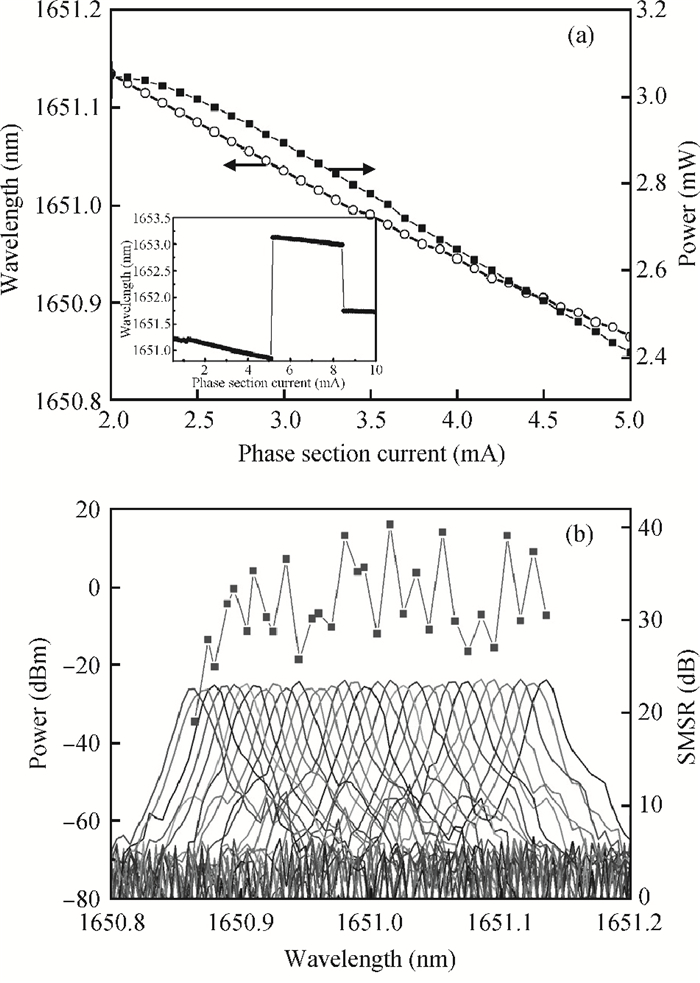

Fig. 5.  (a) Wavelength tuning rate and power fluctuation of ${I_{\text{p}}}$ when ${I_{\text{g}}}$ = 70 mA, ${I_{\text{d}}}$ = 10 mA. (b) Spectra and side mode suppression ratio (SMSR) of data points in Fig. 5(a).

DownLoad: Full-Size Img PowerPoint

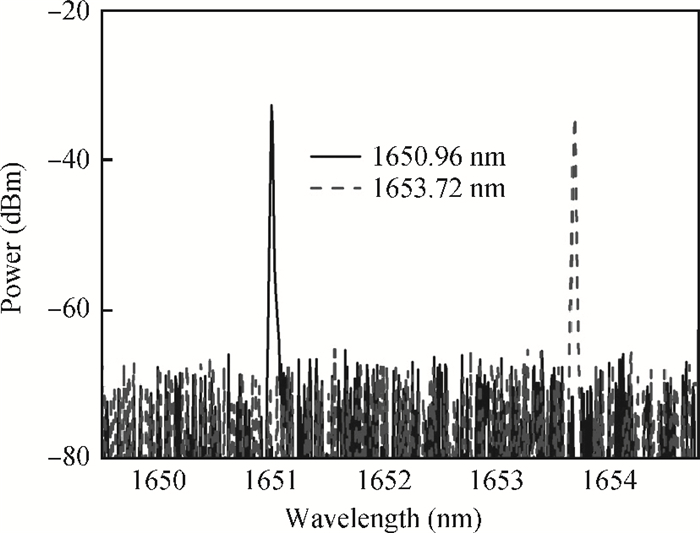

Fig. 6.  Lasing modes at CH4 absorption line manifolds: 1650.96 nm (R4) emitted when ${I_{\text{g}}}$ = 70 mA, ${I_{\text{p}}}$ = 3.4 mA, ${I_{\text{d}}}$ = 10 mA; 1653.72 nm (R3) emitted when ${I_{\text{g}}}$ = 70 mA, ${I_{\text{p}}}$ = 3.4 mA, ${I_{\text{d}}}$ = 45 mA.

DownLoad: Full-Size Img PowerPoint

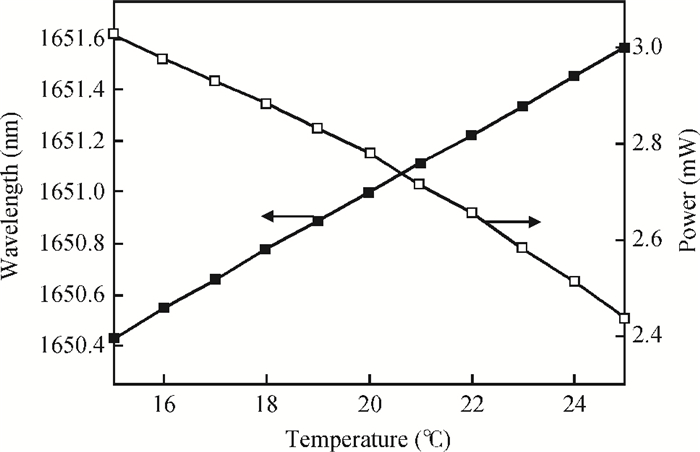

Fig. 7.  Temperature dependency of wavelength and output power.

DownLoad: Full-Size Img PowerPoint

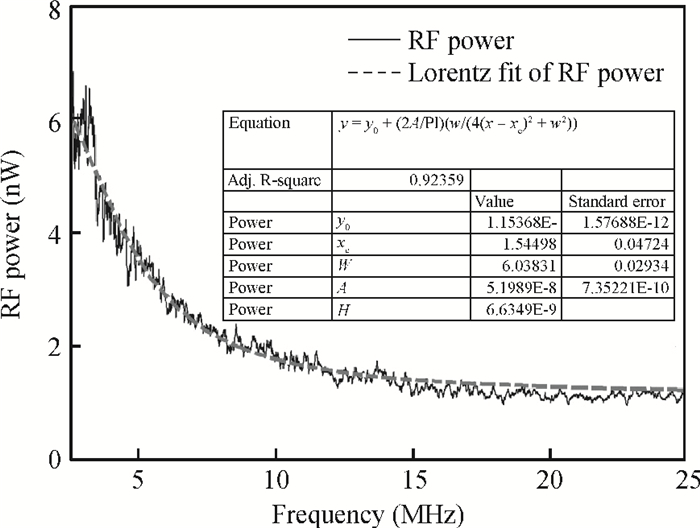

Fig. 8.  Linewidth characterized using the DSH method

DownLoad: Full-Size Img PowerPoint
