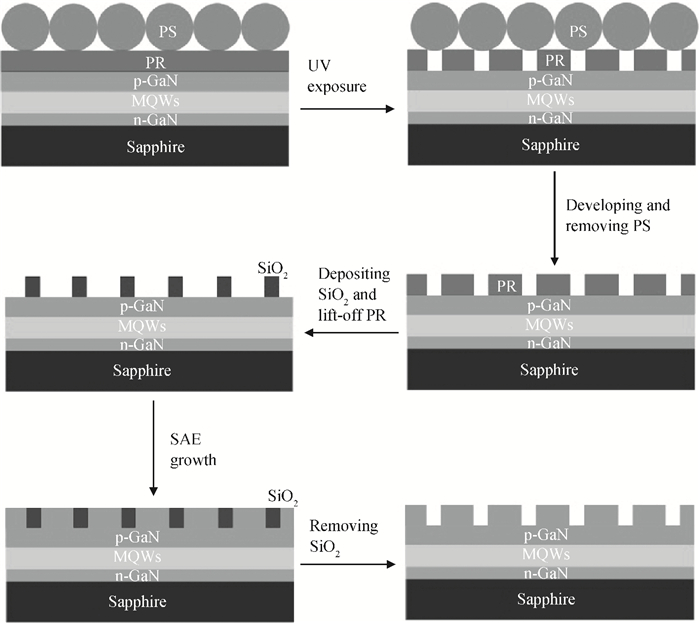

Fig. 1.
Schematic illustration of the process for fabricating hole array PhC LEDs by the NLP and SAE methods.
DownLoad:
| Citation: |
Linghui Zhao, Tongbo Wei, Junxi Wang, Qingfeng Yan, Yiping Zeng, Jinmin Li. Enhanced light extraction of InGaN LEDs with photonic crystals grown on p-GaN using selective-area epitaxy and nanospherical-lens photolithography[J]. Journal of Semiconductors, 2013, 34(10): 104005. doi: 10.1088/1674-4926/34/10/104005
****
L H Zhao, T B Wei, J X Wang, Q F Yan, Y P Zeng, J M Li. Enhanced light extraction of InGaN LEDs with photonic crystals grown on p-GaN using selective-area epitaxy and nanospherical-lens photolithography[J]. J. Semicond., 2013, 34(10): 104005. doi: 10.1088/1674-4926/34/10/104005.
|
Enhanced light extraction of InGaN LEDs with photonic crystals grown on p-GaN using selective-area epitaxy and nanospherical-lens photolithography
DOI: 10.1088/1674-4926/34/10/104005
More Information
-
Abstract

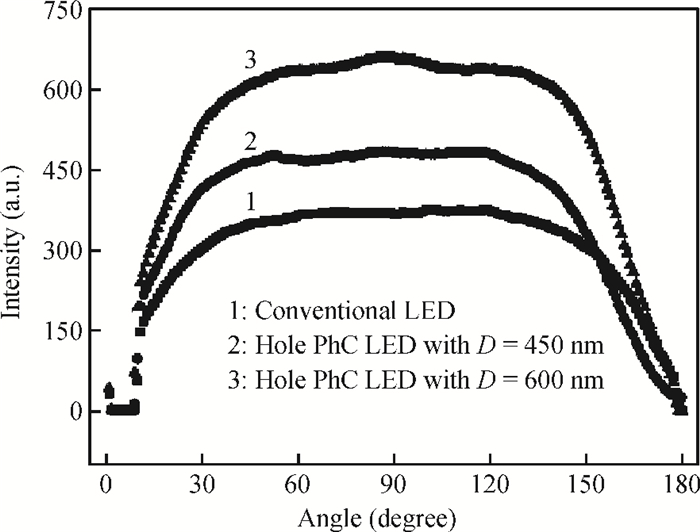

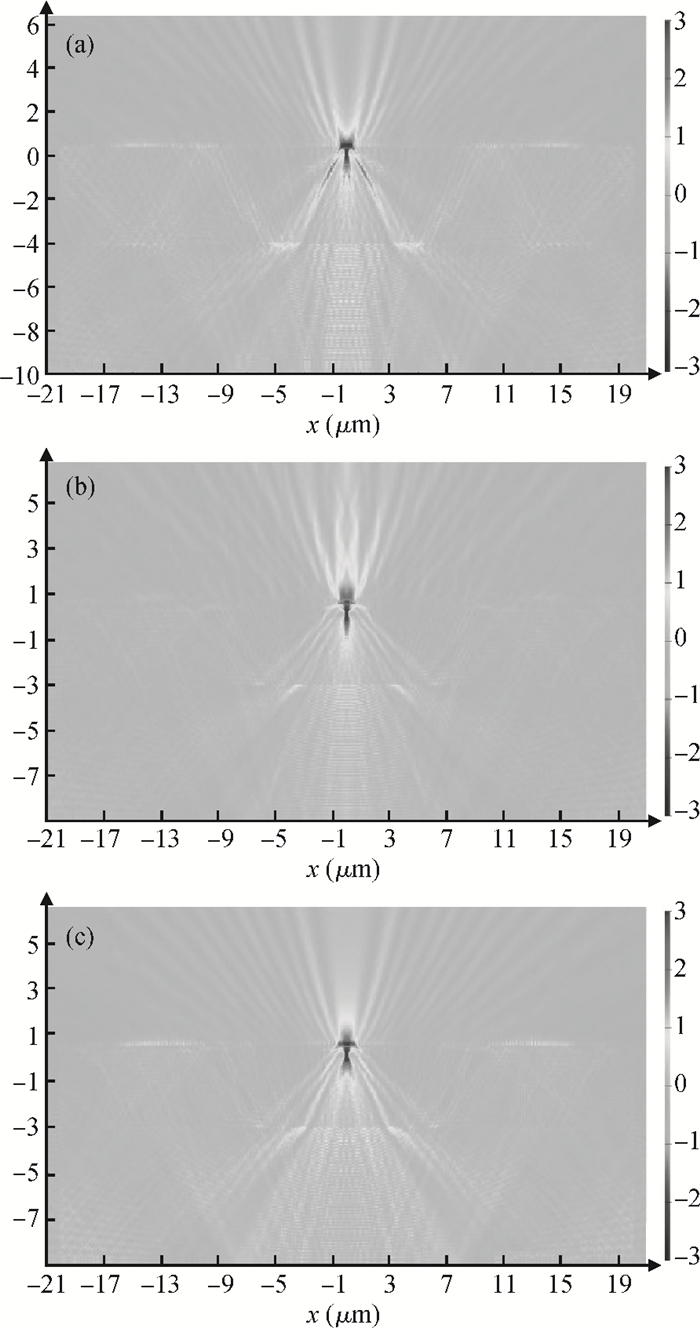

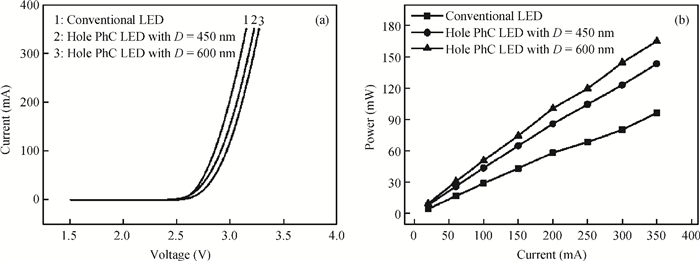

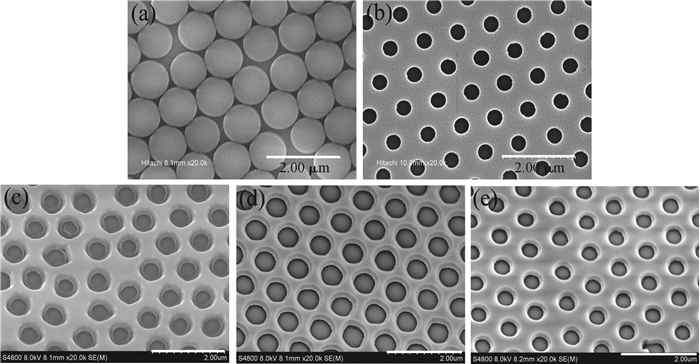

We report a new method for the fabrication of two-dimensional photonic crystal (PhC) hole arrays to improve the light extraction of GaN-based light-emitting diodes (LEDs). The PhC structures were realized using nanospherical-lens photolithography and the selective-area epitaxy method, which ensured the electrical properties of the LEDs through leaving the p-GaN damage-free. At a current of 350 mA, the light output power of LEDs with PhC hole arrays of 450 nm and 600 nm in diameter with the same lattice period of 900 nm were enhanced by 49.3% and 72.2%, respectively, compared to LEDs without a PhC. Furthermore, the LEDs with PhC hole structures showed an obviously smaller divergent angle compared with conventional LEDs, which is consistent with the results of finite-difference time-domain simulation. -
References
[1] Laubsch A, Sabathil M, Baur J, et al. High-power and high-efficiency InGaN-based light emitters. IEEE Trans Electron Devices, 2010, 57:79 doi: 10.1109/TED.2009.2035538[2] Wierer J J, Steigerwald D A, Krames M R, et al. High-power AlGaInN flip-chip light-emitting diodes. Appl Phys Lett, 2001, 78:3379 doi: 10.1063/1.1374499[3] Chhajed S, Lee W, Cho J, et al. Strong light extraction enhancement in GaInN light-emitting diodes by using self-organized nanoscale patterning of p-type GaN. Appl Phys Lett, 2011, 98:071102 doi: 10.1063/1.3554426[4] Wei T B, Kong Q F, Wang J X, et al. Improving light extraction of InGaN-based light emitting diodes with a roughened p-GaN surface using CsCl nano-islands. Opt Express, 2011, 19:1065 doi: 10.1364/OE.19.001065[5] Liu Zike, Gao Wei, Xu Chen, et al. Improved light extraction of wafer-bonded AlGaInP LEDs by surface roughening. Journal of Semiconductors, 2010, 31(11):114011 doi: 10.1088/1674-4926/31/11/114011[6] Jang C H, Sheu J K, Chang S J, et al. Effect of growth pressure of undoped GaN layer on the ESD characteristics of GaN-based LEDs grown on patterned sapphire. IEEE Photonics Technol Lett, 2011, 23:968 doi: 10.1109/LPT.2011.2148196[7] Kim D H, Cho C O, Roh Y G, et al. Enhanced light extraction from GaN-based light-emitting diodes with holographically generated two-dimensional photonic crystal pattern. Appl Phys Lett, 2005, 87:203508 doi: 10.1063/1.2132073[8] Du Wei, Xu Xingsheng, Sun Zenghui, et al. Enhancement of light extraction of LED by photonic crystal structures. Chinese Journal of Semiconductors, 2006, 27(5):921[9] Cheng B S, Chiu C H, Huang K J, et al. Enhanced light extraction of InGaN-based green LEDs by nano-imprinted 2D photonic crystal pattern. Semicond Sci Technol, 2008, 23:055002 doi: 10.1088/0268-1242/23/5/055002[10] Kim J Y, Kwon M K, Lee K S, et al. Enhanced light extraction from GaN-based green light-emitting diode with photonic crystal. Appl Phys Lett, 2007, 91:181109 doi: 10.1063/1.2804005[11] Kang E J, Huh C, Lee S H, et al. Improvement in light-output power of InGaN/GaN LED by formation of nanosize cavities on p-GaN surface. Electrochem Solid-State Lett, 2005, 8:G327 http://esl.ecsdl.org/content/8/12/G327[12] Kim J Y, Kwon M K, Park S J, et al. Enhancement of light extraction from GaN-based green light-emitting diodes using selective area photonic crystal. Appl Phys Lett, 2010, 96:251103 doi: 10.1063/1.3454240[13] Wei T B, Wu K, Lan D, et al. Selectively grown photonic crystal structures for high efficiency InGaN emitting diodes using nanospherical-lens lithography. Appl Phys Lett, 2012, 101:211111 doi: 10.1063/1.4767334[14] Wei T B, Wu K, Chen Y, et al. Improving light output of vertical-stand-type InGaN light-emitting diodes grown on a free-standing GaN substrate with self-assemble conical arrays. IEEE Electron Device Lett, 2012, 33:857 doi: 10.1109/LED.2012.2192092 -
