J. Semicond. > 2013, Volume 34 > Issue 3 > 035001
|

SEMICONDUCTOR INTEGRATED CIRCUITS

A digitally calibrated CMOS RMS power detector for RF automatic gain control

Taotao Yan, Hui Wang, Jinbo Li and Jianjun Zhou

+ Author Affiliations

 Corresponding author: Yan Taotao, Email:yantaotao@ic.sjtu.edu.cn

DOI: 10.1088/1674-4926/34/3/035001

PDF

Abstract: This paper presents the design and implementation of a digitally calibrated CMOS wideband radio frequency (RF) root-mean-square (RMS) power detector for high accuracy RF automatic gain control (AGC). The proposed RMS power detector demonstrates accurate power detection in the presence of process, supply voltage, and temperature (PVT) variations by employing a digital calibration scheme. It also consumes low power and occupies a small chip area. The measurement results show that the scheme improves the accuracy of the detector to better than 0.3 dB over the PVT variations and wide operating frequency range from 0.2 to 0.8 GHz. Implemented in a 0.18 μm CMOS process and occupying a small die area of 263×214 μm2, the proposed digitally calibrated CMOS RMS power detector only consumes 1.6 mA in power detection mode and 2.1 mA in digital calibration mode from a 1.8 V supply voltage.

Key words: automatic gain control, digital calibration, radio-frequency, RMS power detector



[1]
Antoine P, Bauser P, Beaulaton H, et al. A direct-conversion receiver for DVB-H. IEEE J Solid-State Circuits, 2005, 40(12):2536 doi: 10.1109/JSSC.2005.857429
[2]
Lerstaveesin S, Gupta M, Kang D, et al. A 48-860 MHz CMOS low-IF direct-conversion DTV tuner. IEEE J Solid-State Circuits, 2008, 43(9):2013 doi: 10.1109/JSSC.2008.2001900
[3]
Mehr I, Rose S, Nesterenko S, et al. A dual-conversion tuner for multi-standard terrestrial and cable reception. Symposium on VLSI Circuits, 2005:340 http://ieeexplore.ieee.org/document/1469400/authors
[4]
Womac M, Deiss A, Davis T, et al. Dual-band single-ended-input direct-conversion DVB-H receiver. ISSCC Dig Tech Papers, 2006:2514 http://ieeexplore.ieee.org/document/1696316/?arnumber=1696316
[5]
Kim B, Kim T W, Cho Y, et al. A 100 mW dual-band CMOS mobile-TV tuner IC for T-DMB/DAB and ISDB-T. ISSCC Dig Tech Papers, 2006:2534 http://ieeexplore.ieee.org/document/1696318/keywords
[6]
Stevenson J M, Hisayasu P, Deiss A, et al. A multi-standard analog and digital TV tuner for cable and terrestrial applications. ISSCC Dig Tech Papers, 2007:210 http://ieeexplore.ieee.org/document/4242339/
[7]
Meyer R G. Low-power monolithic RF peak detector analysis. IEEE J Solid-State Circuits, 1995, 30(1):65 doi: 10.1109/4.350192
[8]
Milanovic V, Gaitan M, Marshall J C, et al. CMOS foundry implementation of Schottky diodes for RF detection. IEEE Trans Electron Devices, 1996, 43(12):2210 doi: 10.1109/16.544393
[9]
Yin Q, Eisenstadt W R, Fox R M, et al. A translinear RMS detector for embedded test of RF ICs. IEEE Trans Instrumentation and Measurement, 2005, 54(5):1708 doi: 10.1109/TIM.2005.855105
[10]
Winter S M, Ehm H J, Koelpin A, et al. Diode power detector DC operating point in six-port communications receivers. 37th European Microwave Conference, 2007:795 http://ieeexplore.ieee.org/document/4405312/
[11]
Yamamoto K, Miyashita M, Kurusu H, et al. A current-mirror-based GaAs-HBT RF power detector for wireless applications. ICSICT, 2007:1 http://ieeexplore.ieee.org/document/4384432/?arnumber=4384432&contentType=Conference%20Publications
[12]
Gorisse J, Cathelin A, Kaiser A, et al. A 60 GHz 65 nm CMOS RMS power detector for antenna impedance mismatch detection. ESSCIRC, 2009:172
[13]
Ho S. A 450 MHz CMOS RF power detector. IEEE Radio Frequency Integrated Circuits (RFIC) Symposium, 2001:209 http://ieeexplore.ieee.org/document/935677/
[14]
Kouwenhoven M, Staveren A V. A 2 GHz mean-square power detector with integrated offset chopper. IEEE Intel Solid-State Circuits Conference Digest of Technical Papers, 2005:124 http://ieeexplore.ieee.org/document/1493900/?reload=true&arnumber=1493900&contentType=Conference%20Publications
[15]
Dai Y, Han K, Yan N, et al. A high dynamic range linear RF power detector with a preceding LNA. Journal of Semiconductors, 2012, 33(1):015005 doi: 10.1088/1674-4926/33/1/015005

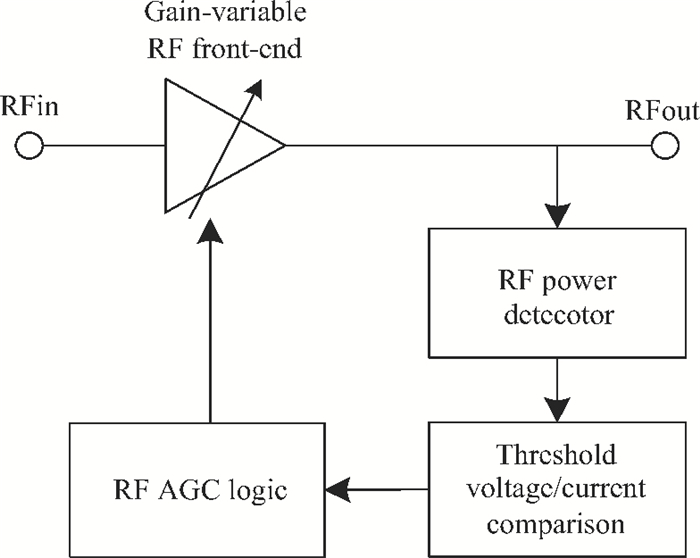

Fig. 1.  Block diagram of a typical RF AGC loop.

DownLoad: Full-Size Img PowerPoint

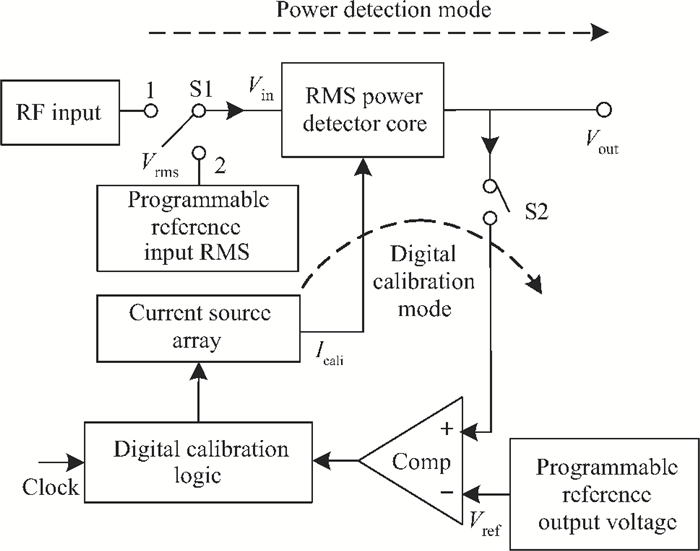

Fig. 2.  Block diagram of the digitally calibrated RMS power detector.

DownLoad: Full-Size Img PowerPoint

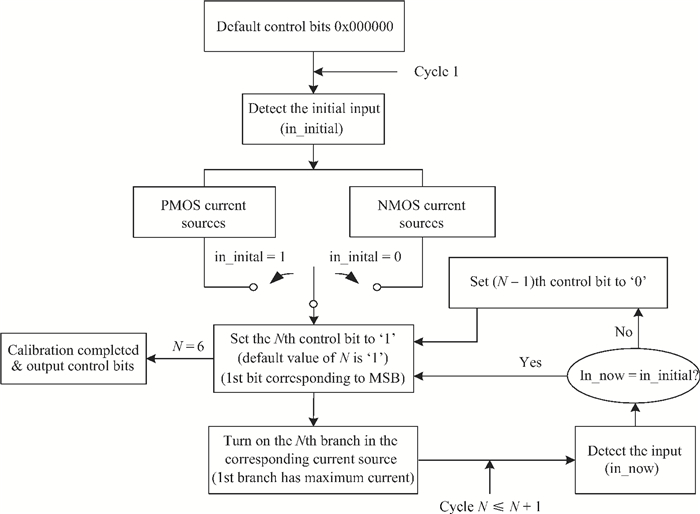

Fig. 3.  The flow chart of the proposed digital calibration.

DownLoad: Full-Size Img PowerPoint

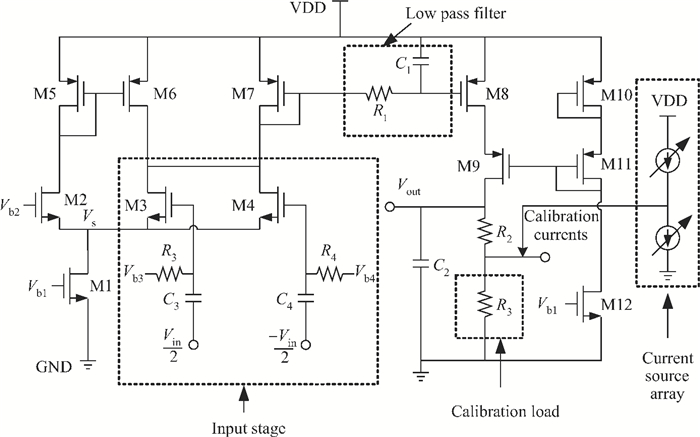

Fig. 4.  Core schematic of the RMS power detector.

DownLoad: Full-Size Img PowerPoint

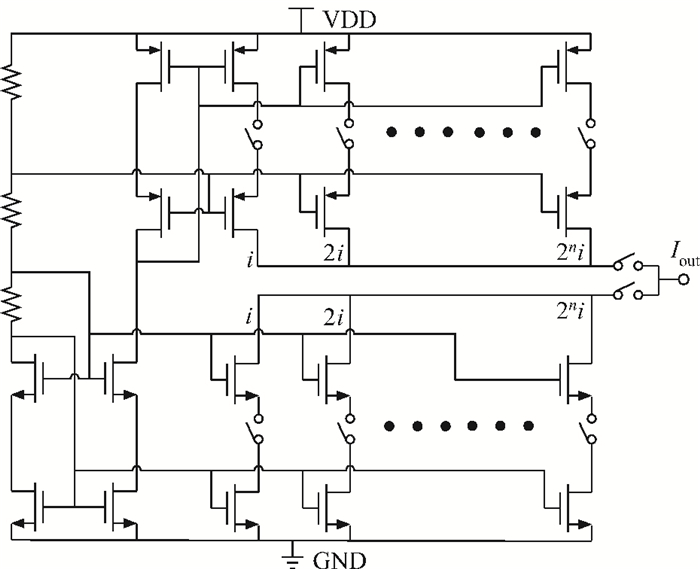

Fig. 5.  Schematic of the current source array.

DownLoad: Full-Size Img PowerPoint

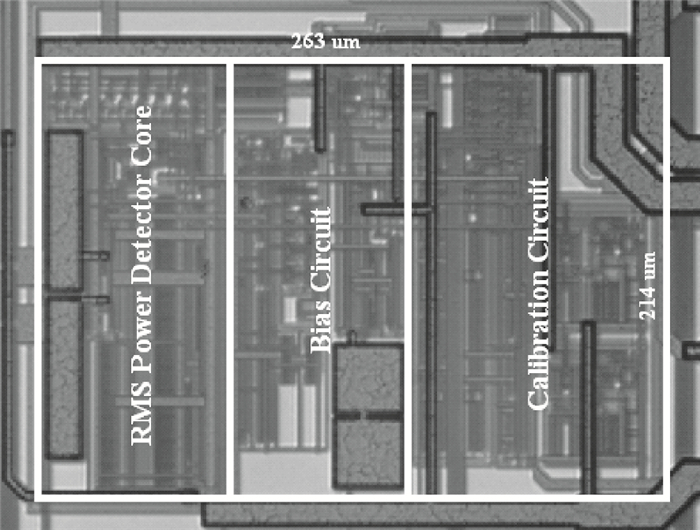

Fig. 6.  Die photograph of the proposed power detector.

DownLoad: Full-Size Img PowerPoint

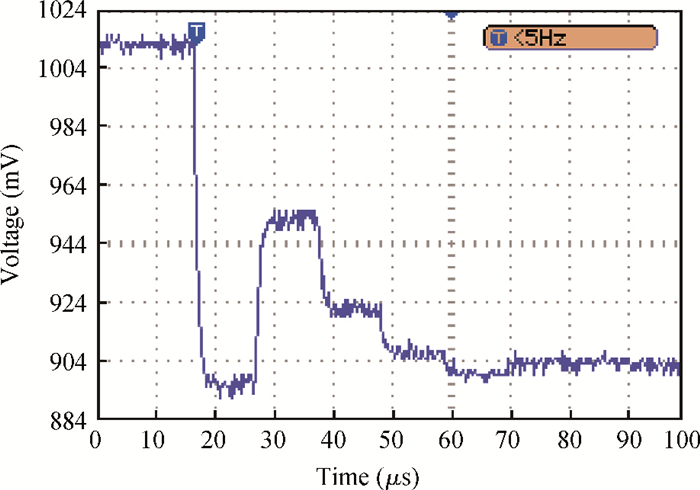

Fig. 7.  Measured transient response of the power detector output voltage during digital calibration (Clock Freq. $=$ 100 kHz).

DownLoad: Full-Size Img PowerPoint

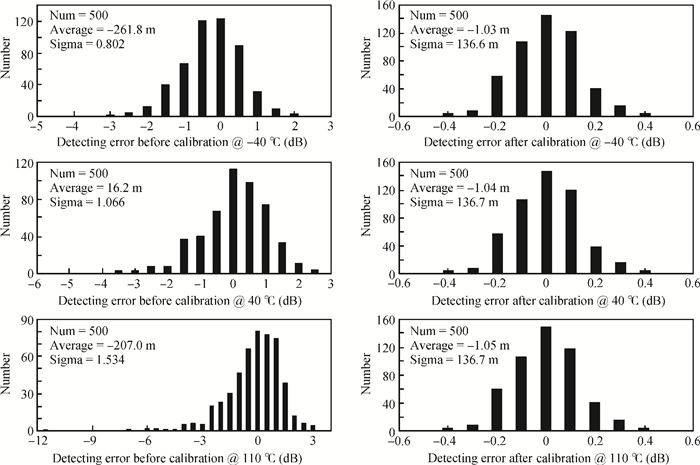

Fig. 8.  Monter carlo simulation for detecting errors before and after digital calibration at different temperatures ($-40$ ℃, 40 ℃, 110 ℃).

DownLoad: Full-Size Img PowerPoint

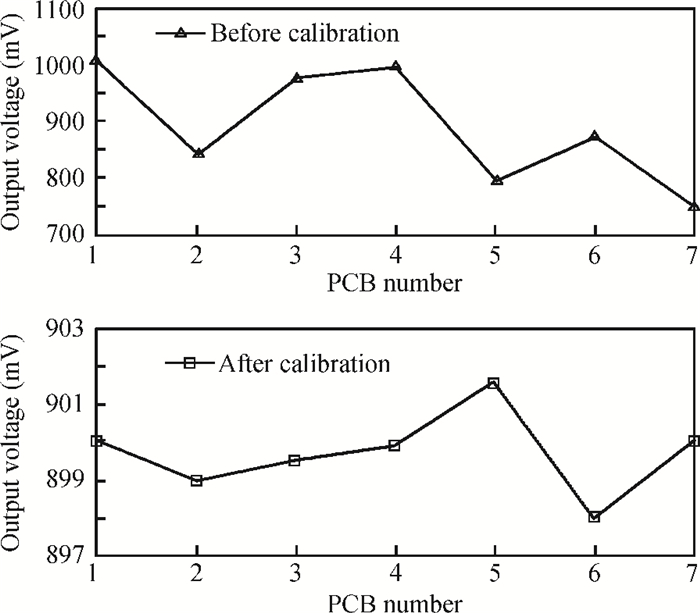

Fig. 9.  Measured power detector output voltage for -15 dBm input RF power before and after digital calibration.

DownLoad: Full-Size Img PowerPoint

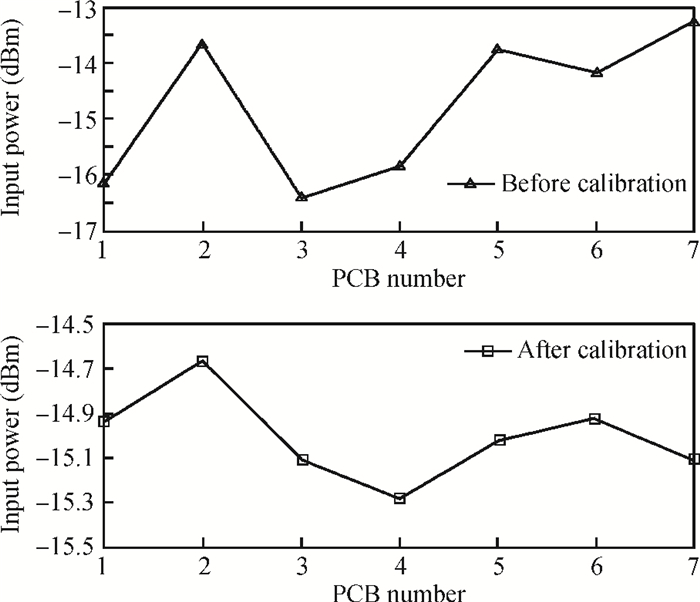

Fig. 10.  Measured power detector input RF power for 900 mV output voltage before and after calibration.

DownLoad: Full-Size Img PowerPoint

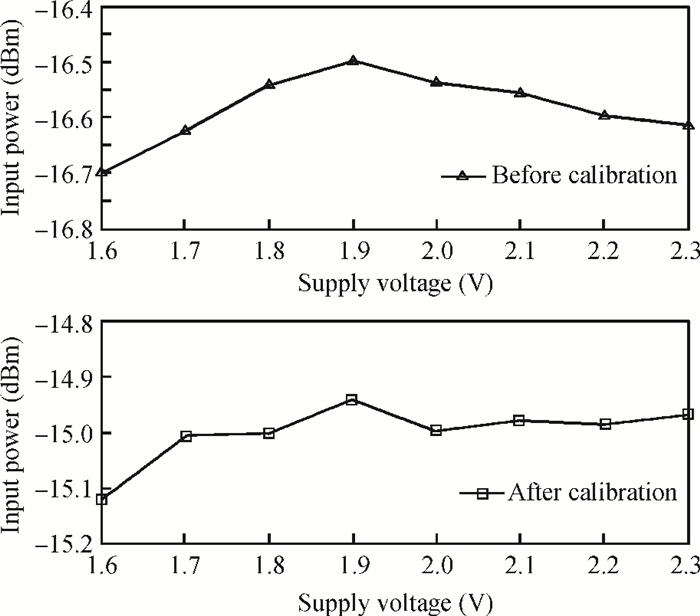

Fig. 11.  Measured power detector input RF power for 900 mV output voltage before and after calibration versus supply voltage.

DownLoad: Full-Size Img PowerPoint
Fig. 12.  Measured power detector input RF power for 900 mV output voltage before and after calibration versus temperature.

DownLoad: Full-Size Img PowerPoint

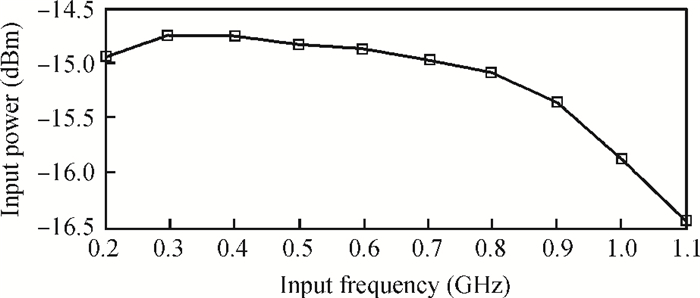

Fig. 13.  Measured power detector input RF power for 900 mV output voltage after calibration versus input frequency.

DownLoad: Full-Size Img PowerPoint

Table 1.   Summary of performance measurements and comparison.
