Formation of single crystalline tellurium supersaturated silicon pn junctions by ion implantation followed by pulsed laser melting

Xiyuan Wang; Yongguang Huang; Dewei Liu; Xiaoning Zhu; Xiao Cui; Hongliang Zhu

doi:10.1088/1674-4926/34/6/063001

J. Semicond. > 2013, Volume 34 > Issue 6 > 063001

SEMICONDUCTOR MATERIALS

Formation of single crystalline tellurium supersaturated silicon pn junctions by ion implantation followed by pulsed laser melting

Xiyuan Wang, Yongguang Huang, Dewei Liu, Xiaoning Zhu, Xiao Cui and Hongliang Zhu

+ Author Affiliations

Corresponding author: Huang Yongguang, Email:yghuang@red.semi.ac.cn

DOI: 10.1088/1674-4926/34/6/063001

Abstract: Pn junctions based on single crystalline tellurium supersaturated silicon were formed by ion implantation followed by pulsed laser melting (PLM). P type silicon wafers were implanted with 245 keV ¹²⁶Te⁺ to a dose of 2×10¹⁵ ions/cm², after a PLM process (248 nm, laser fluence of 0.30 and 0.35 J/cm², 1-5 pulses, duration 30 ns), an n⁺ type single crystalline tellurium supersaturated silicon layer with high carrier density (highest concentration 4.10×10¹⁹ cm^-3, three orders of magnitude larger than the solid solution limit) was formed, it shows high broadband optical absorption from 400 to 2500 nm. Current-voltage measurements were performed on these diodes under dark and one standard sun (AM 1.5), and good rectification characteristics were observed. For present results, the samples with 4-5 pulses PLM are best.

Key words: tellurium supersaturated silicon pn junction, strong sub-band-gap optical absorption, ion implantation, pulsed laser melting

References

[1]	Wu C, Crouch C H, Zhao L, et al. Near-unity below-band-gap absorption by microstructured silicon. Appl Phys Lett, 2001, 78(13):1850 doi: 10.1063/1.1358846
[2]	Sheehy M A, Tull B R, Friend C M, et al. Chalcogen doping of silicon via intense femtosecond-laser irradiation. Mater Sci Eng B, 2007, 137:289 doi: 10.1016/j.mseb.2006.10.002
[3]	Crouch C H, Carey J E, Warrender J M, et al. Comparison of structure and properties of femtosecond and nanosecond laser-structured silicon. Appl Phys Lett, 2004, 84(11):1850 doi: 10.1063/1.1667004
[4]	Crouch C H, Carey J E, Shen M, et al. Infrared absorption by sulfur-doped silicon formed by femtosecond laser irradiation. Appl Phys A, 2004, 79:1635 doi: 10.1007/s00339-004-2676-0?no-access=true
[5]	Sheehy M A, Winston L, Carey J E, et al. Role of the background gas in the morphology and optical properties of laser-microstructured silicon. Chem Mater, 2005, 17:3582 doi: 10.1021/cm049029i
[6]	Tabbal M, Kim T, Woolf D N, et al. Fabrication and sub-band-gap absorption of single-crystal Si supersaturated with Se by pulsed laser mixing. Appl Phys A, 2010, 98:589 doi: 10.1007/s00339-009-5462-1
[7]	Hu S, Han P, Wang S, et al. Improved photoresponse characteristics in Se-doped Si photodiodes fabricated using picosecond pulsed laser mixing. Semicond Sci Technol, 2012, 27:1 http://www.ingentaconnect.com/content/iop/sst/2012/00000027/00000010/art102002
[8]	Kim T G, Warrender J M, Aziz M J. Strong sub-band-gap infrared absorption in silicon supersaturated with sulfur. Appl Phys Lett, 2006, 88:241902 doi: 10.1063/1.2212051
[9]	Bob B P, Kohno A, Charnvanichborikarn S, et al. Fabrication and subband gap optical properties of silicon supersaturated with chalcogens by ion implantation and pulsed laser melting. J Appl Phys, 2010, 107:123506 doi: 10.1063/1.3415544
[10]	Pan S H, Recht D, Charnvanichborikarn S, et al. Enhanced visible and near-infrared optical absorption in silicon supersaturated with chalcogens. Appl Phys Lett, 2011, 98:121913 doi: 10.1063/1.3567759
[11]	Carey J E, Crouch C H, Shen M, et al. Visible and near-infrared responsivity of femtosecond-laser microstructured silicon photodiodes. Opt Lett, 2005, 30(14):1773 doi: 10.1364/OL.30.001773
[12]	Huang Z, Carey J E, Liu M, et al. Microstructured silicon photodetector. Appl Phys Lett, 2006, 89:033506 doi: 10.1063/1.2227629
[13]	Said A J, Recht D, Sullivan J T, et al. Extended infrared photoresponse and gain in chalcogen-supersaturated silicon photodiodes. Appl Phys Lett, 2011, 99:073503 doi: 10.1063/1.3609871
[14]	Tull B R, Winkler M T, Mazur E. The role of diffusion in broadband infrared absorption in chalcogen-doped silicon. Appl Phys A, 2009, 96:327 doi: 10.1007/s00339-009-5200-8
[15]	Shao H, Li Y, Zhang J, et al. Physical mechanisms for the unique optical properties of chalcogen-hyperdoped silicon. Euro Phys Lett, 2012, 99:46005 doi: 10.1209/0295-5075/99/46005
[16]	Sánchez K, Aguilera I, Palacios P, et al. Formation of a reliable intermediate band in Si heavily coimplanted with chalcogens (S, Se, Te) and group Ⅲ elements (B, Al). Phys Rev B, 2010, 82:165201 doi: 10.1103/PhysRevB.82.165201
[17]	Wang Xiyuan, Huang Yongguang, Liu Dewei, et al. Fabrication of tellurium doped silicon detector by femtosecond laser and excimer laser. Chinese Journal of Lasers, 2013, 40(3):0302001 doi: 10.3788/CJL
[18]	Wang Xiyuan, Huang Yongguang, Liu Dewei, et al. High response in a tellurium-supersaturated silicon photodiode. Chin Phys Lett, 2013, 30(3):036101 doi: 10.1088/0256-307X/30/3/036101
[19]	Her T H, Finlay R J, Wu C, et al. Microstructuring of silicon with femtosecond laser pulses. Appl Phys Lett, 1998, 73(12):1673 doi: 10.1063/1.122241
[20]	Li Ping, Wang Yu, Feng Guojin, et al. Study of silicon micro-structuring using ultra-short laser pulses. Chinese Journal of Lasers, 2006, 33(12):1688 doi: 10.1007/s00339-004-2676-0?no-access=true
[21]	Ziegler J F, Ziegler M D, Biersack J P. SRIM-the stopping and range of ions in matter. Nuclear Instruments and Methods in Physics Research B, 2010, 268:1818 doi: 10.1016/j.nimb.2010.02.091
[22]	Voutsas A T, Hatalis M K, Boyce J, et al. Raman spectroscopy of amorphous and microcrystalline silicon films deposited by low-pressure chemical vapor deposition. J Appl Phys, 1995, 78(12):6999 doi: 10.1063/1.360468
[23]	Tabbal M, Kim T, Warrender J M, et al. Formation of single crystal sulfur supersaturated silicon based junctions by pulsed laser melting. J Vac Sci Technol B, 2007, 25(6):1847 doi: 10.1116/1.2796184
[24]	Sheehy M A. Femtosecond-laser microstructuring of silicon:dopants and defects. PhD Dissertation, Harvard University, Cambridge, MA, 2004:27 http://adsabs.harvard.edu/abs/2004PhDT.......230S
[25]	Narayan J, White C W, Aziz M J, et al. Pulsed excimer (KrF) laser melting of amorphous and crystalline silicon layers. J Appl Phys, 1985, 57(2):564 doi: 10.1063/1.334738
[26]	Ertekin E, Winkler M T, Recht D, et al. Insulator-to-metal transition in selenium-hyperdoped silicon:observation and origin. Phys Rev Lett, 2012, 108:026401 doi: 10.1103/PhysRevLett.108.026401

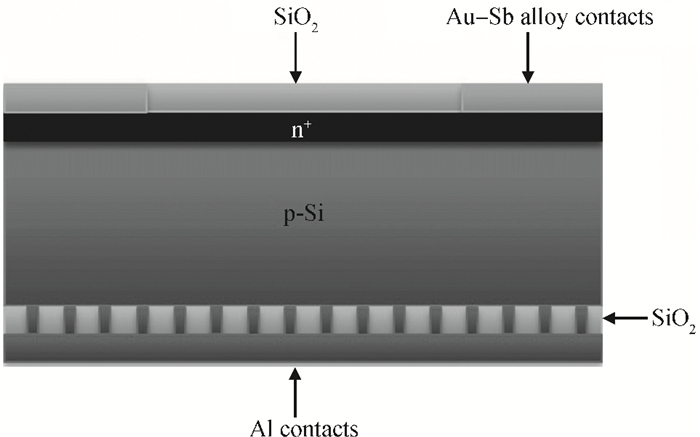

Fig. 1. Schematic diagram of tellurium supersaturated silicon diode.

DownLoad: Full-Size Img PowerPoint

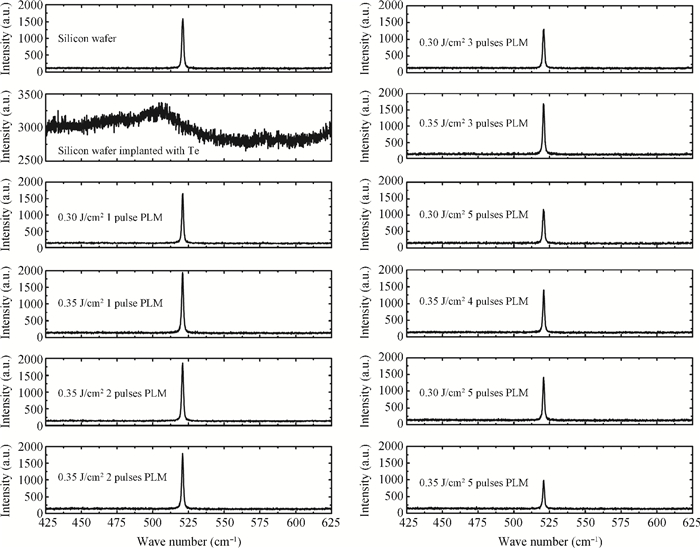

Fig. 2. Raman spectra of silicon wafer, silicon wafer implanted with Te, and Te supersaturated silicon after PLM.

DownLoad: Full-Size Img PowerPoint

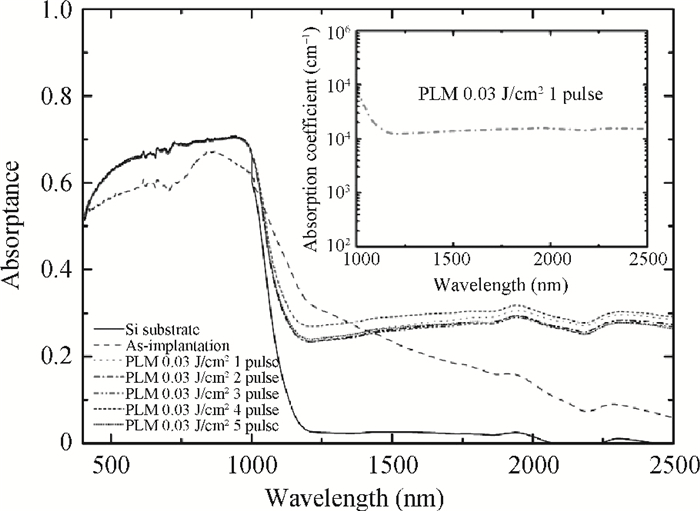

Fig. 3. The absorptance of silicon substrate, silicon implanted with Te, and Te supersaturated silicon after PLM 0.30 J/cm$^{2}$, 1-5 pulses ranges from 400 to 2500 nm. Inset is the absorption coefficient of Te supersaturated silicon after PLM 0.30 J/cm$^{2}$, 1 pulse. Reflectance and transmittance were measured directly, absorptance was calculated by formula $A=1-R-T$, absorption coefficient was calculated by formula $\alpha$ $=$ ln[(1-$R)/T]$ / $d.$

DownLoad: Full-Size Img PowerPoint

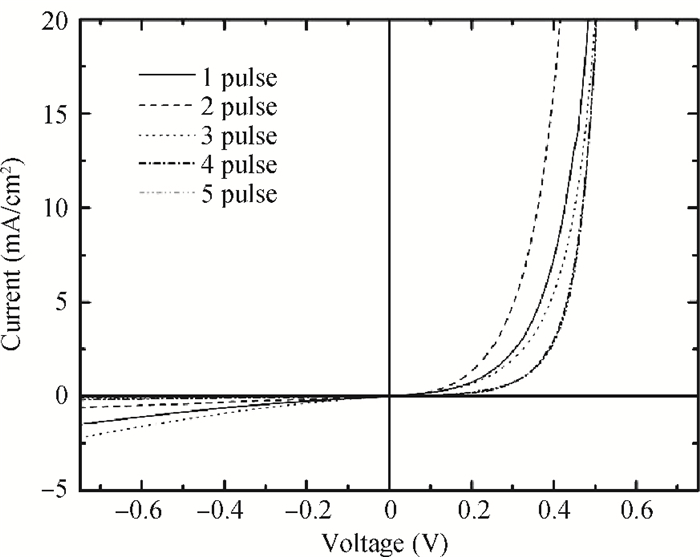

Fig. 4. The current-voltage characteristics of Te supersaturated silicon diodes with PLM 0.30 J/cm$^{2}$, 1-5 pulses.

DownLoad: Full-Size Img PowerPoint

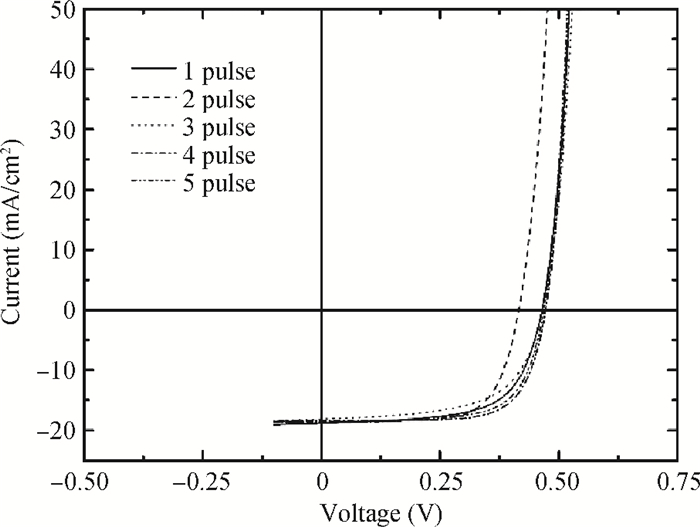

Fig. 5. $I$-$V$ curves measured under one standard sun at room temperature (AM 1.5) for Te supersaturated silicon diodes with PLM 0.30 J/cm$^{2}$, 1-5 pulses.

DownLoad: Full-Size Img PowerPoint

Table 1. Number of shots, laser fluence, sheet carrier concentration, Hall mobility and carrier to donor ratio for PLM layer of silicon wafer supersaturated with Te at dose of 2 $\times$ 10$^{15}$ ions/cm$^{2}$.
