J. Semicond. > 2013, Volume 34 > Issue 9 > 095007
|

SEMICONDUCTOR INTEGRATED CIRCUITS

A high linearity multi-band and gain adjustable channel-select filter for TV-tuner application

Xin Wang, Tao Cheng, Jie Liu and Zhangwen Tang

+ Author Affiliations

 Corresponding author: Tang Zhangwen, Email:zwtang54@fudan.edu.cn

DOI: 10.1088/1674-4926/34/9/095007

PDF

Abstract: This paper presents a channel-select filter that employs an active-RC bi-quad structure for TV-tuner application. A design method to optimize the ⅡP3 of the bi-quad is developed. Multi-band selection and gain adjustment are implemented using switching resistors in the resistor array and capacitors in the capacitor array. Q-factor degradation is compensated by a tuning segmented resistor. A feed-forward OTA with high gain and low third-order distortion is applied in the bi-quad to maximize linearity performance and minimize area by avoiding extra compensation capacitor use. An RC tuning circuit and DC offset cancellation circuit are designed to overcome the process variation and DC offset, respectively. The experimental results yield an in-band ⅡP3 of more than 31 dBm at 0 dB gain, a 54 dB gain range with 6 dB gain step, and a continuous frequency tuning range from 0.25 to 4 MHz. The in-band ripple is less than 1.4 dB at high gain mode, while the gain error and frequency tuning error are no more than 3.4% and 5%, respectively. The design, which is fabricated in a 0.18 μm CMOS process, consumes 12.6 mW power at a 1.8 V supply and occupies 1.28 mm2.

Key words: channel select filter, high linearity, gain adjustable, multi-band, TV tuner



[1]
Namgoong W, Meng T H. Direct-conversion RF receiver design. IEEE Trans Commun, 2001, 49:518 doi: 10.1109/26.911459
[2]
Chang J H, Kim H, Choi J H, et al. A multistandard multiband mobile TV RF SoC in 65 nm CMOS. IEEE ISSCC Dig of Tec Papers, 2010:462 http://ieeexplore.ieee.org/document/5433847/
[3]
Antoine P, Bauser P, Beaulaton H, et al. A direct-conversion receiver for DVB-H. IEEE J Solid-State Circuits, 2005, 40(12):2536 http://ieeexplore.ieee.org/document/1546229/
[4]
Wang W, Chang X, Wang X, et al. A 4th-order reconfigurable analog baseband filter for software-defined radio applications. Journal of Semiconductors, 2011, 32(4):045008 doi: 10.1088/1674-4926/32/4/045008
[5]
Zou L, Liao Y, Tang Z. An eighth order channel selection filter for low-IF and zero-IF DVB tuner applications. Journal of Semiconductors, 2009, 30(11):115002 doi: 10.1088/1674-4926/30/11/115002
[6]
Wambacq P, Sansen W M C. Distortion analysis of analog integrated circuits. Springer, 1998
[7]
Palaskas Y, Tsividis Y. Dynamic range optimization of weakly nonlinear, fully balanced, Gm-C filters with power dissipation constraints. IEEE Trans Circuits Syst Ⅱ:Analog and Digital Signal Processing, 2003, 50(10):714 doi: 10.1109/TCSII.2003.818365
[8]
Meghdadi M, Bakhtiar M S. Analysis and optimization of SFDR in differential active-RC filters. IEEE Trans Circuits Syst Ⅰ:Regular Papers, 2012, 59(6):1168 doi: 10.1109/TCSI.2011.2173388
[9]
Schaumann R, the late Valkenburg M E V. Design of analog filters. Oxford University Press, USA, 2001
[10]
Amir-Aslanzadeh H, Pankratz E J, Sanchez-Sinencio E. A 1-V +31 dBm ⅡP3, reconfigurable, continuously tunable, power-adjustable active-RC LPF. IEEE J Solid-State Circuits, 2009, 44(2):495 doi: 10.1109/JSSC.2008.2011037
[11]
Harrison J, Weste N. A 500 MHz CMOS anti-alias filter using feed-forward op-amps with local common-mode feedback. IEEE ISSCC Dig Tec Papers, 2003:132 http://ieeexplore.ieee.org/document/1234236/
[12]
Krishnapura N, Agrawal A, Singh S. A High-ⅡP3 third-order elliptic filter with current-efficient feedforward-compensated opamps. IEEE Trans Circuits Syst Ⅱ:Express Briefs, 2011, 58(4):205 doi: 10.1109/TCSII.2011.2124571
[13]
Mak P I, Seng-Pan U, Martins R P. On the design of a programmable-gain amplifier with built-in compact DC-offset cancellers for very low-voltage WLAN systems. IEEE Trans Circuits Syst Ⅰ:Regular Papers, 2008, 55(2):496 doi: 10.1109/TCSI.2007.910643

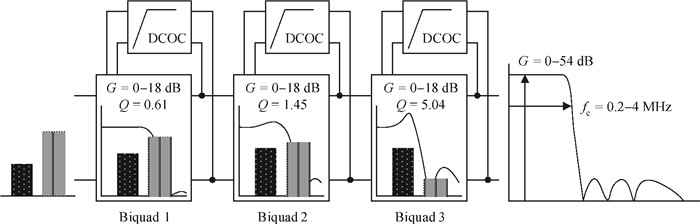

Fig. 1.  The filter structure including DCOC.

DownLoad: Full-Size Img PowerPoint

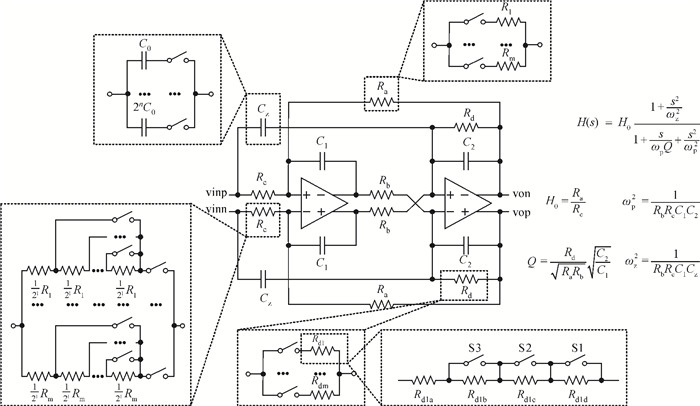

Fig. 2.  The Tow-Thomas bi-quad structure.

DownLoad: Full-Size Img PowerPoint

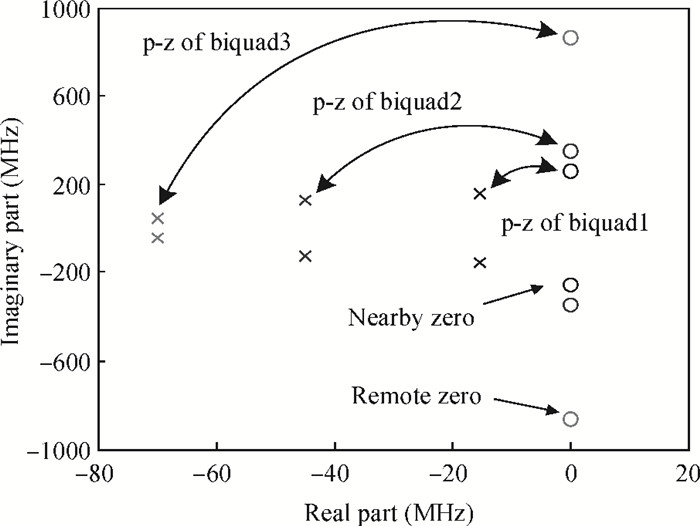

Fig. 3.  Pole and zero pairing.

DownLoad: Full-Size Img PowerPoint

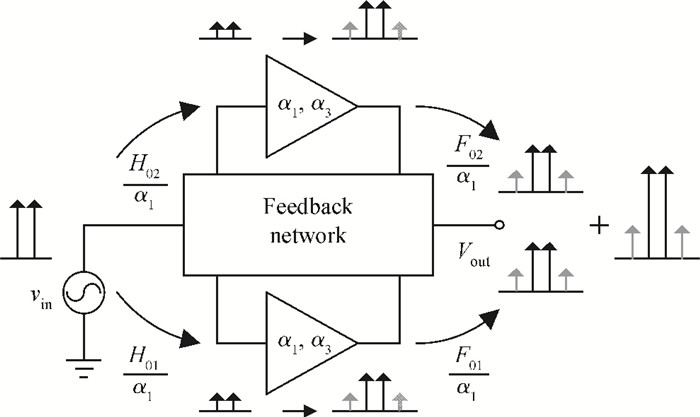

Fig. 4.  The distortion analysis model.

DownLoad: Full-Size Img PowerPoint

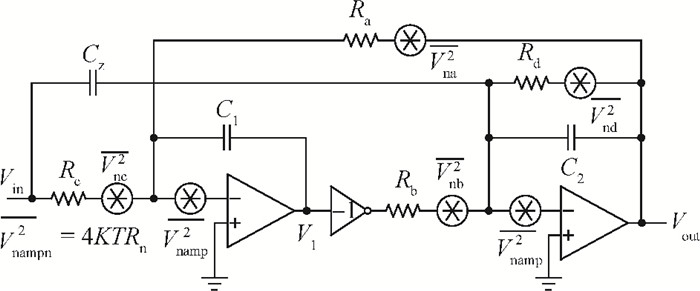

Fig. 5.  The noise analysis model.

DownLoad: Full-Size Img PowerPoint
Fig. 6.  The optimization of IIP3 and NF trade-off.

DownLoad: Full-Size Img PowerPoint

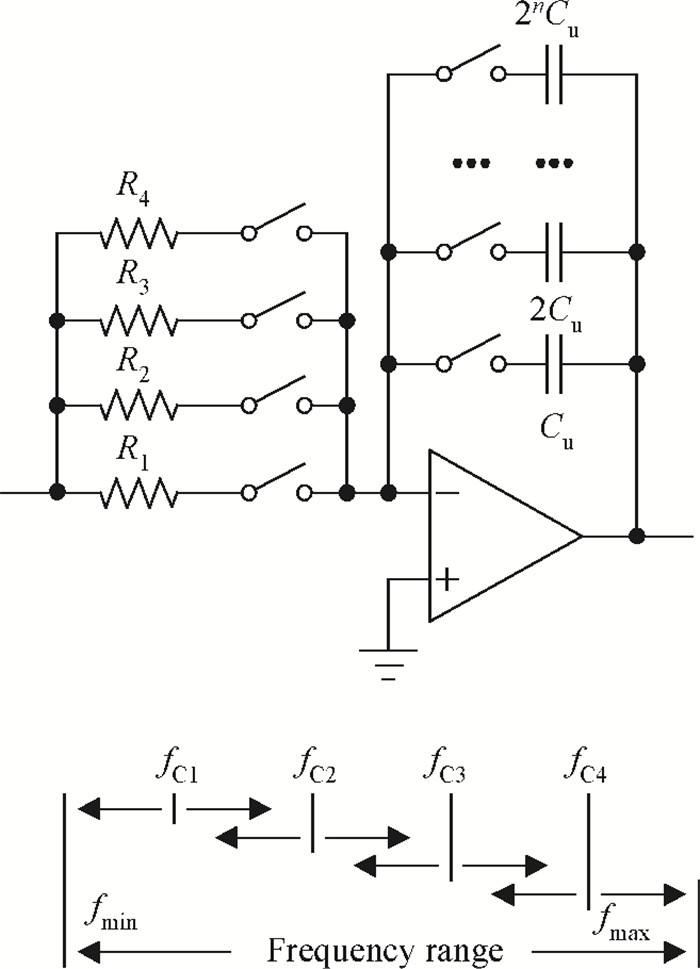

Fig. 7.  The band selection and frequency tuning scheme.

DownLoad: Full-Size Img PowerPoint

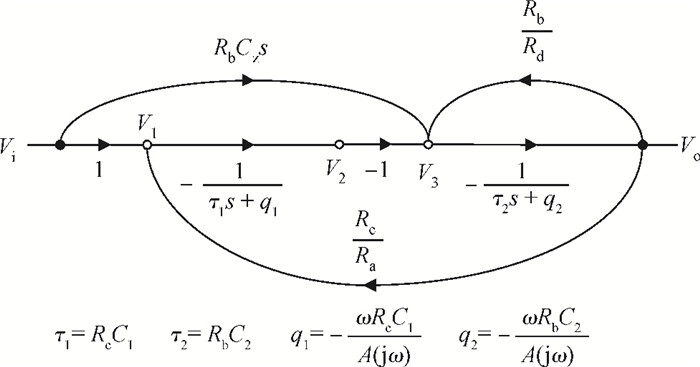

Fig. 8.  The SFG of the bi-quad with a non-ideal integrator model.

DownLoad: Full-Size Img PowerPoint

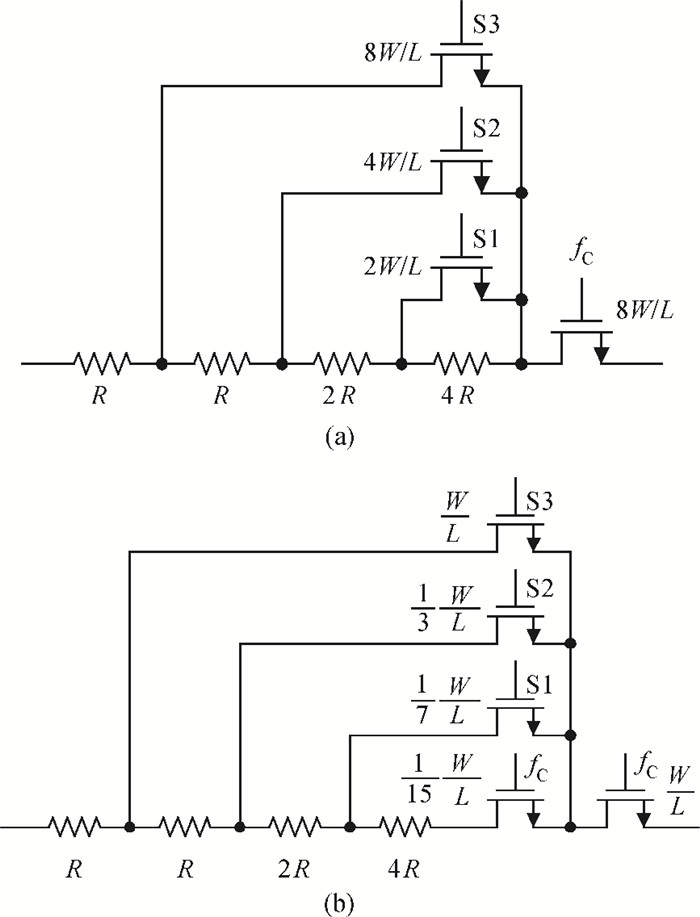

Fig. 9.  The match scheme for small gain error. (a) The traditional method. (b) The proposed method.

DownLoad: Full-Size Img PowerPoint

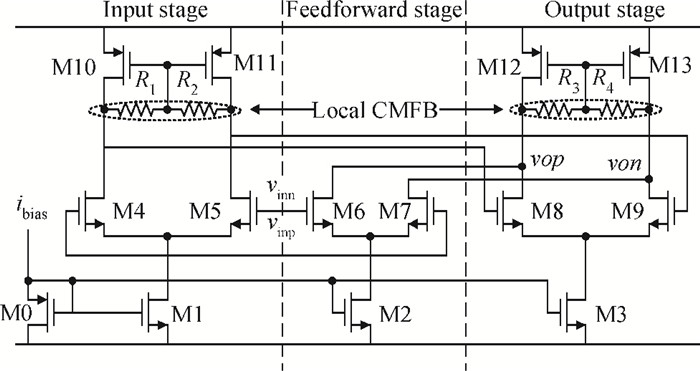

Fig. 10.  Schematic of the feed-forward OTA.

DownLoad: Full-Size Img PowerPoint

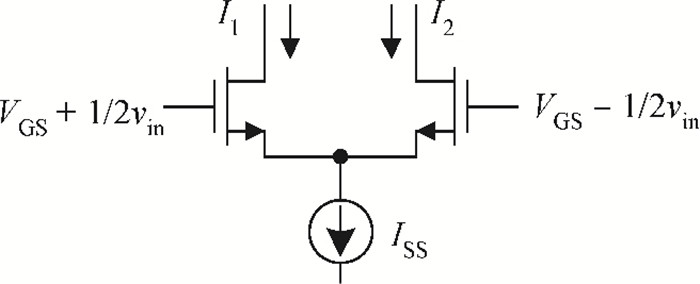

Fig. 11.  The differential $g_{\rm m}$ unit.

DownLoad: Full-Size Img PowerPoint
Fig. 12.  The nonlinear model of OTA for distortion analysis.

DownLoad: Full-Size Img PowerPoint

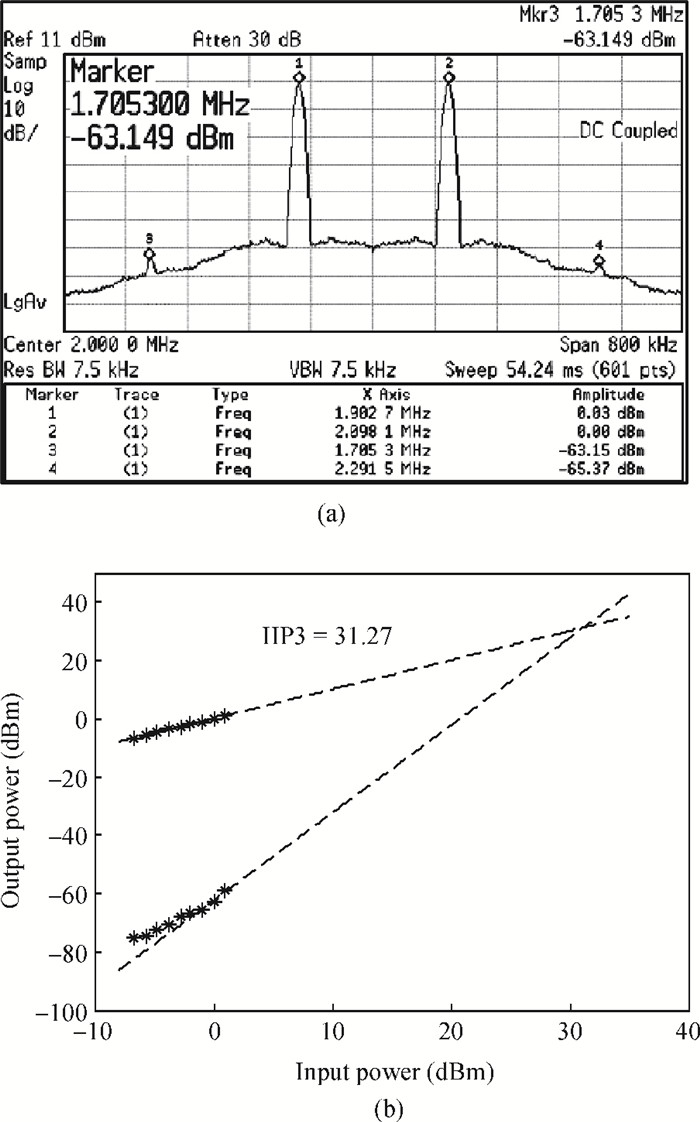

Fig. 13.  In-band IIP3 test. (a) In-band two-tone test. (b) Extrapolated IIP3.

DownLoad: Full-Size Img PowerPoint

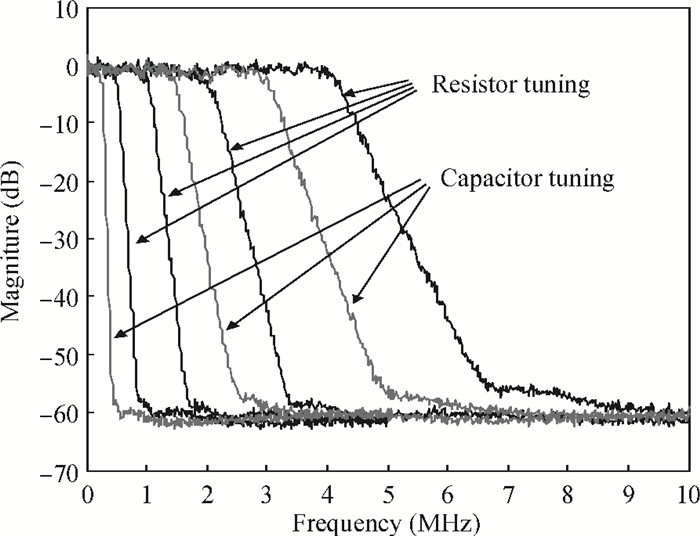

Fig. 14.  The band selection of the filter.

DownLoad: Full-Size Img PowerPoint

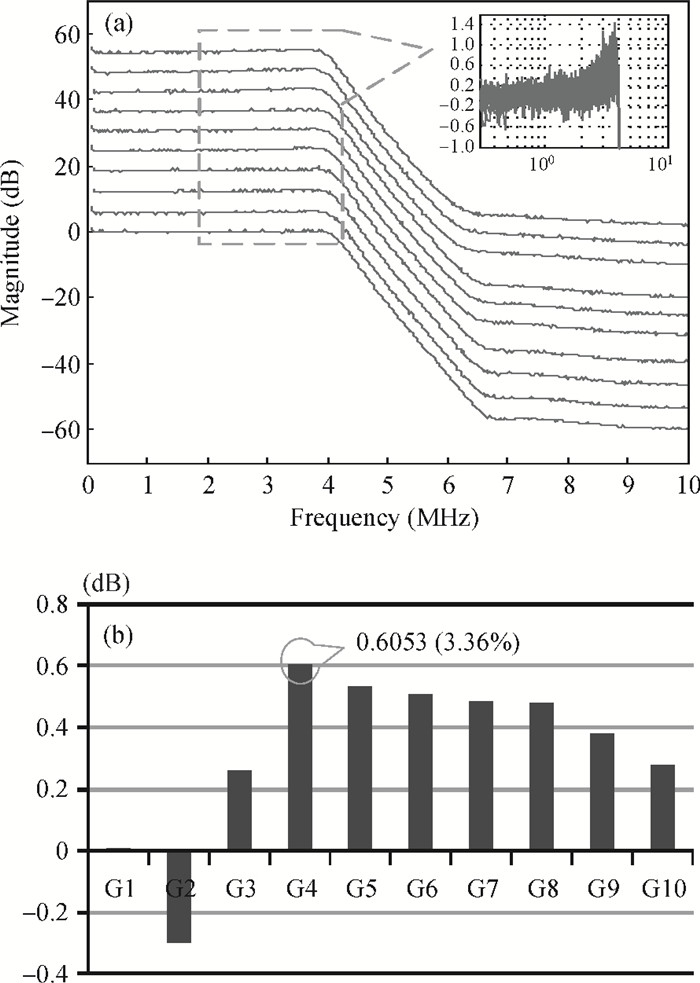

Fig. 15.  The gain step test. (a) Gain range and magnified ripple detail, and (b) gain error.

DownLoad: Full-Size Img PowerPoint
Fig. 16.  The die photo.

DownLoad: Full-Size Img PowerPoint

Table 1.   Comparison to recently published work.

Table 2.   Comparison to recently published work.
