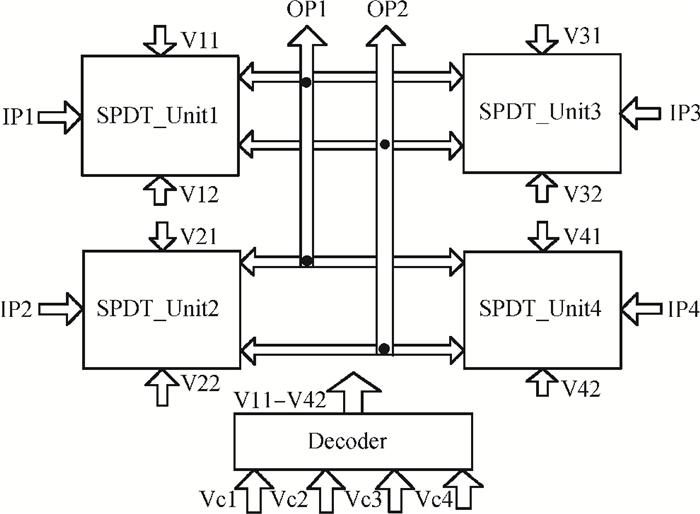

Fig. 1.
Switch matrix topology
DownLoad:
| Citation: |
Yuzhe Liu, Pengfei Mu, Renjie Gong, Jing Wan, Yulin Zhang, Yuepeng Yan. A 4×2 switch matrix in QFN24 package for 0.5-3 GHz application[J]. Journal of Semiconductors, 2014, 35(12): 125012. doi: 10.1088/1674-4926/35/12/125012
****
Y Z Liu, P F Mu, R J Gong, J Wan, Y L Zhang, Y P Yan. A 4×2 switch matrix in QFN24 package for 0.5-3 GHz application[J]. J. Semicond., 2014, 35(12): 125012. doi: 10.1088/1674-4926/35/12/125012.
|
A 4×2 switch matrix in QFN24 package for 0.5-3 GHz application
DOI: 10.1088/1674-4926/35/12/125012
More Information
-
Abstract

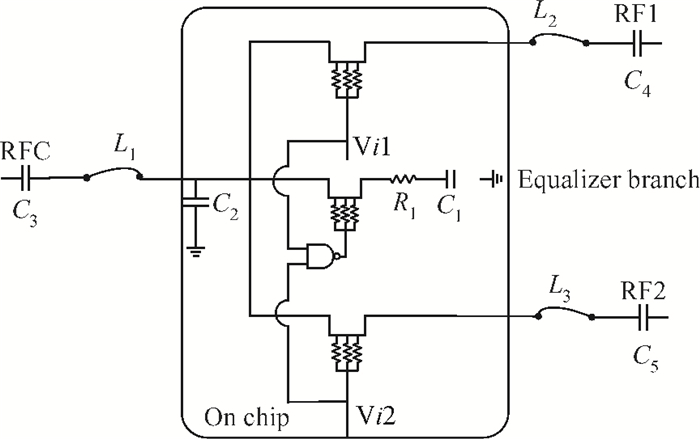

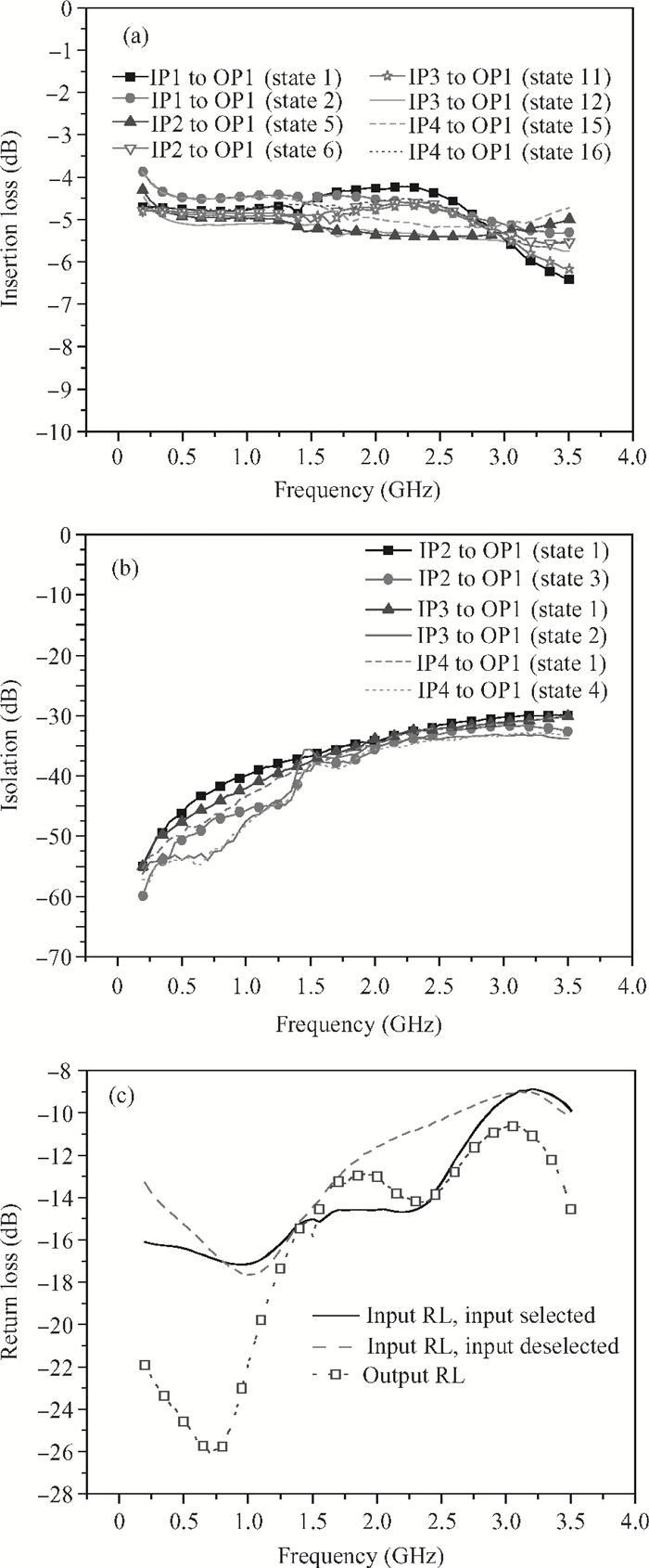

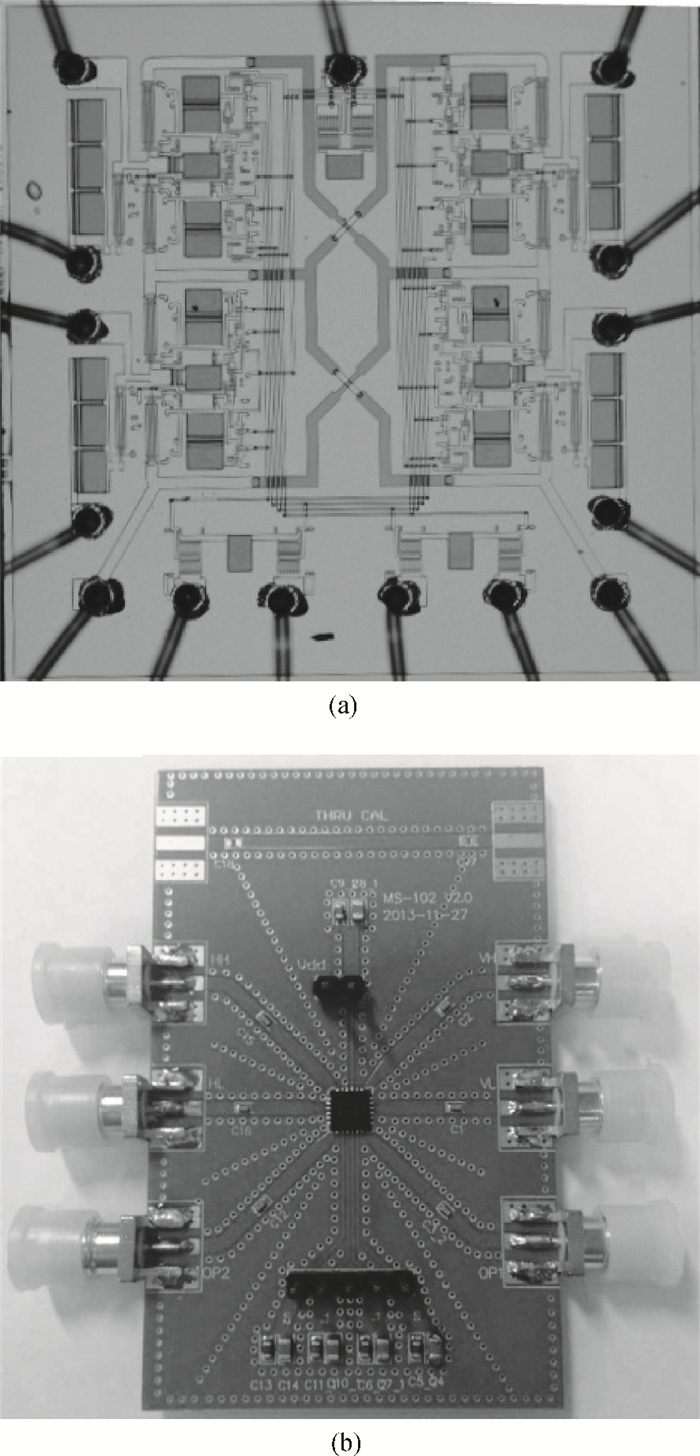

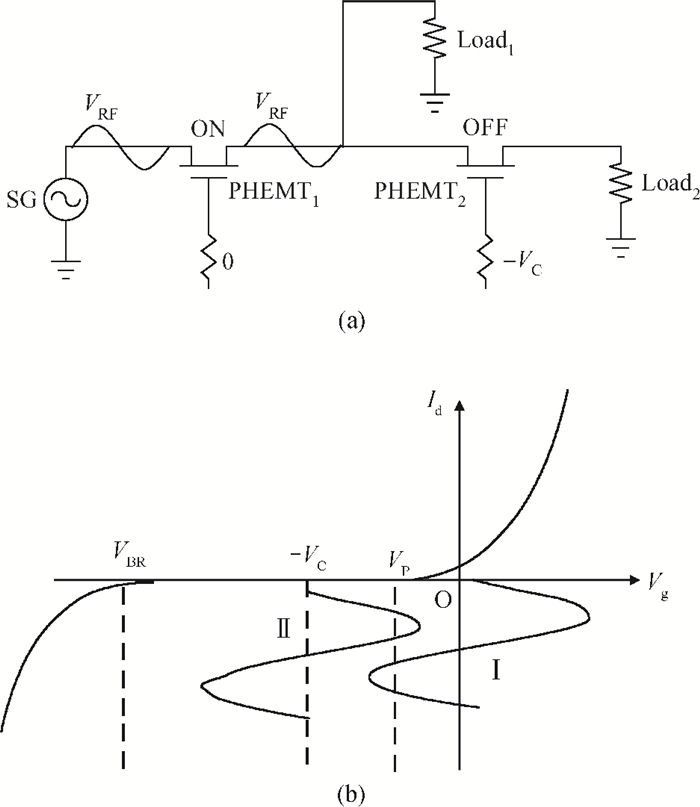

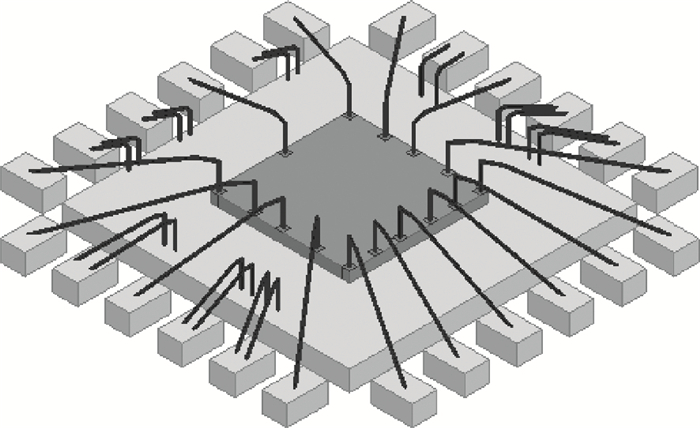

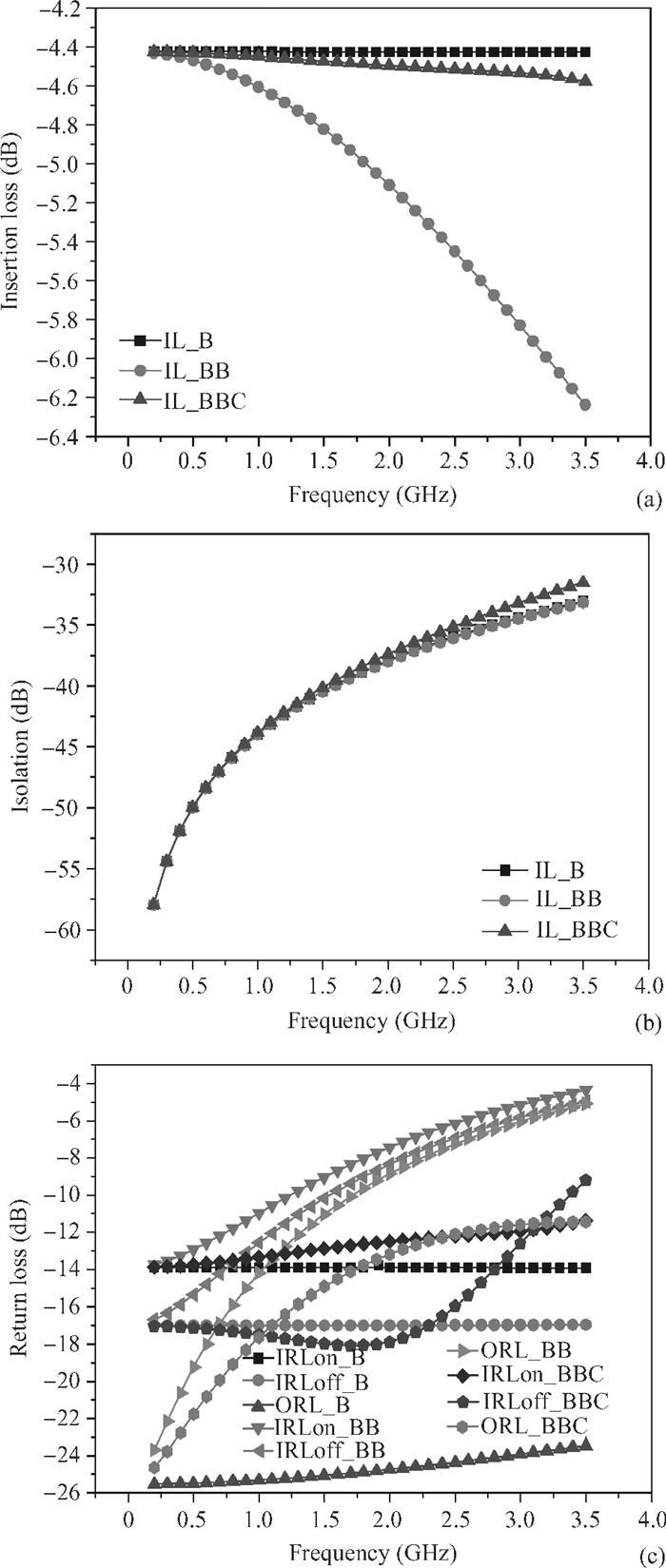

This paper presents a 4×2 switching matrix implemented in the Win 0.5 μm GaAs pseudomorphic high electron mobility transistor process, it covers the 0.5-3 GHz frequency range. The switch matrix is composed of 4 SPDT switch whose two output ports can simultaneously select the input port and a 4 to 8 bit digital decoder, both the radio frequency (RF) part and the digital part are integrated into one single chip. The chip is packaged in a low cost QFN24 plastic package. On chip shunt, capacitors at the input ports are taken to compensate for the bonding wire inductance effect. The designed switch matrix shows a good measured performance:the insertion loss is less than 5.5 dB, the isolation is no worse than 30 dB, the return loss of input ports and output ports is better than -10 dB, the input 1 dB compression point is better than 25.6 dBm, and the OIP3 is better than 37 dBm. The chip size of the switch matrix is only 1.45×1.45 mm2.-
Keywords:
- switch matrix,
- PHEMT,
- single pole double throw (SPDT),
- decoder,
- QFN24
-
References
[1] Voudouris K, Athanaspoulos N, Meir A, et al. 2×2 switch matrix for Wimax relay station applications. IEEE Microw Wireless Compon Lett, 2011, 21(8):424 doi: 10.1109/LMWC.2011.2158532[2] Donghyup S, Dong-Woo K, Rebeiz G M, et al. A 0.01-8 GHz (12.5 Gb/s) 4×4 CMOS switch matrix. IEEE Trans Microw Theory Tech, 2012, 60(2):381 doi: 10.1109/TMTT.2011.2176501[3] Chan E, Daneshmand M, Mansour R R, et al. Monolithic crossbar MEMS switch matrix. MTT-S, 2008:129 http://ieeexplore.ieee.org/document/4633120/[4] Gupta R, Assal F, Hampsch T. A microwave switch matrix using MMICs for satellite applications. MTT-S, 1990:885 http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=99720[5] Gaspari R A, Yee H H. Microwave GaAs FET switching. MTT-S, 1978:58 http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=1123786[6] Kamitsuna H, Yamane Y, Tokumitsu M, et al. A miniaturized wideband 4×4 switch matrix IC using four InP-HEMT SP4T switches. MTT-S, 2005:4 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=1517140[7] Chang-Ho L, Banerjee B, Laskar J. Novel T/R switch architectures for MIMO applications. MTT-S, 2004, 2:1137 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=1339186[8] Chang D P, Noh Y S, Yom I B. Design of high performance HEMT switch for S-band MSM of satellite transponder. VTC, 2008:2888 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=4526185[9] Wang Xiaoying, Guo Wenting, Peng Yangyang, et al. GaAs PHEMT multi-band/multi-mode SP9T switch for quad-band GSM and UMTS handsets applications. Journal of Zhejiang University-Science C (Computers & Electronics), 2011, 12(4):317 http://d.wanfangdata.com.cn/Periodical_zjdxxbc-e201104007.aspx[10] Chiu H C, Cheng C S, Shih J Y, et al. Enhancement-and depletion-mode InGaP/InGaAs PHEMTs on 6-inch GaAs substrate. APMC, 2005:4 http://ieeexplore.ieee.org/xpls/icp.jsp?arnumber=1606443[11] Li Ming, Zhang Haiying, Xu Jingbo, et al. Monolithic integrated switches and logic control circuit with E/D-mode GaAs PHEMTs. Journal of Semiconductors, 2008, 29(9):1823 http://www.jos.ac.cn/bdtxbcn/ch/reader/view_abstract.aspx?flag=1&file_no=08012902&journal_id=bdtxbcn[12] Wei C J, Yin H, Klimashov O, et al. Multi-gate pHEMT modeling for switch applications. CSICS, 2012:4 http://ieeexplore.ieee.org/xpls/abs_all.jsp?arnumber=6340063[13] Su Liming, Yang Hongwen, Liu Yuzhe, et al. DC-4GHz packaged high isolation non-reflective SPDT switch. Semicond Technol, 2013, 38(6):419 http://www.en.cnki.com.cn/Article_en/CJFDTotal-BDTJ201306007.htm -
