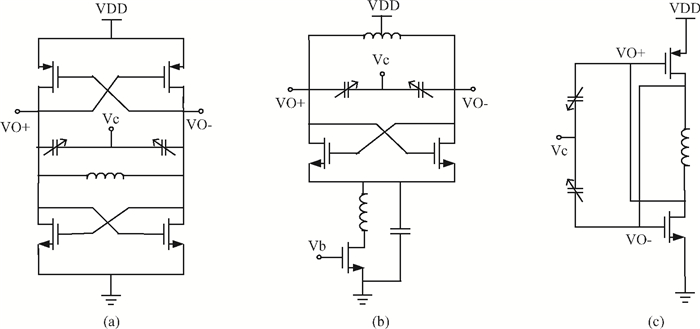

Fig. 1.
Schematic diagrams of LC-tuned oscillator. (a) Using complementary crossed coupled transistor pairs. (b) All NMOS VCO. (c) The proposed current-reuse differential LC-VCO.
DownLoad:
| Citation: |
Zhu Li, Zhigong Wang, Zhiqun Li, Qin Li, Faen Liu. IC design of low power, wide tuning range VCO in 90 nm CMOS technology[J]. Journal of Semiconductors, 2014, 35(12): 125013. doi: 10.1088/1674-4926/35/12/125013
****
Z Li, Z G Wang, Z Q Li, Q Li, F E Liu. IC design of low power, wide tuning range VCO in 90 nm CMOS technology[J]. J. Semicond., 2014, 35(12): 125013. doi: 10.1088/1674-4926/35/12/125013.
|
IC design of low power, wide tuning range VCO in 90 nm CMOS technology
DOI: 10.1088/1674-4926/35/12/125013
More Information
-

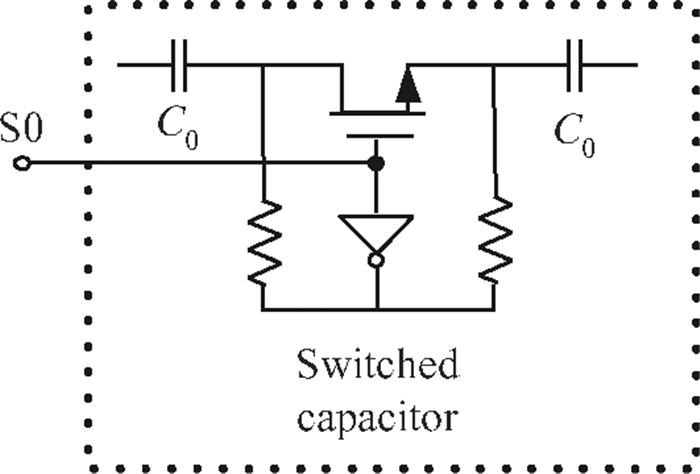

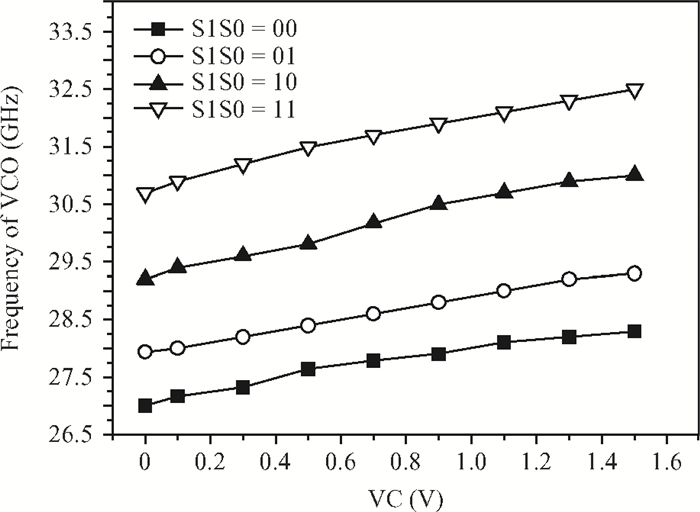

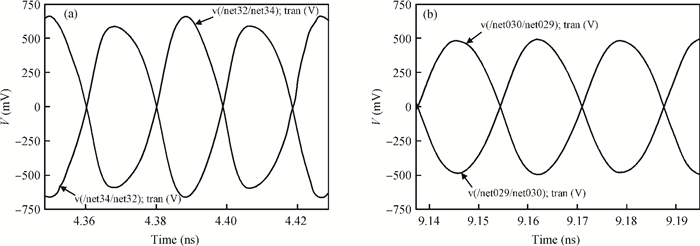

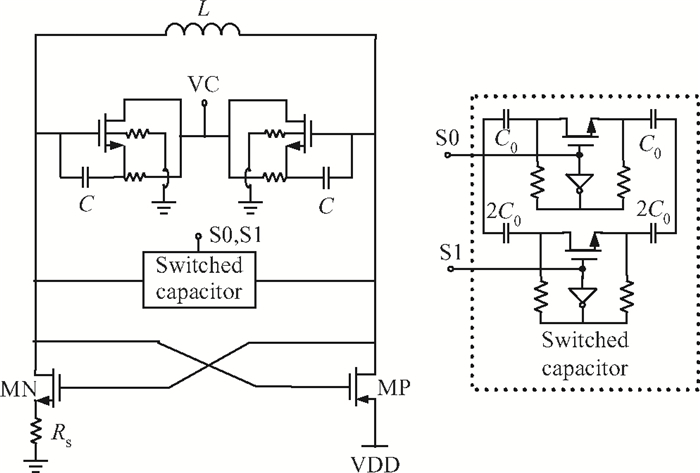

Abstract

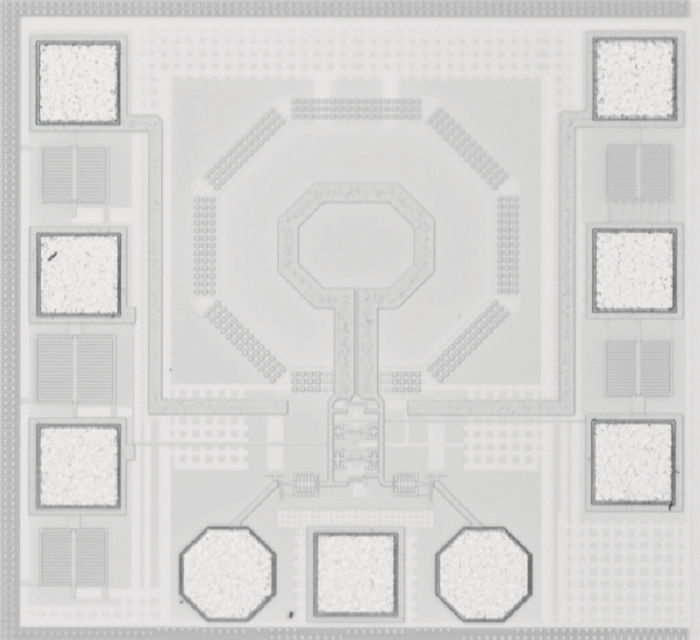

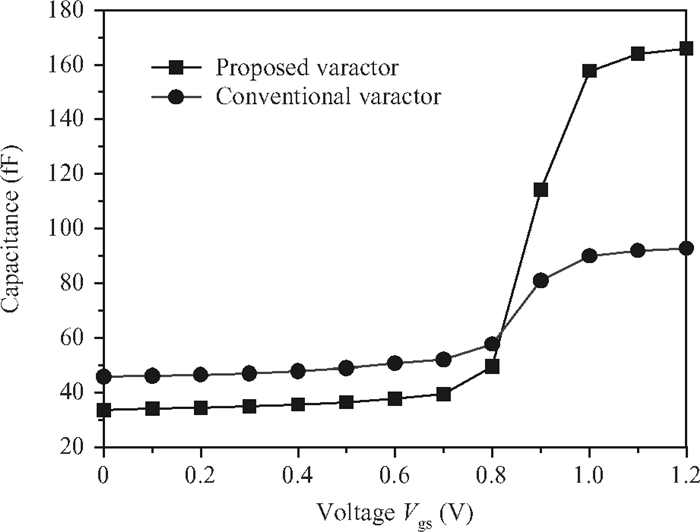

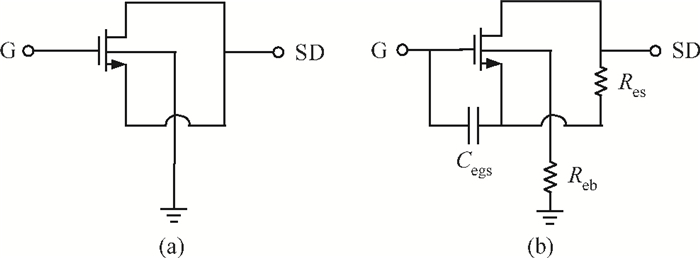

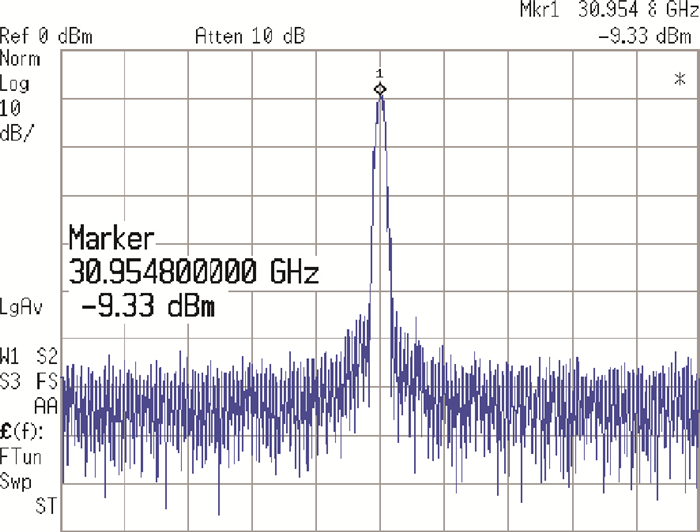

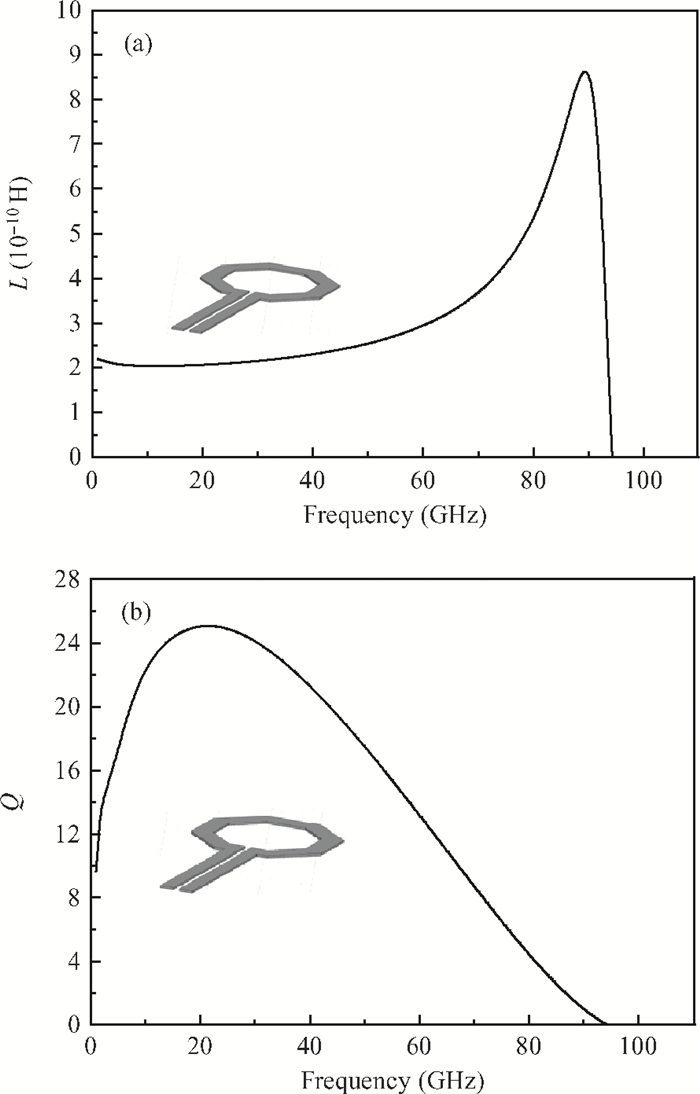

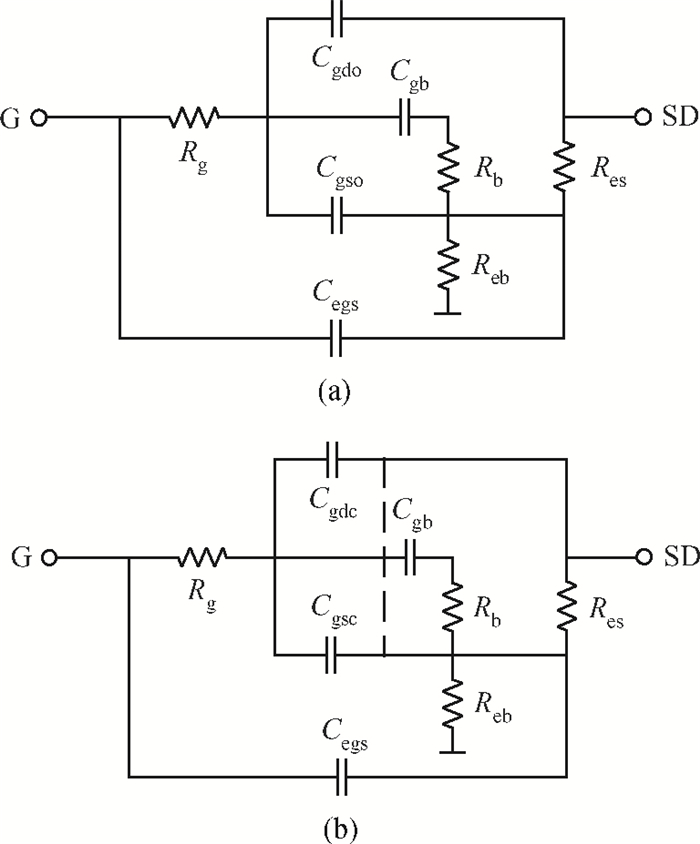

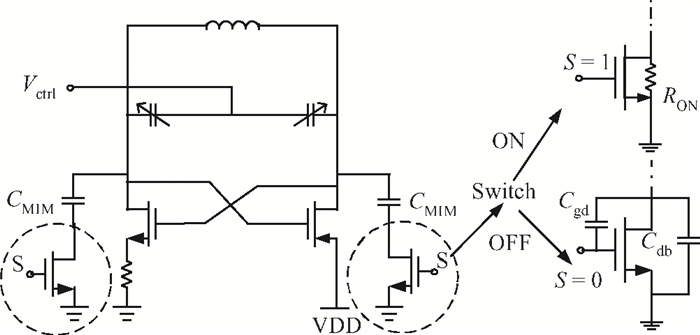

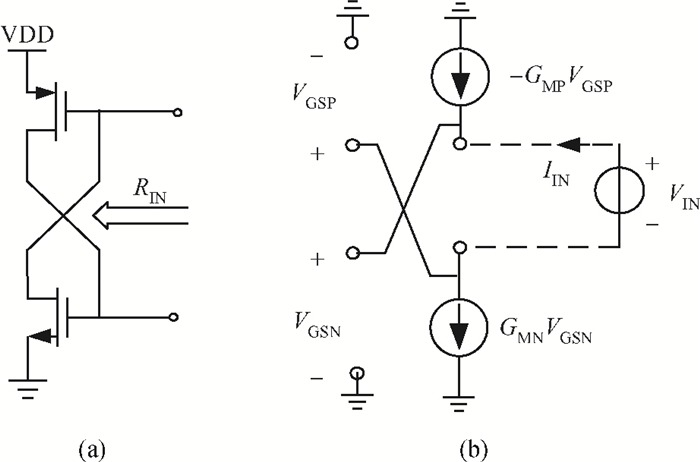

A low power VCO with a wide tuning range and low phase noise has been designed and realized in a standard 90 nm CMOS technology. A newly proposed current-reuse cross-connected pair is utilized as a negative conductance generator to compensate the energy loss of the resonator. The supply current is reduced by half compared to that of the conventional LC-VCO. An improved inversion-mode MOSFET (IMOS) varactor is introduced to extend the capacitance tuning range from 32.8% to 66%. A detailed analysis of the proposed varactor is provided. The VCO achieves a tuning range of 27-32.5 GHz, exhibiting a frequency tuning range (FTR) of 18.4% and a phase noise of -101.38 dBc/Hz at 1 MHz offset from a 30 GHz carrier, and shows an excellent FOM of -185 dBc/Hz. With the voltage supply of 1.5 V, the core circuit of VCO draws only 2.1 mA DC current. -
