Thin silicon layer SOI power device with linearly-distance fixed charge islands

Yuan Zuo1, Haiou Li1, Jianghui Zhai1, Ning Tang1, Shuxiang Song3 and Qi Li1, 2,

+ Author Affiliations

 Corresponding author: Qi Li, E-mail: lqmoon@guet.edu.cn

DOI: 10.1088/1674-4926/36/5/054005

PDF

Abstract: A new high-voltage LDMOS with linearly-distanced fixed charge islands is proposed (LFI LDMOS). A lot of linearly-distanced fixed charge islands are introduced by implanting the Cs or I ion into the buried oxide layer and dynamic holes are attracted and accumulated, which is crucial to enhance the electric field of the buried oxide and the vertical breakdown voltage. The surface electric field is improved by increasing the distance between two adjacent fixed charge islands from source to drain, which lead to the higher concentration of the drift region and a lower on-resistance. The numerical results indicate that the breakdown voltage of 500 V with Ld = 45 μm is obtained in the proposed device in comparison to 209 V of conventional LDMOS, while maintaining low on-resistance.

Key words: linearly-distanced, fixed charge island, breakdown voltage, dynamic holes, on-resistance



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
Fig. 1.  (a) Cross-section of LFI LDMOS. (b) Processes of fixed charge islands.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  (Color online) (a) Equipotential distribution of LFI LDMOS. (b) Equipotential distribution of conventional LDMOS. (c) Dynamic electrons distribution on the bottom interface of the buried oxide. (d) Dynamic holes distribution on the top interface of the buried oxide. (e) Surface electric field distribution. (f) Vertical electric field distribution under the drain.

DownLoad: Full-Size Img PowerPoint

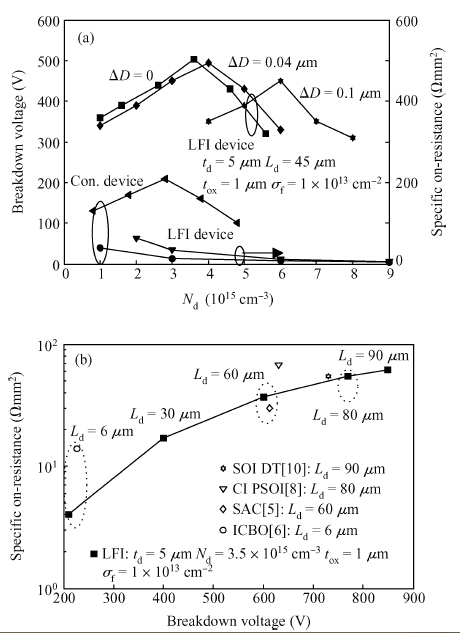

Fig. 3.  (a) Breakdown voltage and on-resistance as a function of $N_{\rm d}$. (b) The BV as a function of on-resistance.

DownLoad: Full-Size Img PowerPoint

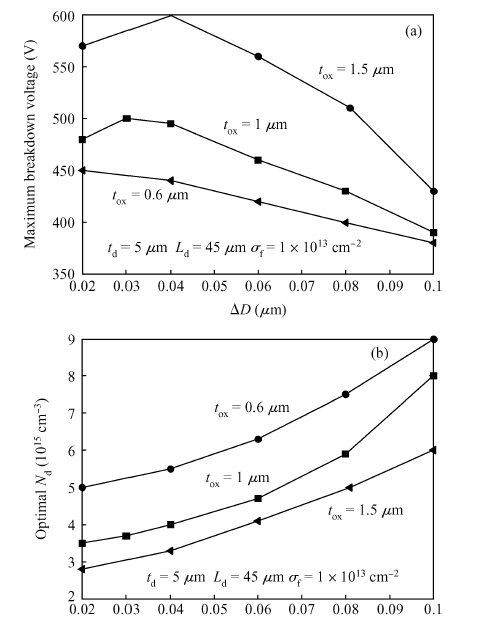

Fig. 4.  Influence of $\Delta D$ on (a) BV and (b) optimal $N_{\rm d}$.

DownLoad: Full-Size Img PowerPoint

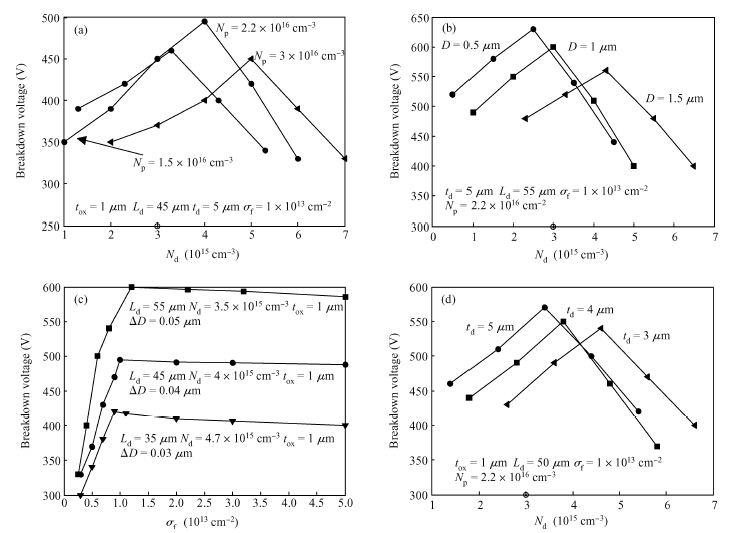

Fig. 5.  Breakdown voltage as a function of (a) $N_{\rm d}$ and $N_{\rm p}$, (b) $N_{\rm d}$ and $D$, (c) $\sigma_{\rm f}$ and BV, and (d) $N_{\rm d}$ and $t_{\rm d}$.
