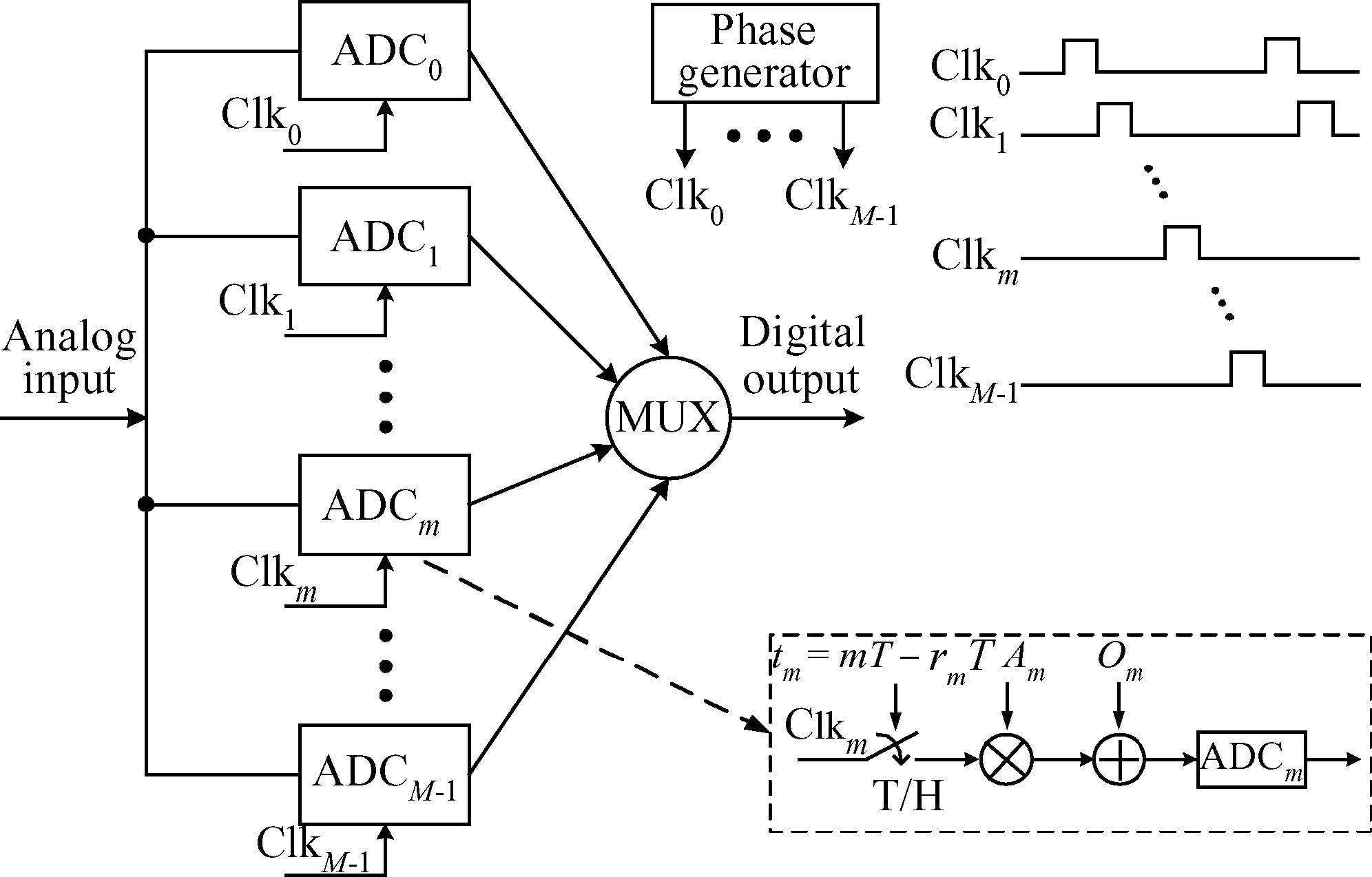

Fig. 1.
A model of a channel mismatch in a TI-SAR ADC.
DownLoad:
| Citation: |
Dengquan Li, Liang Zhang, Zhangming Zhu, Yintang Yang. Modeling of channel mismatch in time-interleaved SAR ADC[J]. Journal of Semiconductors, 2015, 36(9): 095007. doi: 10.1088/1674-4926/36/9/095007
****
D Q Li, L Zhang, Z M Zhu, Y T Yang. Modeling of channel mismatch in time-interleaved SAR ADC[J]. J. Semicond., 2015, 36(9): 095007. doi: 10.1088/1674-4926/36/9/095007.
|
Modeling of channel mismatch in time-interleaved SAR ADC
DOI: 10.1088/1674-4926/36/9/095007
More Information
-
Abstract

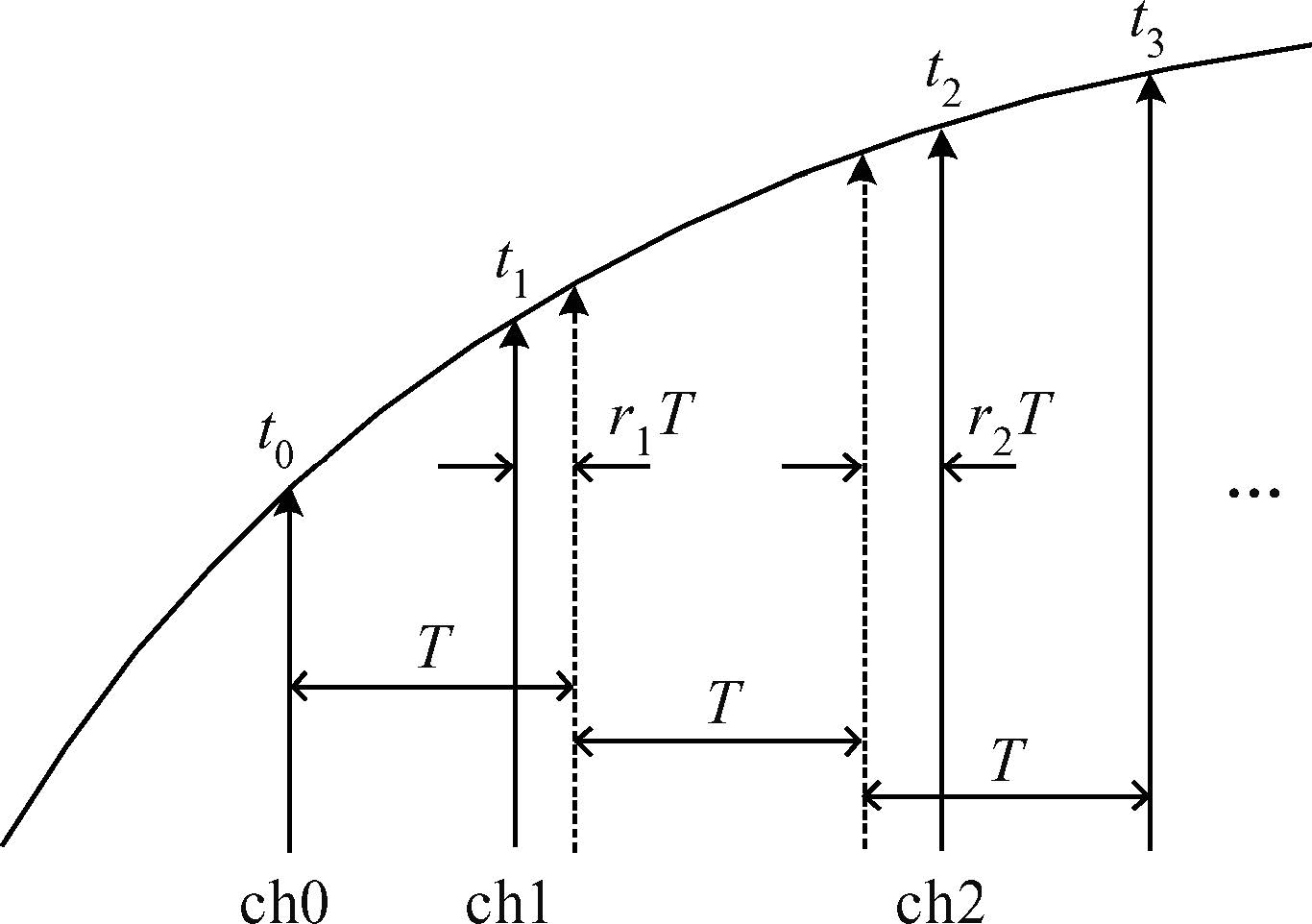

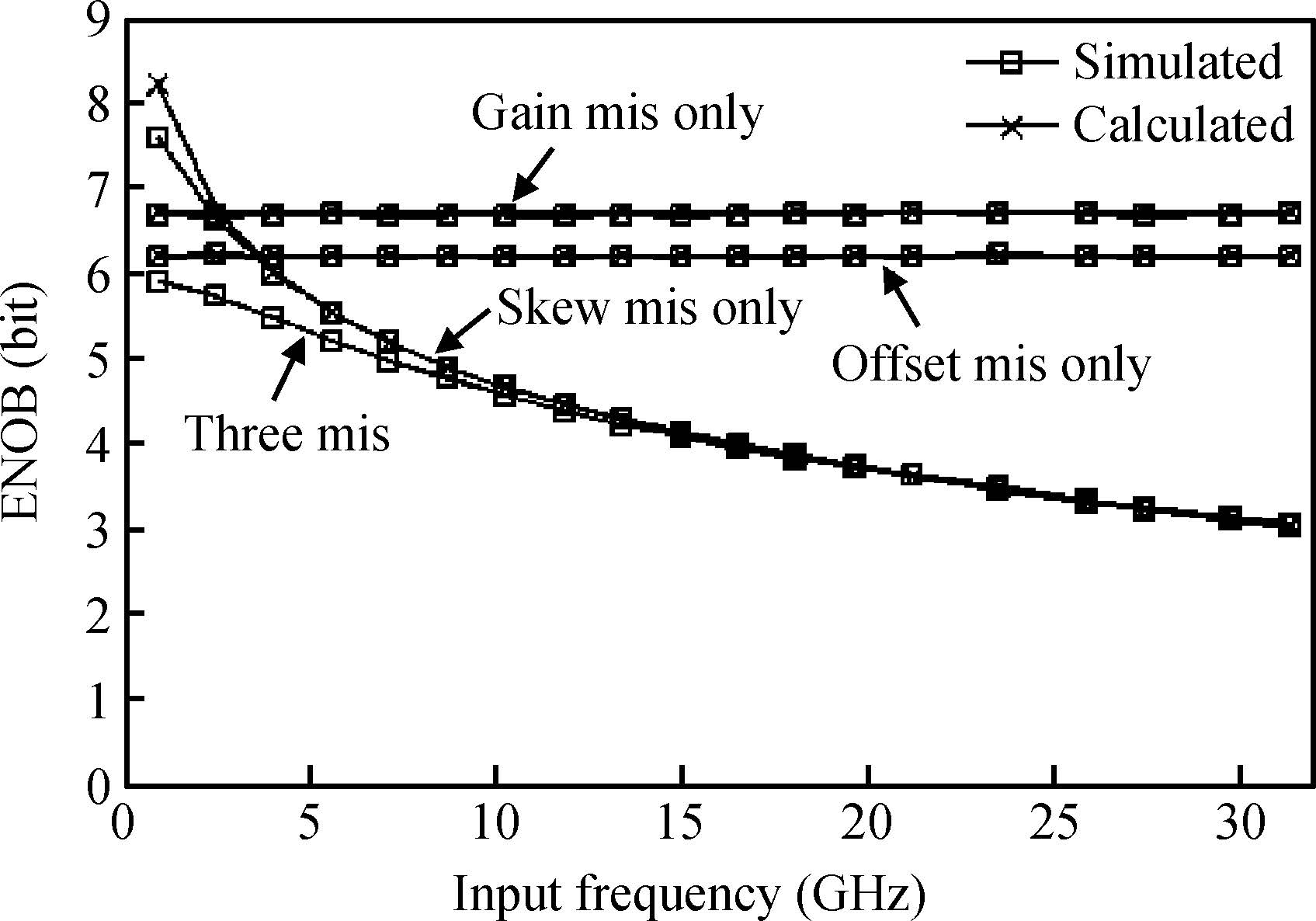

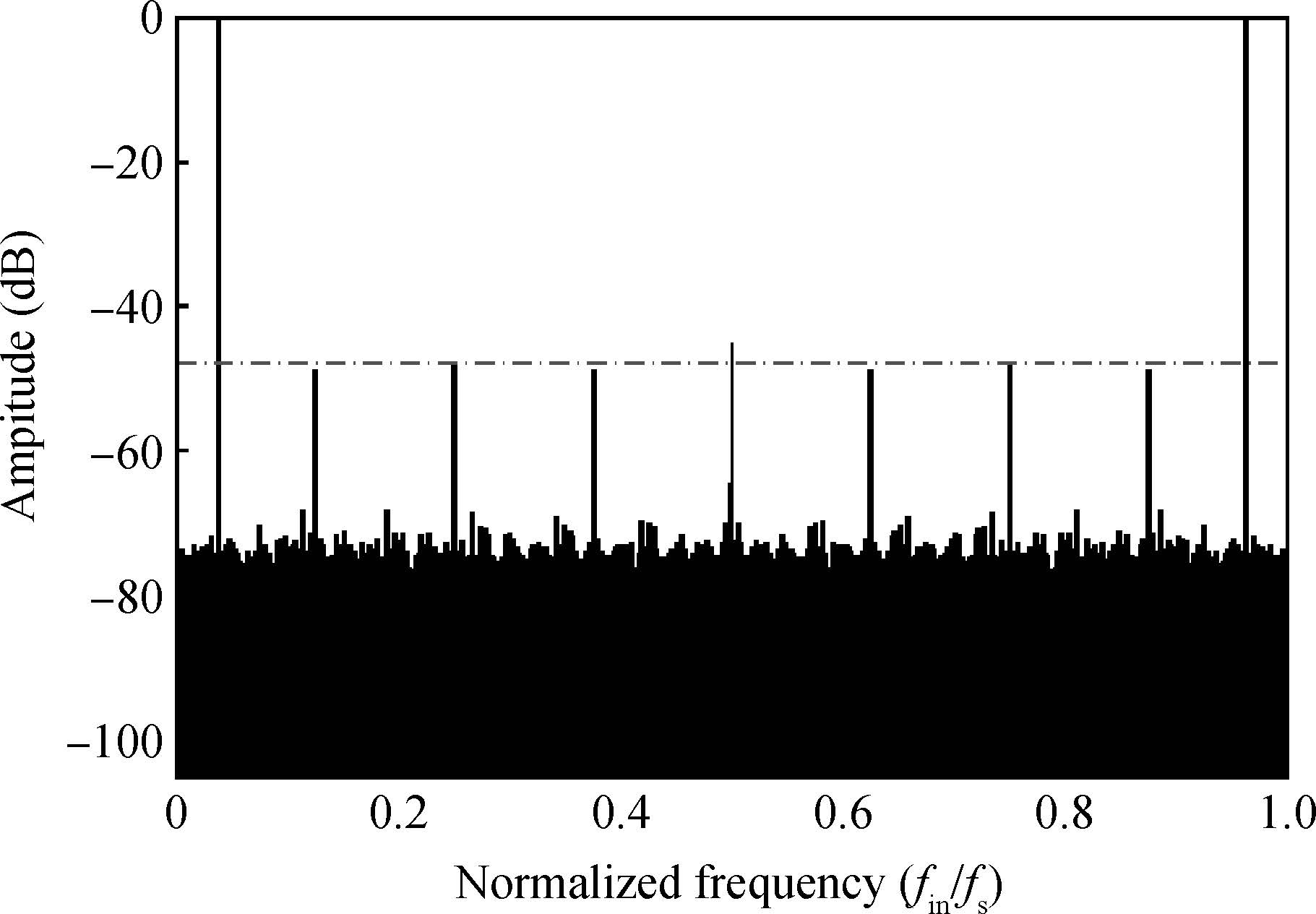

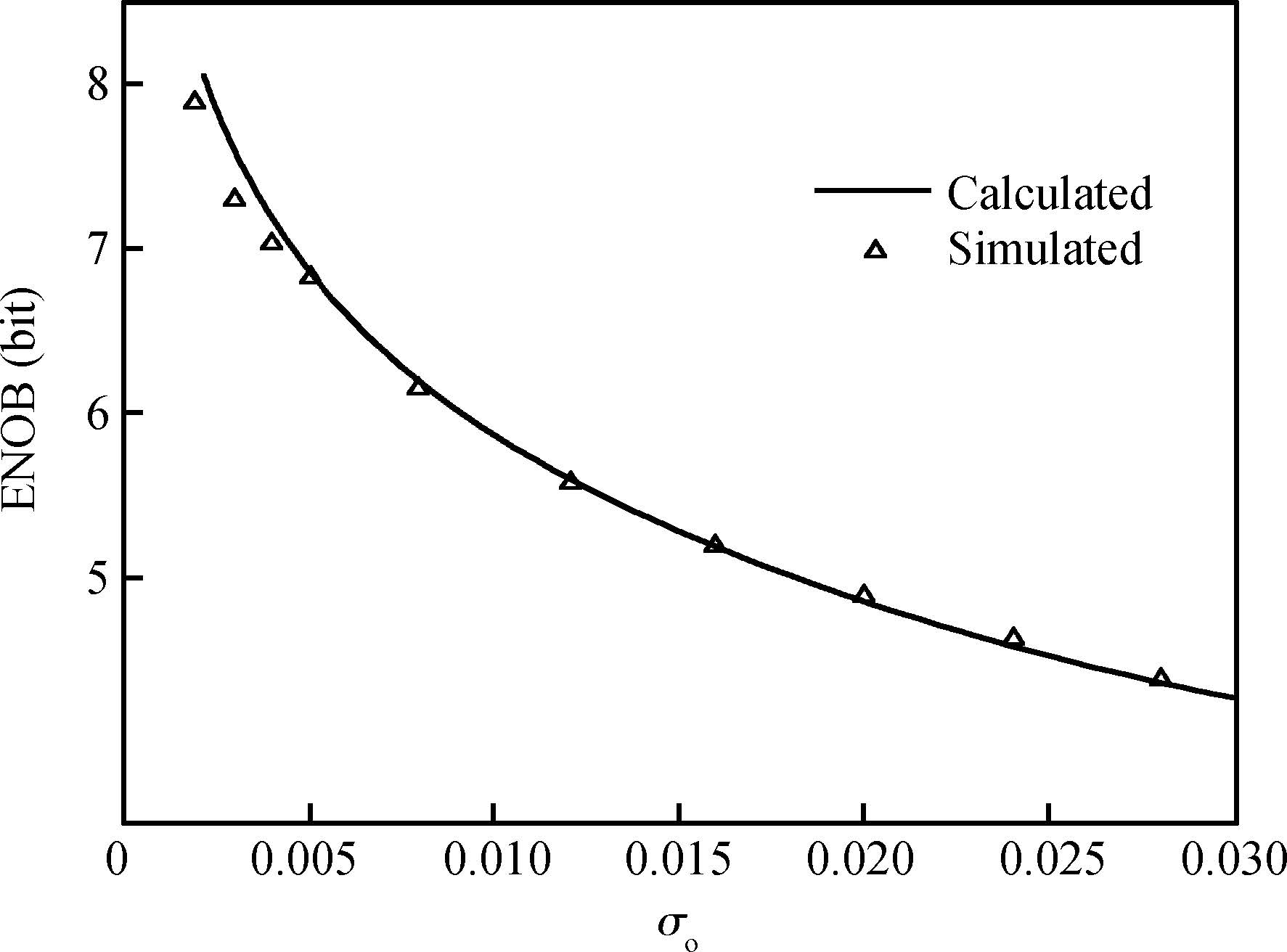

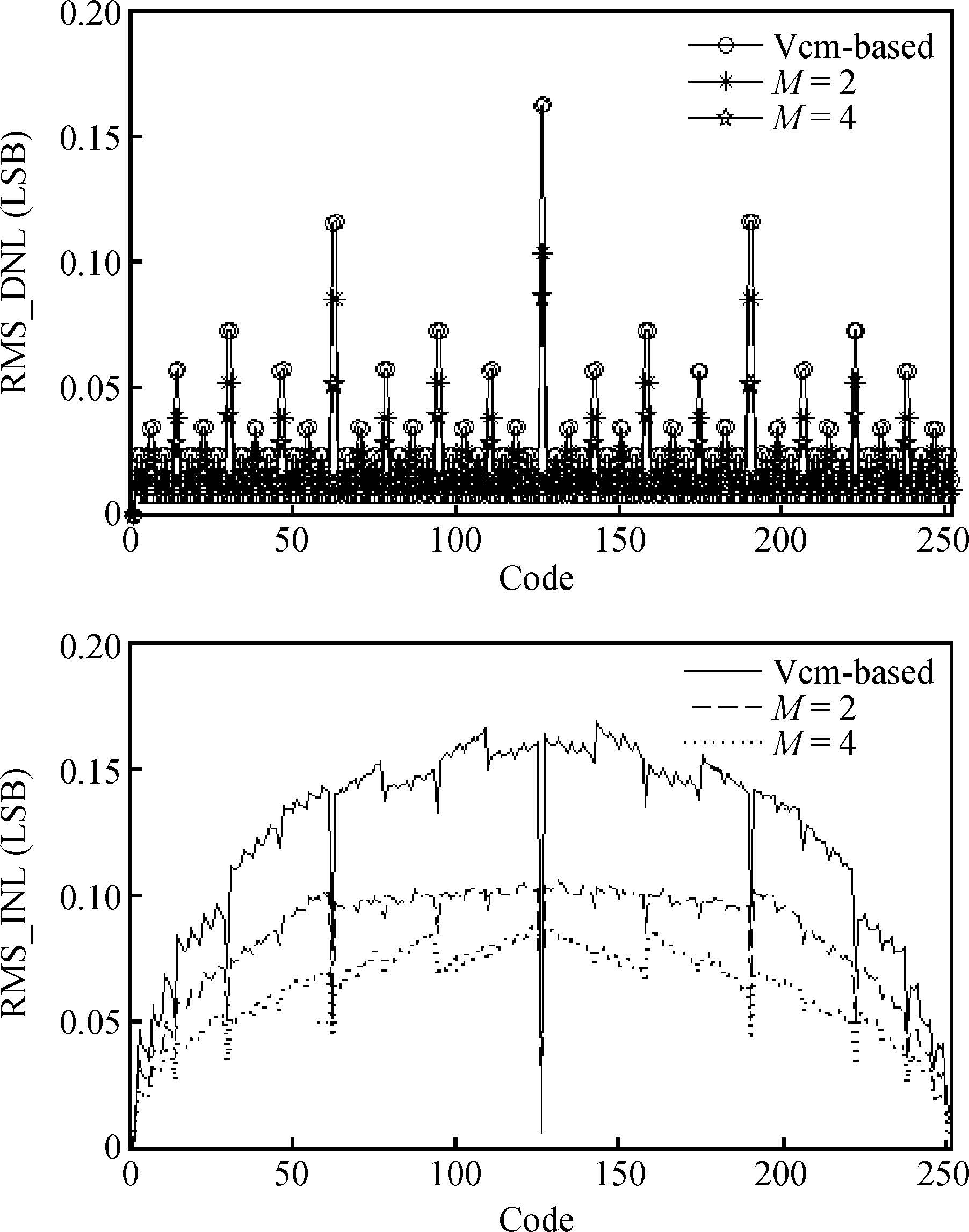

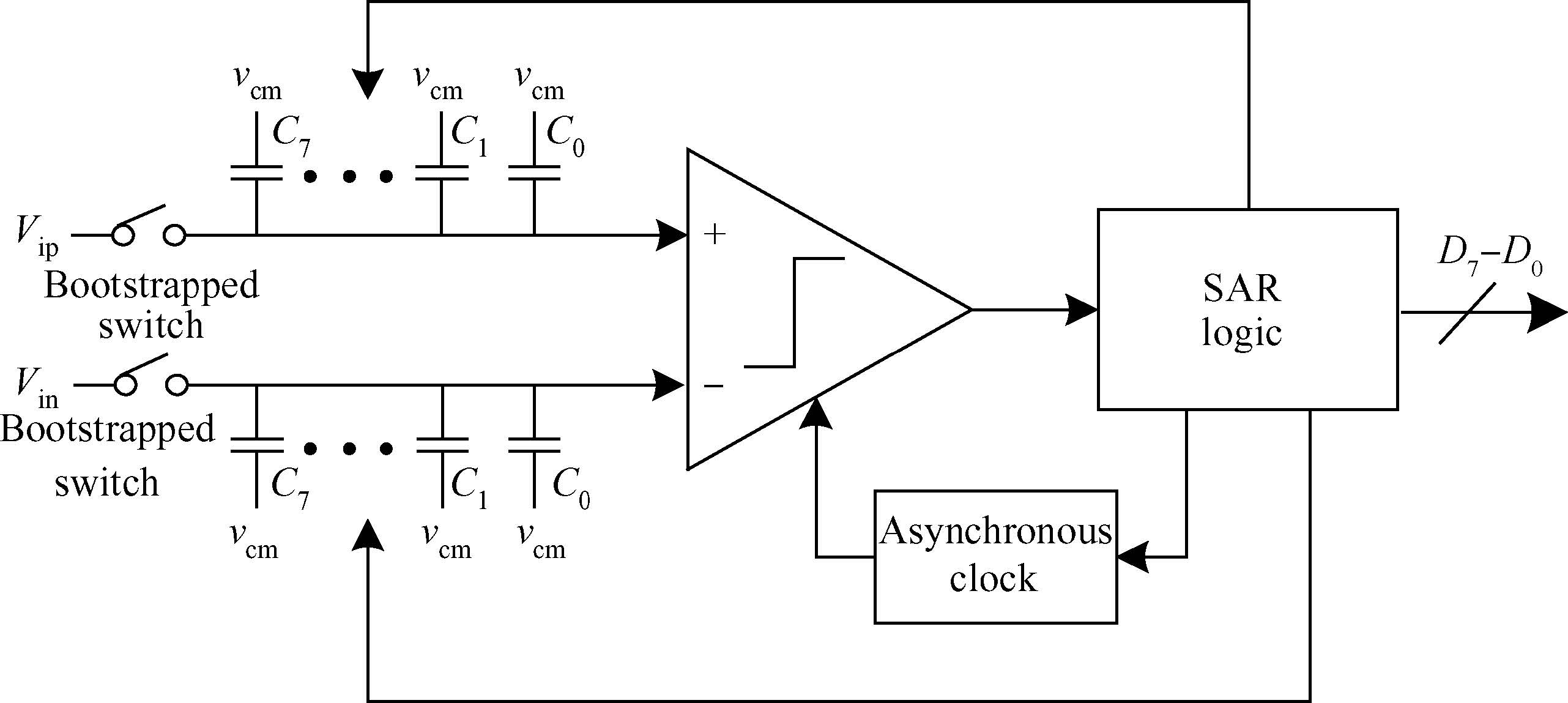

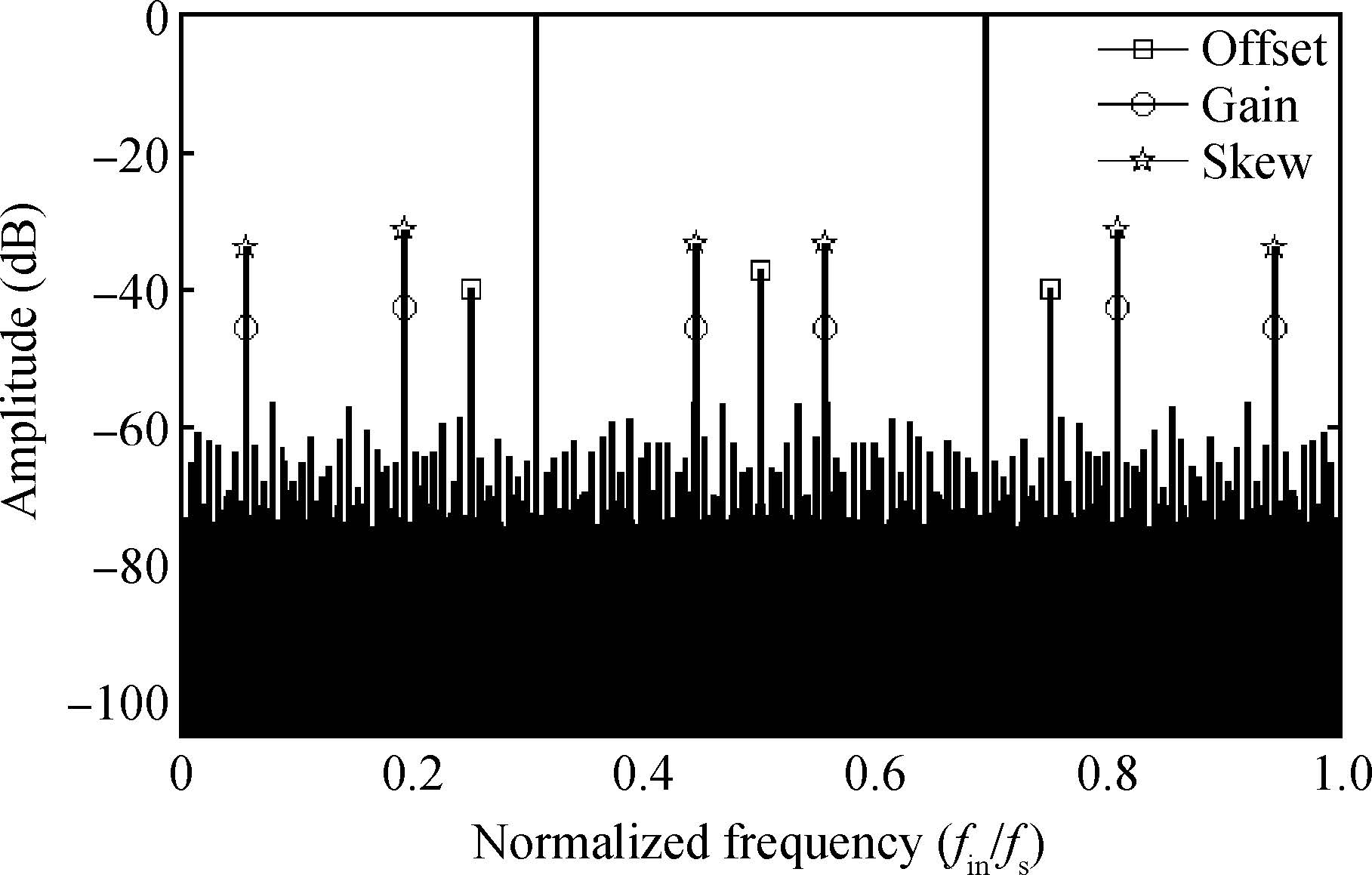

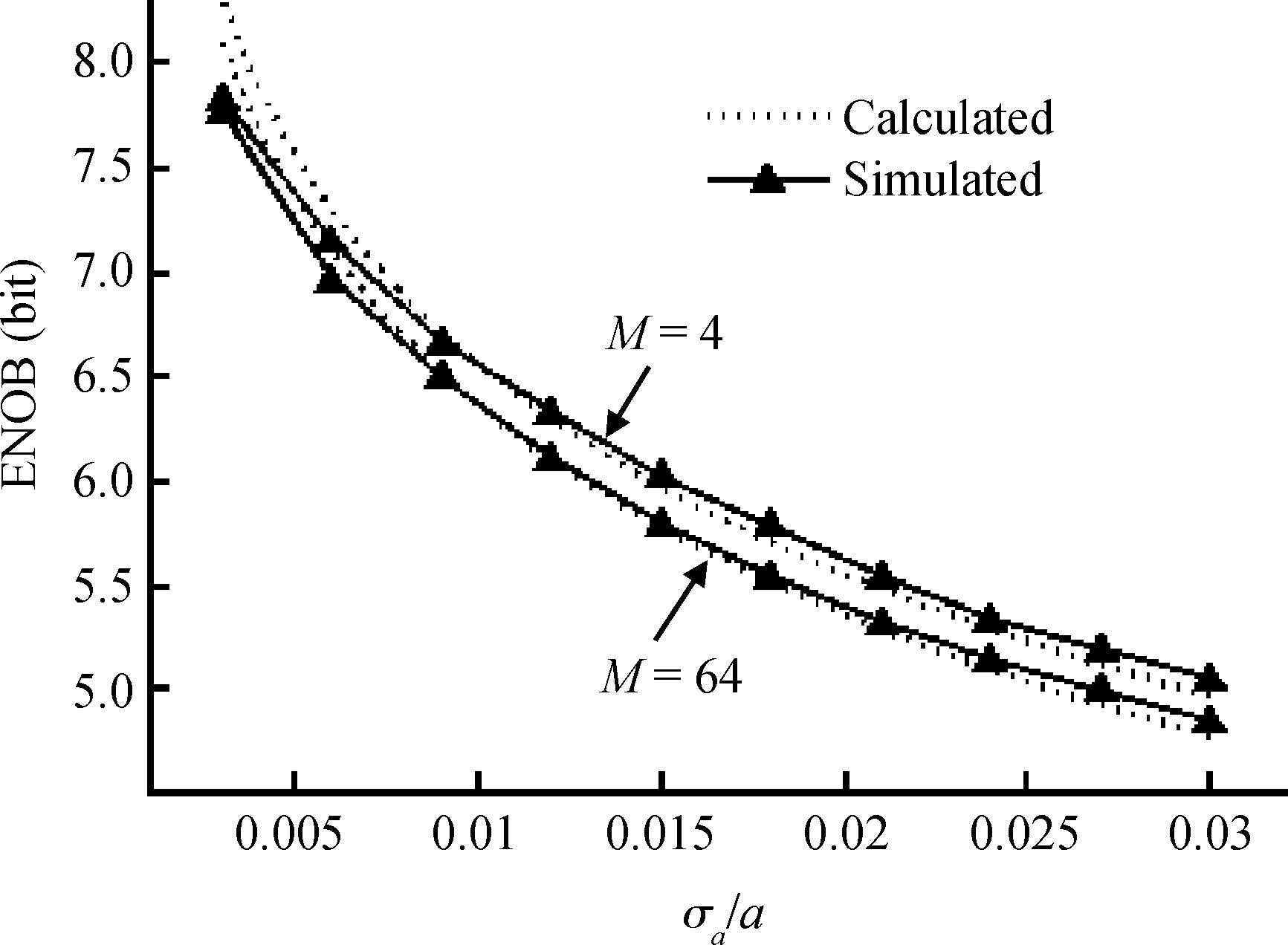

In a time-interleaved analog-to-digital converter (TI ADC), several individual ADCs operate in parallel to achieve a higher sampling rate. Low power consumption as well as good linearity can be obtained by applying successive approximation register (SAR) converters as sub-channel ADCs. In spite of the advantages, this structure suffers from three mismatches, which are offset mismatch, gain mismatch, and time skew. This paper focuses on a TI SAR ADC with a number of channels. The mismatch effects in the frequency domain are analyzed and the derived close form formulas are verified based on Matlab. In addition, we clarify that the standard deviation of DNL and INL of an M-channel TI ADC is reduced by a factor of $\sqrt{M}$ compared to a single channel ADC. The formulas can be used to derive the corresponding requirements when designing a TI ADC. Our analysis process is able to inform the study of calibration algorithms. -
References
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] -
