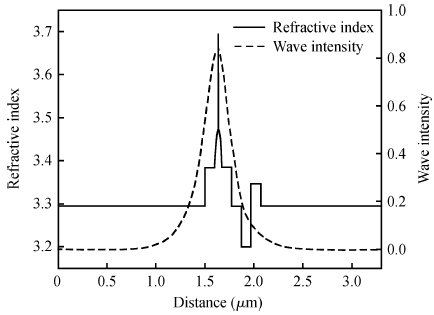

Fig. 1.
Refractive index and wave intensity distribution of the 980~nm BA-DFB laser.
DownLoad:
| Citation: |
Zhen Dong, Yihao Zhao, Qi Zhang, Cuiluan Wang, Wei Li, Suping Liu, Xiaoyu Ma. High power 980 nm broad area distributed feedback laser with first-order gratings[J]. Journal of Semiconductors, 2016, 37(2): 024010. doi: 10.1088/1674-4926/37/2/024010
****
Z Dong, Y H Zhao, Q Zhang, C L Wang, W Li, S P Liu, X Y Ma. High power 980 nm broad area distributed feedback laser with first-order gratings[J]. J. Semicond., 2016, 37(2): 024010. doi: 10.1088/1674-4926/37/2/024010.
|
High power 980 nm broad area distributed feedback laser with first-order gratings
DOI: 10.1088/1674-4926/37/2/024010
More Information
-
Abstract

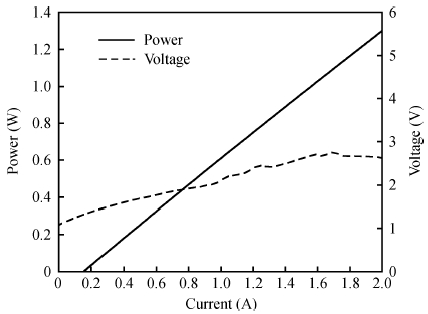

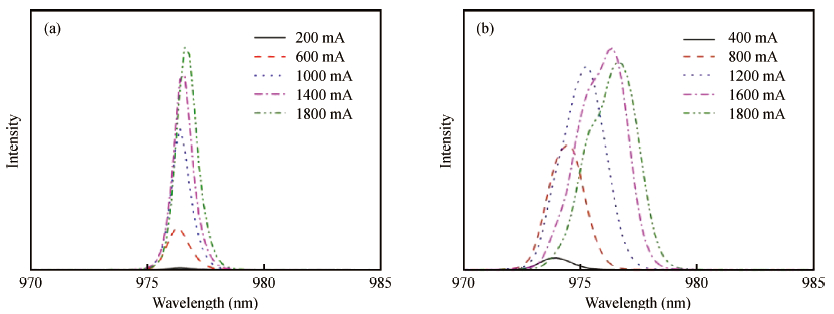

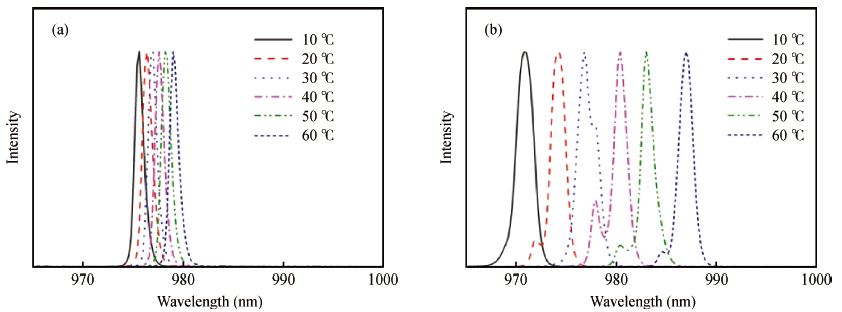

To achieve high pumping efficiency and stability, a wavelength stabilized 980 nm broad area distributed feedback laser was realized. A nanoimprint lithography technique was used to fabricate the first-order gratings. The stripe width was 90 μm and the cavity length was 2 mm. Under continuous wave condition, the output laser power reached 1.2 W, with the slope efficiency of 0.7 W/A. The current and thermal dependence of the spectrum peak was measured to be approximately 0.19 nm/A and 0.064 nm/K respectively, and the wavelength-locking range reached over 50 ℃. -
References
[1] [2] [3] [4] [5] [6] [7] [8] [9] [10] [11] -
Proportional views
