Load-pull measurement analysis of AlGaN/GaN HEMT taking into account number of gate fingers

Pongthavornkamol Tiwat, Guoguo Liu, Tingting Yuan, Yingkui Zheng and Xinyu Liu

+ Author Affiliations

 Corresponding author: Pongthavornkamol Tiwat, Email: lintiyuan@ime.ac.cn

DOI: 10.1088/1674-4926/37/6/064008

PDF

Abstract: This paper investigates load-pull measurement of AlGaN/GaN high electron mobility transistors (HEMTs) at different numbers of gate fingers. Scalable small-signal models are extracted to analyze the relationship between each model's parameters and the number of device's gate fingers. The simulated S-parameters from the small-signal models are compared with the reflection coefficients measured from the load-pull measurement system at X-band frequencies of 8.8 and 10.4 GHz. The dependency between the number of device's gate fingers and load-pull characterization is presented.

Key words: AlGaN/GaN HEMT, gate fingers, small-signal model, load-pull measurement



[1]
Resca D, Raffo A, Falco S D, et al. X-band GaN power amplifier for future generation SAR systems. IEEE Microw Wireless Compon Lett, 2014, 24(4):266
[2]
Ge Qin, Liu Xinyu, Zheng Yingkui, et al. A flat gain GaN MMIC power amplifier for X band application. Journal of Semiconductors, 2014, 35(12):125004
[3]
Cao M Y, Zhang K, Chen Y H, et al. High-efficiency S-band harmonic tuning GaN amplifier. Chin Phys B, 2013, 23(3):037305
[4]
Muller J E, Laudien M and Muller H. On-wafer load-pull characterization of self-aligned GaAs power MESFETs. European Microwave Conference, 1991:1379
[5]
Abe H, Aono Y. 11-GHz GaAs power MESFET load-pull measurements utilizing a new method of determining tuner Y parameters. IEEE Trans Microw Theory Tech, 1979, 27(5):394
[6]
Bengtsson O, Chevtchenko S A, Doerner R, et al. Load-pull investigation of GaN HEMT for supply modulated applications. German Microwave Conference, 2011:1
[7]
Gao S J, Park C W. Large signal characterization of GaN HEMT transistors by multi-harmonic source & load pull tuner system. Microwave Measurement Symposium, 2012:1
[8]
Gao J. RF and microwave modeling and measurement techniques for field effect transistors. Raleigh:SciTech Publishing, 2009:204
[9]
Dambrine G, Cappy A, Heliodore F, et al. A new method for determining the FET small-signal equivalent circuit. IEEE Trans Microw Theory Tech, 1988, 36(7):1151
[10]
Jarndal A, Kompa G. An accurate small-signal model for AlGaN/GaN HEMT suitable for scalable large-signal model construction. IEEE Microw Wireless Compon Lett, 2006, 16(6):333
[11]
Gonzalez G. Microwave transistor amplifier analysis and design. Upper Saddle River:Prentice-Hall, 1997:212
[12]
Pongthavornkamol T, Pang L, Yuan T T, et al. Improved power simulation of AlGaN/GaN HEMT at class-AB operation via an RF drain-source current correction. Chin Phys B, 2014, 23(12):127304

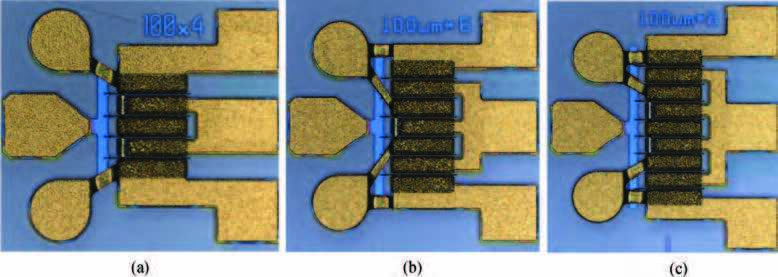

Fig. 1.  Top view of AlGaN/GaN HEMTs with different number of fingers. (a) 4 × 100 μm. (b) 6 × 100 μm. (c) 8 × 100 μm.

DownLoad: Full-Size Img PowerPoint

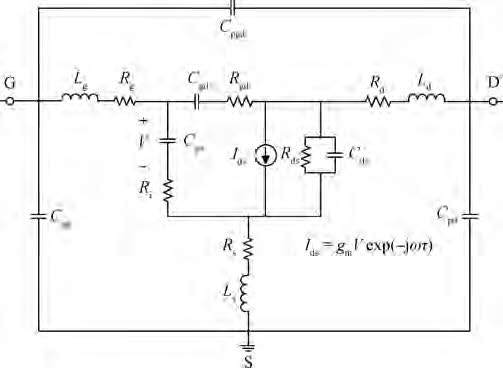

Fig. 2.  Small-signal equivalent circuit model for AlGaN/GaN HEMT.

DownLoad: Full-Size Img PowerPoint

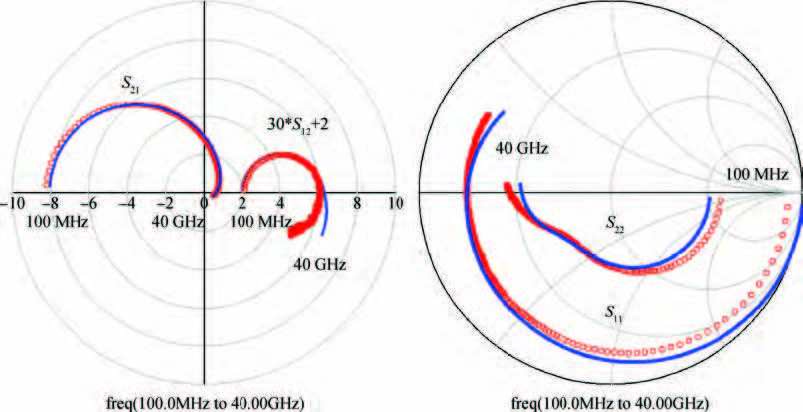

Fig. 3.  S-parameters simulation (solid line) and measurement (circle) of 6 × 100 μm gate width device with 100 MHz - 40 GHz frequency range at Vgs=-3.5 V,Vds=30 V.

DownLoad: Full-Size Img PowerPoint

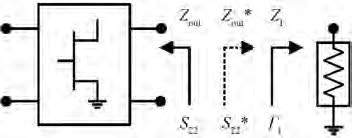

Fig. 4.  Conjugate matching between output return loss of device and load reflection coefficient.

DownLoad: Full-Size Img PowerPoint

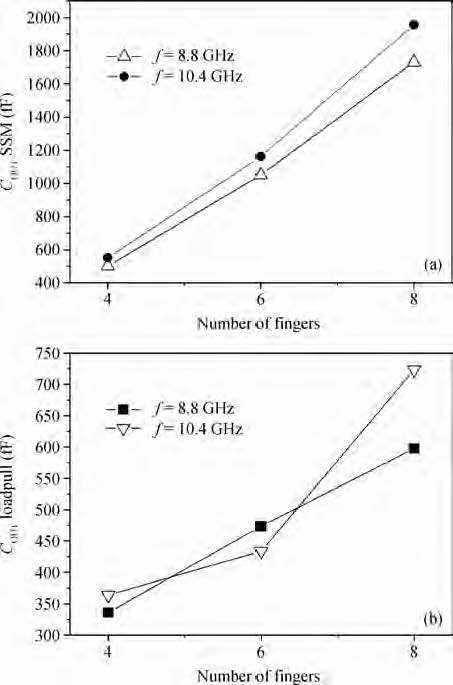

Fig. 5.  Output shunt capacitances at bias condition of Vgs= -3.5 V and Vds= 30 V extracted from (a) small-signal modeling and (b) load-pull measurement.

DownLoad: Full-Size Img PowerPoint

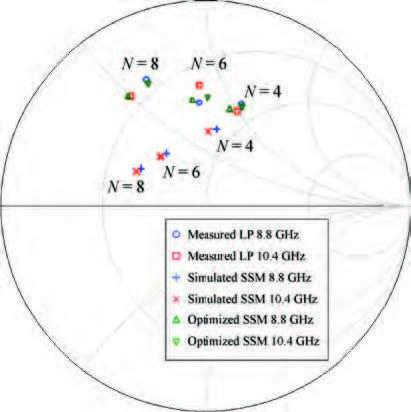

Fig. 6.  Smith chart of measured reflection coefficient at load side (ΓL) from load-pull system versus conjugate output return loss (S22*) of typical and optimized small-signal models at bias condition of (Vgs)= -3.5 V,(Vds)= 30 V.

DownLoad: Full-Size Img PowerPoint

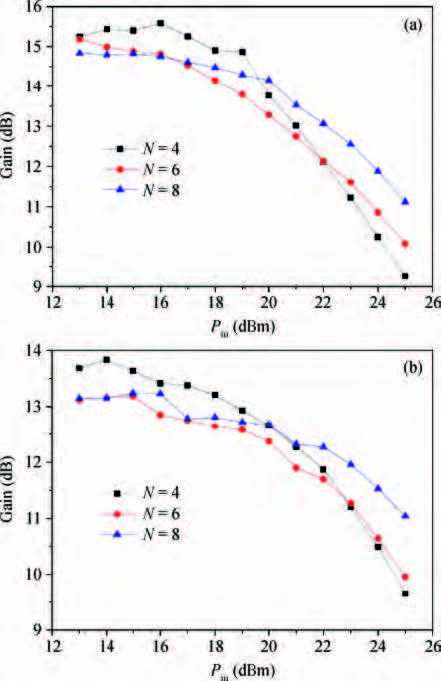

Fig. 7.  (Color online) Power gain measurement of GaN HEMT by load-pull system with class-AB bias (Vgs = -3.5 V,Vds = 30 V) at X-band frequencies (a) 8.8 GHz,(b) 10.4 GHz.
