An 80-GHz DCO utilizing improved SC ladder and promoted DCTL-based hybrid tuning banks

Lu Tang; Yi Chen; Kui Wang

doi:10.1088/1674-4926/44/10/102402

J. Semicond. > 2023, Volume 44 > Issue 10 > 102402

ARTICLES

An 80-GHz DCO utilizing improved SC ladder and promoted DCTL-based hybrid tuning banks

Lu Tang, Yi Chen and Kui Wang

+ Author Affiliations

Corresponding author: Lu Tang, 220200934@seu.edu.cn, lutang2k@seu.edu.cn

DOI: 10.1088/1674-4926/44/10/102402

Abstract: An 80-GHz DCO based on modified hybrid tuning banks is introduced in this paper. To achieve sub-MHz frequency resolution with reduced circuit complexity, the improved circuit topology replaces the conventional circuit topology with two binary-weighted SC cells, enabling eight SC-cell-based improved SC ladders to achieve the same fine-tuning steps as twelve SC-cell-based conventional SC ladders. To achieve lower phase noise and smaller chip size, the promoted binary-weighted digitally controlled transmission lines (DCTLs) are used to implement the coarse and medium tuning banks of the DCO. Compared to the conventional thermometer-coded DCTLs, control bits of the proposed DCTLs are reduced from 30 to 8, and the total length is reduced by 34.3% (from 122.76 to 80.66 μm). Fabricated in 40-nm CMOS, the DCO demonstrated in this work features a small fine-tuning step (483 kHz), a high oscillation frequency (79–85 GHz), and a smaller chip size (0.017 mm²). Compared to previous work, the modified DCO exhibits an excellent figure of merit with an area (FoM_A) of –198 dBc/Hz.

Key words: DCO, switched-capacitor ladder, sub-MHz, digitally controlled transmission lines, tuning bank

References

[1]	Li C C, Yuan M S, Liao C C, et al. A compact transformer-based fractional-N ADPLL in 10-nm FinFET CMOS. IEEE Trans Circuits Syst I Regul Pap, 2021, 68, 1881 doi: 10.1109/TCSI.2021.3059484
[2]	Tzeng C W, Huang S Y, Chao P Y. Parameterized all-digital PLL architecture and its compiler to support easy process migration. IEEE Trans Very Large Scale Integr VLSI Syst, 2014, 22, 621 doi: 10.1109/TVLSI.2013.2248070
[3]	Tsai C H, Zong Z W, Pepe F, et al. Analysis of a 28-nm CMOS fast-lock Bang-Bang digital PLL with 220-fs RMS jitter for millimeter-wave communication. IEEE J Solid-State Circuits, 2020, 55, 1854 doi: 10.1109/JSSC.2020.2993717
[4]	Zhang C, Xu Y X, Ji S J, et al. A design of DCO with 73.1% frequency tuning range based on switched transformer. 2020 IEEE MTT-S International Wireless Symposium (IWS), 2021, 1 doi: 10.1109/IWS49314.2020.9359988
[5]	Yang F, Wang R H, Liu X Z, et al. A high frequency resolution digitally controlled oscillator with differential tapped inductor. 2015 IEEE International Symposium on Circuits and Systems (ISCAS), 2015, 165 doi: 10.1109/ISCAS.2015.7168596
[6]	Huang Z Q, Luong H C. A dithering-less 54.79-to-63.16GHz DCO with 4-Hz frequency resolution using an exponentially-scaling C-2C switched-capacitor ladder. 2015 Symposium on VLSI Circuits (VLSI Circuits), 2015, C234 doi: 10.1109/VLSIC.2015.7231269
[7]	Huang Z Q, Luong H C. An 82–107.6-GHz integer-N ADPLL employing a DCO with split transformer and dual-path switched-capacitor ladder and a clock-skew-sampling delta–sigma TDC. IEEE J Solid-State Circuits, 2019, 54, 358 doi: 10.1109/JSSC.2018.2876462
[8]	C. Venerus and I. Galton. A TDC-Free Mostly-Digital FDC-PLL Frequency Synthesizer With a 2.8-3.5 GHz DCO. IEEE J Solid-State Circuits, 2015, 50(2), 45 doi: 10.1109/JSSC.2014.2361523
[9]	Wu W H, Staszewski R B, Long J R. A 56.4-to-63.4 GHz multi-rate all-digital fractional-N PLL for FMCW radar applications in 65 nm CMOS. IEEE J Solid-State Circuits, 2014, 49, 1081 doi: 10.1109/JSSC.2014.2301764
[10]	Lin C M, Kao K Y, Lin K Y. A wideband, low-noise, and high-resolution digitally-controlled oscillator for SDR applications. 2018 Asia-Pacific Microwave Conference (APMC), Kyoto, Japan, 2019, 270 doi: 10.23919/APMC.2018.8617605
[11]	Mostafa P, Chatterjee S. A ditherless 2.4GHz high resolution LC DCO. 2019 2nd International Conference on Innovations in Electronics, Signal Processing and Communication (IESC), 2019, 279 doi: 10.1109/IESPC.2019.8902349
[12]	Xu N, Rhee W, Wang Z H. A 2 GHz 2 Mb/s semi-digital 2⁺-point modulator with separate FIR-embedded 1-bit DCO modulation in 0.18 μm CMOS. IEEE Microw Wirel Compon Lett, 2015, 25, 253 doi: 10.1109/LMWC.2015.2400934
[13]	Ullah F, Liu Y, Wang X S, et al. Bandwidth-enhanced differential VCO and varactor-coupled quadrature VCO for mmWave applications. AEU Int J Electron Commun, 2018, 95, 59 doi: 10.1016/j.aeue.2018.08.005
[14]	Huang Z Q, Luong H C. Design and analysis of millimeter-wave digitally controlled oscillators with C-2C exponentially scaling switched-capacitor ladder. IEEE Trans Circuits Syst I Regul Pap, 2017, 64, 1299 doi: 10.1109/TCSI.2017.2657792
[15]	Wu W H, Long J R, Staszewski R B. High-resolution millimeter-wave digitally controlled oscillators with reconfigurable passive resonators. IEEE J Solid-State Circuits, 2013, 48, 2785 doi: 10.1109/JSSC.2013.2282701
[16]	Lu T Y, Yu C Y, Chen W Z, et al. Wide tunning range 60 GHz VCO and 40 GHz DCO using single variable inductor. IEEE Trans Circuits Syst I Regul Pap, 2013, 60, 257 doi: 10.1109/TCSI.2012.2215795
[17]	Yu S, Kinget P R. Scaling LC oscillators in nanometer CMOS technologies to a smaller area but with constant performance. IEEE Trans Circuits Syst II Express Briefs, 2009, 56, 354 doi: 10.1109/TCSII.2009.2019163
[18]	Zong Z R, Chen P, Staszewski R B. A low-noise fractional: Digital frequency synthesizer with implicit frequency tripling for mm-wave applications. IEEE J Solid-State Circuits, 2018, 54, 755 doi: 10.1109/JSSC.2018.2883397
[19]	Tarkeshdouz A, Mostajeran A, Mirabbasi S, et al. A 91-GHz fundamental VCO with 6.1% DC-to-RF efficiency and 4.5 dBm output power in 0.13-μm CMOS. IEEE Solid-State Circuits Lett, 2018, 1, 102 doi: 10.1109/LSSC.2018.2855434

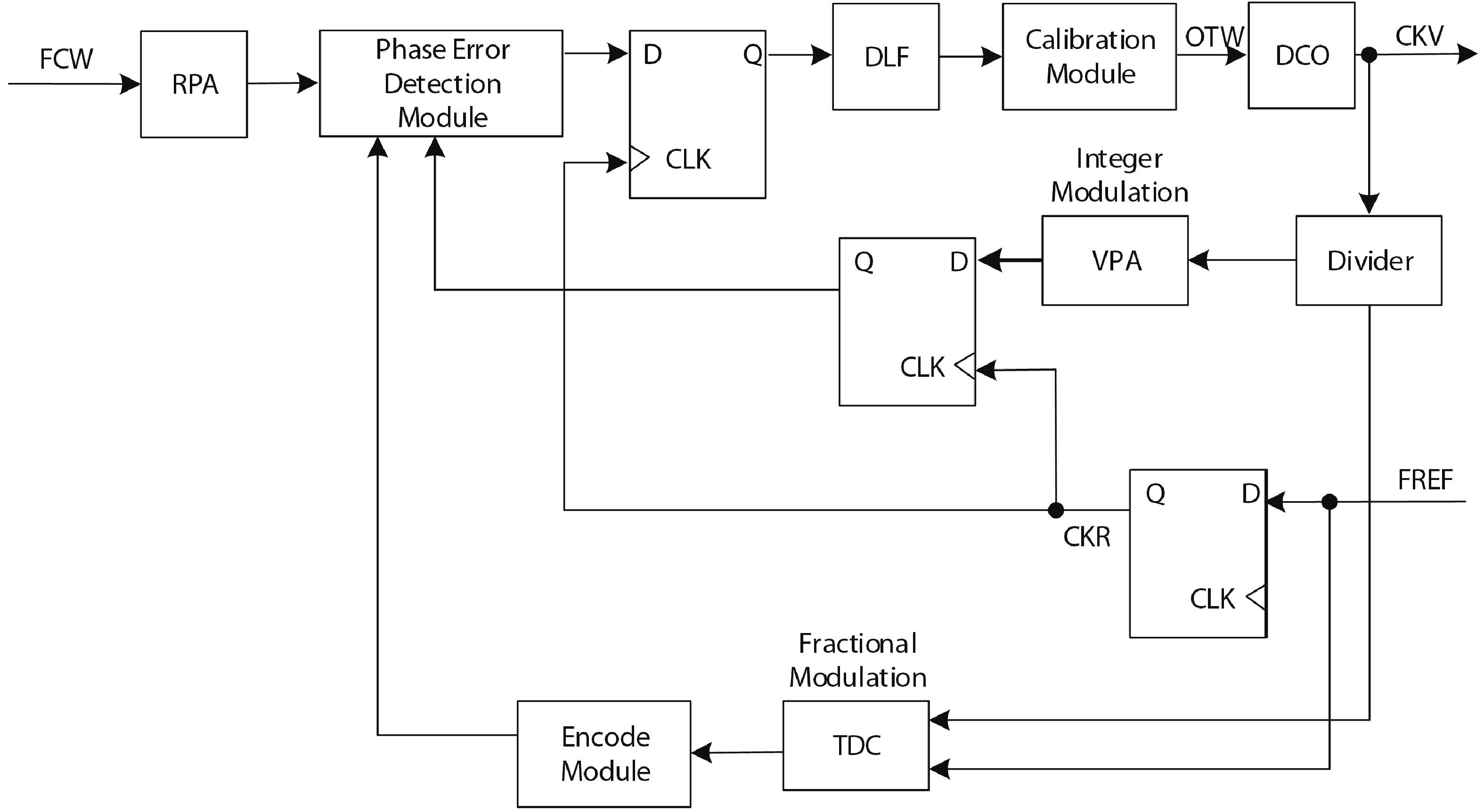

Fig. 1. Block diagram of DPLL.

DownLoad: Full-Size Img PowerPoint

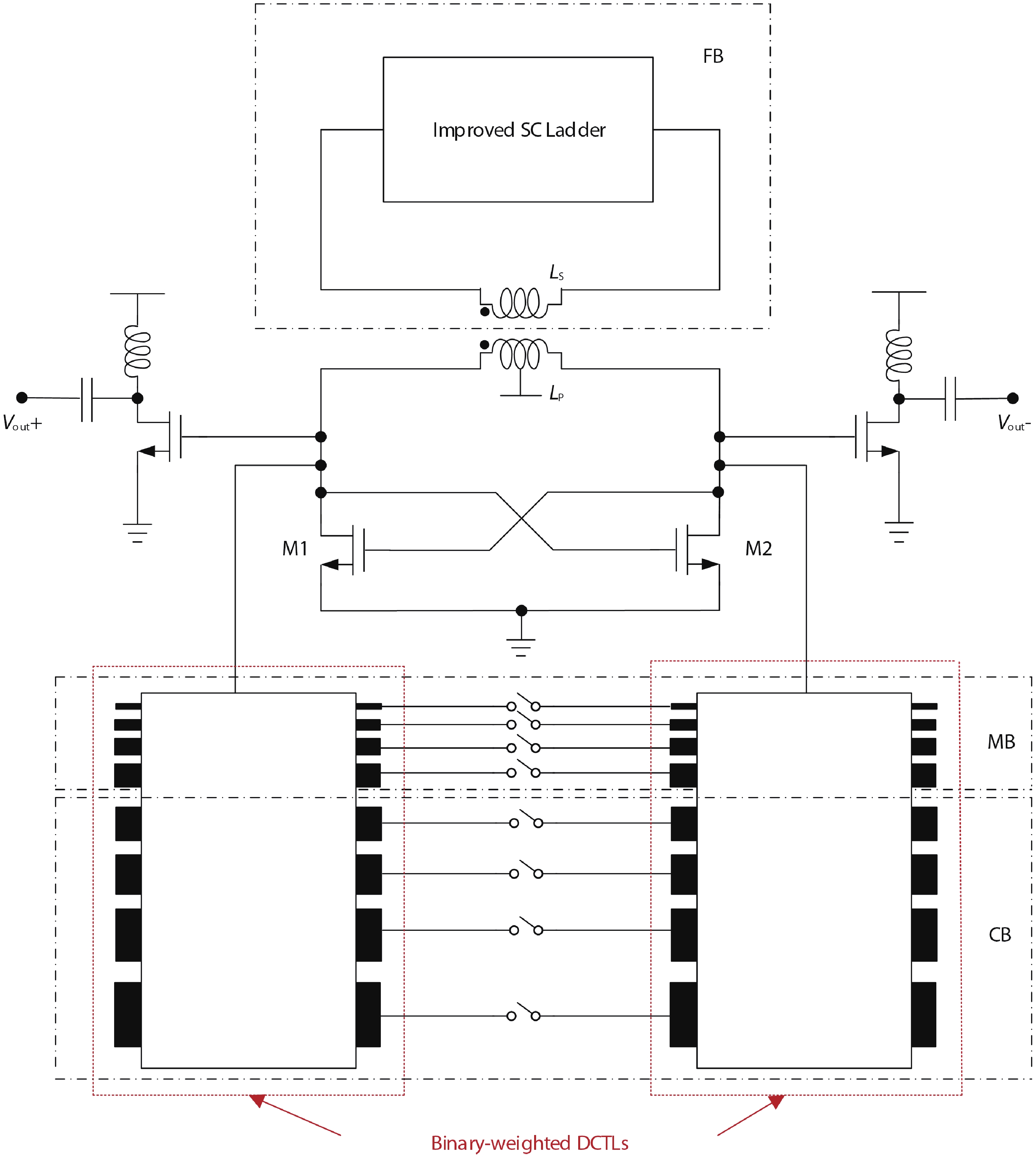

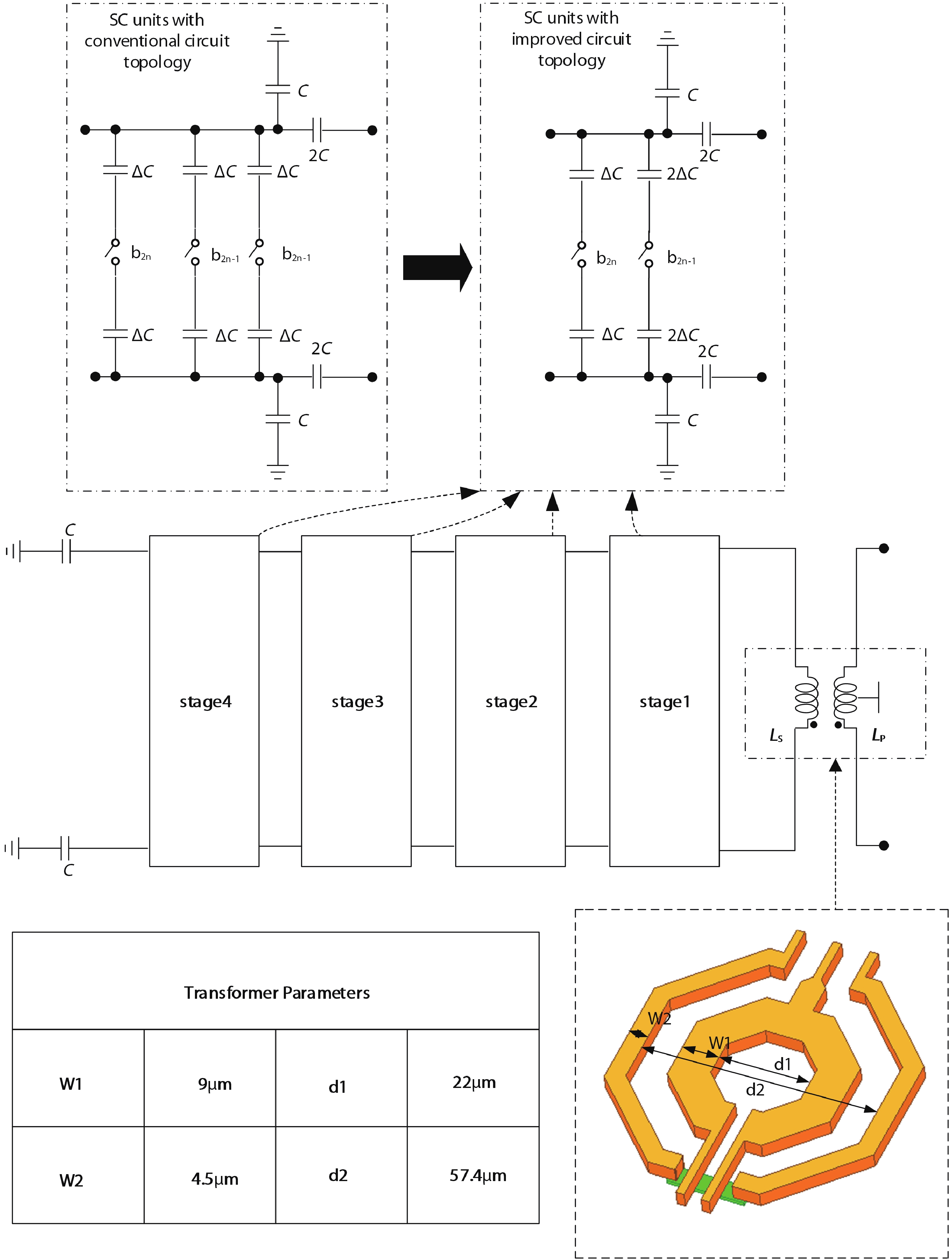

Fig. 2. (Color online) The architecture of the DCO with modified hybrid tuning banks.

DownLoad: Full-Size Img PowerPoint

Fig. 3. (Color online) The architecture of the FB.

DownLoad: Full-Size Img PowerPoint

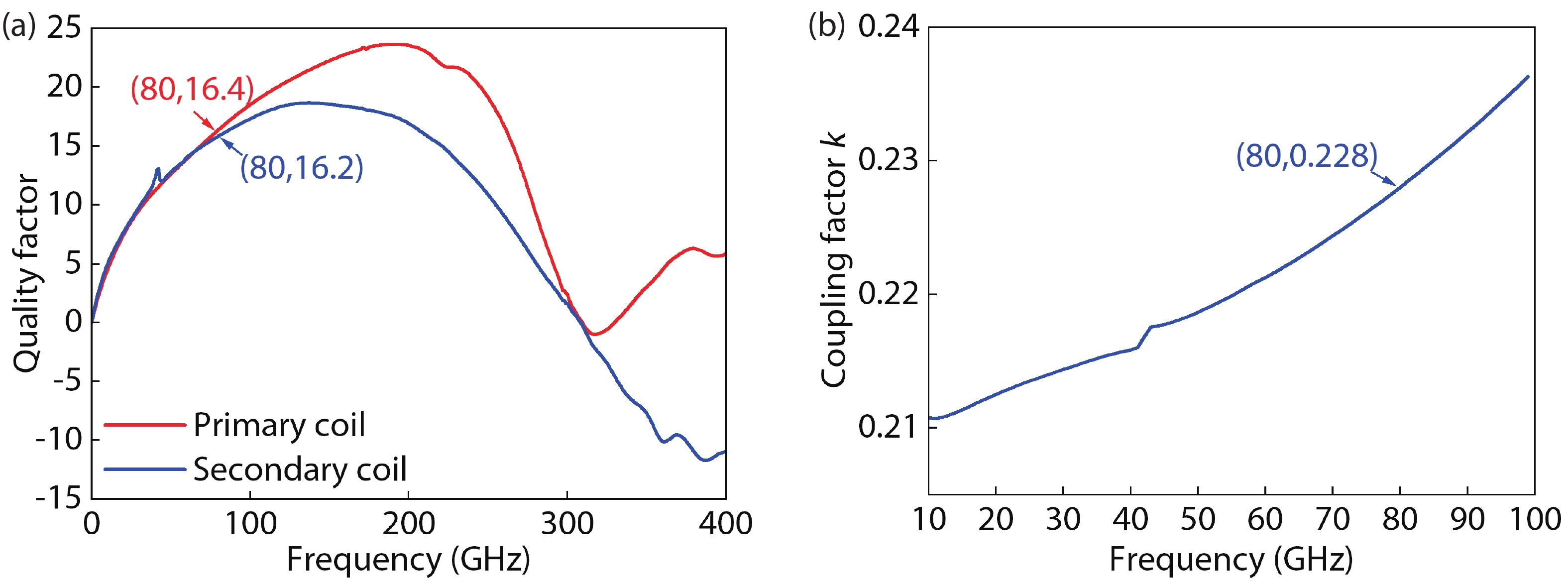

Fig. 4. (Color online) Simulation results of the on-chip transformer. (a) Q-factor curve. (b) Coupling coefficient k curve.

DownLoad: Full-Size Img PowerPoint

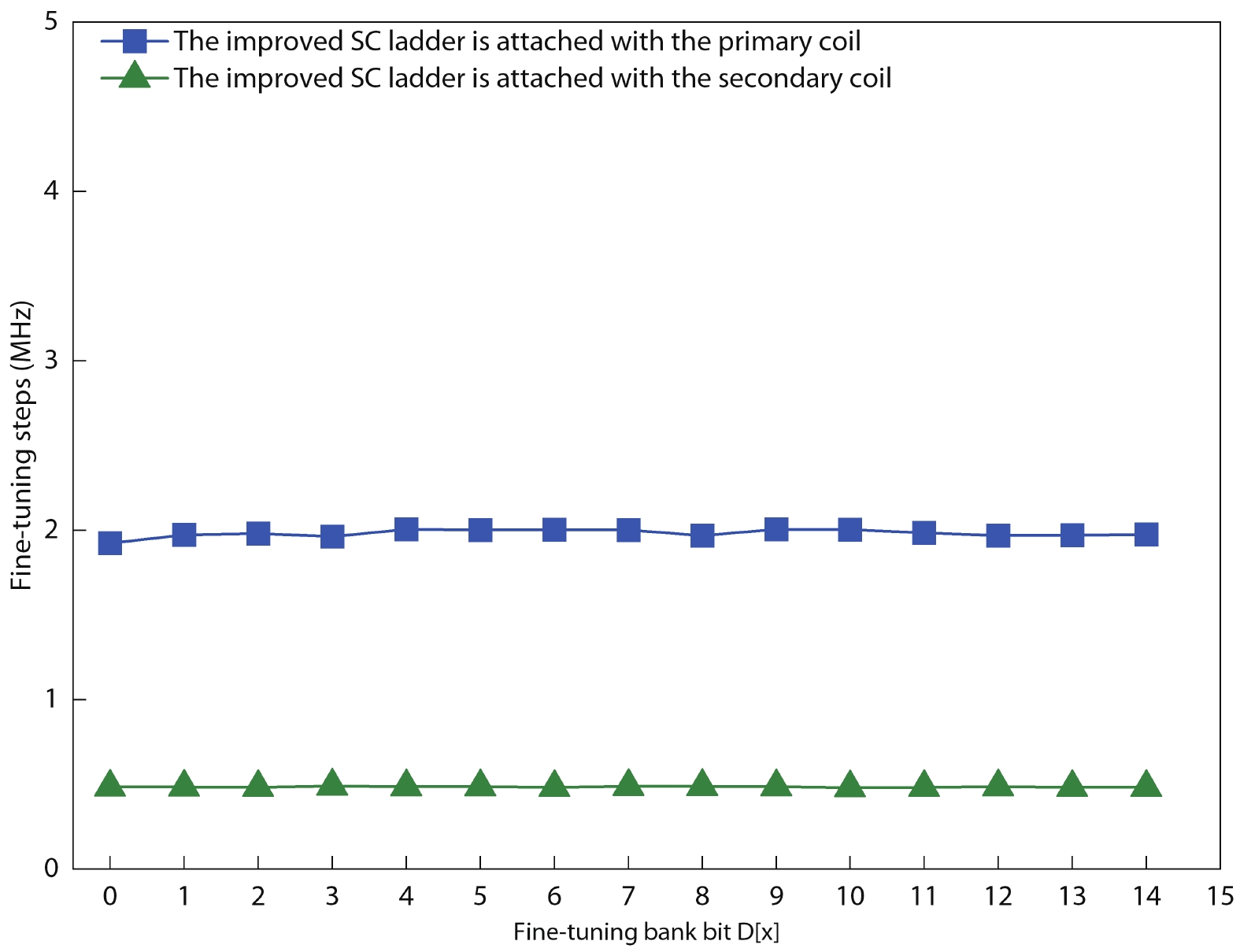

Fig. 5. (Color online) Comparison of simulated results of the fine-tuning steps for the different fine-tuning banks.

DownLoad: Full-Size Img PowerPoint

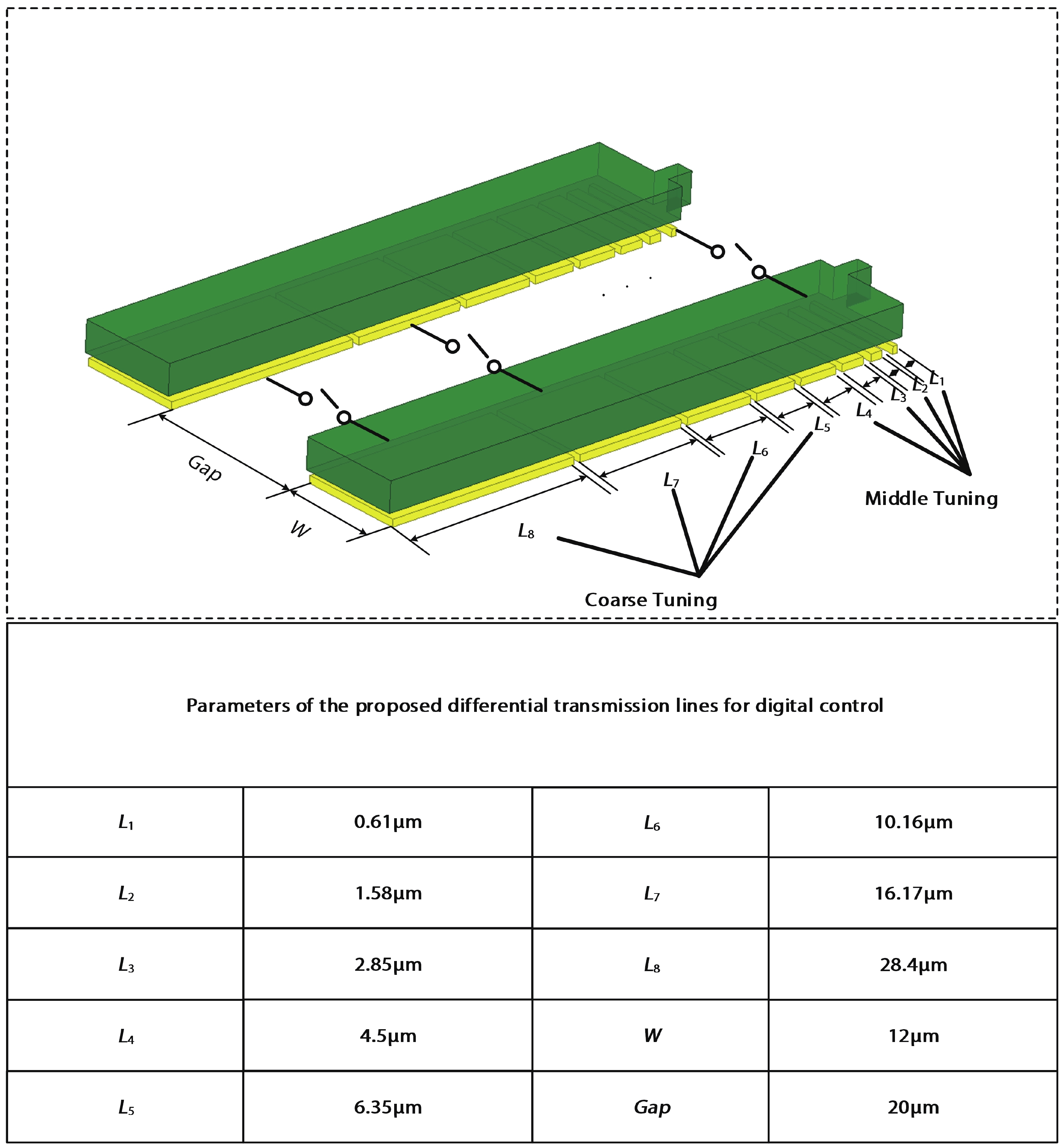

Fig. 6. (Color online) The general layout of the promoted binary-weighted DCTLs in CB and MB.

DownLoad: Full-Size Img PowerPoint

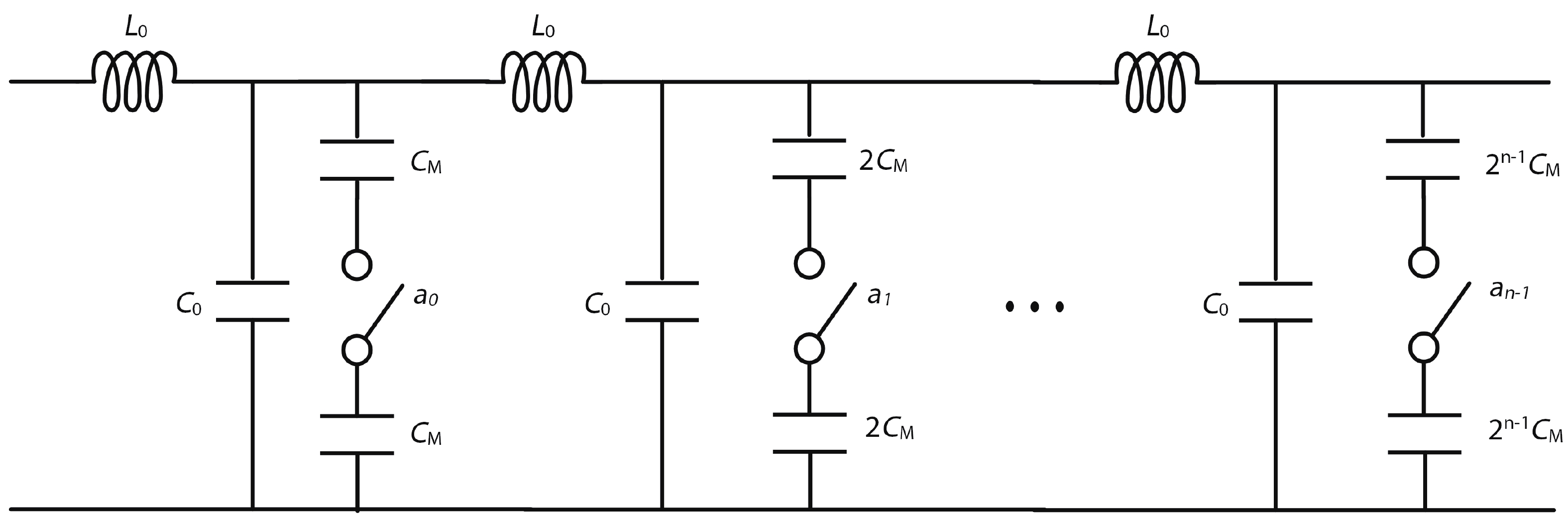

Fig. 7. The model of promoted binary-weighted DCTLs.

DownLoad: Full-Size Img PowerPoint

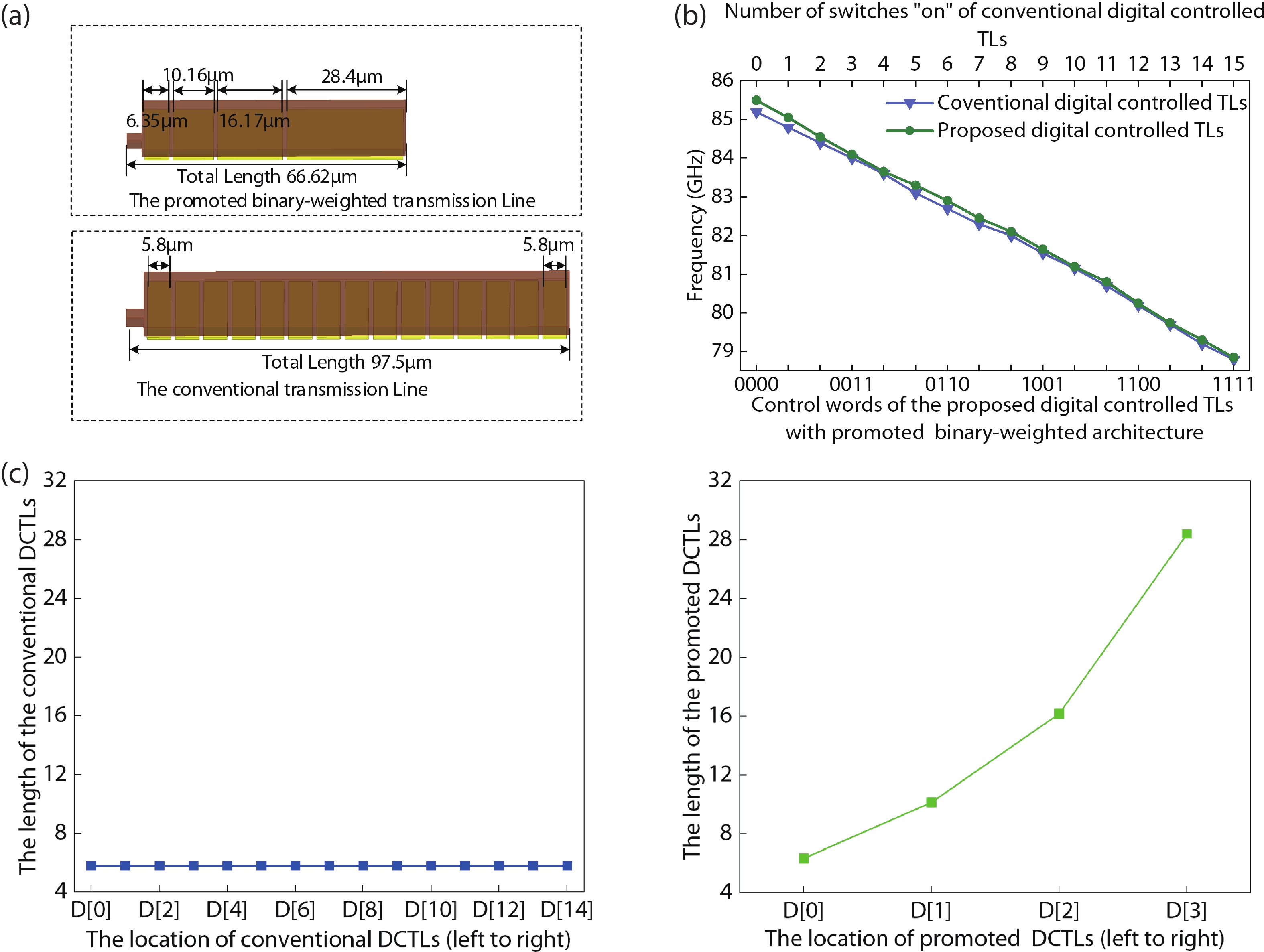

Fig. 8. (Color online) (a) Comparison of the digital-controlled TLs for CB with promoted binary-weighted architecture and the conventional digital-controlled TLs for CB. (b) Simulated tuning characteristics of the DCO with the tuning banks based on the two kinds of digital-controlled TLs mentioned above. (c) Simulated L/bit of the two kinds of DCTLs for CB.

DownLoad: Full-Size Img PowerPoint

Fig. 9. (Color online) DCO chip microphotograph.

DownLoad: Full-Size Img PowerPoint

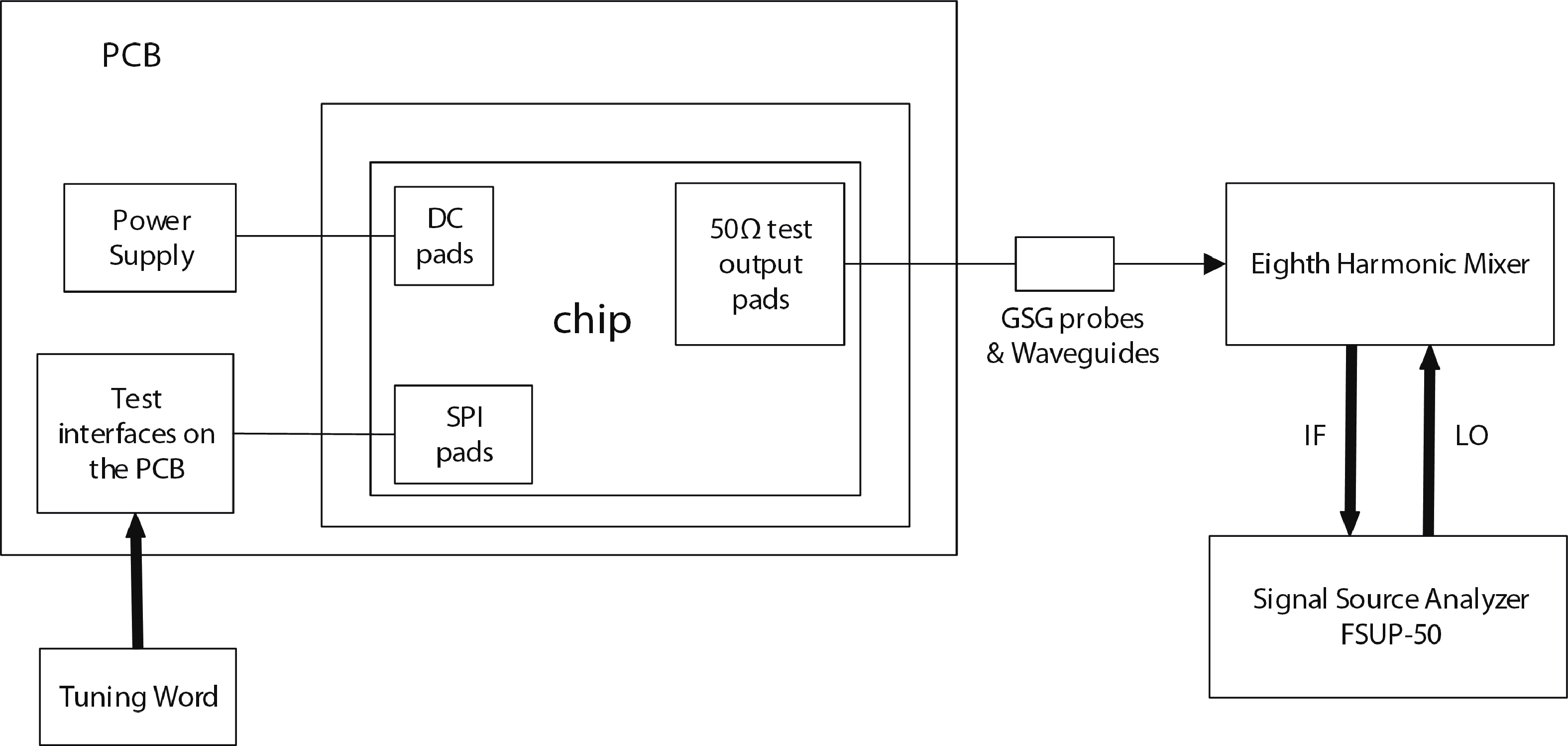

Fig. 10. Simplified schematic of phase noise measurement setup.

DownLoad: Full-Size Img PowerPoint

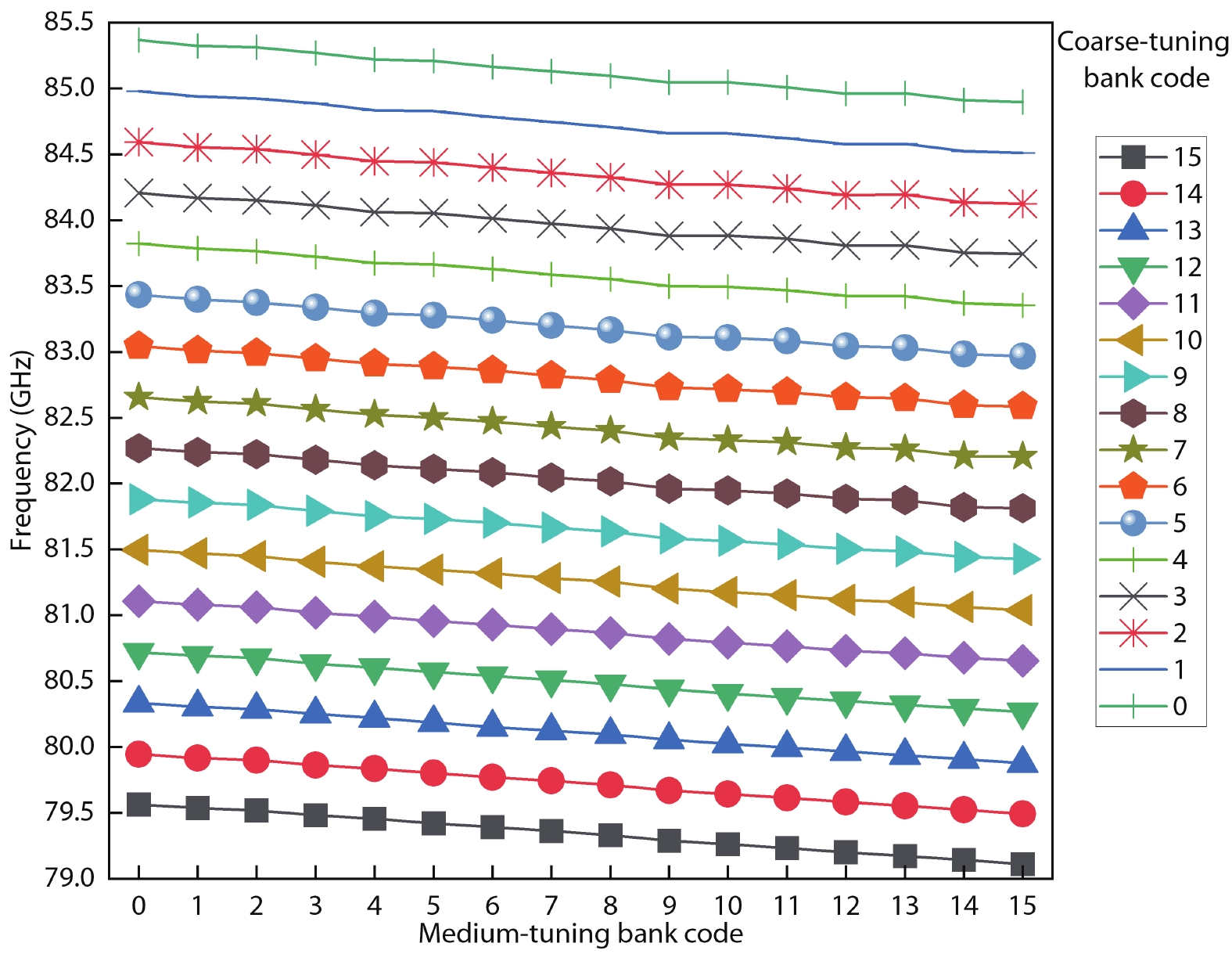

Fig. 11. (Color online) Measured medium-tuning characteristics.

DownLoad: Full-Size Img PowerPoint

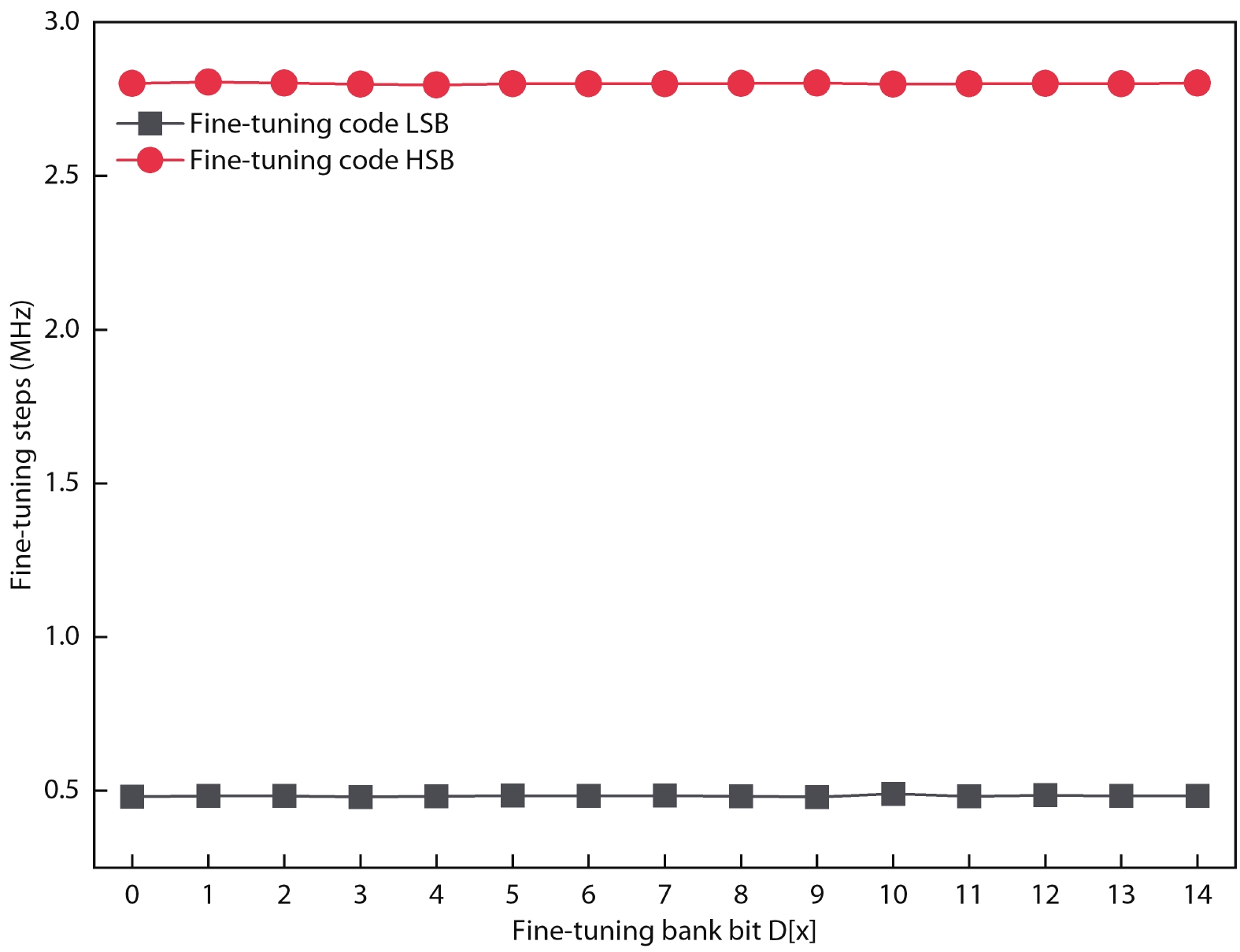

Fig. 12. (Color online) Measured fine-tuning characteristics.

DownLoad: Full-Size Img PowerPoint

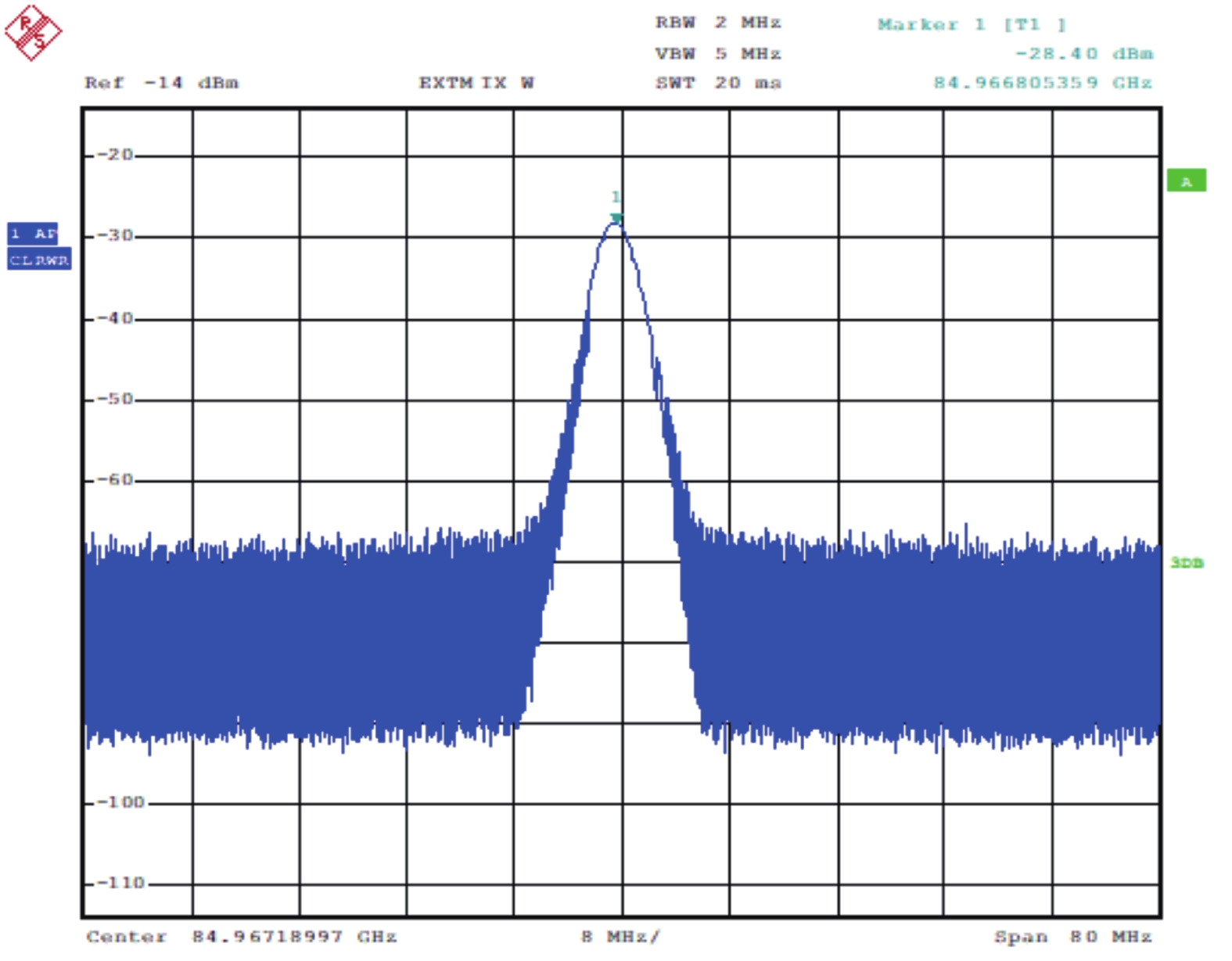

Fig. 13. (Color online) Measured DCO output spectrum.

DownLoad: Full-Size Img PowerPoint

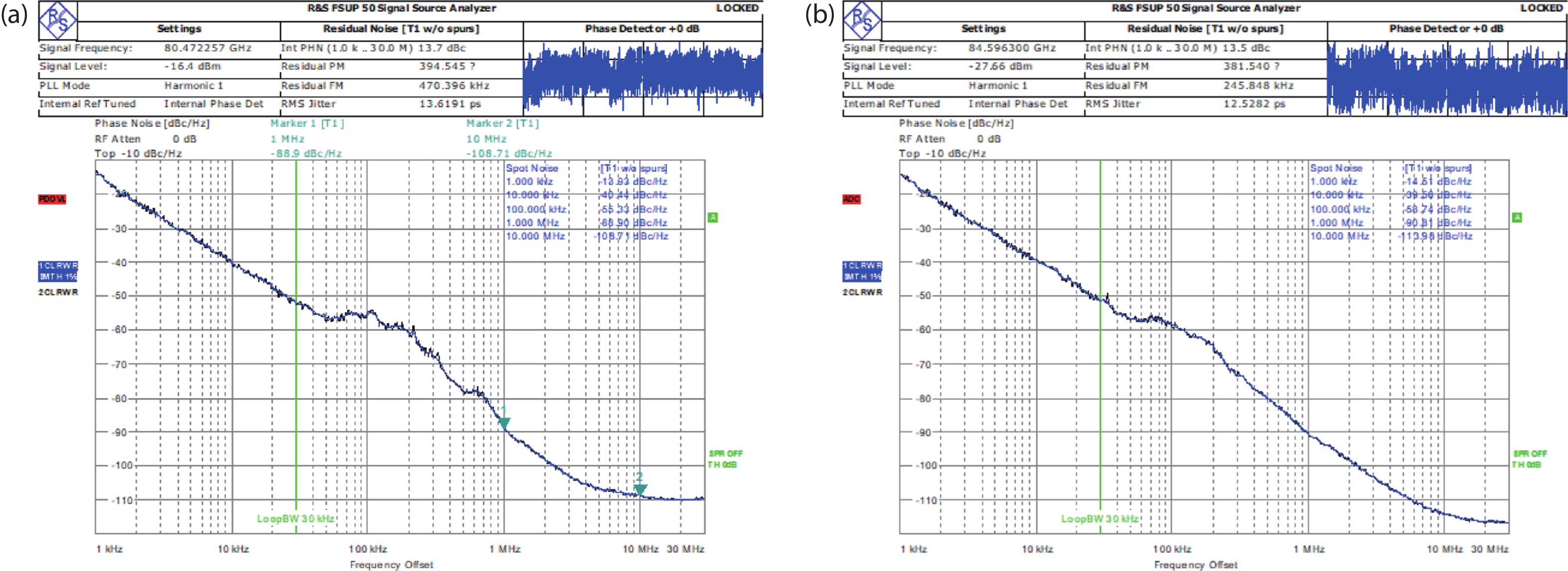

Fig. 14. (Color online) Measured DCO phase noise at (a) 80.47 GHz and (b) 84.59 GHz.

DownLoad: Full-Size Img PowerPoint

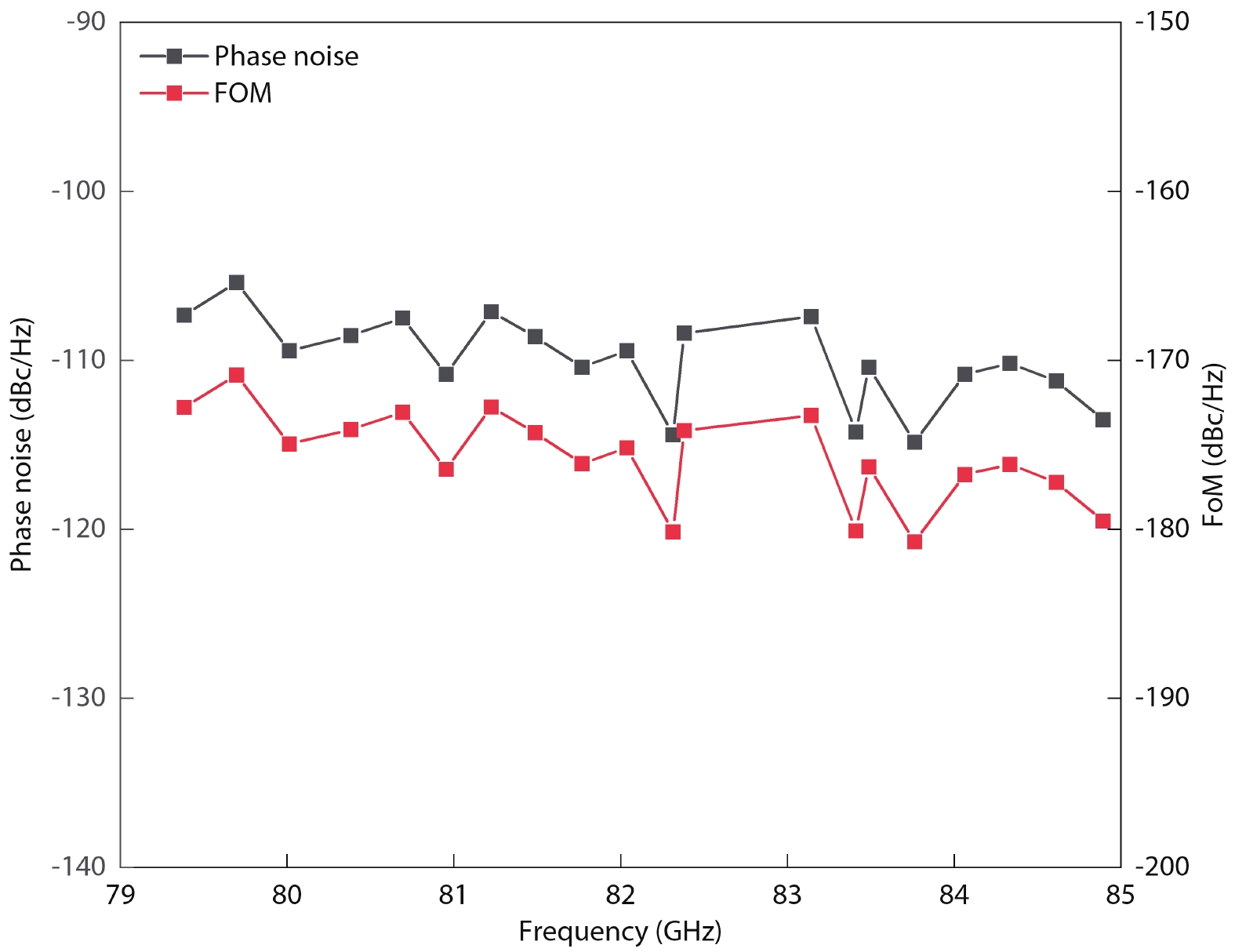

Fig. 15. (Color online) Measured phase noise and FoM over the whole frequency tuning range of the DCO.
