A 3.01-3.82 GHz CMOS LC voltage-controlled oscillator with 6.29% VCO-gain variation for WLAN applications

Xiaolong Liu; Lei Zhang; Li Zhang; Yan Wang; Zhiping Yu

doi:10.1088/1674-4926/35/7/075002

J. Semicond. > 2014, Volume 35 > Issue 7 > 075002

SEMICONDUCTOR INTEGRATED CIRCUITS

A 3.01-3.82 GHz CMOS LC voltage-controlled oscillator with 6.29% VCO-gain variation for WLAN applications

Xiaolong Liu, Lei Zhang, Li Zhang, Yan Wang and Zhiping Yu

+ Author Affiliations

Corresponding author: Zhang Lei, Email:zhang.lei@tsinghua.edu.cn

DOI: 10.1088/1674-4926/35/7/075002

Abstract: A wideband low-phase-noise LC voltage-controlled oscillator (VCO) with low VCO gain (K_VCO) variation for WLAN fractional-N frequency synthesizer application is proposed and designed on a 0.13-μm CMOS process. In order to achieve a low K_VCO variation, an extra switched varactor array was added to the LC tank with the conventional switched capacitor array. Based on the proposed switched varactor array compensation technique, the measured K_VCO is 43 MHz/V with only 6.29% variation across the entire tuning range. The proposed VCO provides a tuning range of 23.7% from 3.01 to 3.82 GHz, while consuming 9 mA of quiescent current from a 2.3 V supply. The VCO shows a low phase noise of -121.94 dBc/Hz at 1 MHz offset, from the 3.6 GHz carrier.

Key words: LC VCO, VCO gain (K_VCO), low K_VCO variation, tuning range, phase noise, CMOS

References

[1]	Perahia E, Gong M X. Gigabit wireless LANs: an overview of IEEE 802.11ac and 802.11ad. ACM SIGMOBILE Mobile Computing and Communications Review, 2011, 15(3): 23 doi: 10.1145/2073290
[2]	Berny A D, Niknejad A M, Meyer R G. A 1.8-GHz LC VCO with 1.3-GHz tuning range and digital amplitude calibration. IEEE J Solid-State Circuits, 2005, 40(4): 909 doi: 10.1109/JSSC.2004.842851
[3]	Nakamura T, Masuda T, Shiramizu N, et al. A wide-tuning-range VCO with small VCO-gain fluctuation for multi-band W-CDMA RFIC. Proceedings of the 32nd European Solid-State Circuits Conference, 2006: 448 http://ieeexplore.ieee.org/document/4099800/
[4]	Moon Y J, Roh Y S, Jeong C Y, et al. A 4.39-5.26 GHz LC-tank CMOS voltage-controlled oscillator with small VCO-gain variation. IEEE Microw Wireless Compon Lett, 2009, 19(8): 524 doi: 10.1109/LMWC.2009.2024846
[5]	Li Bin, Fan Xiangning, Wang Zhigong. A wideband LC-VCO with small VCO gain variation and adaptive power control. Journal of Semiconductors, 2012, 33(10): 105008 doi: 10.1088/1674-4926/33/10/105008
[6]	Lin T Y, Yu T Y, Ke L W, et al. A low-noise VCO with a constant K_VCO for GSM/GPRS/EDGE applications. IEEE Radio Frequency Integrated Circuits Symp, 2008: 387 https://www.infona.pl/resource/bwmeta1.element.ieee-art-000004561460
[7]	Wu T, Corvallis O R, Hanumolu P K, et al. Method for a constant loop bandwidth in LC-VCO PLL frequency synthesizers. IEEE J Solid-State Circuits, 2009, 44(2): 427 doi: 10.1109/JSSC.2008.2010792
[8]	Shin J, Shin H. A 1.9-3.8 GHz Δ Σ fractional-N PLL frequency synthesizer with fast auto-calibration of loop bandwidth and VCO frequency. IEEE J Solid-State Circuits, 2012, 47(3): 665 doi: 10.1109/JSSC.2011.2179733
[9]	Floyd M G. Phaselock techniques. 3rd ed. New York: Wiley, 2005
[10]	Lu L, Chen J, Yuan L, et al. An 18-mW 1.175-2-GHz frequency synthesizer with constant bandwidth for DVB-T tuners. IEEE Trans Microw Theory Tech, 2009, 57(4): 928 doi: 10.1109/TMTT.2009.2014449
[11]	Levantino S, Samori C, Bonfanti A, et al. Frequency dependence on bias current in 5 GHz CMOS VCOs: impact on tuning range and flicker noise upconversion. IEEE J Solid-State Circuits, 2002, 37(8): 1003 doi: 10.1109/JSSC.2002.800969
[12]	Gao H, Yan Y, Du Z, et al. A wideband LC-VCO with small VCO-gain fluctuation for mobile DTV application. Analog Integrated Circuits and Signal Processing, 2011, 68: 1 doi: 10.1007/s10470-010-9592-3
[13]	Mira J, Divel T, Ramet S, ea al. Distributed MOS varactor biasing for VCO gain equalization in 0.13μm CMOS technology. IEEE Radio Frequency Integrated Circuits Symp, 2004: 6
[14]	Hajimiri A, Lee T H. Design issues in CMOS differential LC oscillators. IEEE J Solid-State Circuits, 1999, 34(5): 717 doi: 10.1109/4.760384
[15]	Ruippo P, Lehtonen T A, Tchamov N T. An UMTS and GSM low phase noise inductively tuned LC VCO. IEEE Microw Wireless Compon Lett, 2010, 20(3): 163 doi: 10.1109/LMWC.2010.2040219
[16]	Hegazi E, Sjoland H, Abidi A A. A filtering technique to lower LC oscillator phase noise. IEEE J Solid-State Circuits, 2001, 36(12): 1921 doi: 10.1109/4.972142
[17]	Wu, Y Aparin V. A monolithic low phase noise 1.7 GHz CMO S VCO for zero-IF cellular CDMA receivers. IEEE International Solid State Circuits Conf, 2004: 396 http://ieeexplore.ieee.org/document/1332761/authors
[18]	Samadian S. A low phase noise quad-band CMOS VCO with minimized gain variation for GSM/GPRS/EDGE. IEEE International Symposium on Circuits and Systems, 2007: 3287 http://cn.bing.com/academic/profile?id=97973ce616a779dda9d16e60d89924fe&encoded=0&v=paper_preview&mkt=zh-cn
[19]	Jia L, Choi Y B, Yeoh W G. A 5.8-GHz VCO with precision gain control. IEEE Radio Frequency Integrated Circuits Symp, 2007: 701

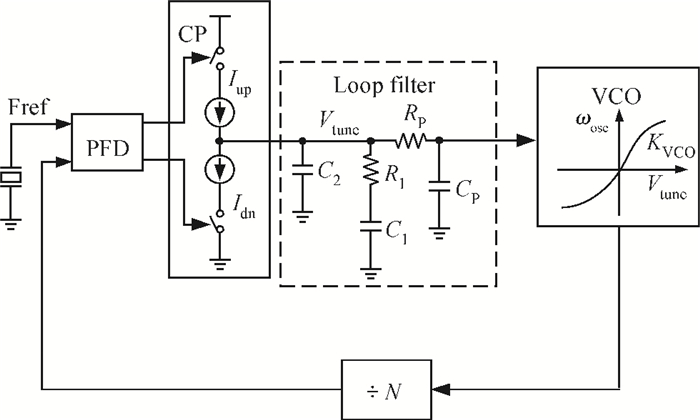

Fig. 1. Block diagram of a typical fourth-order type Ⅱ integrate frequency synthesizer with a passive loop filter.

DownLoad: Full-Size Img PowerPoint

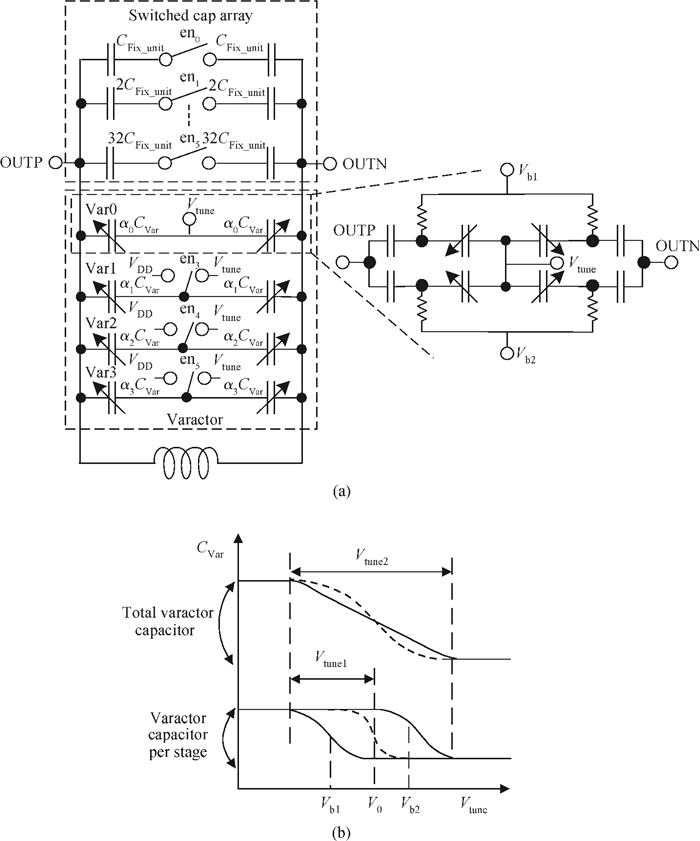

Fig. 2. Conventional topology. (a) Switched capacitor and a varactor. (b) Tuning characteristics with large K_VCO variation.

DownLoad: Full-Size Img PowerPoint

Fig. 3. Proposed LC tank. (a) Proposed K_VCO suppressing technique. (b) Capacitance against tuning voltage for the varactor unit.

DownLoad: Full-Size Img PowerPoint

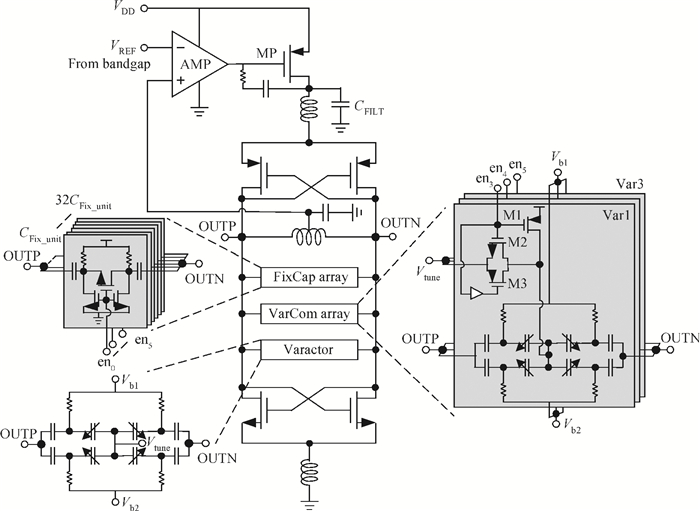

Fig. 4. Proposed wideband VCO with low K_VCO variation.

DownLoad: Full-Size Img PowerPoint

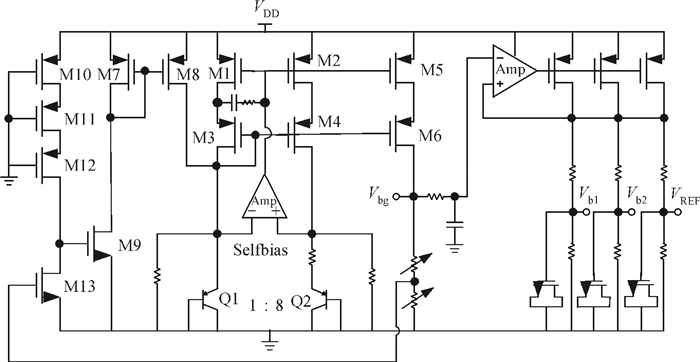

Fig. 5. The schematic of the bandgap reference.

DownLoad: Full-Size Img PowerPoint

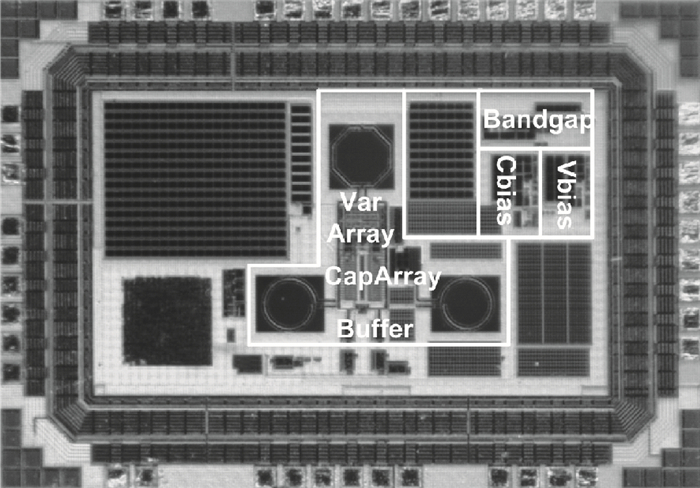

Fig. 6. Chip micrograph of the proposed VCO.

DownLoad: Full-Size Img PowerPoint

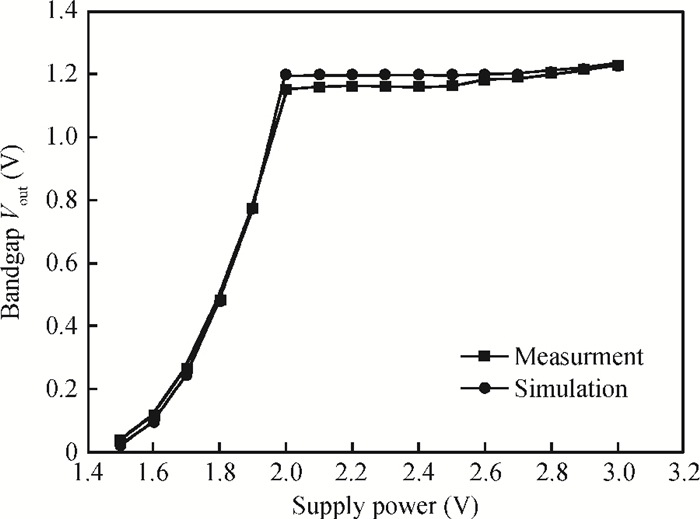

Fig. 7. Measured V_bg of the bandgap against supply voltage.

DownLoad: Full-Size Img PowerPoint

Fig. 8. Measured frequency tuning range of the proposed VCO.

DownLoad: Full-Size Img PowerPoint

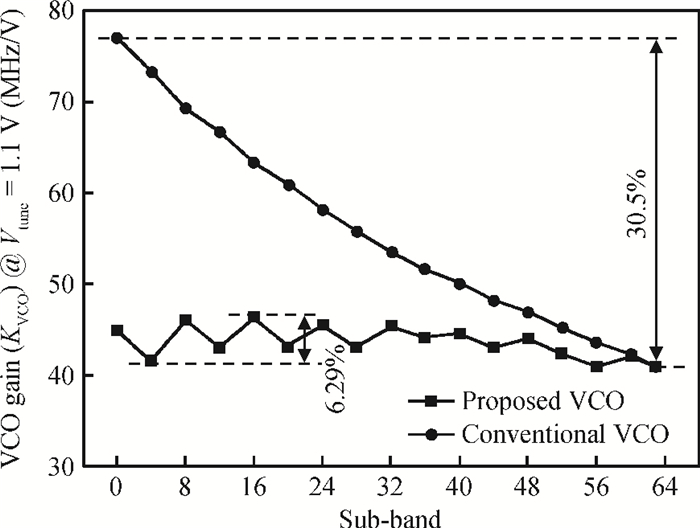

Fig. 9. Measured K_VCO variation of the proposed VCO.

DownLoad: Full-Size Img PowerPoint

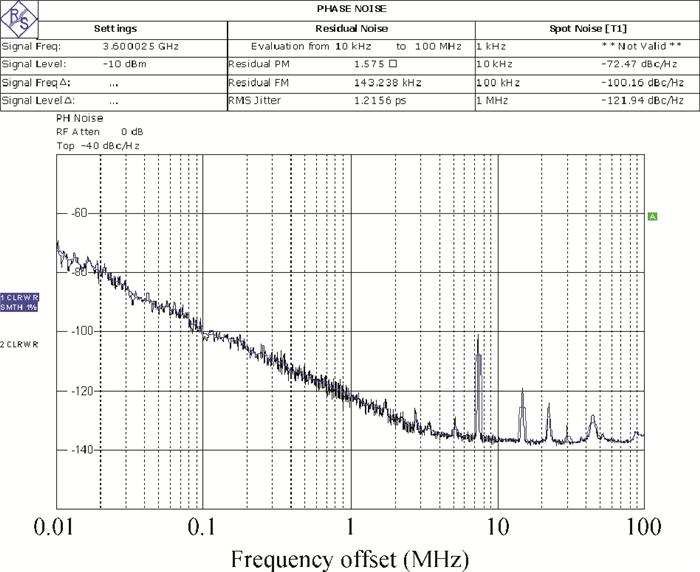

Fig. 10. Measured phase noise of the proposed VCO.
