First-principles calculation on the concentration of intrinsic defects in 4H-SiC

Ping Cheng; Yuming Zhang; Yimen Zhang

doi:10.1088/1674-4926/34/1/013002

J. Semicond. > 2013, Volume 34 > Issue 1 > 013002

SEMICONDUCTOR MATERIALS

First-principles calculation on the concentration of intrinsic defects in 4H-SiC

Ping Cheng^1,, Yuming Zhang² and Yimen Zhang²

+ Author Affiliations

Corresponding author: Cheng Ping, Email:chpzmm@yahoo.com.cn

DOI: 10.1088/1674-4926/34/1/013002

Abstract: Based on the first-principles pseudopotentials and the plane wave energy band method, the supercells of perfect crystal 4H-SiC and those with intrinsic defects V_C, V_Si, V_C-C and V_C-Si were calculated. Ignoring the atomic relaxations, the results show that the formation energy of intrinsic defects is ranked, from low to high, as V_C, V_C-C, V_Si to V_Si-Si at 0 K. The equilibrium concentration of each intrinsic defect can be deduced from the formation energy of each intrinsic defect. The concentration ranks, from high to low, as V_C, V_C-C, V_Si, V_Si-Si, which is in accordance with the ESR and PL results. The stabilizing process of metastable defects V_Si converting to V_C-C was explained by formation energy.

Key words: first-principles, intrinsic defects, formation energy

References

[1]	Poblenz C, Corrion A L, Recht F, et al. Power performance of AlGaN/GaN HEMTs grown on SiC by ammonia-MBE at 4 and 10 GHz. IEEE Electron Device Lett, 2007, 28(11):945 doi: 10.1109/LED.2007.907266
[2]	Zvanut M E, Konovalov V V. The level position of a deep intrinsic defect in 4H-SiC studied by photoinduced electron paramagnetic resonance. Appl Phys Lett, 2002, 80(3):410 doi: 10.1063/1.1432444
[3]	Carlos W E, Glaser E R, Shanabrook B V, et al. The role of the carbon vacancy——carbon antisite defect in semi-insulating 4H silicon carbide. Bull Am Phys Soc, 2003, 48:1322
[4]	Carlos W E, Glaser E R, Shanabrook B V. Optical and magnetic resonance signatures of deep levels in semi-insulating 4H SiC. Physica B, 2003, 340-342:151 doi: 10.1016/j.physb.2003.09.048
[5]	Son N T, Magnusson B, Zolnai Z, et al. Defects in high-purity semi-insulating SiC. Mater Sci Forum, 2004, 457-460:437 doi: 10.4028/www.scientific.net/MSF.457-460
[6]	Cheng P, Zhang Y M, Zhang Y M. Characteristics of the intrinsic defects in unintentionally doped 4H-SiC after thermal annealing. Microelectron Reliab, 2011, 51(3):572 doi: 10.1016/j.microrel.2010.09.003
[7]	Wen B, Zhao J J, Bucknum M J, et al. First-principles studies of diamond polytypes. Diamond & Related Materials, 2008, 17(3):356
[8]	Rurali R, Hernández E, Godignon P, et al. First principles studies of neutral vacancies diffusion in SiC. Computational Materials Science, 2003, 27(1/2):36
[9]	Velichko O. Simulation of the diffusion of point defects in structures with local elastic. Applied Mathematical Modelling, 2011, 35(3):1134 doi: 10.1016/j.apm.2010.08.002
[10]	Michel B, Adam G, Alexander M, et al. Identification of intrinsic defects in SiC:towards an understanding of defect aggregates by combining theoretical and experimental approaches. Phys Status Solidi B, 2008, 245(7):1281 doi: 10.1002/pssb.v245:7
[11]	Petrenko T T, Petrenko T L, Bratus V Y, et al. Symmetry, spin state and hyperfine parameters of vacancies in cubic SiC. Appl Surf Sci, 2001, 184(1-4):273 doi: 10.1016/S0169-4332(01)00677-8
[12]	He X J, He T, Wang Z H, et al. Neutral vacancy-defect-induced magnetism in SiC monolayer. Physica E:Low-Dimensional Systems and Nanostructures, 2010, 42(9):2451 doi: 10.1016/j.physe.2010.06.010
[13]	Wu P, Yoganathan M, Zwieback I. Defect evolution during growth of SiC crystals. J Cryst Growth, 2008, 310(7-9):1804 doi: 10.1016/j.jcrysgro.2007.11.078
[14]	Gao F, Weber W J, Xiao H Y, et al. Formation and properties of defects and small vacancy clusters in SiC:ab initio calculations. Nuclear Instruments and Methods in Physics Research B, 2009, 267(18):2995 doi: 10.1016/j.nimb.2009.06.018
[15]	Konopka A, Greulich-Weber S, Dierolf V, et al. Microscopic structure and energy transfer of vacancy-related defect pairs with Erbium in wide-gap semiconductors. Opt Mater, 2011, 33:1041 doi: 10.1016/j.optmat.2010.12.005
[16]	Yang F H, Tan J, Zhou C G, et al. Ab initio studies of CiCs and CiOi defects in Si_1-xGe_x alloys. Acta Phys Sin, 2008, 57(2):1109
[17]	Cheng P, Zhang Y M, Zhang Y M, et al. ESR characters of intrinsic defects in epitaxial semi-insulating 4H-SiC illuminated by Xe light. Journal of Semiconductors. 2009, 30(12) 123002 doi: 10.1088/1674-4926/30/12/123002
[18]	Chen J Q, Chen M X, Zhao J S. Defects in crystal. Hangzhou:Zhejiang University Press, 1992

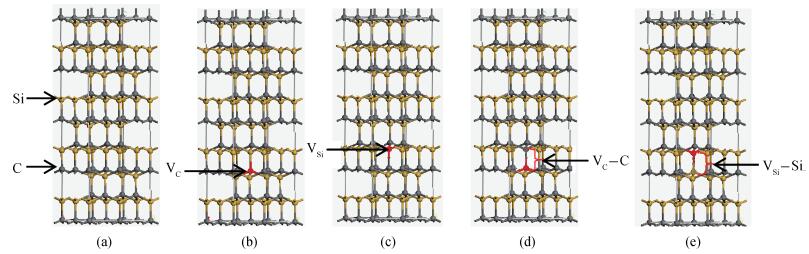

Fig. 1. Supercell of 4H-SiC and native defects: (a) a perfect crystal of 4H-SiC, (b) one V$_{\rm C}$ on the hexagonal lattice of 4H-SiC, (c) one V$_{\rm Si}$ on the hexagonal lattice of 4H-SiC, (d) the 4H-SiC supercell with one V$_{\rm C}$–C, (e) the 4H-SiC supercell with one V$_{\rm Si}$–Si.

DownLoad: Full-Size Img PowerPoint

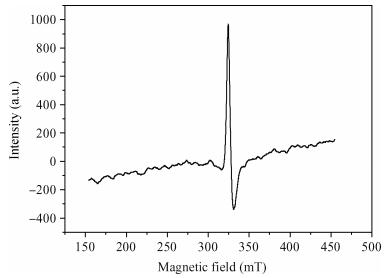

Fig. 2. ESR spectrum in the as-grown sample.

DownLoad: Full-Size Img PowerPoint

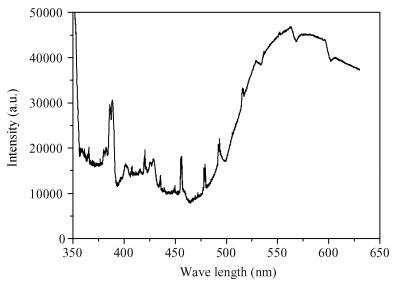

Fig. 3. PL spectrum of the as-grown sample.
