J. Semicond. > 2013, Volume 34 > Issue 7 > 074010
|

SEMICONDUCTOR DEVICES

A low power discrete operation mode for punchthrough phototransistor

Quan Zhou, Shuxu Guo, Jingyi Song, Zhaohan Li, Guotong Du and Yuchun Chang

+ Author Affiliations

 Corresponding author: Chang Yuchun, Email:changyc@jlu.edu.cn

DOI: 10.1088/1674-4926/34/7/074010

PDF

Abstract: This paper proposed a discrete operation mode for a punchthrough (PT) phototransistor, which is suitable for low power application, since the bias current is only necessary during the read-out phase. Moreover, simulation results show that with the new operation mode, the photocurrent is much larger than that of continuous operation mode. An ultra-high responsivity of 2×107A/W at 10-9 W/cm2 is obtained with a small detector size of 1 μm2. In CMOS image sensor applications, with an integration time of 10 ms, a normalized pixel responsivity of 220 V·m2/W·s·μm2 is obtained without any auxiliary amplifier.

Key words: punchthrough (PT) phototransistor, discrete operation mode, low power, high responsivity



[1]
Han Z T, Chu J K, Meng F T, et al. Design and simulation of blue/violet sensitive photodetectors in silicon-on-insulator. Journal of Semiconductors, 2009, 30(10):104008 doi: 10.1088/1674-4926/30/10/104008
[2]
Zhang Y X, Liao Z Y, Zhao L J, et al. A high-efficiency high-power evanescently coupled UTC-photodiode. Journal of Semiconductors, 2009, 30(4):044008 doi: 10.1088/1674-4926/30/4/044008
[3]
Chen B, Yang Y T, Chai C C, et al. Optical coupling optimization in a novel metal-semiconductor-metal ultraviolet photodetector based on semicircular Schottky electrodes. Journal of Semiconductors, 2009, 30(4):054010
[4]
Abedin M N, Refaat T F, Suliima O V, et al. AlGaAsSb-InGaAsSb HPTs with high optical gain and wide dynamic range. IEEE Trans Electron Devices, 2004, 51(12):2013 doi: 10.1109/TED.2004.838328
[5]
Han D, Li G, Zhang Y, et al. Ultrahigh-sensitive AlGaAs-GaAs punchthrough heterojunction phototransistor. IEEE Photonics Technol Lett, 1997, 9(10):1391 doi: 10.1109/68.623273
[6]
Luo H, Chang Y, Wang Y, et al. Ultrasensitive Si phototransistors with a punchthrough base. Appl Phys Lett, 2001, 79(6):773 doi: 10.1063/1.1390477
[7]
Liu X, Guo S, Chang Y, et al. Punchthrough enhanced phototransistor fabricated in standard CMOS process. IEEE Electron Device Lett, 2009, 30(3):272 doi: 10.1109/LED.2008.2011143
[8]
Zhou Q, Guo S, Chang Y, et al. High-dynamic-range photodetecting scheme based on PEPT with a large output swing. IEEE Trans Electron Devices, 2012, 59(5):1423 doi: 10.1109/TED.2012.2187658
[9]
Papadopoulou P, Georgoulas N, Thanailakis A, et al. An extensive study of the photocurrent amplification mechanism of silicon bulk-barrier diodes based on simulation and experimental results. Thin Solid Films, 2002, 415(1):276 http://www.sciencedirect.com/science/article/pii/S0040609002005485
[10]
Chen C Y. Theory of a modulated barrier photodiode, Appl Phys Lett, 1981, 39(12):15 http://adsabs.harvard.edu/abs/1981ApPhL..39..979C
[11]
http://www.datasheetcatalog.org/datasheet2/2/044ipph9289eg3l6qa3eadzds1fy.pdf. 1. 3 MPxl Rolling Shutter CMOS Image Sensor
[12]
Cremers B, Agarwa M. A high speed pipelined snapshot CMOS image sensor with 6.4 Gpixel/s data rate. International Image Sensor Workshop, 2009

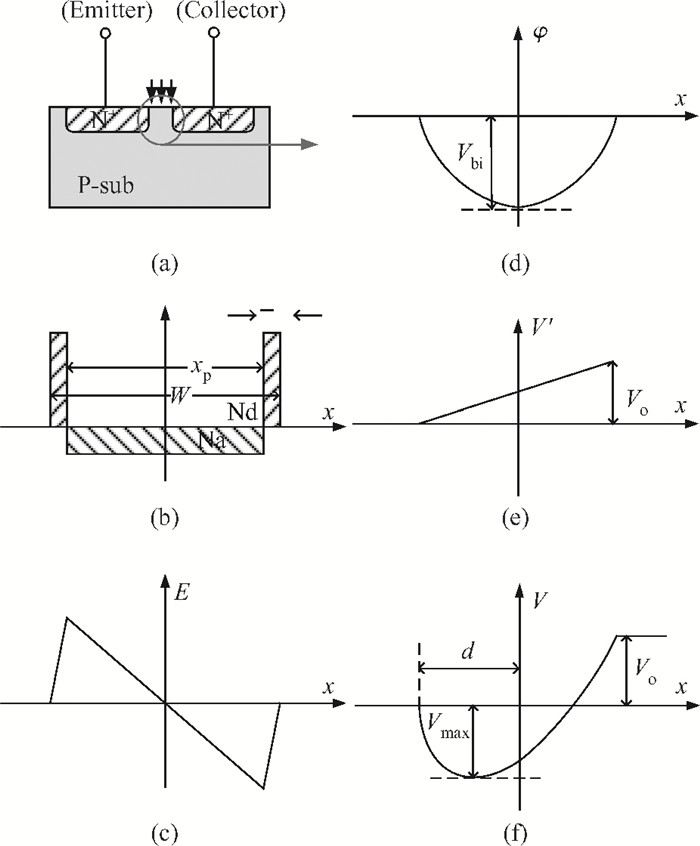

Fig. 1.  (a) Cross-section of punchthrough phototransistor. (b) Charge distribution in depletion region. (c) Build-in electric field distribution. (d) Build-in potential distribution. (e) Linear potential distribution with bias voltage of $V_{\rm o}$. (f) Whole potential distribution.

DownLoad: Full-Size Img PowerPoint

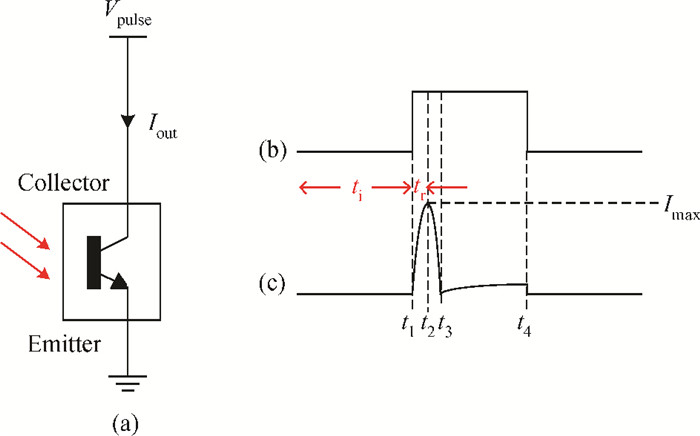

Fig. 2.  (a) Schematic of the proposed discrete operation mode. (b) Voltage with pulse width. (c) Photocurrent response.

DownLoad: Full-Size Img PowerPoint

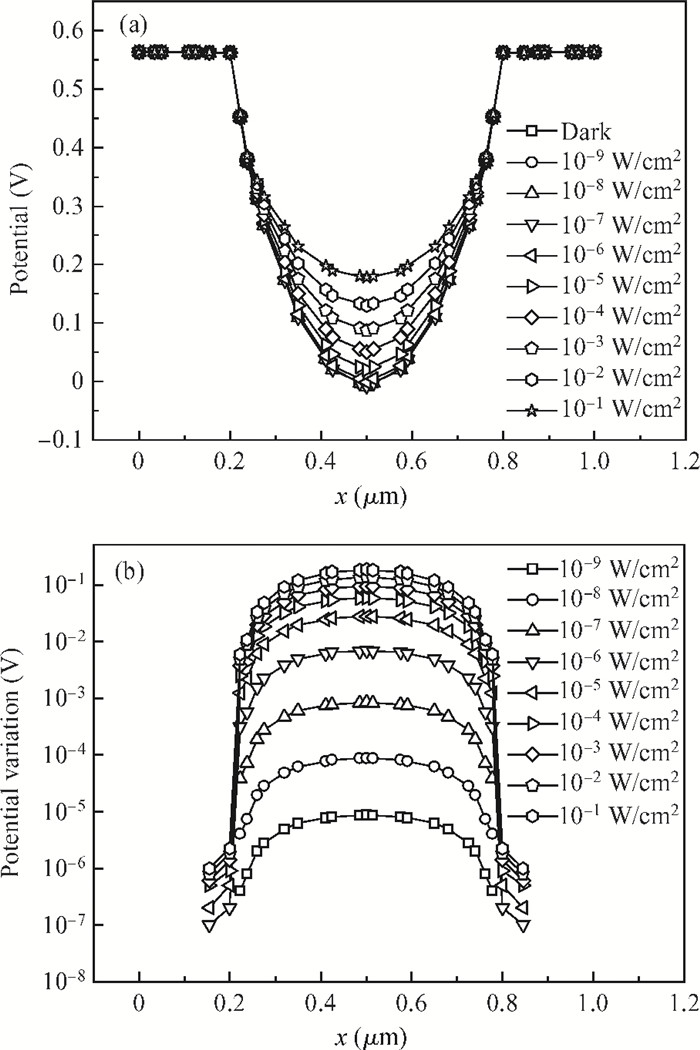

Fig. 3.  (a) Potential of base region with different light intensity. (b) Potential variation.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  Photocurrent response with different light intensity in discrete operation mode. (a) 10$^{-9}$ W/cm$^{2}$. (b) 10$^{-7}$ W/cm$^{2}$. (c) 10$^{-5}$ W/cm$^{2}$. (d) 10$^{-3}$ W/cm$^{2}$. (e) 10$^{-1}$ W/cm$^{2}$.

DownLoad: Full-Size Img PowerPoint

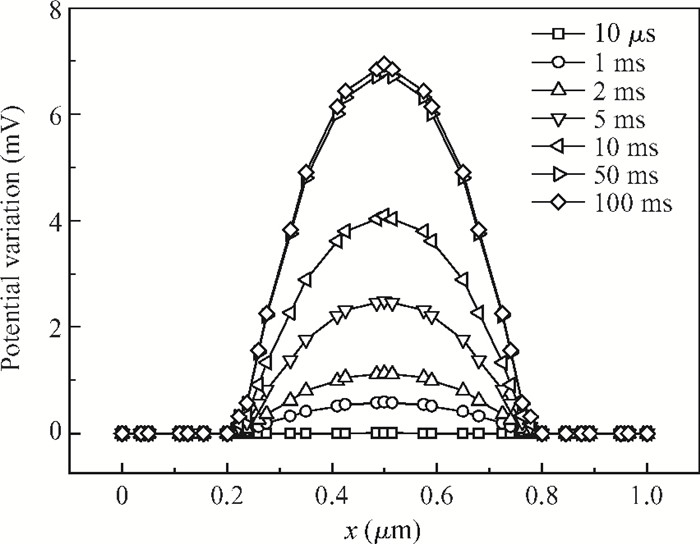

Fig. 5.  Potential variation in different integration times.

DownLoad: Full-Size Img PowerPoint

Table 1.   Pixel voltage responsivity comparisons.
