An improved trench gate super-junction IGBT with double emitter

Weinan Dai, Jing Zhu, Weifeng Sun, Yicheng Du and Keqin Huang

+ Author Affiliations

 Corresponding author: Jing Zhu, E-mail: zhj_seu@126.com

DOI: 10.1088/1674-4926/36/1/014009

PDF

Abstract: An improved trench gate super-junction insulated-gate bipolar transistor is presented. The improved structure contains two emitter regions. The first emitter region of the device works as the conventional structure, which can absorb both the electron current and hole current. The second emitter on the top of the p-pillar acts as the hole current diverter, leading to an improved latch-up capability without sacrificing the off-state breakdown voltage (BV) and turn-off loss. The simulation shows that the latch-up limit of the SJ-IGBT increases from 15000 to 28300 A/cm2 at VGE = 10 V, the BV is 810 V, and the turn off loss is 6.5 mJ/cm2 at Von = 1.2 V.

Key words: trench gate, super-junction (SJ), insulated-gate bipolar transistor (IGBT), latch-up



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]

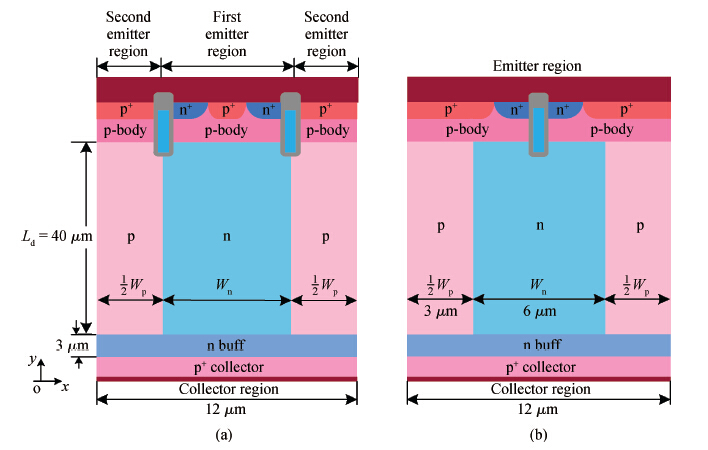

Fig. 1.  Schematic cross-sectional views of (a) the DESJ-IGBT and (b) the conventional SJ-IGBT.

DownLoad: Full-Size Img PowerPoint

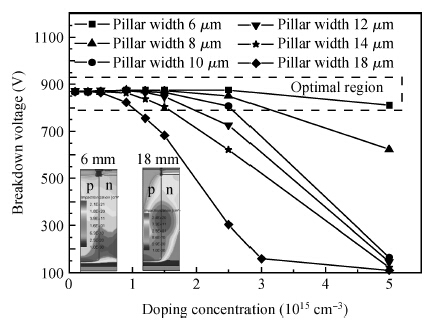

Fig. 2.  The relationship between breakdown voltage and pillar doping concentration at different pillar widths.

DownLoad: Full-Size Img PowerPoint

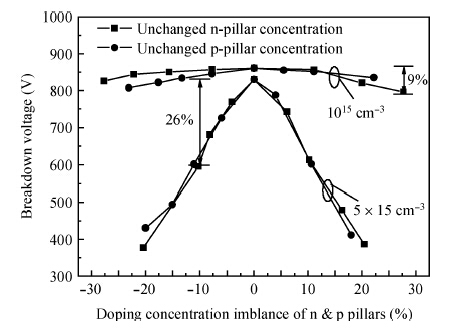

Fig. 3.  Breakdown voltage versus charge imbalance of n- and p-pillars in DESJ-IGBT. The pillar width is 6 $\mu $m.

DownLoad: Full-Size Img PowerPoint

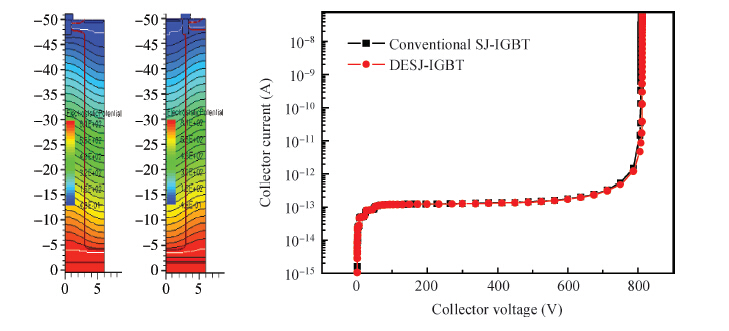

Fig. 4.  Electrical potential distribution at $V_{\rm CE}$ $=$ 810 V and off-state breakdown characteristics of the conventional SJ-IGBT and improved DESJ-IGBT.

DownLoad: Full-Size Img PowerPoint

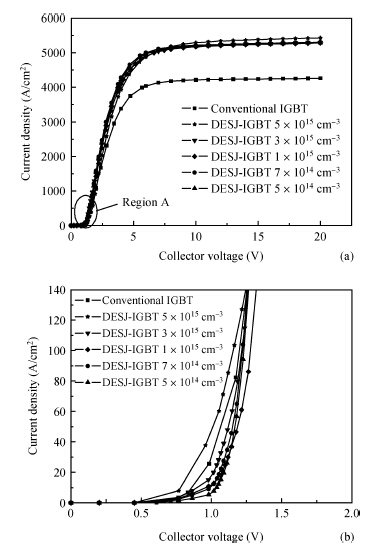

Fig. 5.  (a) Output characteristics of the DESJ-IGBT at different pillar concentration in comparison with the conventional IGBT. (b) An enlarged view of the linear region. All of the structures have the same breakdown voltage.

DownLoad: Full-Size Img PowerPoint

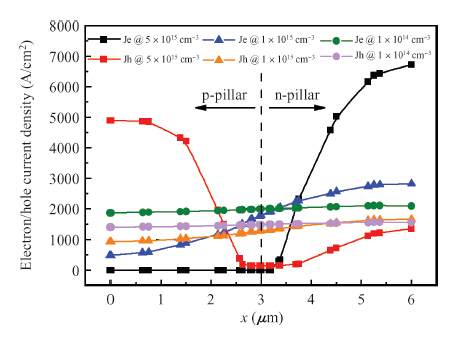

Fig. 6.  Hole and electron current density distribution along vertical-cut ($y=$ 30 $\mu$m) in the n/p-pillars at different doping concentrations (a) 1 $\times$ 10$^{14}$ cm$^{-3}$, (b) 1 $\times$ 10$^{15}$ cm$^{-3}$, and (c) 5 $\times$ 10$^{15}$ cm$^{-3}$.

DownLoad: Full-Size Img PowerPoint

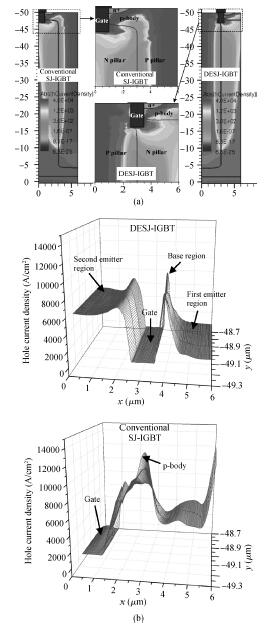

Fig. 7.  (a) Hole current density contours for conventional SJ-IGBT at $V_{\rm GE}$ $=$ 10 V and $J_{\rm C}$ $=$ 5000 A/cm$^{2}$ in comparison with the improved structure and (b) the 3-D hole current density distribution across the two devices.

DownLoad: Full-Size Img PowerPoint

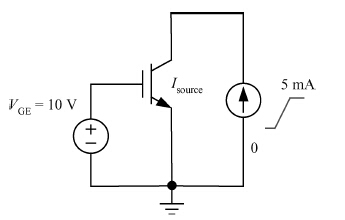

Fig. 8.  The circuit used to simulate latch up characteristics.

DownLoad: Full-Size Img PowerPoint

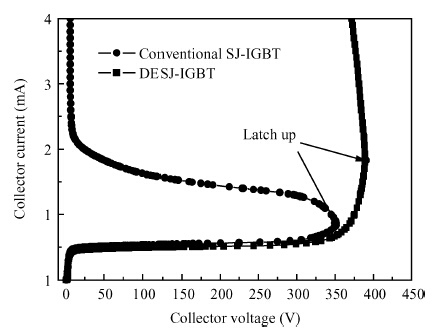

Fig. 9.  Latch-up characteristics of the conventional and improved SJ-IGBT at $V_{\rm GE}$ $=$ 10 V.

DownLoad: Full-Size Img PowerPoint

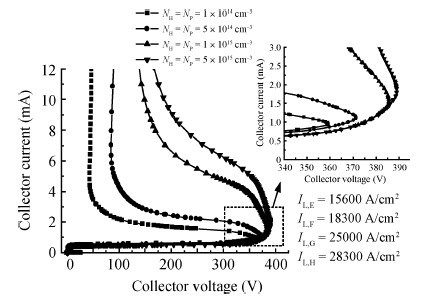

Fig. 10.  Latch-up characteristics of the DESJ-IGBT in relation to pillar doping.

DownLoad: Full-Size Img PowerPoint

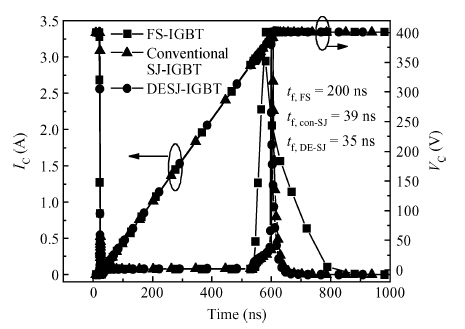

Fig. 11.  Turn-off current and voltage waveforms of the DESJ-IGBT, the conventional SJ-IGBT, and the FS-IGBT (collector current density $J_{\rm C}$ $=$ 500 A/cm$^{2}$, $T=$ 300 K).

DownLoad: Full-Size Img PowerPoint

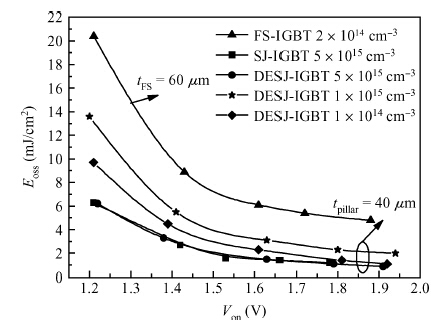

Fig. 12.  Trade-off performance of DESJ-IGBT at different pillar concentrations in comparison with FS-IGBT and SJ-IGBT.

DownLoad: Full-Size Img PowerPoint
