J. Semicond. > 2016, Volume 37 > Issue 1 > 013005
|

SEMICONDUCTOR MATERIALS

Excellent performance of gas sensor based on In2O3-Fe2O3 nanotubes

Li Liu, Shouchun Li, Xin Guo, Yue He and Lianyuan Wang

+ Author Affiliations

 Corresponding author: Liu Li,Email:liul99@jlu.edu.cn

DOI: 10.1088/1674-4926/37/1/013005

PDF

Abstract: In2O3-Fe2O3 nanotubes are synthesized by an electrospinning method. The as-synthesized materials are characterized by scanning electron microscope and X-ray powder diffraction. The gas sensing results show that In2O3-Fe2O3 nanotubes exhibit excellent sensing properties to acetone and formaldehyde at different operating temperatures. The responses of gas sensors based on In2O3-Fe2O3 nanotubes to 100 ppm acetone and 100 ppm formaldehyde are 25 (240℃) and 15 (260℃), and the response/recovery times are 3/7 s and 4/7 s, respectively. The responses of In2O3-Fe2O3 nanotubes to 1 ppm acetone (240℃) and formaldehyde (260℃) are 3.5 and 1.8, respectively. Moreover, the gas sensor based on In2O3-Fe2O3 nanotubes also possesses an excellent selectivity to acetone and formaldehyde.

Key words: In2O3, Fe2O3, nanotube, gas sensor



[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
[22]
[23]
[24]

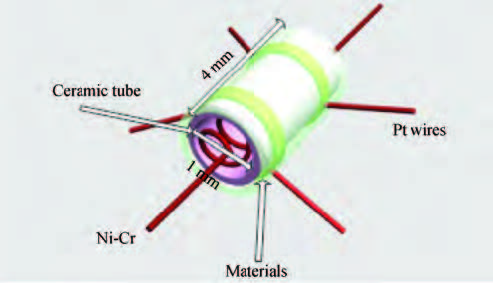

Fig. 1.  (Color online) Structure of gas sensor.

DownLoad: Full-Size Img PowerPoint

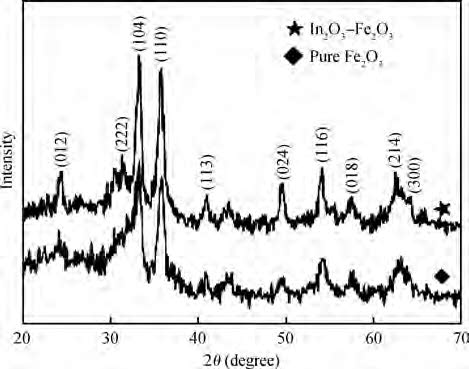

Fig. 2.  XRD patterns of pure Fe2O3 nanotubes and In2O3–Fe2O3 nanotubes.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  SEM images of (a, b) pure Fe$_{2}$O$_{3}$ nanotubes and (c, d) In$_{2}$O$_{3}$–Fe$_{2}$O$_{3}$ nanotubes, respectively.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  TEM images of (a) pure Fe$_{2}$O$_{3}$ nanotubes and (b) In$_{2}$O$_{3}$–Fe$_{2}$O$_{3}$ nanotubes, respectively.

DownLoad: Full-Size Img PowerPoint

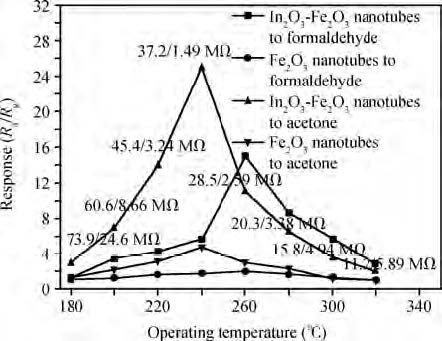

Fig. 5.  Response of In$_{2}$O$_{3}$--Fe$_{2}$O$_{3}$ nanotubes and Fe2O3 nanotubes gas sensors to 100 ppm acetone and 100 ppm formaldehyde at different operating temperatures, respectively.

DownLoad: Full-Size Img PowerPoint

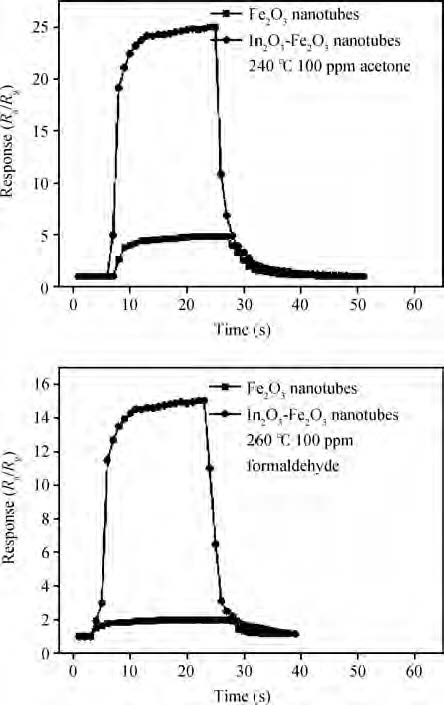

Fig. 6.  Response and recovery curves of In$_{2}$O$_{3}$--Fe$_{2}$O$_{3}$ nanotubes and Fe$_{2}$O$_{3}$ nanotubes gas sensors to 100 ppm acetone (240 ℃) and 100 ppm formaldehyde (260 ℃), respectively.

DownLoad: Full-Size Img PowerPoint

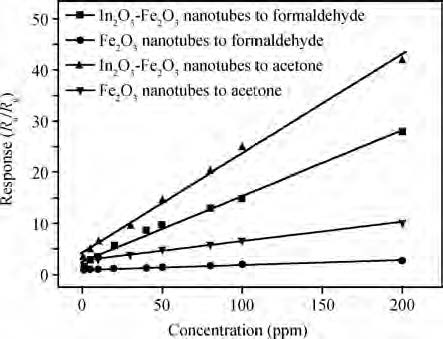

Fig. 7.  Responses of In$_{2}$O$_{3}$--Fe$_{2}$O$_{3}$ nanotubes and Fe$_{2}$O$_{3}$ nanotubes gas sensors to different concentrations of acetone (240 ℃) and formaldehyde (260 ℃) in the range of 1--200 ppm

DownLoad: Full-Size Img PowerPoint

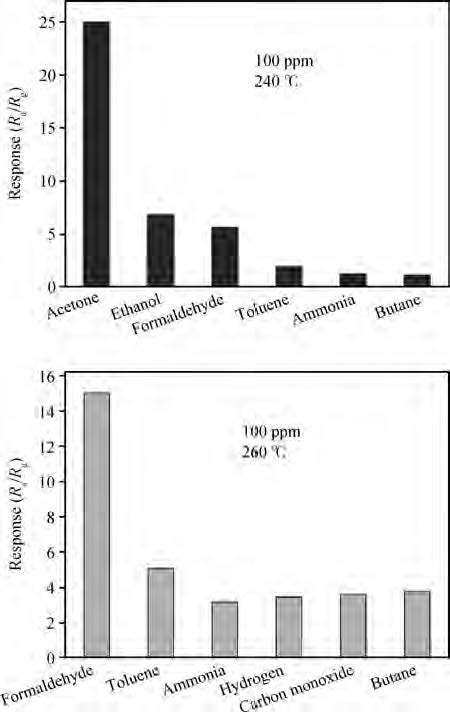

Fig. 8.  Response of In$_{2}$O$_{3}$--Fe$_{2}$O$_{3}$ nanotubes gas sensors to 100~ppm different gases at 240 ℃ and 260 ℃, respectively.

DownLoad: Full-Size Img PowerPoint
