A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers

Shuyu Bao1, ‡, , Yue Wang1, ‡, Khaw Lina1, Li Zhang1, Bing Wang1, 2, , Wardhana Aji Sasangka1, Kenneth Eng Kian Lee1, Soo Jin Chua1, 3, Jurgen Michel1, 4, Eugene Fitzgerald1, 5, Chuan Seng Tan1, 6 and Kwang Hong Lee1,

+ Author Affiliations

 Corresponding author: Shuyu Bao, shuyu@smart.mit.edu; Bing Wang, wangb266@mail.sysu.edu.cn; Kwang Hong Lee, leek0046@e.ntu.edu.sg

DOI: 10.1088/1674-4926/42/2/023106

PDF

Turn off MathJax

Abstract: The heterogeneous integration of III–V devices with Si-CMOS on a common Si platform has shown great promise in the new generations of electrical and optical systems for novel applications, such as HEMT or LED with integrated control circuitry. For heterogeneous integration, direct wafer bonding (DWB) techniques can overcome the materials and thermal mismatch issues by directly bonding dissimilar materials systems and device structures together. In addition, DWB can perform at wafer-level, which eases the requirements for integration alignment and increases the scalability for volume production. In this paper, a brief review of the different bonding technologies is discussed. After that, three main DWB techniques of single-, double- and multi-bonding are presented with the demonstrations of various heterogeneous integration applications. Meanwhile, the integration challenges, such as micro-defects, surface roughness and bonding yield are discussed in detail.

Key words: material, thin film, integrated circuit



[1]
Deleonibus S. Physical and technological limitations of nano CMOS devices to the end of the roadmap and beyond. Eur Phys J Appl Phys, 2006, 36, 197 doi: 10.1051/epjap:2006158
[2]
Ito T, Okazaki S. Pushing the limits of lithography. Nature, 2000, 406, 1027 doi: 10.1038/35023233
[3]
Wong H S P, Frank D J, Solomon P M, et al. Nanoscale CMOS. Proc IEEE, 1999, 87, 537 doi: 10.1109/5.752515
[4]
Kim D H, del Alamo J A. 30 nm E-mode InAs PHEMTs for THz and future logic applications. 2008 IEEE International Electron Devices Meeting, 2008, 1
[5]
Passlack M, Zurcher P, Rajagopalan K, et al. High mobility III–V MOSFETs for RF and digital applications. 2007 IEEE Int Electron Devices Meet, 2007, 621
[6]
Kim R H, Kim D H, Xiao J L, et al. Waterproof AlInGaP optoelectronics on stretchable substrates with applications in biomedicine and robotics. Nat Mater, 2010, 9, 929 doi: 10.1038/nmat2879
[7]
Ko H, Takei K, Kapadia R, et al. Ultrathin compound semiconductor on insulator layers for high-performance nanoscale transistors. Nature, 2010, 468, 286 doi: 10.1038/nature09541
[8]
Yoon J, Jo S, Chun I S, et al. GaAs photovoltaics and optoelectronics using releasable multilayer epitaxial assemblies. Nature, 2010, 465, 329 doi: 10.1038/nature09054
[9]
Lin J J, You T G, Jin T T, et al. Wafer-scale heterogeneous integration InP on trenched Si with a bubble-free interface. APL Mater, 2020, 8, 051110 doi: 10.1063/5.0004427
[10]
Lin J J, You T G, Wang M, et al. Efficient ion-slicing of InP thin film for Si-based hetero-integration. Nanotechnology, 2018, 29, 504002 doi: 10.1088/1361-6528/aae281
[11]
Lee K H, Bao S, Fitzgerald E, et al. Integration of III–V materials and Si-CMOS through double layer transfer process. 2014 4th IEEE Int Work Low Temp Bond 3D Integr LTB-3D, 2014, 32
[12]
Lee K H, Bao S Y, Kohen D, et al. Monolithic integration of III–V HEMT and Si-CMOS through TSV-less 3D wafer stacking. 2015 IEEE 65th Electronic Components and Technology Conference (ECTC), 2015, 560
[13]
Lee K H, Bao S Y, Lee K E K, et al. Integration of 200 mm Si-CMOS and III–V materials through wafer bonding. 2017 5th International Workshop on Low Temperature Bonding for 3D Integration (LTB-3D), 2017, 30
[14]
Yan Y Q, Huang K, Zhou H Y, et al. Wafer-scale fabrication of 42° rotated Y-cut LiTaO3-on-insulator (LTOI) substrate for a SAW resonator. ACS Appl Electron Mater, 2019, 1, 1660 doi: 10.1021/acsaelm.9b00351
[15]
Huang K, Jia Q, You T G, et al. Investigation on thermodynamics of ion-slicing of GaN and heterogeneously integrating high-quality GaN films on CMOS compatible Si(100) substrates. Sci Rep, 2017, 7, 15017. doi: 10.1038/s41598-017-15094-1
[16]
Yi A L, Zheng Y, Huang H, et al. Wafer-scale 4H-silicon carbide-on-insulator (4H-SiCOI) platform for nonlinear integrated optical devices. Opt Mater, 2020, 107, 109990 doi: 10.1016/j.optmat.2020.109990
[17]
Lei D, Lee K H, Bao S Y, et al. GeSn-on-insulator substrate formed by direct wafer bonding. Appl Phys Lett, 2016, 109, 022106 doi: 10.1063/1.4958844
[18]
Xu W H, Wang Y, You T G, et al. First demonstration of waferscale heterogeneous integration of Ga2O3 MOSFETs on SiC and Si substrates by ion-cutting process. 2019 IEEE International Electron Devices Meeting (IEDM), 2019, 12.5. 1
[19]
Gösele U, Tong Q Y. Semiconductor wafer bonding. Annu Rev Mater Sci, 1998, 28, 215 doi: 10.1146/annurev.matsci.28.1.215
[20]
Tong Q Y, Gösele U. Semiconductor wafer bonding: Recent developments. Mater Chem Phys, 1994, 37, 101 doi: 10.1016/0254-0584(94)90080-9
[21]
Lasky J B, Stiffler S R, White F R, et al. Silicon-on-insulator (SOI) by bonding and ETCH-back. 1985 Int Electron Devices Meet, 1985, 684
[22]
Plößl A. Wafer direct bonding: Tailoring adhesion between brittle materials. Mater Sci Eng R, 1999, 25, 1 doi: 10.1016/S0927-796X(98)00017-5
[23]
Turner K T, Spearing S M. Modeling of direct wafer bonding: Effect of wafer bow and etch patterns. J Appl Phys, 2002, 92, 7658 doi: 10.1063/1.1521792
[24]
Taniyama S, Wang Y H, Fujino M, et al. Room temperature wafer bonding using surface activated bonding method. 2008 IEEE 9th VLSI Packag Work Jpn, 2008, 141
[25]
Takagi H, Kikuchi K, Maeda R, et al. Surface activated bonding of silicon wafers at room temperature. Appl Phys Lett, 1996, 68, 2222 doi: 10.1063/1.115865
[26]
Howlader M M R, Watanabe T, Suga T. Investigation of the bonding strength and interface current of p-Si/n-GaAs wafers bonded by surface activated bonding at room temperature. J Vac Sci Technol B, 2001, 19, 2114 doi: 10.1116/1.1414115
[27]
Chung T R, Yang L, Hosoda N, et al. Room temperature GaAs–Si and InP–Si wafer direct bonding by the surface activated bonding method. Nucl Instrum Methods Phys Res B, 1997, 121, 203 doi: 10.1016/S0168-583X(96)00546-0
[28]
Takagi H, Utsumi J, Takahashi M, et al. Room-temperature bonding of oxide wafers by Ar-beam surface activation. ECS Trans, 2019, 16, 531 doi: 10.1149/1.2982908
[29]
Essig S, Moutanabbir O, Wekkeli A, et al. Fast atom beam-activated n-Si/n-GaAs wafer bonding with high interfacial transparency and electrical conductivity. J Appl Phys, 2013, 113, 203512 doi: 10.1063/1.4807905
[30]
Hinterreiter A P, Rebhan B, Flötgen C, et al. Surface pretreated low-temperature aluminum-aluminum wafer bonding. Microsyst Technol, 2018, 24, 773 doi: 10.1007/s00542-017-3520-8
[31]
Suga T, He R, Vakanas G, et al. Direct Cu to Cu bonding and other alternative bonding techniques in 3D packaging. In: 3D Microelectronic Packaging. Cham: Springer International Publishing, 2017, 129
[32]
Malik N, Schjølberg-Henriksen K, Poppe E, et al. AlAl thermocompression bonding for wafer-level MEMS sealing. Sens Actuators A, 2014, 211, 115 doi: 10.1016/j.sna.2014.02.030
[33]
Tsau C H, Spearing S M, Schmidt M A. Fabrication of wafer-level thermocompression bonds. J Microelectromechan Syst, 2002, 11, 641 doi: 10.1109/JMEMS.2002.805214
[34]
Xu D H, Jing E R, Xiong B, et al. Wafer-level vacuum packaging of micromachined thermoelectric IR sensors. IEEE Trans Adv Packag, 2010, 33, 904 doi: 10.1109/TADVP.2010.2072925
[35]
Fan J, Lim D F, Tan C S. Effects of surface treatment on the bonding quality of wafer-level Cu-to-Cu thermo-compression bonding for 3D integration. J Micromech Microeng, 2013, 23, 045025 doi: 10.1088/0960-1317/23/4/045025
[36]
Chen K N, Fan A, Reif R. Microstructure examination of copper wafer bonding. J Electron Mater, 2001, 30, 331 doi: 10.1007/s11664-001-0039-6
[37]
Gao K, Zhang Q Y, Su W G, et al. Patterned Al–Ge wafer bonding for reducing in-process side leakage of eutectic. 2018 IEEE 13th Annual International Conference on Nano/Micro Engineered and Molecular Systems (NEMS), 2018, 332
[38]
Tang Y S, Chen H C, Kho Y T, et al. Investigation and optimization of ultrathin buffer layers used in Cu/Sn eutectic bonding. IEEE Trans Compon Packag Manuf Technol, 2018, 8, 1225 doi: 10.1109/TCPMT.2018.2838047
[39]
Wolffenbuttel R F. Low-temperature intermediate Au-Si wafer bonding; eutectic or silicide bond. Sens Actuators A, 1997, 62, 680 doi: 10.1016/S0924-4247(97)01550-1
[40]
Cheng Y T, Lin L, Najafi K. Localized silicon fusion and eutectic bonding for MEMS fabrication and packaging. J Microelectromechan Syst, 2000, 9, 3 doi: 10.1109/84.825770
[41]
Quero J M, Perdigones F, Aracil C. Microfabrication technologies used for creating smart devices for industrial applications. In: Smart Sensors and MEMs. Amsterdam: Elsevier, 2018, 291
[42]
Li D L, Shang Z G, She Y, et al. Investigation of Au/Si eutectic wafer bonding for MEMS accelerometers. Micromachines, 2017, 8, 158 doi: 10.3390/mi8050158
[43]
Mescheder U M, Alavi M, Hiltmann K, et al. Local laser bonding for low temperature budget. Sens Actuators A, 2002, 97/98, 422 doi: 10.1016/S0924-4247(01)00871-8
[44]
Knechtel R. Glass frit bonding: An universal technology for wafer level encapsulation and packaging. Microsyst Technol, 2005, 12, 63 doi: 10.1007/s00542-005-0022-x
[45]
Wu G Q, Xu D H, Xiong B, et al. Wafer-level vacuum packaging for MEMS resonators using glass frit bonding. J Microelectromechan Syst, 2012, 21, 1484 doi: 10.1109/JMEMS.2012.2211572
[46]
Tian R, Cao F, Li Y, et al. Application of laser-assisted glass frit bonding encapsulation in all inorganic quantum dot light emitting devices. Mol Cryst Liq Cryst, 2018, 676, 59 doi: 10.1080/15421406.2019.1595698
[47]
Niklaus F, Enoksson P, Kalvesten E, et al. Low-temperature full wafer adhesive bonding. J Micromechan Microeng, 2001, 11, 100 doi: 10.1088/0960-1317/11/2/303
[48]
Dragoi V, Glinsner T, Mittendorfer G, et al. Adhesive wafer bonding for MEMS applications. Proc SPIE 5116, Smart Sensors, Actuators, and MEMS, 2003, 5116, 160 doi: 10.1117/12.499077
[49]
Bleiker S J, Dubois V, Schröder S, et al. Adhesive wafer bonding with ultra-thin intermediate polymer layers. Sens Actuators A, 2017, 260, 16 doi: 10.1016/j.sna.2017.04.018
[50]
Niklaus F, Stemme G, Lu J Q, et al. Adhesive wafer bonding. J Appl Phys, 2006, 99, 031101 doi: 10.1063/1.2168512
[51]
Niklaus F, Enoksson P, Kälvesten E, et al. A method to maintain wafer alignment precision during adhesive wafer bonding. Sens Actuators A, 2003, 107, 273 doi: 10.1016/S0924-4247(03)00356-X
[52]
Niklaus F, Kumar R J, McMahon J J, et al. Adhesive wafer bonding using partially cured benzocyclobutene for three-dimensional integration. J Electrochem Soc, 2006, 153, G291 doi: 10.1149/1.2168409
[53]
Pomerantz D I. Anodic bonding. Google Patents, 1968
[54]
Henmi H, Shoji S, Shoji Y, et al. Vacuum packaging for microsensors by glass-silicon anodic bonding. Sens Actuators A, 1994, 43, 243 doi: 10.1016/0924-4247(94)80003-0
[55]
Hanneborg A, Nese M, Ohlckers P. Silicon-to-silicon anodic bonding with a borosilicate glass layer. J Micromech Microeng, 1991, 1, 139 doi: 10.1088/0960-1317/1/3/002
[56]
Lee T M H, Hsing I M, Liaw C Y N. An improved anodic bonding process using pulsed voltage technique. J Microelectromechan Syst, 2000, 9, 469 doi: 10.1109/84.896767
[57]
Schmidt M A. Wafer-to-wafer bonding for microstructure formation. Proc IEEE, 1998, 86, 1575 doi: 10.1109/5.704262
[58]
Tong Q Y, Gösele U. A model of low-temperature wafer bonding and its applications. J Electrochem Soc, 2019, 143, 1773 doi: 10.1149/1.1836715
[59]
Lee K H, Bao S Y, Wang Y, et al. Suppression of interfacial voids formation during silane (SiH4)-based silicon oxide bonding with a thin silicon nitride capping layer. J Appl Phys, 2018, 123, 015302 doi: 10.1063/1.5001796
[60]
Bao S, Lee K H, Chong G Y, et al. AlN–AlN layer bonding and its thermal characteristics. ECS J Solid State Sci Technol, 2015, 4, P200 doi: 10.1149/2.0121507jss
[61]
Bao S Y, Lee K H, Wang C, et al. Germanium-on-insulator virtual substrate for InGaP epitaxy. Mater Sci Semicond Process, 2017, 58, 15 doi: 10.1016/j.mssp.2016.11.001
[62]
Lee K H, Bao S Y, Chong G Y, et al. Fabrication and characterization of germanium-on-insulator through epitaxy, bonding, and layer transfer. J Appl Phys, 2014, 116, 103506 doi: 10.1063/1.4895487
[63]
Lee K H, Bao S Y, Chong G Y, et al. Fabrication of germanium-on-insulator (GOI) with improved threading dislocation density (TDD) via buffer-less epitaxy and bonding. 2014 7th Int Silicon-Ger Technol Device Meet ISTDM, 2014, 51
[64]
Lee K H, Bao S Y, Chong G Y, et al. Defects reduction of Ge epitaxial film in a germanium-on-insulator wafer by annealing in oxygen ambient. APL Mater, 2015, 3, 016102 doi: 10.1063/1.4905487
[65]
Lee K H, Tan C S, Wang Y, et al. Monolithic integration of Si-CMOS and III–V-on-Si through direct wafer bonding process. IEEE J Electron Devices Soc, 2018, 6, 571 doi: 10.1109/JEDS.2017.2787202
[66]
Lee K H, Zhang L, Wang B, et al. Integration of Si-CMOS and III–V materials through multi-wafer stacking. 2017 IEEE SOI-3D-Subthreshold Microelectronics Technology Unified Conference (S3S), 2017, 1
[67]
Lee K H, Wang Y, Zhang L, et al. GaN LED on quartz substrate through wafer bonding and layer transfer processes. ECS Trans, 2018, 86, 31 doi: 10.1149/08605.0031ecst
[68]
Lee K H, Zhang L, Wang Y, et al. High bonding yield and brighter integrated GaN LED and Si-CMOS. 2019 6th International Workshop on Low Temperature Bonding for 3D Integration (LTB-3D), 2019, 33
[69]
Lee K H, Bao S Y, Zhang L, et al. Integration of GaAs, GaN, and Si-CMOS on a common 200 mm Si substrate through multilayer transfer process. Appl Phys Express, 2016, 9, 086501 doi: 10.7567/APEX.9.086501
Fig. 1.  Schematic views of (a) silicon–glass anodic bonding and (b) silicon–silicon anodic bonding mediated with a borosilicate glass layer.

DownLoad: Full-Size Img PowerPoint
Fig. 2.  (Color online) (a) Schematic of the DWB process via SiO2 dielectric layers, and (b) shows the IR image of the bonded wafer.

DownLoad: Full-Size Img PowerPoint
Fig. 3.  IR images of a bonded wafer with SiO2 dielectric layers (a) as bonded, and (b) after post-bond annealing.

DownLoad: Full-Size Img PowerPoint
Fig. 4.  (Color online) (a) Schematic of the bonding process with an additional thin deposited SixNy layer, and the IR images of (b) as-bonded wafers and (c) after post-bond annealing.

DownLoad: Full-Size Img PowerPoint
Fig. 5.  (Color online) The comparison of FTIR spectral changes at the vibration mode at 3750 cm–1 between the SiOx + SixNy and SiO2 films after annealing and four-day storage under cleanroom environments.

DownLoad: Full-Size Img PowerPoint
Fig. 6.  Change in the SixNy layers stress profile. Compressive stress turns into tensile stress in SixNy layers after annealing, and its stress and bow stay stable after 10 days of storage, indicating that the moisture absorption is blocked.

DownLoad: Full-Size Img PowerPoint
Fig. 7.  (Color online) (a) Schematic of AlN to AlN bonding process and the IR images of (b) as-bonded wafers, and (c) after post-bond annealing.

DownLoad: Full-Size Img PowerPoint
Fig. 8.  (Color online) XPS Atomic concentration profiles of pre-annealed AlN.

DownLoad: Full-Size Img PowerPoint
Fig. 9.  (Color online) Schematic of Al2O3 to Al2O3 bonding process.

DownLoad: Full-Size Img PowerPoint
Fig. 10.  Cross-sectional TEM images of (a) the bonded wafer pair, and (b) the bonding interface.

DownLoad: Full-Size Img PowerPoint
Fig. 11.  (Color online) Schematics of Ge-OI fabrication process.

DownLoad: Full-Size Img PowerPoint
Fig. 12.  Plan view TEM images of the Ge surface of Ge-OI before and after O2 annealing.

DownLoad: Full-Size Img PowerPoint
Fig. 13.  The EPD determined TDD of the Ge of Ge-OI before annealing and after annealing + CMP.

DownLoad: Full-Size Img PowerPoint
Fig. 14.  (Color online) Raman spectroscopy of the Ge film on Ge-OI before and after annealing.

DownLoad: Full-Size Img PowerPoint

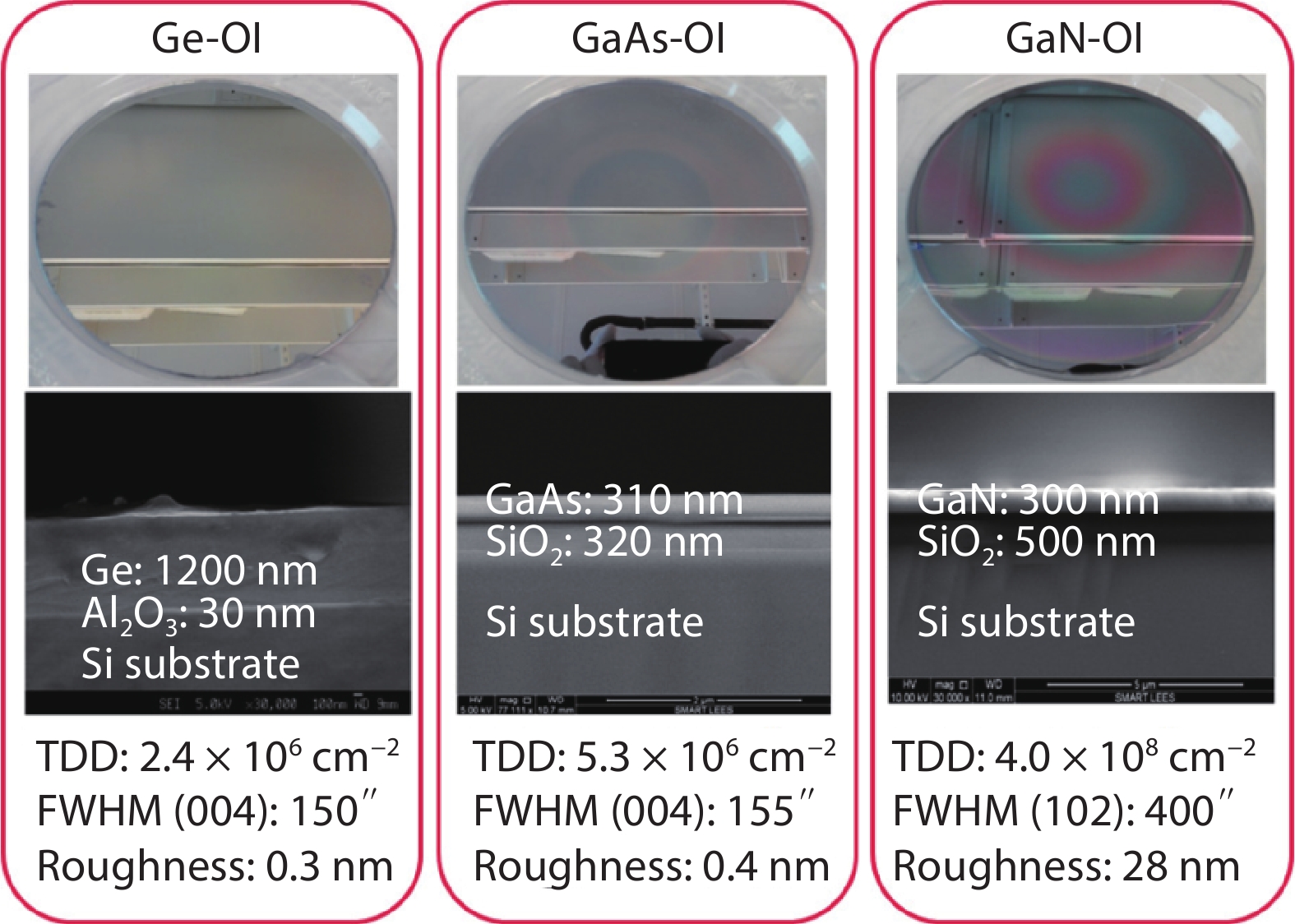

Fig. 15.  (Color online) The fabricated 200 mm Ge-OI, GaAs-OI and GaN-OI substrate wafers.

DownLoad: Full-Size Img PowerPoint
Fig. 16.  (Color online) Schematic flow of the double bonding and layer transfer process.

DownLoad: Full-Size Img PowerPoint
Fig. 17.  (Color online) (a) Schematic flow of the first bonding process between SOI and thermally oxidized Si handle wafer and (b) IR image of the bonded wafer pair.

DownLoad: Full-Size Img PowerPoint
Fig. 18.  (Color online) (a) Schematic flow of the first bonding and substrate removal and (b) optical image of the bonded pair after substrate removal where pin-holes are observed.

DownLoad: Full-Size Img PowerPoint
Fig. 19.  (Color online) Schematic flow of the double bonding process. (a) IR image of bonded SOI–InGaAs pair and (b) IR image of bonded SOI–GaN pair.

DownLoad: Full-Size Img PowerPoint
Fig. 20.  (Color online) (a) Schematic flow of 1st bonding with CMP-ed BOX layer. (b) Optical image of the resultant wafer after the process, where pin-holes are observed.

DownLoad: Full-Size Img PowerPoint
Fig. 21.  (Color online) (a) Schematic flow of the double bonding process with additional SiO2 layers. (b) IR image of the bonded wafer pair.

DownLoad: Full-Size Img PowerPoint
Fig. 22.  (Color online) (a) Schematic flow of double bonding process with BOX layer completely replaced by PECVD oxide. (b) IR image of the bonded pair. No pin-holes are observed.

DownLoad: Full-Size Img PowerPoint

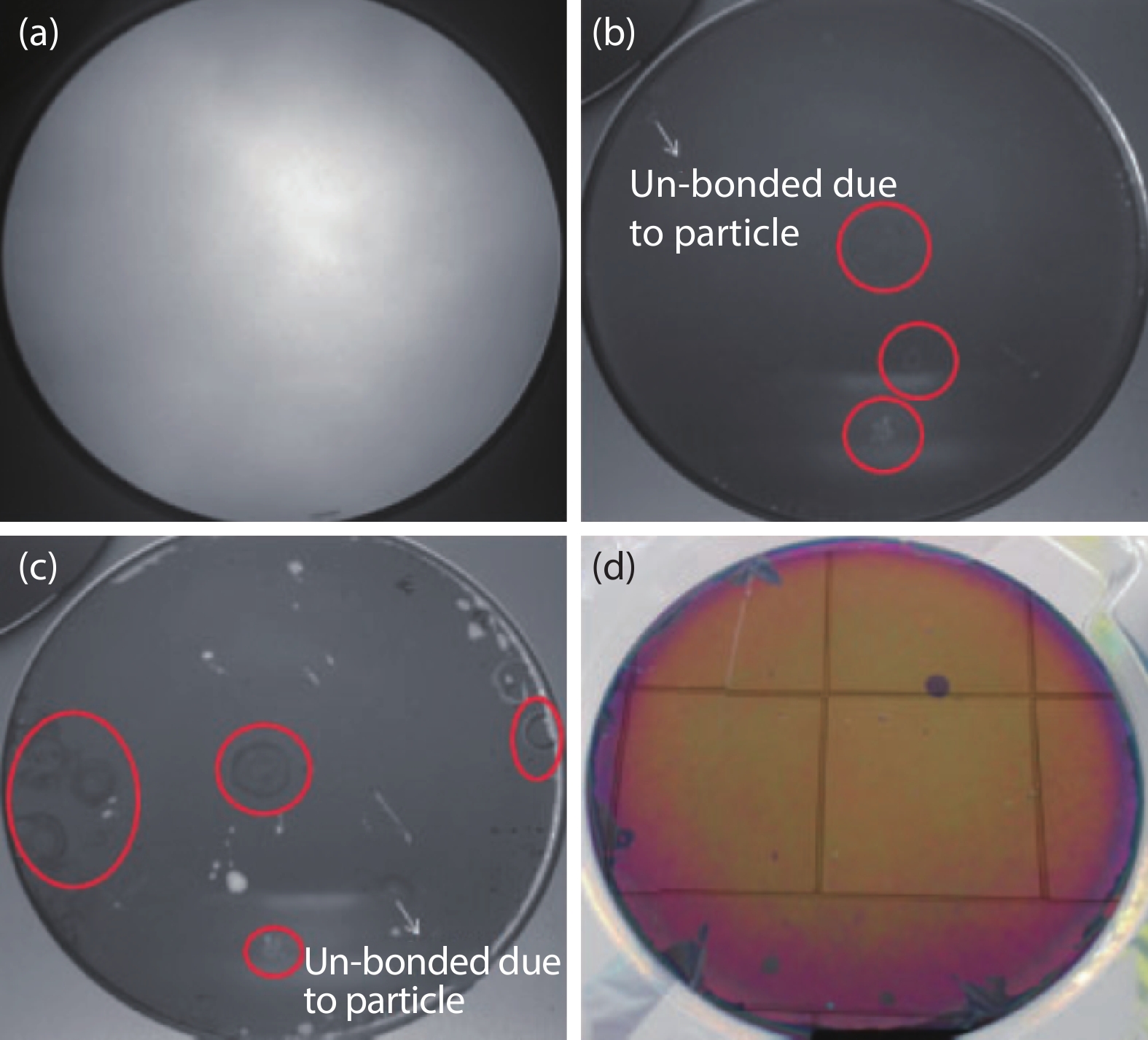

Fig. 23.  (Color online) IR images and optical images of wafers after double bonding and layer transfer using different methods.

DownLoad: Full-Size Img PowerPoint
Fig. 24.  Cross-sectional bright field TEM images of the bonded SOI-Si wafer pairs. (a) The overall view and (b) the bonding interface between PECVD oxide and Si prime wafer.

DownLoad: Full-Size Img PowerPoint
Fig. 25.  (Color online) (a) Updated schematic diagram of the double bonding and layer transfer process. (b) IR image and (c) optical image of the resultant SOI–III–V/Si integrated wafer.

DownLoad: Full-Size Img PowerPoint
Fig. 26.  Cross-sectional TEM image of the Si-CMOS/III–V/Si wafer after double bond and layer transfer.

DownLoad: Full-Size Img PowerPoint

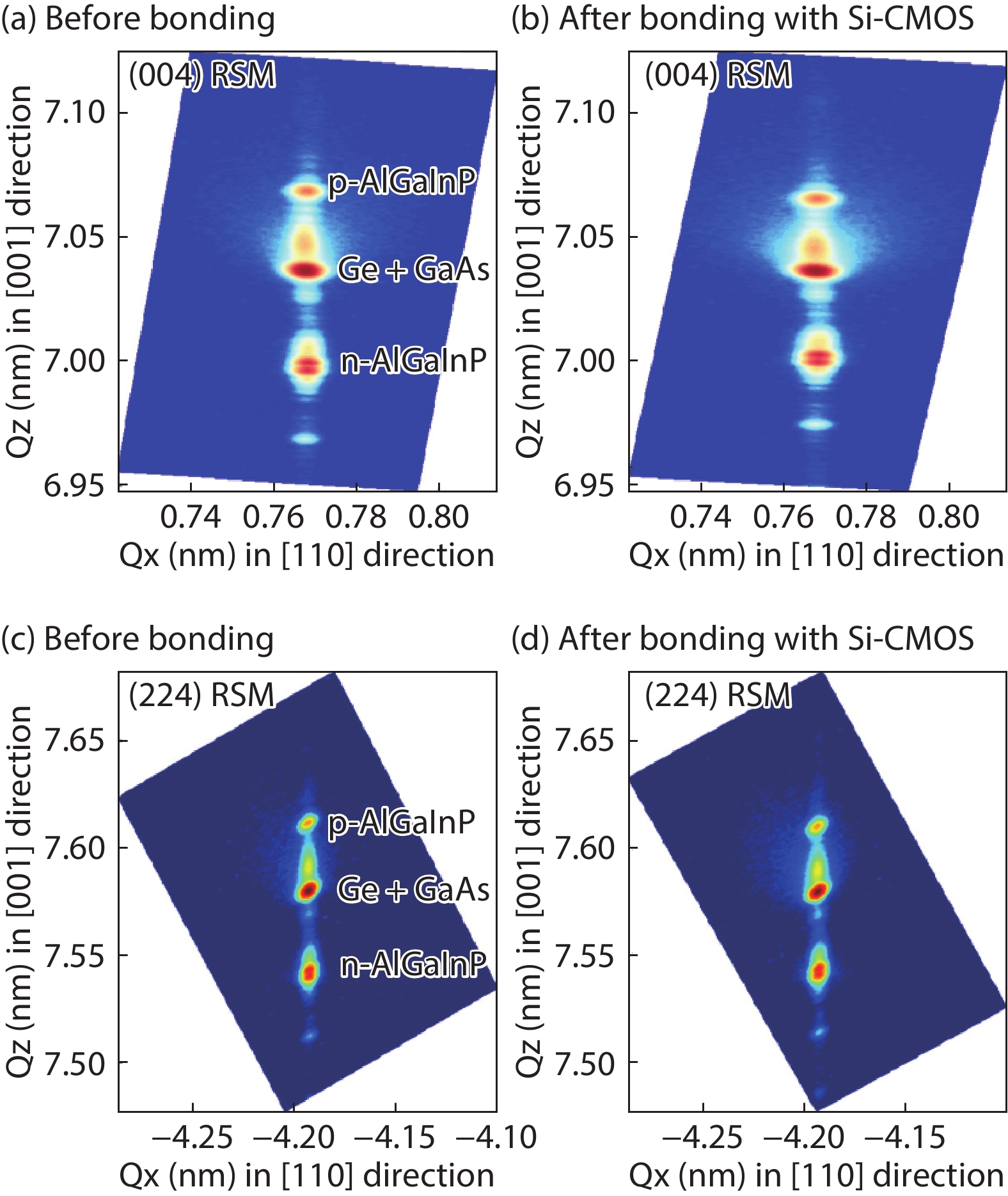

Fig. 27.  (Color online) Symmetric (004) reciprocal space map (RSM) of an AlInGaP LED structure measured from XRD (a) before and (b) after bonding with Si-CMOS. Asymmetric (224) RSM of the AlInGaP LED structure (c) before and (d) after bonding with Si-CMOS.

DownLoad: Full-Size Img PowerPoint
Fig. 28.  (Color online) Schematic flow of replacing Si (111) substrate by Si (001) substrate for GaN HEMT/LED wafer.

DownLoad: Full-Size Img PowerPoint
Fig. 29.  IR image of a bonded GaN/Si wafer pair after substrate replacement.

DownLoad: Full-Size Img PowerPoint
Fig. 30.  (Color online) Schematic flow of the diamond CMP process. (a) After oxide deposition, (b) after CMP using slurry with the addition of diamond particles, and (c) another oxide deposition and CMP processes to smoothen the oxide surface which was roughened from the previous step.

DownLoad: Full-Size Img PowerPoint
Fig. 31.  (a) IR image, (b) optical image of Si-CMOS and GaN LED bonded pair on Si (001) substrate.

DownLoad: Full-Size Img PowerPoint
Fig. 32.  (Color online) Schematic of the process flow to realize the GaN LED on quartz substrate. (a) A GaN LED epitaxial film on a Si (111) substrate. (b) First wafer bonding between the GaN LED on Si (111) and a Si handle wafers. (c) Removal of the Si (111) substrate. (d) Deposition of SiO2 and Si3N4 layers. (e) Second wafer bonding between the GaN LED-containing handle and a quartz substrate. (f) GaN LED on quartz substrate is realized by releasing the Si handle wafer.

DownLoad: Full-Size Img PowerPoint
Fig. 33.  (Color online) (a) IR image of a bonded GaN LED/Si (111) substrate and a Si handle wafer after step Fig. 32(b). (b) Photograph of the GaN LED layers temporarily attached to the Si handle wafer after Si (111) substrate removal, step Fig. 32(c). (c) IR image of the bonded GaN LED layers containing Si handle wafer and a quartz substrate after step Fig. 32(e). (d) Photograph of the GaN LED transferred to the quartz substrate, step Fig. 32(f).

DownLoad: Full-Size Img PowerPoint
Fig. 34.  SEM image of the cross-sectional view of the bonded GaN LED on the quartz substrate.

DownLoad: Full-Size Img PowerPoint
Fig. 35.  (Color online) Light-up photo of the GaN LED devices on (a) Si and (b) quartz substrates.

DownLoad: Full-Size Img PowerPoint
Fig. 36.  (Color online) Schematic flow of the multi-bonding and layer transfer process for integration of Si-CMOS and GaAs and GaN together on a common 200 mm Si platform.

DownLoad: Full-Size Img PowerPoint
Fig. 37.  (Color online) IR image of (a) the first bonding between SOI and Si handle wafer, (b) the second bonding between the SOI-handle and the GaAs/Ge/Si substrate, (c) the third bonding between the GaAs/Ge-SOI-handle and the GaN/Si substrate, and (d) optical image of the SOI-GaAs/Ge/GaN/Si substrate after the triple-bond process. The red circle indicates the defects from the backside of the wafer during TMAH etching caused by the poor adhesion of the protective layer, not affecting the bonding quality.

DownLoad: Full-Size Img PowerPoint

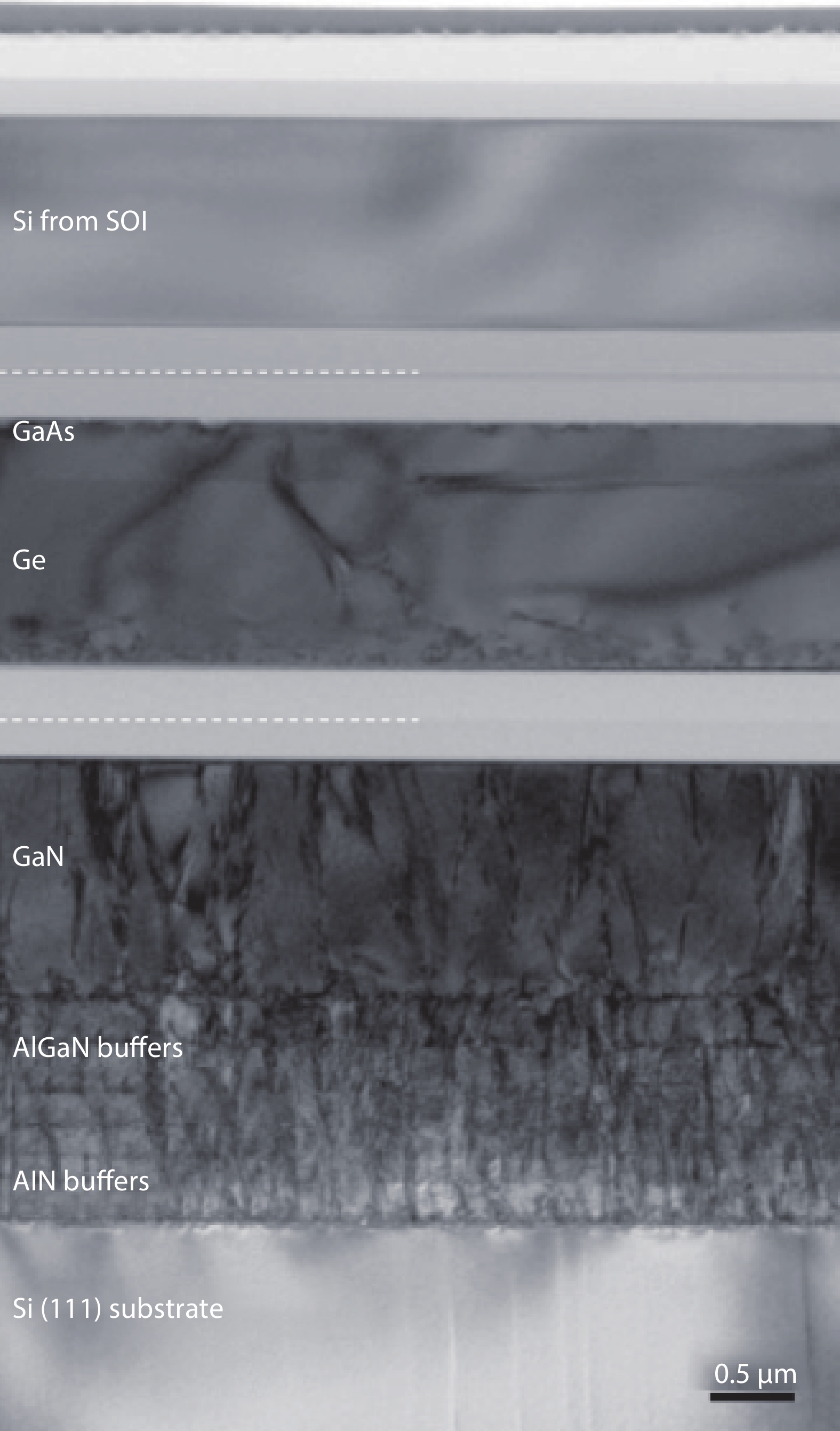

Fig. 38.  The cross-sectional TEM of the SOI–GaAs/Ge/GaN/Si stack after the triple-bonding and layer transfer process.

DownLoad: Full-Size Img PowerPoint
Fig. 39.  (Color online) The schematic of Si-CMOS, high frequency GaAs HEMT, and high power GaN PA integrated on a single piece of wafer.

DownLoad: Full-Size Img PowerPoint
[1]
Deleonibus S. Physical and technological limitations of nano CMOS devices to the end of the roadmap and beyond. Eur Phys J Appl Phys, 2006, 36, 197 doi: 10.1051/epjap:2006158
[2]
Ito T, Okazaki S. Pushing the limits of lithography. Nature, 2000, 406, 1027 doi: 10.1038/35023233
[3]
Wong H S P, Frank D J, Solomon P M, et al. Nanoscale CMOS. Proc IEEE, 1999, 87, 537 doi: 10.1109/5.752515
[4]
Kim D H, del Alamo J A. 30 nm E-mode InAs PHEMTs for THz and future logic applications. 2008 IEEE International Electron Devices Meeting, 2008, 1
[5]
Passlack M, Zurcher P, Rajagopalan K, et al. High mobility III–V MOSFETs for RF and digital applications. 2007 IEEE Int Electron Devices Meet, 2007, 621
[6]
Kim R H, Kim D H, Xiao J L, et al. Waterproof AlInGaP optoelectronics on stretchable substrates with applications in biomedicine and robotics. Nat Mater, 2010, 9, 929 doi: 10.1038/nmat2879
[7]
Ko H, Takei K, Kapadia R, et al. Ultrathin compound semiconductor on insulator layers for high-performance nanoscale transistors. Nature, 2010, 468, 286 doi: 10.1038/nature09541
[8]
Yoon J, Jo S, Chun I S, et al. GaAs photovoltaics and optoelectronics using releasable multilayer epitaxial assemblies. Nature, 2010, 465, 329 doi: 10.1038/nature09054
[9]
Lin J J, You T G, Jin T T, et al. Wafer-scale heterogeneous integration InP on trenched Si with a bubble-free interface. APL Mater, 2020, 8, 051110 doi: 10.1063/5.0004427
[10]
Lin J J, You T G, Wang M, et al. Efficient ion-slicing of InP thin film for Si-based hetero-integration. Nanotechnology, 2018, 29, 504002 doi: 10.1088/1361-6528/aae281
[11]
Lee K H, Bao S, Fitzgerald E, et al. Integration of III–V materials and Si-CMOS through double layer transfer process. 2014 4th IEEE Int Work Low Temp Bond 3D Integr LTB-3D, 2014, 32
[12]
Lee K H, Bao S Y, Kohen D, et al. Monolithic integration of III–V HEMT and Si-CMOS through TSV-less 3D wafer stacking. 2015 IEEE 65th Electronic Components and Technology Conference (ECTC), 2015, 560
[13]
Lee K H, Bao S Y, Lee K E K, et al. Integration of 200 mm Si-CMOS and III–V materials through wafer bonding. 2017 5th International Workshop on Low Temperature Bonding for 3D Integration (LTB-3D), 2017, 30
[14]
Yan Y Q, Huang K, Zhou H Y, et al. Wafer-scale fabrication of 42° rotated Y-cut LiTaO3-on-insulator (LTOI) substrate for a SAW resonator. ACS Appl Electron Mater, 2019, 1, 1660 doi: 10.1021/acsaelm.9b00351
[15]
Huang K, Jia Q, You T G, et al. Investigation on thermodynamics of ion-slicing of GaN and heterogeneously integrating high-quality GaN films on CMOS compatible Si(100) substrates. Sci Rep, 2017, 7, 15017. doi: 10.1038/s41598-017-15094-1
[16]
Yi A L, Zheng Y, Huang H, et al. Wafer-scale 4H-silicon carbide-on-insulator (4H-SiCOI) platform for nonlinear integrated optical devices. Opt Mater, 2020, 107, 109990 doi: 10.1016/j.optmat.2020.109990
[17]
Lei D, Lee K H, Bao S Y, et al. GeSn-on-insulator substrate formed by direct wafer bonding. Appl Phys Lett, 2016, 109, 022106 doi: 10.1063/1.4958844
[18]
Xu W H, Wang Y, You T G, et al. First demonstration of waferscale heterogeneous integration of Ga2O3 MOSFETs on SiC and Si substrates by ion-cutting process. 2019 IEEE International Electron Devices Meeting (IEDM), 2019, 12.5. 1
[19]
Gösele U, Tong Q Y. Semiconductor wafer bonding. Annu Rev Mater Sci, 1998, 28, 215 doi: 10.1146/annurev.matsci.28.1.215
[20]
Tong Q Y, Gösele U. Semiconductor wafer bonding: Recent developments. Mater Chem Phys, 1994, 37, 101 doi: 10.1016/0254-0584(94)90080-9
[21]
Lasky J B, Stiffler S R, White F R, et al. Silicon-on-insulator (SOI) by bonding and ETCH-back. 1985 Int Electron Devices Meet, 1985, 684
[22]
Plößl A. Wafer direct bonding: Tailoring adhesion between brittle materials. Mater Sci Eng R, 1999, 25, 1 doi: 10.1016/S0927-796X(98)00017-5
[23]
Turner K T, Spearing S M. Modeling of direct wafer bonding: Effect of wafer bow and etch patterns. J Appl Phys, 2002, 92, 7658 doi: 10.1063/1.1521792
[24]
Taniyama S, Wang Y H, Fujino M, et al. Room temperature wafer bonding using surface activated bonding method. 2008 IEEE 9th VLSI Packag Work Jpn, 2008, 141
[25]
Takagi H, Kikuchi K, Maeda R, et al. Surface activated bonding of silicon wafers at room temperature. Appl Phys Lett, 1996, 68, 2222 doi: 10.1063/1.115865
[26]
Howlader M M R, Watanabe T, Suga T. Investigation of the bonding strength and interface current of p-Si/n-GaAs wafers bonded by surface activated bonding at room temperature. J Vac Sci Technol B, 2001, 19, 2114 doi: 10.1116/1.1414115
[27]
Chung T R, Yang L, Hosoda N, et al. Room temperature GaAs–Si and InP–Si wafer direct bonding by the surface activated bonding method. Nucl Instrum Methods Phys Res B, 1997, 121, 203 doi: 10.1016/S0168-583X(96)00546-0
[28]
Takagi H, Utsumi J, Takahashi M, et al. Room-temperature bonding of oxide wafers by Ar-beam surface activation. ECS Trans, 2019, 16, 531 doi: 10.1149/1.2982908
[29]
Essig S, Moutanabbir O, Wekkeli A, et al. Fast atom beam-activated n-Si/n-GaAs wafer bonding with high interfacial transparency and electrical conductivity. J Appl Phys, 2013, 113, 203512 doi: 10.1063/1.4807905
[30]
Hinterreiter A P, Rebhan B, Flötgen C, et al. Surface pretreated low-temperature aluminum-aluminum wafer bonding. Microsyst Technol, 2018, 24, 773 doi: 10.1007/s00542-017-3520-8
[31]
Suga T, He R, Vakanas G, et al. Direct Cu to Cu bonding and other alternative bonding techniques in 3D packaging. In: 3D Microelectronic Packaging. Cham: Springer International Publishing, 2017, 129
[32]
Malik N, Schjølberg-Henriksen K, Poppe E, et al. AlAl thermocompression bonding for wafer-level MEMS sealing. Sens Actuators A, 2014, 211, 115 doi: 10.1016/j.sna.2014.02.030
[33]
Tsau C H, Spearing S M, Schmidt M A. Fabrication of wafer-level thermocompression bonds. J Microelectromechan Syst, 2002, 11, 641 doi: 10.1109/JMEMS.2002.805214
[34]
Xu D H, Jing E R, Xiong B, et al. Wafer-level vacuum packaging of micromachined thermoelectric IR sensors. IEEE Trans Adv Packag, 2010, 33, 904 doi: 10.1109/TADVP.2010.2072925
[35]
Fan J, Lim D F, Tan C S. Effects of surface treatment on the bonding quality of wafer-level Cu-to-Cu thermo-compression bonding for 3D integration. J Micromech Microeng, 2013, 23, 045025 doi: 10.1088/0960-1317/23/4/045025
[36]
Chen K N, Fan A, Reif R. Microstructure examination of copper wafer bonding. J Electron Mater, 2001, 30, 331 doi: 10.1007/s11664-001-0039-6
[37]
Gao K, Zhang Q Y, Su W G, et al. Patterned Al–Ge wafer bonding for reducing in-process side leakage of eutectic. 2018 IEEE 13th Annual International Conference on Nano/Micro Engineered and Molecular Systems (NEMS), 2018, 332
[38]
Tang Y S, Chen H C, Kho Y T, et al. Investigation and optimization of ultrathin buffer layers used in Cu/Sn eutectic bonding. IEEE Trans Compon Packag Manuf Technol, 2018, 8, 1225 doi: 10.1109/TCPMT.2018.2838047
[39]
Wolffenbuttel R F. Low-temperature intermediate Au-Si wafer bonding; eutectic or silicide bond. Sens Actuators A, 1997, 62, 680 doi: 10.1016/S0924-4247(97)01550-1
[40]
Cheng Y T, Lin L, Najafi K. Localized silicon fusion and eutectic bonding for MEMS fabrication and packaging. J Microelectromechan Syst, 2000, 9, 3 doi: 10.1109/84.825770
[41]
Quero J M, Perdigones F, Aracil C. Microfabrication technologies used for creating smart devices for industrial applications. In: Smart Sensors and MEMs. Amsterdam: Elsevier, 2018, 291
[42]
Li D L, Shang Z G, She Y, et al. Investigation of Au/Si eutectic wafer bonding for MEMS accelerometers. Micromachines, 2017, 8, 158 doi: 10.3390/mi8050158
[43]
Mescheder U M, Alavi M, Hiltmann K, et al. Local laser bonding for low temperature budget. Sens Actuators A, 2002, 97/98, 422 doi: 10.1016/S0924-4247(01)00871-8
[44]
Knechtel R. Glass frit bonding: An universal technology for wafer level encapsulation and packaging. Microsyst Technol, 2005, 12, 63 doi: 10.1007/s00542-005-0022-x
[45]
Wu G Q, Xu D H, Xiong B, et al. Wafer-level vacuum packaging for MEMS resonators using glass frit bonding. J Microelectromechan Syst, 2012, 21, 1484 doi: 10.1109/JMEMS.2012.2211572
[46]
Tian R, Cao F, Li Y, et al. Application of laser-assisted glass frit bonding encapsulation in all inorganic quantum dot light emitting devices. Mol Cryst Liq Cryst, 2018, 676, 59 doi: 10.1080/15421406.2019.1595698
[47]
Niklaus F, Enoksson P, Kalvesten E, et al. Low-temperature full wafer adhesive bonding. J Micromechan Microeng, 2001, 11, 100 doi: 10.1088/0960-1317/11/2/303
[48]
Dragoi V, Glinsner T, Mittendorfer G, et al. Adhesive wafer bonding for MEMS applications. Proc SPIE 5116, Smart Sensors, Actuators, and MEMS, 2003, 5116, 160 doi: 10.1117/12.499077
[49]
Bleiker S J, Dubois V, Schröder S, et al. Adhesive wafer bonding with ultra-thin intermediate polymer layers. Sens Actuators A, 2017, 260, 16 doi: 10.1016/j.sna.2017.04.018
[50]
Niklaus F, Stemme G, Lu J Q, et al. Adhesive wafer bonding. J Appl Phys, 2006, 99, 031101 doi: 10.1063/1.2168512
[51]
Niklaus F, Enoksson P, Kälvesten E, et al. A method to maintain wafer alignment precision during adhesive wafer bonding. Sens Actuators A, 2003, 107, 273 doi: 10.1016/S0924-4247(03)00356-X
[52]
Niklaus F, Kumar R J, McMahon J J, et al. Adhesive wafer bonding using partially cured benzocyclobutene for three-dimensional integration. J Electrochem Soc, 2006, 153, G291 doi: 10.1149/1.2168409
[53]
Pomerantz D I. Anodic bonding. Google Patents, 1968
[54]
Henmi H, Shoji S, Shoji Y, et al. Vacuum packaging for microsensors by glass-silicon anodic bonding. Sens Actuators A, 1994, 43, 243 doi: 10.1016/0924-4247(94)80003-0
[55]
Hanneborg A, Nese M, Ohlckers P. Silicon-to-silicon anodic bonding with a borosilicate glass layer. J Micromech Microeng, 1991, 1, 139 doi: 10.1088/0960-1317/1/3/002
[56]
Lee T M H, Hsing I M, Liaw C Y N. An improved anodic bonding process using pulsed voltage technique. J Microelectromechan Syst, 2000, 9, 469 doi: 10.1109/84.896767
[57]
Schmidt M A. Wafer-to-wafer bonding for microstructure formation. Proc IEEE, 1998, 86, 1575 doi: 10.1109/5.704262
[58]
Tong Q Y, Gösele U. A model of low-temperature wafer bonding and its applications. J Electrochem Soc, 2019, 143, 1773 doi: 10.1149/1.1836715
[59]
Lee K H, Bao S Y, Wang Y, et al. Suppression of interfacial voids formation during silane (SiH4)-based silicon oxide bonding with a thin silicon nitride capping layer. J Appl Phys, 2018, 123, 015302 doi: 10.1063/1.5001796
[60]
Bao S, Lee K H, Chong G Y, et al. AlN–AlN layer bonding and its thermal characteristics. ECS J Solid State Sci Technol, 2015, 4, P200 doi: 10.1149/2.0121507jss
[61]
Bao S Y, Lee K H, Wang C, et al. Germanium-on-insulator virtual substrate for InGaP epitaxy. Mater Sci Semicond Process, 2017, 58, 15 doi: 10.1016/j.mssp.2016.11.001
[62]
Lee K H, Bao S Y, Chong G Y, et al. Fabrication and characterization of germanium-on-insulator through epitaxy, bonding, and layer transfer. J Appl Phys, 2014, 116, 103506 doi: 10.1063/1.4895487
[63]
Lee K H, Bao S Y, Chong G Y, et al. Fabrication of germanium-on-insulator (GOI) with improved threading dislocation density (TDD) via buffer-less epitaxy and bonding. 2014 7th Int Silicon-Ger Technol Device Meet ISTDM, 2014, 51
[64]
Lee K H, Bao S Y, Chong G Y, et al. Defects reduction of Ge epitaxial film in a germanium-on-insulator wafer by annealing in oxygen ambient. APL Mater, 2015, 3, 016102 doi: 10.1063/1.4905487
[65]
Lee K H, Tan C S, Wang Y, et al. Monolithic integration of Si-CMOS and III–V-on-Si through direct wafer bonding process. IEEE J Electron Devices Soc, 2018, 6, 571 doi: 10.1109/JEDS.2017.2787202
[66]
Lee K H, Zhang L, Wang B, et al. Integration of Si-CMOS and III–V materials through multi-wafer stacking. 2017 IEEE SOI-3D-Subthreshold Microelectronics Technology Unified Conference (S3S), 2017, 1
[67]
Lee K H, Wang Y, Zhang L, et al. GaN LED on quartz substrate through wafer bonding and layer transfer processes. ECS Trans, 2018, 86, 31 doi: 10.1149/08605.0031ecst
[68]
Lee K H, Zhang L, Wang Y, et al. High bonding yield and brighter integrated GaN LED and Si-CMOS. 2019 6th International Workshop on Low Temperature Bonding for 3D Integration (LTB-3D), 2019, 33
[69]
Lee K H, Bao S Y, Zhang L, et al. Integration of GaAs, GaN, and Si-CMOS on a common 200 mm Si substrate through multilayer transfer process. Appl Phys Express, 2016, 9, 086501 doi: 10.7567/APEX.9.086501

    • Search

    Advanced Search >>

    GET CITATION

    shu

    Export: BibTex EndNote

    Article Metrics

    Article views: 13214 Times PDF downloads: 1392 Times Cited by: 0 Times

    History

    Received: 18 May 2020 Revised: 18 June 2020 Online: Accepted Manuscript: 04 September 2020Uncorrected proof: 11 September 2020Published: 08 February 2021

    Catalog

      Email This Article

      User name:
      Email:*请输入正确邮箱
      Code:*验证码错误
      Send
      Article Navigation >  Journal of Semiconductors  > 2021  >  42(2): 023106
      Shuyu Bao, Yue Wang, Khaw Lina, Li Zhang, Bing Wang, Wardhana Aji Sasangka, Kenneth Eng Kian Lee, Soo Jin Chua, Jurgen Michel, Eugene Fitzgerald, Chuan Seng Tan, Kwang Hong Lee. A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers[J]. Journal of Semiconductors, 2021, 42(2): 023106. doi: 10.1088/1674-4926/42/2/023106 ****S Y Bao, Y Wang, K Lina, L Zhang, B Wang, W A Sasangka, K E K Lee, S J Chua, J Michel, E Fitzgerald, C S Tan, K H Lee, A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers[J]. J. Semicond., 2021, 42(2): 023106. doi: 10.1088/1674-4926/42/2/023106.
      Citation:
      Shuyu Bao, Yue Wang, Khaw Lina, Li Zhang, Bing Wang, Wardhana Aji Sasangka, Kenneth Eng Kian Lee, Soo Jin Chua, Jurgen Michel, Eugene Fitzgerald, Chuan Seng Tan, Kwang Hong Lee. A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers[J]. Journal of Semiconductors, 2021, 42(2): 023106. doi: 10.1088/1674-4926/42/2/023106 ****
      S Y Bao, Y Wang, K Lina, L Zhang, B Wang, W A Sasangka, K E K Lee, S J Chua, J Michel, E Fitzgerald, C S Tan, K H Lee, A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers[J]. J. Semicond., 2021, 42(2): 023106. doi: 10.1088/1674-4926/42/2/023106.
      shu

      A review of silicon-based wafer bonding processes, an approach to realize the monolithic integration of Si-CMOS and III–V-on-Si wafers

      DOI: 10.1088/1674-4926/42/2/023106
      • 1.

        Low Energy Electronic Systems (LEES), Singapore-MIT Alliance for Research and Technology (SMART), Singapore 138602, Singapore

      • 2.

        School of Electronics and Information Technology, Sun Yat-Sen University, Guangzhou 510006, China

      • 3.

        Department of Electrical and Computer Engineering, National University of Singapore, Singapore 117576, Singapore

      • 4.

        Materials Research Laboratories, Massachusetts Institute of Technology, Cambridge, MA, 02139, USA

      • 5.

        Department of Materials Science and Engineering, Massachusetts Institute of Technology, Cambridge, MA 02139, USA

      • 6.

        School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore 639798, Singapore

      More Information
      • Shuyu Bao：received her B.Eng. (Hons.) degree in 2013 in Materials Engineering and Ph.D degree in 2018 in Electrical & Electronic Engineering from Nanyang Technological University (NTU), Singapore. Currently, she is a senior postdoctoral researcher in Singapore-MIT alliance for research and technology (SMART). Her research interests include low temperature wafer bonding and development of multi-color LED and CMOS-driven LED through heterogeneous material integration
      • Yue Wang：received her B.Eng. (Hons.) degree in 2010 and Ph.D degree in 2016 in Electrical & Computer Engineering from National University of Singapore. Currently, she is a research scientist in Singapore-MIT alliance for research and technology (SMART). Her research interest is the monolithic integration of III-V electronic and optoelectronic devices on silicon
      • Khaw Lina：received her B.Eng. (Hons.) degree in 2010 in Materials Engineering from Nanyang Technological University (NTU), Singapore. Her research interest is on wafer bonding for integrated LED and HEMT/Si CMOS platform
      • Li Zhang：received his B.Eng. (Hons.) and B.A. degrees in electrical engineering and economics from National University of Singapore in 2010 and Ph.D. degree from NUS graduate school for integrative science and engineering from National University of Singapore in 2016. His research interest is GaN-on-Si epitaxy and integrated GaN LED/Si CMOS platform
      • Bing Wang：is Assoc. Professor in the School of Electronics and Information Technology at the Sun Yat-Sen University, China. He received his B. S. degree in Electronic Science and Technology from Zhengzhou University, Zhengzhou, China, in 2005, M.S. degree in Optical Engineering from Huazhong University of Science and Technology, Wuhan, China, in 2007, and Ph.D. degree in Communication and Information Systems, from Peking University, Beijing, China, in 2012. His research interests cover optoelectronic devices, integrated photonics, and optical interconnect systems
      • Wardhana Aji Sasangka：received his Ph.D in advanced materials science for micro- and nano-system from Nanyang Technological University in 2012. He has broad research interests such as GaN reliability, nanowires growth, thin film interdiffusion, and crystal defect characterization. He is an active member of organizing committee in International Symposium on the Physical and Failure Analysis of Integrated Circuits (IPFA)
      • Kenneth Eng Kian Lee：is the Senior Scientific Director of the Low Energy Electronic Systems (LEES) center of the Singapore-MIT Alliance for Research and Technology (SMART). He drives the core program effort to create a hybrid III-V + CMOS integrated circuit platform based on foundry-standard CMOS process flows, to enable new integrated electronic and photonic systems. He had prior stints in Singapore’s Ministry of Defence, Temasek Laboratories at NTU, and DSO National Laboratories. He received his BS and MS degrees from UIUC in 1998 and 1999, respectively, and his PhD from MIT in 2009, all in Electrical Engineering
      • Soo Jin Chua：is a Professor in the Depart ment of Electrical Engineering, National University of Singapore, Principal Scientist in the Institute of Materials Research and Engineering (IMRE) and Principal Investigator in SMART. His research area is in Semiconductor Optoelectronics
      • Jurgen Michel：is a Senior Research Scientist in the Microphotonics Center and a Senior Lecturer in the Department of Materials Science and Engineering at the Massachusetts Institute of Technology.   He leads research projects in silicon-based photonic materials and devices as well as advanced solar cell designs.  His main focus is currently on on-chip WDM devices, Ge-based high performance detectors and modulators, and Ge-based lasers with the goal to implement active photonics devices in CMOS based chips
      • Eugene Fitzgerald：is the Merton C. Flemings SMA Professor of Materials Engineering at the Massachusetts Institute of Technology. He is Chief Executive Officer and Director of the Singapore–MIT alliance for research and technology (SMART), Singapore. He is also the Lead Principal Investigator (PI) of SMART Low Energy Electronic Systems (LEES) Interdisciplinary Research Group (IRG)
      • Chuan Seng Tan：is a Professor with the School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore. He received the Ph.D. degree in electrical engineering from Massachusetts Institute of Technology, Cambridge, in 2006. His research interests are semiconductor process technology and device physics. Currently he is working on process technology of three-dimensional integrated circuits (3-D ICs), as well as engineered substrate (Si/Ge/Sn) for group-IV photonics
      • Kwang Hong Lee：received the B.Eng. (Hons.) and Ph.D. degrees in materials science and engineering from Nanyang Technological University, Singapore, in 2006 and 2011, respectively. He was a Principal Research Scientist with the Singapore–MIT Alliance for Research and Technology, working on creating novel combinations of materials with silicon for use in monolithic processes
      • Corresponding author: shuyu@smart.mit.edu; wangb266@mail.sysu.edu.cn; leek0046@e.ntu.edu.sg
      • Received Date: 2020-05-18
      • Revised Date: 2020-06-18
      • Published Date: 2021-02-10

      Catalog

        Journal of Semiconductors © 2017 All Rights Reserved   京ICP备05085259号-2

        /

        DownLoad:  Full-Size Img  PowerPoint
        Return
        Return
