Structure and electrical properties of polysilicon films doped with ammonium tetraborate tetrahydrate

Yehua Tang; Yuchao Wang; Chunlan Zhou; Ke-Fan Wang

doi:10.1088/1674-4926/24030032

J. Semicond. > 2024, Volume 45 > Issue 10 > 102302

ARTICLES

Structure and electrical properties of polysilicon films doped with ammonium tetraborate tetrahydrate

Yehua Tang^{1, §}, Yuchao Wang^{2, 3, §}, Chunlan Zhou^{3, 4,} and Ke-Fan Wang^5,

+ Author Affiliations

1. Electrical and Energy Engineering Department, Nantong Institute of Technology, Nantong 226000, China
2. Ningxia Research Center of Silicon Target and Silicon-Carbon Negative Materials Engineering Technology, School of Materials Science and Engineering, North Minzu University, Yinchuan 750021, China
3. Institute of Electrical Engineering, Chinese Academy of Sciences, Beijing 100049, China
4. School of Engineering Science, University of Chinese Academy of Sciences, Beijing 100049, China
5. Henan Key Laboratory of Quantum Materials and Quantum Energy, School of Future Technology, Henan University, Kaifeng 475004, China
^§These authors contributed equally to this work.

Author Bio:

Yehua Tang was born in China, in 1982. She received the bachelor’s degree from Yunnan Normal University, Yunnan, China, in 2004, and the Ph.D. degree from the Institute of Electrical Engineering, Chinese Academy of Sciences, Beijing, China, in 2013. From 2013 to 2019, she was a R & D director with the Eoplly New Energy Technology Co., Ltd., Nantong, Jiangsu, China. From 2019 to 2023, she has been an associated professor with the Henan University. Since 2023, she has been a Professor with Electrical and Energy Engineering Department, Nantong Institute of Technology, focusing on production technology of n-Si solar cells.

Chunlan Zhou was born in China, in 1977. She received the bachelor’s degree from Lanzhou University, Lanzhou, China, in 2000, and the Ph.D. degree from the Institute of High Energy Physics, Chinese Academy of Science, Beijing, China, in 2005. From 2005 to 2006, she was a Lecturer with the Institute of Low Energy Nuclear Physics, Beijing Normal University. Since 2006, she has been a Professor with the Institute of Electrical Engineering, Chinese Academy of Sciences, focusing on production technology of the high-efficiency solar cell, the potential induced degradation of solar cell, black silicon solar cell, and new generation solar cells.

Ke-Fan Wang was born in Dengzhou, Henan, China, in 1979. He received the bachelor's degree from University of Jinan, Jinan, China, in 2001, and the PhD degree from National Synchrotron Radiation Laboratory (NSRL), University of Science & Technology of China in 2006. Since 2018, he has been a Professor with the Henan University. He has been a visiting scholar to The Chinese University of Hong Kong. His research interests focus on the quantum dots intermediate band solar cells, black silicon solar cells, copper indium gallium selenium solar cells, inorganic perovskite solar cells and heterojunction with intrinsic thin-layer silicon solar cells.

Corresponding author: Chunlan Zhou, zhouchl@mail.iee.ac.cn; Ke-Fan Wang, kfwang@henu.edu.cn

DOI: 10.1088/1674-4926/24030032CSTR: 32376.14.1674-4926.24030032

Abstract: Here, p-type polysilicon films are fabricated by ex-situ doping method with ammonium tetraborate tetrahydrate (ATT) as the boron source, named ATT-pPoly. The effects of ATT on the properties of polysilicon films are comprehensively analyzed. The Raman spectra reveal that the ATT-pPoly film is composed of grain boundary and crystalline regions. The preferred orientation is the (111) direction. The grain size increases from 16−23 nm to 21−47 nm, by ~70% on average. Comparing with other reported films, Hall measurements reveal that the ATT-pPoly film has a higher carrier concentration (>10²⁰ cm⁻³) and higher carrier mobility (>30 cm²/(V·s)). The superior properties of the ATT-pPoly film are attributed to the heavy doping and improved grain size. Heavy doping property is proved by the mean sheet resistance (R_sheet,m) and distribution profile. The R_sheet,m decreases by more than 30%, and it can be further decreased by 90% if the annealing temperature or duration is increased. The boron concentration of ATT-pPoly film annealed at 950 °C for 45 min is ~3 × 10²⁰ cm⁻³, and the distribution is nearly the same, except near the surface. Besides, the standard deviation coefficient (σ) of R_sheet,m is less than 5.0%, which verifies the excellent uniformity of ATT-pPoly film.

Key words: polysilicon film, boron doping, ammonium tetraborate tetrahydrate (ATT), electrical properties, crystallization

References

[1]	International Technology Roadmap for Photovoltaic, 14 Edition, April 2023, http://www.itrpv.net/Reports/Downloads/
[2]	Augusto A, Karas J, Balaji P, et al. Exploring the practical efficiency limit of silicon solar cells using thin solar-grade substrates. J Mater Chem A, 2020, 8, 16599 doi: 10.1039/D0TA04575F
[3]	Ji F X, Zhou C L, Zhu J J, et al. Surface related degradation phenomena in P-type multi-crystalline silicon at elevated temperature and illumination. Sol Energy, 2020, 204, 26 doi: 10.1016/j.solener.2020.04.023
[4]	Le T T, Yang Z S, Liang W S, et al. Gettering of iron by aluminum oxide thin films on silicon wafers: Kinetics and mechanisms. J Appl Phys, 2024, 135, 063102 doi: 10.1063/5.0182127
[5]	Ding D, Lu G L, Li Z P, et al. High-efficiency n-type silicon PERT bifacial solar cells with selective emitters and poly-Si based passivating contacts. Sol Energy, 2019, 193, 494 doi: 10.1016/j.solener.2019.09.085
[6]	Richter A, Benick J, Feldmann F, et al. N-Type Si solar cells with passivating electron contact: Identifying sources for efficiency limitations by wafer thickness and resistivity variation. Sol Energy Mater Sol Cells, 2017, 173, 96 doi: 10.1016/j.solmat.2017.05.042
[7]	Richter A, Benick J, Müller R, et al. Tunnel oxide passivating electron contacts as full-area rear emitter of high-efficiency p-type silicon solar cells. Prog Photovolt Res Appl, 2017, 26, 579 doi: 10.1002/pip.2960
[8]	Green M A, Dunlop E D, Hohl-Ebinger J, et al. Solar cell efficiency tables (version 60). Prog Photovolt Res Appl, 2022, 30, 687 doi: 10.1002/pip.3595
[9]	Peibst R, Larionova Y, Reiter S, et al. Implementation of n+ and p+ poly junctions on front and rear side of double-side contacted industrial silicon solar cells. 32nd European Photovoltaic Solar Energy Conference and Exhibition, 2016, 323 doi: 10.4229/EUPVSEC20162016-2BO
[10]	Chen Y F, Chen D M, Liu C F, et al. Mass production of industrial tunnel oxide passivated contacts (i-TOPCon) silicon solar cells with average efficiency over 23% and modules over 345W. Prog Photovolt Res Appl, 2019, 27, 827 doi: 10.1002/pip.3180
[11]	Yan D, Cuevas A, Wan Y M, et al. Passivating contacts for silicon solar cells based on boron-diffused recrystallized amorphous silicon and thin dielectric interlayers. Sol Energy Mater Sol Cells, 2016, 152, 73 doi: 10.1016/j.solmat.2016.03.033
[12]	Gao T, Yang Q, Guo X Q, et al. An industrially viable TOPCon structure with both ultra-thin SiO_x and n+-poly-Si processed by PECVD for p-type c-Si solar cells. Sol Energy Mater Sol Cells, 2019, 200, 109926 doi: 10.1016/j.solmat.2019.109926
[13]	Merkle A, Seren S, Knauss H, et al. Atmospheric pressure chemical vapor deposition of in-situ doped amorphous silicon layers for passivating contacts. 35th European Photovoltaic Solar Energy Conference and Exhibition, 2018, 785 doi: 10.4229/35thEUPVSEC20182018-2DV.3.49
[14]	Li S H, Pomaska M, Hoß J, et al. Poly-Si/SiO_x/c-Si passivating contact with 738 mV implied open circuit voltage fabricated by hot-wire chemical vapor deposition. Appl Phys Lett, 2019, 114, 153901 doi: 10.1063/1.5089650
[15]	Li S H, Pomaska M, Hoß J, et al. In situ-doped silicon thin films for passivating contacts by hot-wire chemical vapor deposition with a high deposition rate of 42 nm/min. ACS Appl Mater Interfaces, 2019, 11, 30493 doi: 10.1021/acsami.9b10360
[16]	Yan D, Cuevas A, Phang S P, et al. 23% efficient p-type crystalline silicon solar cells with hole-selective passivating contacts based on physical vapor deposition of doped silicon films. Appl Phys Lett, 2018, 113, 061603 doi: 10.1063/1.5037610
[17]	Tao K, Jiang S, Jia R, et al. The impact of indium tin oxide deposition and post annealing on the passivation property of TOPCon solar cells. Sol Energy, 2018, 176, 241 doi: 10.1016/j.solener.2018.10.034
[18]	Tao Y G, Chang E L, Upadhyaya A, et al. 730 mV implied Voc enabled by tunnel oxide passivated contact with PECVD grown and crystallized n+ polycrystalline Si. 2015 IEEE 42nd Photovoltaic Specialist Conference (PVSC), 2015, 1 doi: 10.1109/PVSC.2015.7356218
[19]	Feldmann F, Simon M, Bivour M, et al. Carrier-selective contacts for Si solar cells. Appl Phys Lett, 2014, 104, 181105 doi: 10.1063/1.4875904
[20]	Park H, Park H, Park S J, et al. Passivation quality control in poly-Si/SiO_x/c-Si passivated contact solar cells with 734 mV implied open circuit voltage. Sol Energy Mater Sol Cells, 2019, 189, 21 doi: 10.1016/j.solmat.2018.09.013
[21]	Morisset A, Cabal R, Giglia V, et al. Evolution of the surface passivation mechanism during the fabrication of ex-situ doped poly-Si(B)/SiO_x passivating contacts for high-efficiency c-Si solar cells. Sol Energy Mater Sol Cells, 2021, 221, 110899 doi: 10.1016/j.solmat.2020.110899
[22]	Kang D, Sio H C, Stuckelberger J, et al. Comparison of firing stability between p- and n-type polysilicon passivating contacts. Prog Photovolt Res Appl, 2022, 30, 970 doi: 10.1002/pip.3544
[23]	Ding Z T, Yan D, Stuckelberger J, et al. Phosphorus-doped polycrystalline silicon passivating contacts via spin-on doping. Sol Energy Mater Sol Cells, 2021, 221, 110902 doi: 10.1016/j.solmat.2020.110902
[24]	Park H J, Kim J, Choi D, et al. Boron-doped polysilicon using spin-on doping for high-efficiency both-side passivating contact silicon solar cells. Prog Photovolt Res Appl, 2023, 31, 461 doi: 10.1002/pip.3648
[25]	Tang Y H, Hei J H, Wang K F, et al. Ammonium tetraborate tetrahydrate as a new boron source for the fabrication of p-type emitters in silicon solar cell. Sol Energy, 2022, 235, 73 doi: 10.1016/j.solener.2022.02.005
[26]	Padhamnath P, Buatis J K, Khanna A, et al. Characterization of screen printed and fire-through contacts on LPCVD based passivating contacts in monoPoly™ solar cells. Sol Energy, 2020, 202, 73 doi: 10.1016/j.solener.2020.03.087
[27]	Necib K, Touam T, Chelouche A, et al. Investigation of the effects of thickness on physical properties of AZO sol-gel films for photonic device applications. J Alloys Compd, 2018, 735, 2236 doi: 10.1016/j.jallcom.2017.11.361
[28]	Devasia S, Shaji S, Avellaneda D A, et al. In situ crystallization of 0D perovskite derivative Cs₃Bi₂I₉ thin films via ultrasonic spray. J Alloys Compd, 2022, 893, 162294 doi: 10.1016/j.jallcom.2021.162294
[29]	Teng X P, Chen J, Sun B S, et al. Study on the nucleation and growth of In₂O₃ powders for oxide ceramic targets. J Alloys Compd, 2022, 921, 166130 doi: 10.1016/j.jallcom.2022.166130
[30]	Padhamnath P, Nampalli N, Khanna A, et al. Progress with passivation and screen-printed metallization of Boron-doped monoPoly™ layers. Sol Energy, 2022, 231, 8 doi: 10.1016/j.solener.2021.11.015
[31]	Benninghoven A, Rüdenauer F G, Werner H W. Secondary ion mass spectrometry: basic concepts, instrumental aspects, applications and trends. New York: John Wiley & Sons, 1987
[32]	Flege S, Ensinger W. Mass spectrometry in semiconductor research, in: Handbook of mass spectrometry. New York: John Wiley & Sons, 2012
[33]	Han D X, Lorentzen J D, Weinberg-Wolf J, et al. Raman study of thin films of amorphous-to-microcrystalline silicon prepared by hot-wire chemical vapor deposition. J Appl Phys, 2003, 94, 2930 doi: 10.1063/1.1598298
[34]	Yue G Z, Lorentzen J D, Lin J, et al. Photoluminescence and raman studies in thin-film materials: transition from amorphous to microcrystalline silicon. Appl Phys Lett, 1999, 75, 492 doi: 10.1063/1.124426
[35]	Han D X, Wang K D, Owens J M, et al. Hydrogen structures and the optoelectronic properties in transition films from amorphous to microcrystalline silicon prepared by hot-wire chemical vapor deposition. J Appl Phys, 2003, 93, 3776 doi: 10.1063/1.1555680
[36]	Saleh R, Nickel N H. Raman spectroscopy of B-doped microcrystalline silicon films. Thin Solid Films, 2003, 427, 266 doi: 10.1016/S0040-6090(02)01203-8
[37]	Droz C, Vallat-Sauvain E, Bailat J, et al. Relationship between Raman crystallinity and open-circuit voltage in microcrystalline silicon solar cells. Sol Energy Mater Sol Cells, 2004, 81, 61 doi: 10.1016/j.solmat.2003.07.004
[38]	Nickel N H, Lengsfeld P, Sieber I. Raman spectroscopy of heavily doped polycrystalline silicon thin films. Phys Rev B, 2000, 61, 15558 doi: 10.1103/PhysRevB.61.15558
[39]	Fano U. Effects of configuration interaction on intensities and phase shifts. Phys Rev, 1961, 124, 1866 doi: 10.1103/PhysRev.124.1866
[40]	Joshi D P, Srivastava R S. Mobility and carrier concentration in polycrystalline silicon. Sol Cells, 1984, 12, 337 doi: 10.1016/0379-6787(84)90112-1
[41]	Zeudmi Sahraoui F, Kebab A, Bouhekka A, et al. Optical, structural evolution and surface morphology studies of hydrogenated silicon films synthesized by rf-magnetron sputtering: effects of pressure and radio frequency power at low temperature. Optik, 2018, 168, 65 doi: 10.1016/j.ijleo.2018.03.097
[42]	Chen Q D, Wang J P, Zhang Y X, et al. Activation energy study of intrinsic microcrystalline silicon thin film prepared by VHF-PECVD. Optik, 2016, 127, 7312 doi: 10.1016/j.ijleo.2016.05.062
[43]	Lee F Y, Wu Y S, Joshi A, et al. Annealing effects on electrical property depth profiles of BF₂ and P implanted polycrystalline Si determined by differential Hall effect metrology. J Mater Sci Mater Electron, 2022, 33, 16272 doi: 10.1007/s10854-022-08520-2
[44]	Wu C Y, Meng Z G, Zhao S Y, et al. Effects of high temperature post-annealing on the properties of solution-based metal-induced crystallized polycrystalline silicon films. J Mater Sci Mater Electron, 2007, 18, 355 doi: 10.1007/s10854-007-9245-1
[45]	Rydberg M, Smith U. Long-term stability and electrical properties of fluorine doped polysilicon IC-resistors. Mater Sci Semicond Process, 2001, 4, 373 doi: 10.1016/S1369-8001(01)00005-1
[46]	Antesberger T, Wassner T A, Jaeger C, et al. Boron- and phosphorus-doped polycrystalline silicon thin films prepared by silver-induced layer exchange. Appl Phys Lett, 2013, 102, 212102 doi: 10.1063/1.4808024
[47]	Benvenuto A G, Buitrago R H, Bhaduri A, et al. Characterization of thin polycrystalline silicon films deposited on glass by CVD. Semicond Sci Technol, 2012, 27, 125013 doi: 10.1088/0268-1242/27/12/125013
[48]	Benvenuto A G, Buitrago R H, Schmidt J A. Doped polycrystalline silicon thin films deposited on glass from trichlorosilane. Chem Vap Deposition, 2015, 21, 54 doi: 10.1002/cvde.201407139
[49]	So B S, Park C R, Bae S M, et al. Ion activation in boron-doped polycrystalline Si thin films prepared on glass substrates. J Korean Phys Soc, 2013, 63, 1362 doi: 10.3938/jkps.63.1362
[50]	Meyer F, Ingenito A, Diaz Leon J J, et al. Localisation of front side passivating contacts for direct metallisation of high-efficiency c-Si solar cells. Sol Energy Mater Sol Cells, 2022, 235, 111455 doi: 10.1016/j.solmat.2021.111455
[51]	Choi W J, Madani K, Huang Y Y, et al. Optimization of in-situ and ex-situ doped p+ passivating contact for high efficiency p-TOPCon solar cell application. IEEE 48th Photovoltaic Specialists Conference (PVSC), 2021, 1, 1 doi: 10.1109/PVSC43889.2021.9518759
[52]	Wuu D S, Lien S Y, Wang J H, et al. Laser doping and recrystallization for amorphous silicon films by plasma-enhanced chemical vapor deposition. Mater Sci Forum, 2005, 475-479, 3791 doi: 10.4028/www.scientific.net/MSF.475-479.3791
[53]	Ricardo L, Amaral A, Nunes de Carvalho C, et al. Dopant transfer from poly-Si thin films to c-Si: An alternative technique for device processing. Mater Sci Semicond Process, 2016, 42, 210 doi: 10.1016/j.mssp.2015.09.006

Fig. 1. (Color online) Flow chart of the experimental process.

DownLoad: Full-Size Img PowerPoint

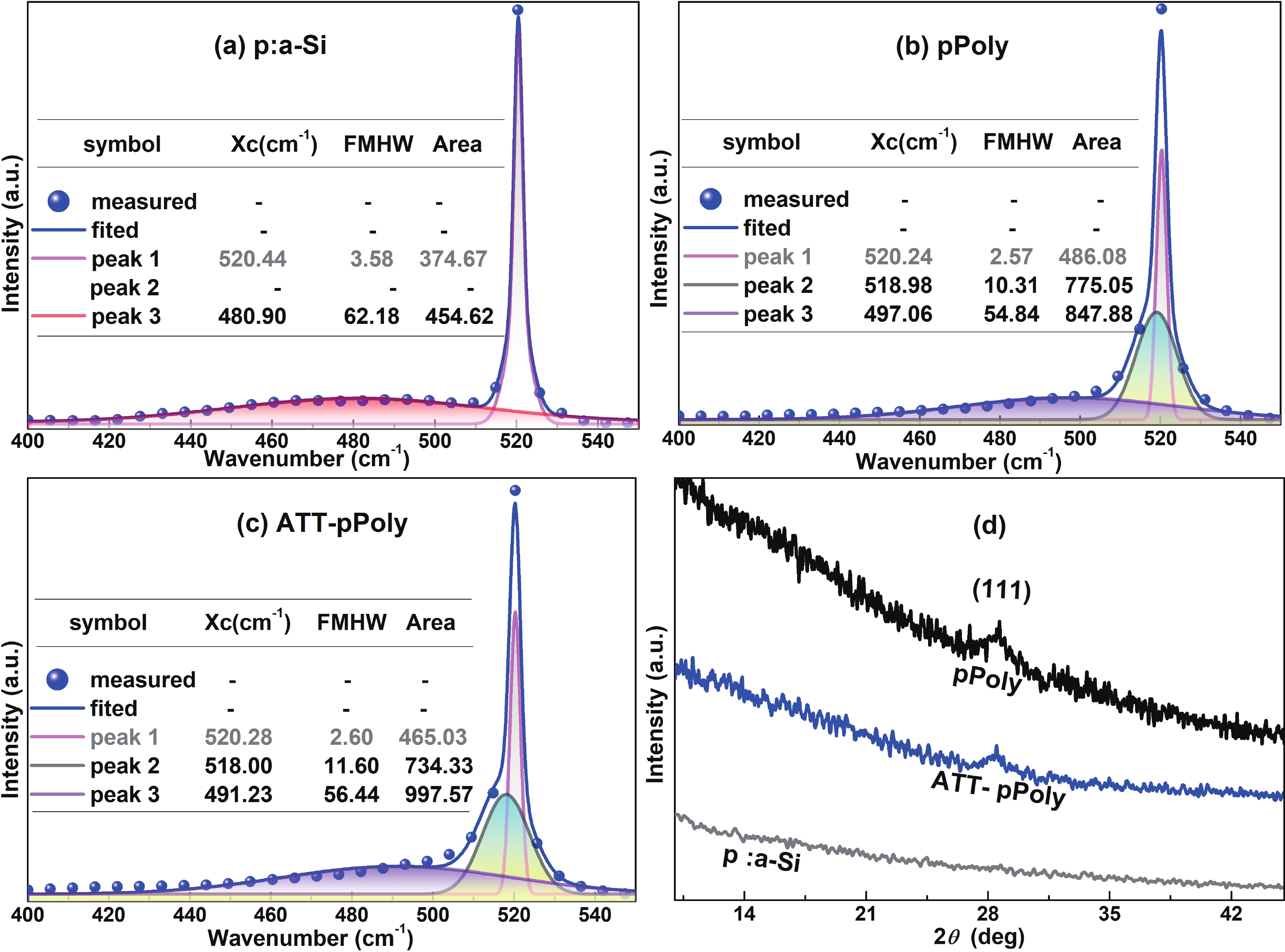

Fig. 2. (Color online) Raman spectra and the corresponding deconvolution peaks of 150 nm silicon film (a) deposited by magnetic sputtering (p:a-Si), (b) annealed directly at 950 °C for 45 min (pPoly film), and (c) annealed with spin-coated ATT at 950 °C for 45 min (ATT-pPoly film). (d) XRD patterns of the three samples.

DownLoad: Full-Size Img PowerPoint

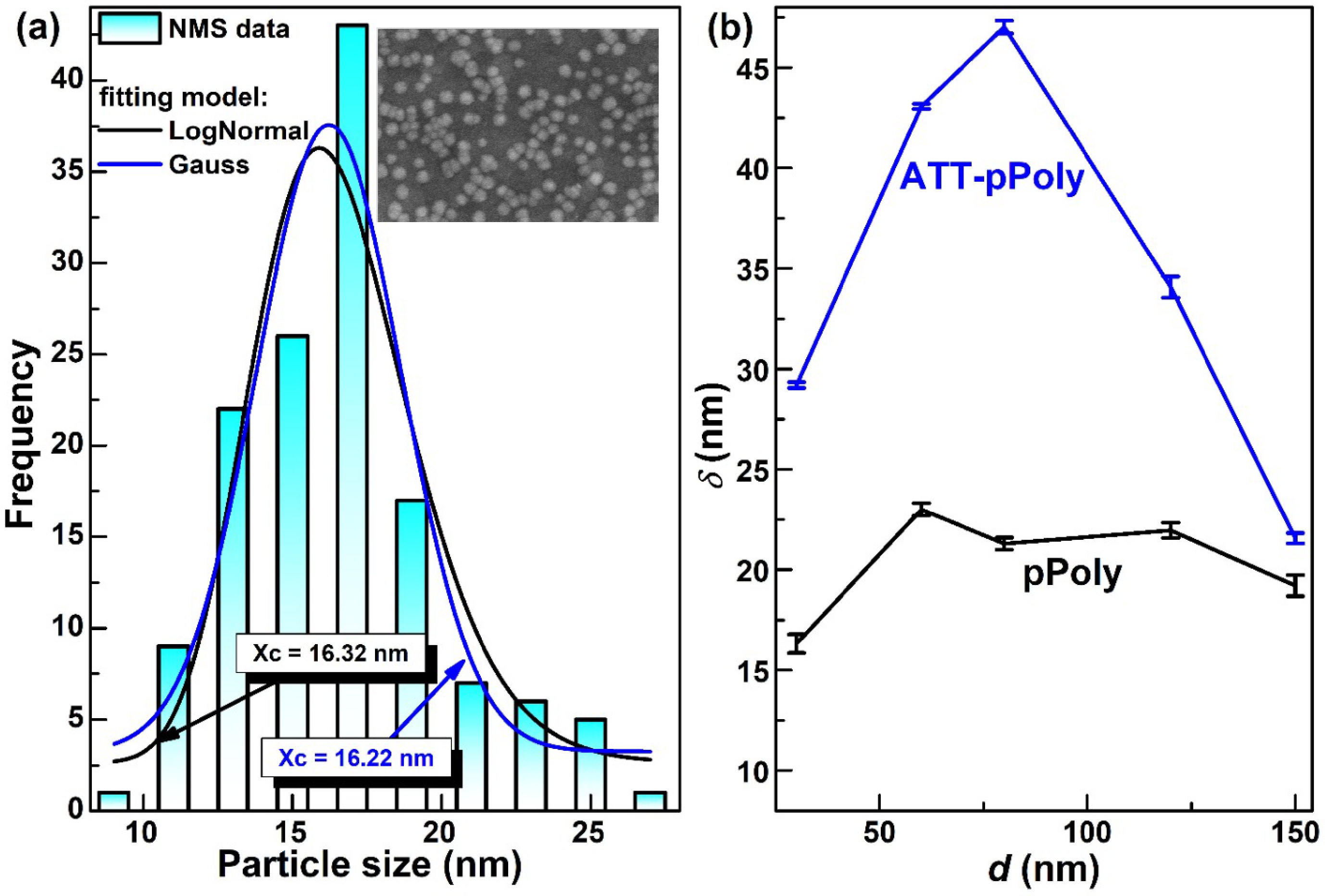

Fig. 3. (Color online) Effect of ATT on the average grain size (δ). (a) Particle size obtained through log-normal and Gaussian distributions. Inset: a typical SEM image of the annealed polysilicon film; (b) the average grain size δ of pPoly and ATT-pPoly films annealed at 950 °C for 45 min under different sputtering thickness (d).

DownLoad: Full-Size Img PowerPoint

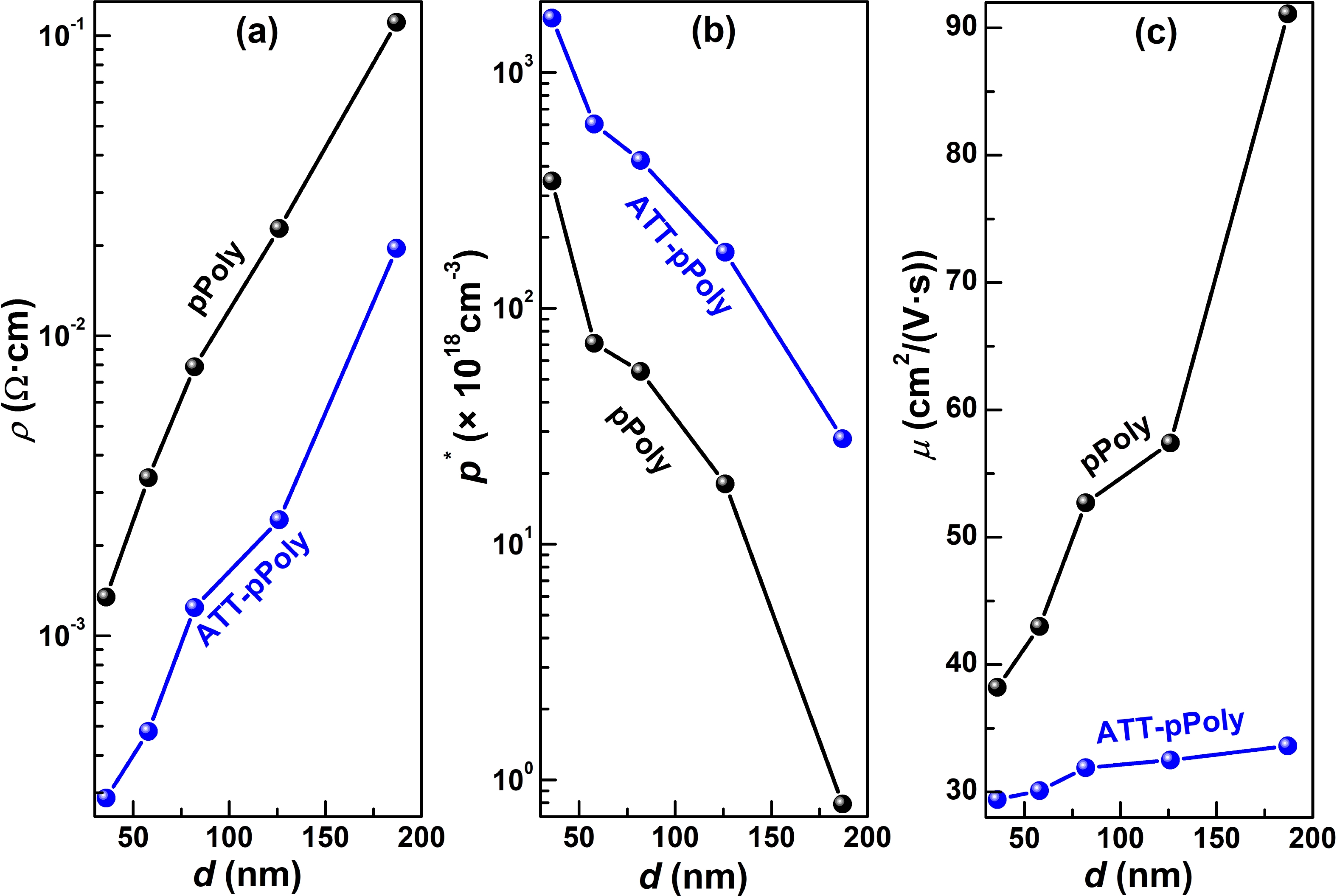

Fig. 4. (Color online) Electrical properties of the p:poly-Si films vs. deposition thickness (d). (a) Resistivity (ρ), (b) carrier concentration (p^*), and (c) carrier mobility (μ).

DownLoad: Full-Size Img PowerPoint

Fig. 5. (Color online) Mean sheet resistance (R_sheet,m) and the corresponding standard deviation coefficient (σ) vs. annealing temperature of the samples annealed for 45 min. The silicon films shown in (a) are deposited at a pressure of 0.2 Pa, and the samples in (b) are deposited at 0.5 Pa. The curves in (c) and (d) show uniformity.

DownLoad: Full-Size Img PowerPoint

Fig. 6. (Color online) Mean sheet resistance (R_sheet,m) and the corresponding standard deviation coefficient (σ) vs. annealing duration at 900 °C. The silicon films shown in (a) are deposited at a pressure of 0.2 Pa and the sample in (b) is deposited at 0.5 Pa. The curves in (c) and (d) show uniformity.

DownLoad: Full-Size Img PowerPoint

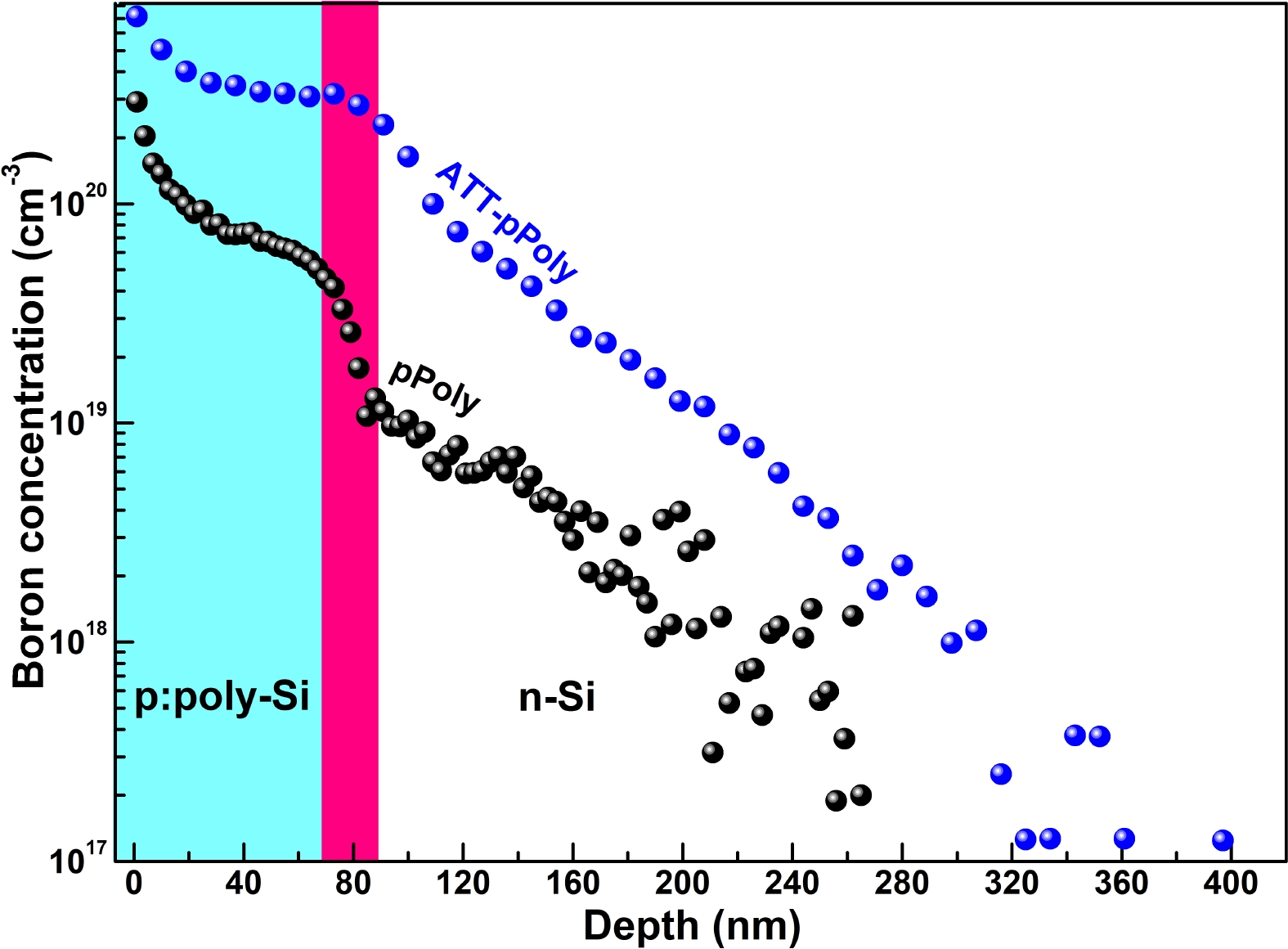

Fig. 7. (Color online) Boron concentration distribution in p:poly-Si films (annealed at 950 °C for 45 min) measured by SIMS.

DownLoad: Full-Size Img PowerPoint

Table 1. Comparison between the electrical properties of proposed and previously reported boron-doped p:poly-Si films.

Film		Dopant		Carrier		Ref.
Deposition method	Thickness d (nm)	Source	Progress	Concentration p^* (cm⁻³)	Mobility μ (cm²/(V·s))	Ref.
LPCVD + laser crystallizing	150	BF₂, implantation	RTA: 950 °C	4.30 × 10¹⁹	22.94	[43]
LPCVD + laser crystallizing	150	BF₂, implantation	CO₂ laser annealing: 135 W	1.92 × 10¹⁹	18.06	[43]
LPCVD + annealing (550/590) S-MIC^a	100	B, implantation	Annealing: 900 °C	~3 × 10¹⁹	~32	[44]
LPCVD + annealing (1000 °C)	550	B, implantation	Annealing: 1000 °C	1.7 × 10¹⁹	~22.5	[45]
Electron beam evaporation + MILE^b	170	Thermal effusion cells (B: HTS-W): 1950 °C	Annealing: 800 °C, 100 mbar	3.2 × 10¹⁹	11.2	[46]
APCVD	~5000	BBr₃: in-situ	880 °C	3.9 × 10¹⁹	~14.8	[47]
APCVD	~4100	BBr₃: in-situ	880 °C	3.4 × 10¹⁹	~15	[48]
PECVD + laser crystallizing	50	B₂H₆: implantation	Forming gas: 650 °C	~7 × 10¹⁹	~10	[49]
Sputter	150	ATT	Annealing: 950 °C	1.73 × 10²⁰	32.5	This work
Sputter	80	ATT	Annealing: 950 °C	4.24 × 10²⁰	31.9	This work
^a S-MIC: solution-based metal-induced crystallization; ^b MILE: metal-induced layer exchange.

DownLoad: CSV
