J. Semicond. > 2013, Volume 34 > Issue 6 > 065009
|

SEMICONDUCTOR INTEGRATED CIRCUITS

A continuously and widely tunable analog baseband chain with digital-assisted calibration for multi-standard DBS applications

Songting Li, Jiancheng Li, Xiaochen Gu and Hongyi Wang

+ Author Affiliations

 Corresponding author: Li Jiancheng, Email:lijc@nudt.edu.cnb

DOI: 10.1088/1674-4926/34/6/065009

PDF

Abstract: This paper presents a continuously and widely tunable analog baseband chain with a digital-assisted calibration scheme implemented on a 0.13 μm CMOS technology. The analog baseband is compliant with several digital broadcasting system (DBS) standards, including DVB-S, DVB-S2, and ABS-S. The cut-off frequency of the baseband circuit can be changed continuously from 4.5 to 32 MHz. The gain adjustment range is from 6 to 55.5 dB with 0.5 dB step. The calibration includes automatic frequency tuning (AFT) and automatic DC offset calibration (DCOC) to achieve less than 6% cut-off frequency deviation and 3 mV residual output offset. The out-of-band ⅡP2 and ⅡP3 of the overall chain are 45 dBm and 18 dBm respectively, while the input referred noise (IRN) is 17.4 nV/$\sqrt{\rm Hz}$ All circuit blocks are operated at 2.8 V from LDO and consume current of 20.4 mA in the receiving mode.

Key words: analog baseband, continuously and widely tunable LPF, digital broadcasting system, digital-assisted DC offset calibration, digital-assisted automatic frequency tuning



[1]
Santo A S, Giovanni G, Tino C, et al. A Ku-band monolithic receiver for DVB-S applications. IEEE Commun Mag, 2004:132
[2]
Kuo M C, Kao S W, Chen C H, et al. A 1.2 V 114 mW dual-band direct-conversion DVB-H tuner in 0.13μm CMOS. IEEE J Solid-State Circuits, 2009, 44(3):745
[3]
Yang Z, Wen G J, Feng X. A 2.5-V 56-mW baseband chain in a multistandard TV tuner for mobile and media application. Journal of Semiconductors, 2011, 32(3):035003 doi: 10.1088/1674-4926/32/3/035003
[4]
Shin H, Kim Y. A CMOS active-RC low-pass filter with simultaneously tunable high-and low-cutoff frequency for IEEE 802.22 applications. IEEE Trans Circuits Syst Ⅱ, 2010, 57(2):85 doi: 10.1109/TCSII.2009.2037994
[5]
Lee T C, Sun C P. Analog baseband circuits for WCDMA direct-conversion receivers. Bulletin of the College of Engineering, N. T. U., 2005, 93:23
[6]
Iason V, Kostis V, Nikos H, et al. A 65 nm CMOS multistandard, multiband TV tuner for mobile and multimedia applications. IEEE J Solid-State Circuits, 2008, 43(7):1522 doi: 10.1109/JSSC.2008.923721
[7]
Shin H Y, Kuo C N, Chen W H, et al. A 250 MHz 14 dB-NF 73 dB-gain 82 dB-DR analog baseband chain with digital-assisted DC-offset calibration for ultra-wideband. IEEE J Solid-State Circuits, 2010, 45(2):338 doi: 10.1109/JSSC.2009.2036320
[8]
Dufrene K, Boos Z, Weigel R. Digital adaptive ⅡP2 calibration scheme for CMOS down conversion mixers. IEEE J Solid-State Circuits, 2008, 43(11):2434 doi: 10.1109/JSSC.2008.2005453
[9]
Xie R Z, Chen J, Li W N, et al. A dual-mode analog baseband utilizing digital-assisted calibration for WCDMA/GSM receivers. IEEE 9th International Conference on ASIC, 2011:1058
[10]
Amico S, Conta M, Baschirotto A. A 4.1 mW 79 dB-DR 4th-order source-follower-based continuous-time filter for WLAN receivers. ISSCC Dig Tech Papers, 2006:352
[11]
Liao Y C, Tang Z W, Min H. A CMOS wide-band low-noise amplifier with balun-based noise-canceling technique. IEEE ASSCC, 2007:91
[12]
Vasilopoulos A, Vitzilaios G. A low-power wideband reconfigurable integrated active-RC filter with 73 dB SFDR. IEEE J Solid-State Circuits, 2006, 41(9):1997 doi: 10.1109/JSSC.2006.880616
[13]
Zhou J, Li W, Huang D P, et al. Dual-mode VCO based low-power synthesizer with optimized atomatic frequency calibration for software-defined radio. Proc ICASC, 2010:1145
[14]
Huang D P, Li W, Zhou J, et al. A frequency synthesizer with optimally coupled QVCO and harmonic-rejection SSB mixer for multi-standard wireless receiver. IEEE J Solid-State Circuits, 2011, 46(6):1307 doi: 10.1109/JSSC.2011.2124970
[15]
Kitsunezuka M, Hori S, Maeda T. A widely-tunable, reconfigurable CMOS analog baseband IC for software-defined radio. IEEE J Solid-State Circuits, 2009, 44(9):2496 doi: 10.1109/JSSC.2009.2023275

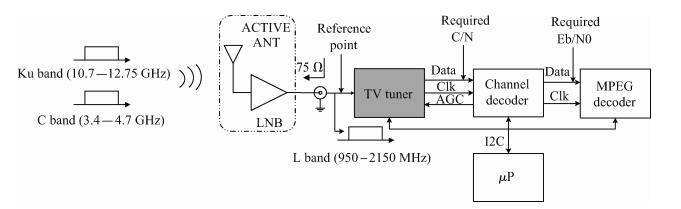

Fig. 1.  Block diagram of a DVB-S/S2 & ABS-S system

DownLoad: Full-Size Img PowerPoint

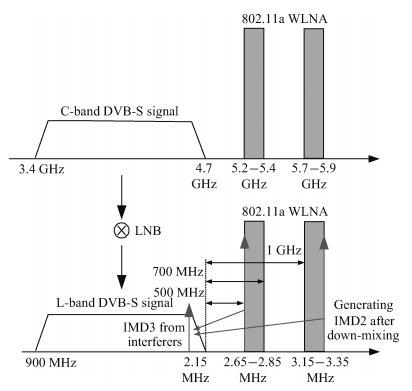

Fig. 2.  The interferers for C-band DBS application

DownLoad: Full-Size Img PowerPoint

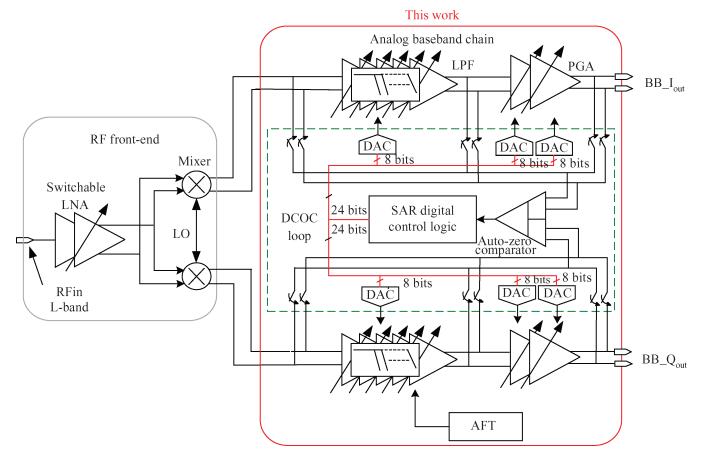

Fig. 3.  The chip architecture and analog baseband chain

DownLoad: Full-Size Img PowerPoint

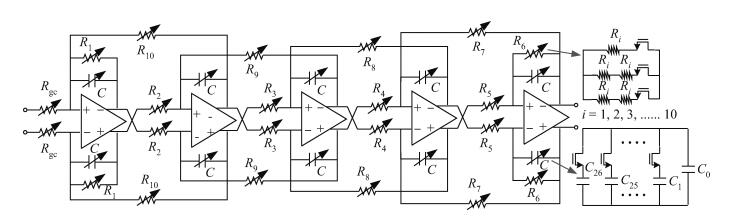

Fig. 4.  LPF architecture

DownLoad: Full-Size Img PowerPoint

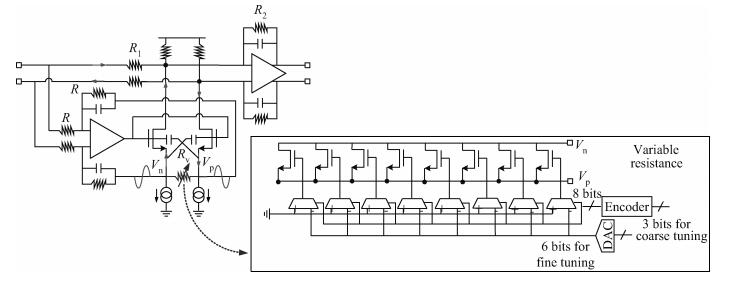

Fig. 5.  PGA architecture

DownLoad: Full-Size Img PowerPoint

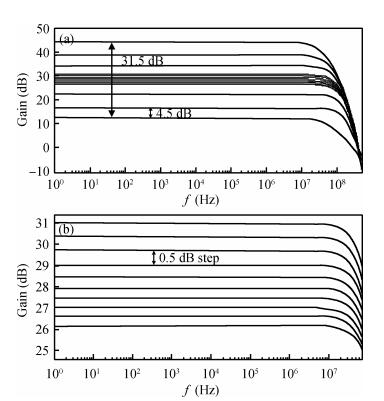

Fig. 6.  (a) Coarse tuning and (b) fine tuning of the PGA

DownLoad: Full-Size Img PowerPoint

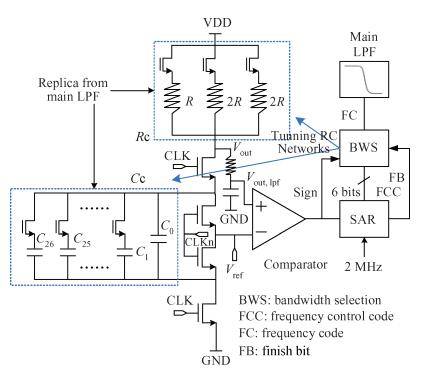

Fig. 7.  AFT circuit

DownLoad: Full-Size Img PowerPoint

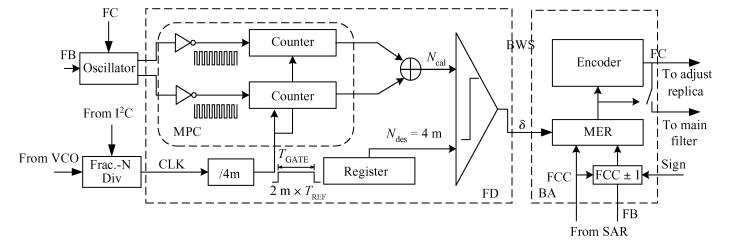

Fig. 8.  The schematic of the bandwidth selection (BWS)

DownLoad: Full-Size Img PowerPoint

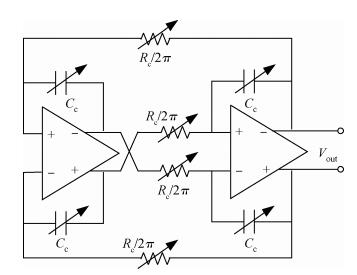

Fig. 9.  The schematic of the oscillator

DownLoad: Full-Size Img PowerPoint
Fig. 10.  An example of the AFT process

DownLoad: Full-Size Img PowerPoint
Fig. 11.  Simulation results of (a) AFT circuit in time domain and (b) main filter in frequency domain

DownLoad: Full-Size Img PowerPoint

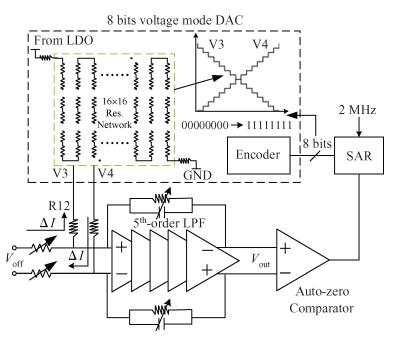

Fig. 12.  DCOC circuit

DownLoad: Full-Size Img PowerPoint

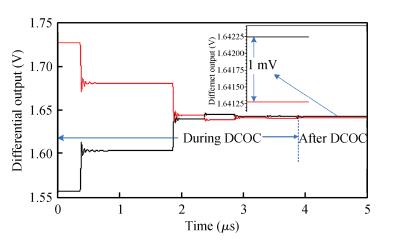

Fig. 13.  Simulated DCOC procedure

DownLoad: Full-Size Img PowerPoint

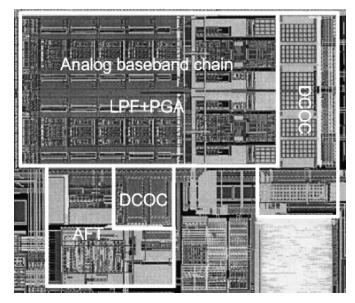

Fig. 14.  Microphotograph of the baseband chain

DownLoad: Full-Size Img PowerPoint

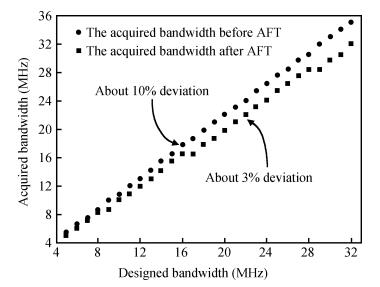

Fig. 15.  The channel bandwidth before and after AFT

DownLoad: Full-Size Img PowerPoint

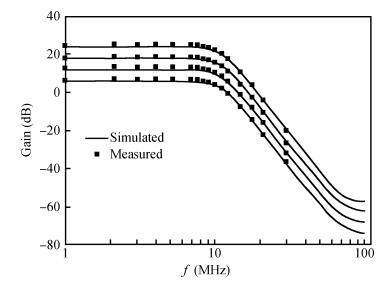

Fig. 16.  Measured and simulated frequency responsefor the gain range at bandwidth of 10 MHz

DownLoad: Full-Size Img PowerPoint

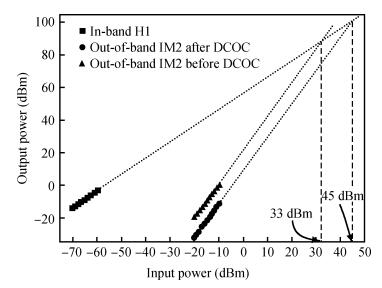

Fig. 17.  Measured out-of-band IIP2 ($f_{1}$ = 100 MHz, $f_{2}$ = 105 MHz) of the baseband chain under voltage gain of 55.5 dB and the bandwidth of 10 MHz

DownLoad: Full-Size Img PowerPoint

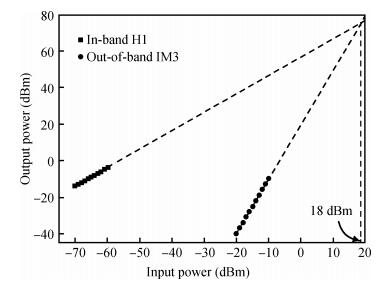

Fig. 18.  Measured out-of-band IIP3($f_{1}$ = 100 MHz, $f_{2}$ = 195 MHz) of the baseband chain under voltage gain of 55.5 dB and the bandwidth of 10 MHz

DownLoad: Full-Size Img PowerPoint

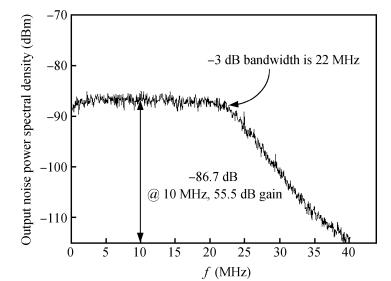

Fig. 19.  Output noise level versus frequency at 55.5 dB gain level

DownLoad: Full-Size Img PowerPoint

Table 1.   The specifications of the baseband chain

Table 2.   The cut-off frequency of LPF distribution

Table 3.   Performance summary and comparison
