A dynamic range extension scheme applied to a TDI CMOS image sensor

Chao Xu, Suying Yao, Jiangtao Xu, Zhiyuan Gao and Liqiang Han

+ Author Affiliations

 Corresponding author: Xu Jiangtao,xujiangtao@tju.edu.cn

DOI: 10.1088/1674-4926/35/2/024013

PDF

Abstract: A dynamic range extension scheme applied to a time delay integration (TDI) CMOS image sensor (CIS) is presented. Two types of pixels with higher and lower conversion gain are adopted in the pixel array, which are suitable for capturing images in low and high illumination respectively. By fusing the two kinds of pixels' output signals in the process of TDI accumulation, a high dynamic range image can be achieved. Compared with the traditional multiple integration technique, no photoelectrons generated during the exposure time are discarded by the reset operation, and thus a higher level of signal-to-noise ratio (SNR) can be retained. A prototype chip with an 8×8 pixel array is implemented in a 0.18 μm CIS process, and the pixel size is 15×15 μm2. Test results show that a 76 dB dynamic range can be achieved in 8-stage TDI mode, when the SNR boost can reach 7.26 dB at 90.8 lux.

Key words: CMOS image sensor, time delay integration, dynamic range extension, digital domain



[1]
Decker S, McGrath D, Brehmer K, et al. A 256×256 CMOS imaging array with wide dynamic range pixels and column-parallel digital output. IEEE J Solid-State Circuits, 1998, 33(12):2081 doi: 10.1109/4.735551
[2]
Joseph D, Collins S. Transient response and fixed pattern noise in logarithmic CMOS image sensors. IEEE Sensors Journal, 2007, 7(8):1191 doi: 10.1109/JSEN.2007.900974
[3]
Amhaz H, Sicard G. A high output voltage swing logarithmic image sensor designed with on chip fpn reduction. IEEE PhD Research in Microelectronics and Electronics, 2010:1 http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=5587115
[4]
Mase M, Kawahito S, Sasaki M, et al. A wide dynamic range CMOS image sensor with multiple exposure-time signal outputs and 12-bit column-parallel cyclic A/D converters. IEEE J Solid-State Circuits, 2005, 40(12):2787 doi: 10.1109/JSSC.2005.858477
[5]
Park J H, Mase M, Kawahito S, et al. A 142 dB dynamic range CMOS image sensor with multiple exposure time signals. Asian Solid-State Circuits Conference, 2005:85 http://ieeexplore.ieee.org/document/1546253/
[6]
Yamada T, Kasuga S, Murata T, et al. A 140 dB-dynamic-range MOS image sensor with in-pixel multiple-exposure synthesis. IEEE International Solid-State Circuits Conference, 2008:50 http://www.freepatentsonline.com/y2012/0281126.html
[7]
Li Binqiao, Sun Zhongyan, Xu Jiangtao. Wide dynamic range CMOS image sensor with in-pixel double-exposure and synthesis. Journal of Semiconductors, 2010, 31(5):055002 doi: 10.1088/1674-4926/31/5/055002
[8]
Lepage G, Bogaerts J, Meynants G. Time-delay-integration architectures in CMOS image sensors. IEEE Trans Electron Devices, 2009, 56(11):2524 doi: 10.1109/TED.2009.2030648
[9]
Chang J H, Cheng K W, Hsieh C C, et al. Linear CMOS image sensor with time-delay integration and interlaced super-resolution pixel. IEEE Sensors, 2012:1 http://ieeexplore.ieee.org/document/6411292/authors
[10]
Cheng K W, Yin C, Hsieh C C, et al. Time-delay integration readout with adjacent pixel signal transfer for CMOS image sensor. IEEE International Symposium on VLSI Design, Automation, and Test, 2012:1
[11]
Nie K, Yao S, Xu J, et al. Thirty two-stage CMOS TDI image sensor with on-chip analog accumulator. IEEE Trans Very Large Scale Integration Systems, 2013, Digital Object Identifier:10.1109/TVLSI.2013.2256809
[12]
Xu C, Yao S, Xu J, et al. In-pixel charge addition scheme applied in time-delay integration CMOS image sensors. Transactions of Tianjin University, 2013, 19:140 doi: 10.1007/s12209-013-1997-5
[13]
Li Weiping, Xu Jiangtao, Xu Chao, et al. Collection efficiency and charge transfer optimization for a 4-T pixel with multi n-type implants. Journal of Semiconductors, 2011, 32(12):124008 doi: 10.1088/1674-4926/32/12/124008
[14]
Li Yiqiang, Li Binqiao, Xu Jiangtao, et al. Charge transfer efficiency improvement of a 4-T pixel by the optimization of electrical potential distribution under the transfer gate. Journal of Semiconductors, 2012, 33(12):124004 doi: 10.1088/1674-4926/33/12/124004

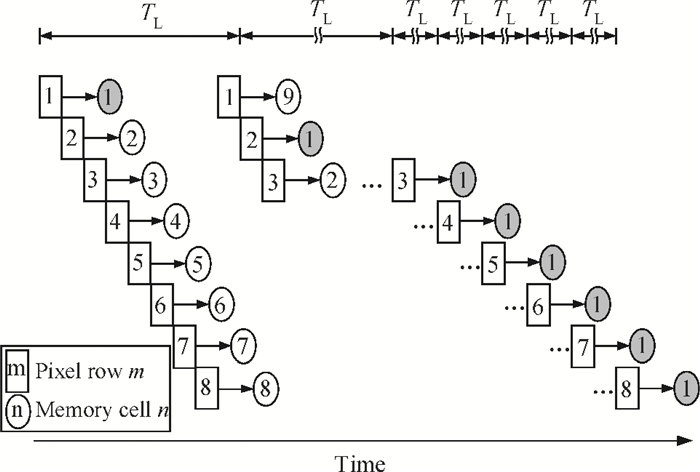

Fig. 1.  Diagram of the TDI operation principle.

DownLoad: Full-Size Img PowerPoint

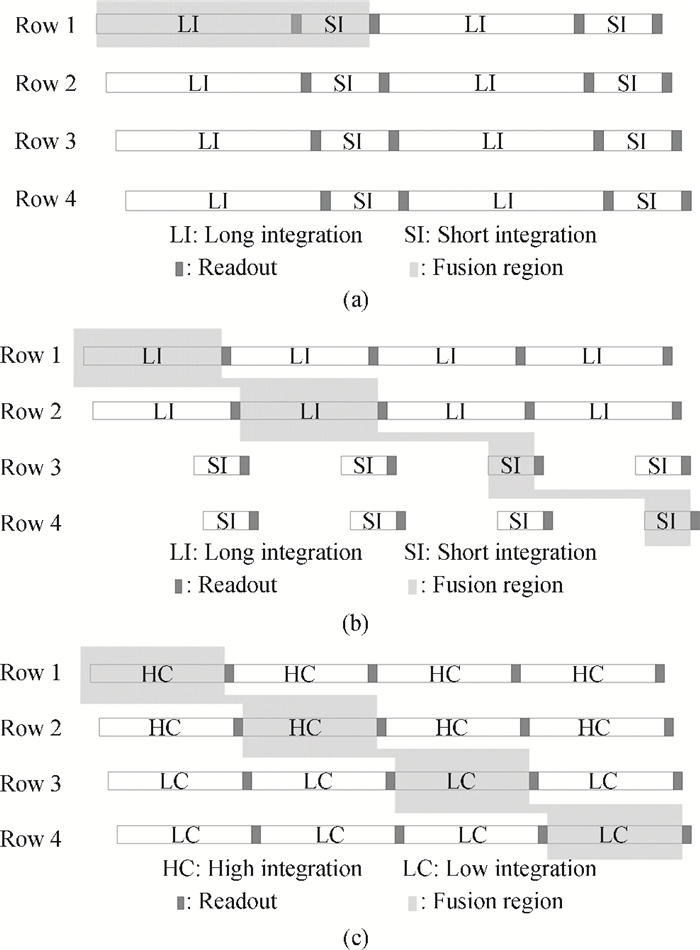

Fig. 2.  Timing diagrams. (a) Normal multiple integration technology.(b) Optional multiple integration technology for a TDI CIS. (c) Proposed DRE scheme for a TDI CIS.

DownLoad: Full-Size Img PowerPoint

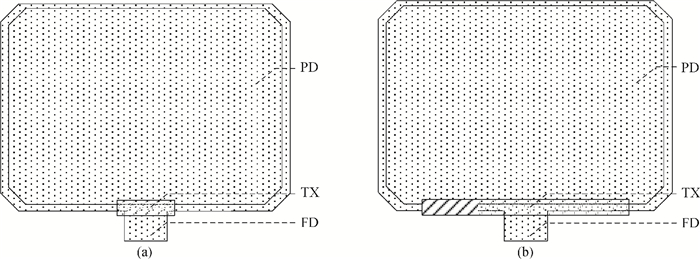

Fig. 3.  Layouts of high conversion gain pixels. (a) Typical structure. (b) Optimized structure with a wide transfer gate.

DownLoad: Full-Size Img PowerPoint

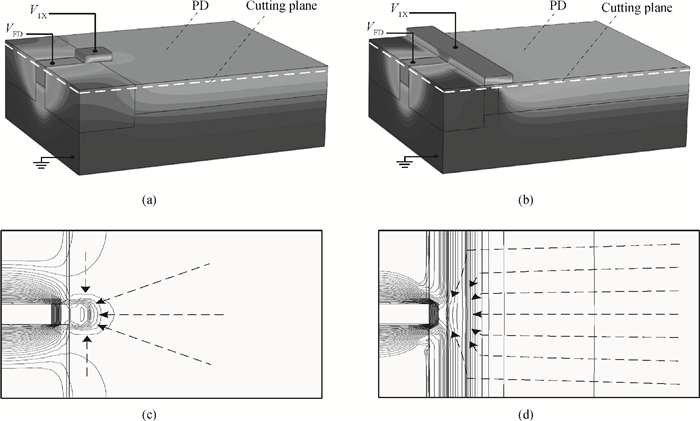

Fig. 4.  3D electrostatic potential distributions. (a) Typical structure. (b) Optimized structure with wide transfer gate. 2D cross sections along the cutting planes. (c) Typical structure. (d) Optimized structure with a wide transfer gate.

DownLoad: Full-Size Img PowerPoint

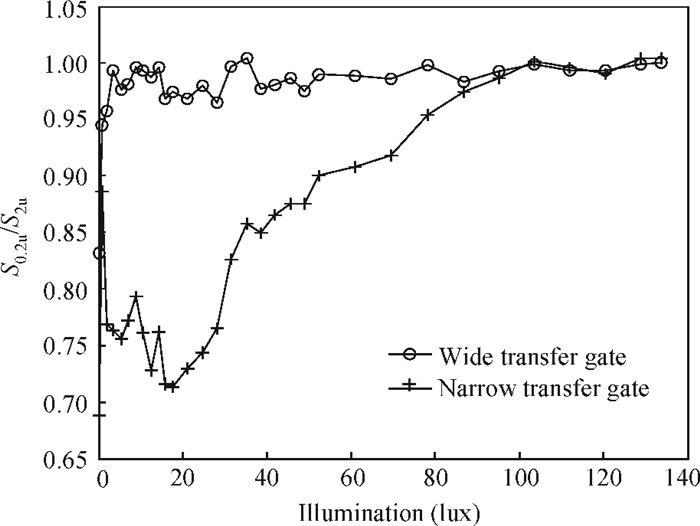

Fig. 5.  Test results about charge transfer.

DownLoad: Full-Size Img PowerPoint

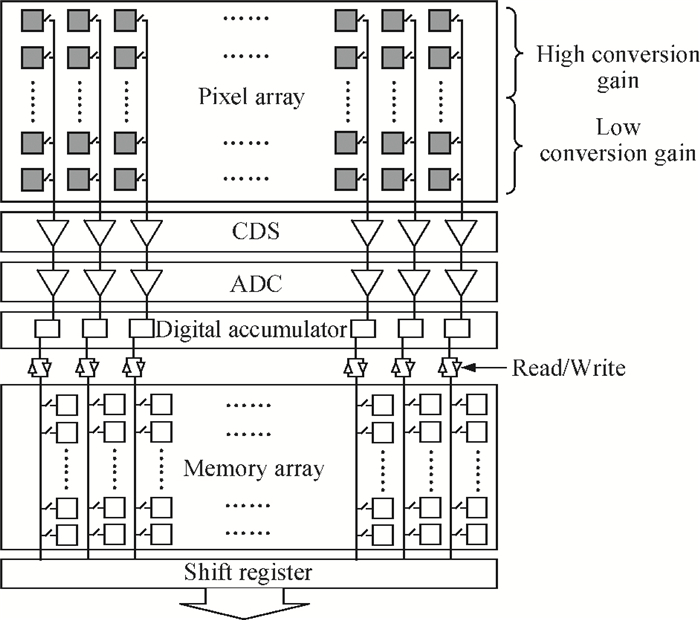

Fig. 6.  Diagram of a digital TDI CIS.

DownLoad: Full-Size Img PowerPoint

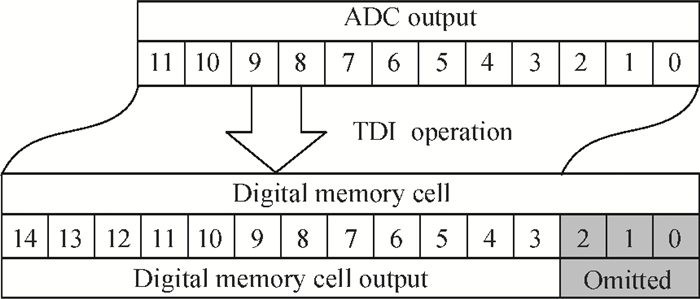

Fig. 7.  Diagram of bit omission operation.

DownLoad: Full-Size Img PowerPoint

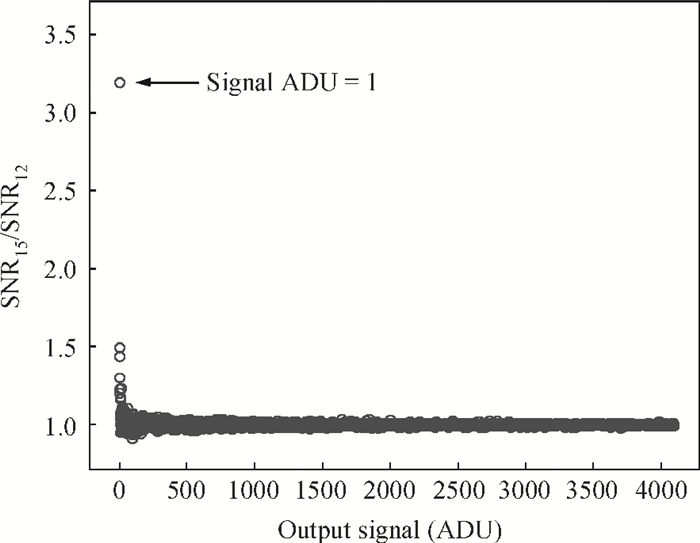

Fig. 8.  Effect of bits omission on SNR.

DownLoad: Full-Size Img PowerPoint

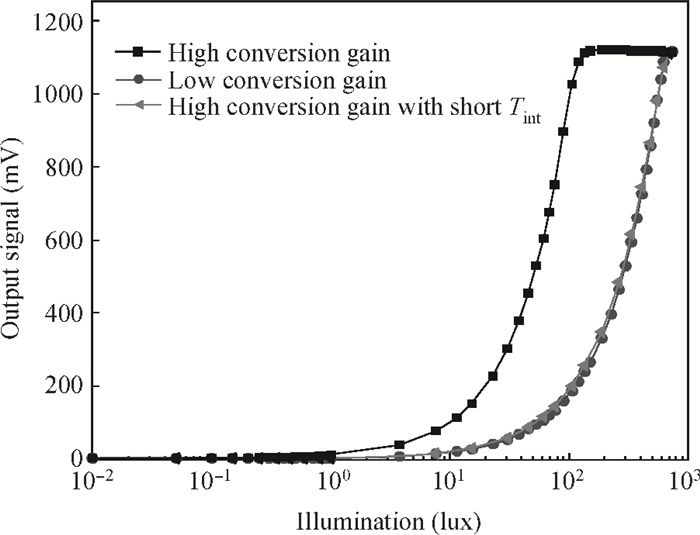

Fig. 9.  Photo response curves of different pixels.

DownLoad: Full-Size Img PowerPoint

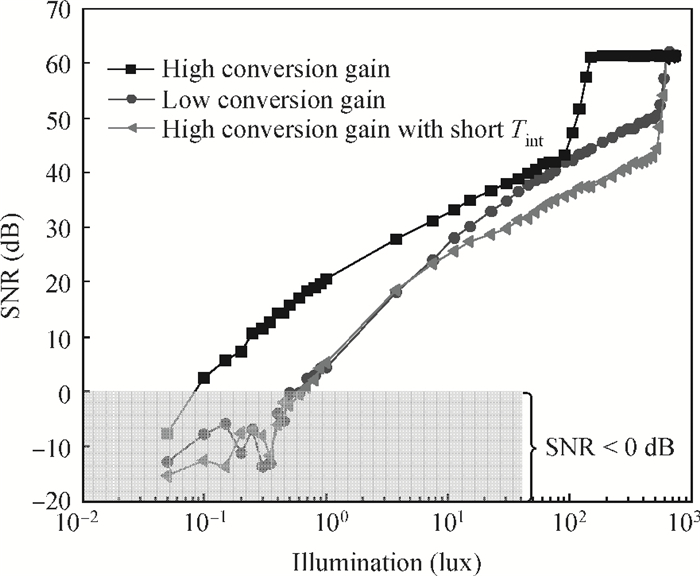

Fig. 10.  SNR curves of different pixels.

DownLoad: Full-Size Img PowerPoint

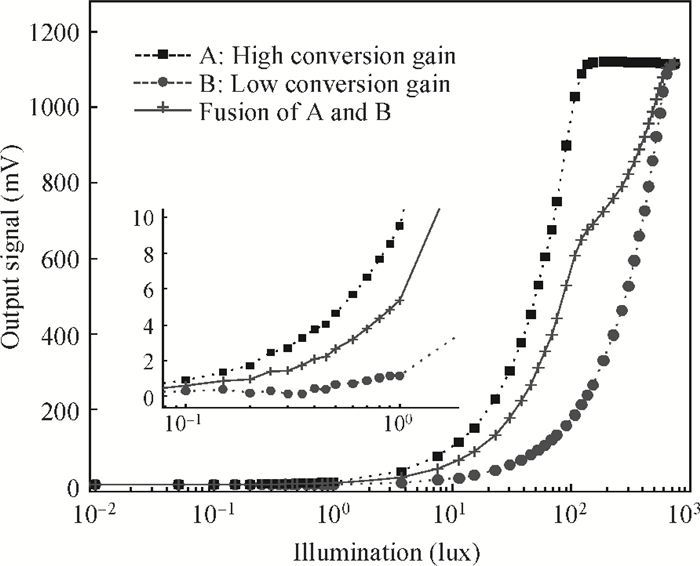

Fig. 11.  Photo response curves before and after the fusion process.

DownLoad: Full-Size Img PowerPoint

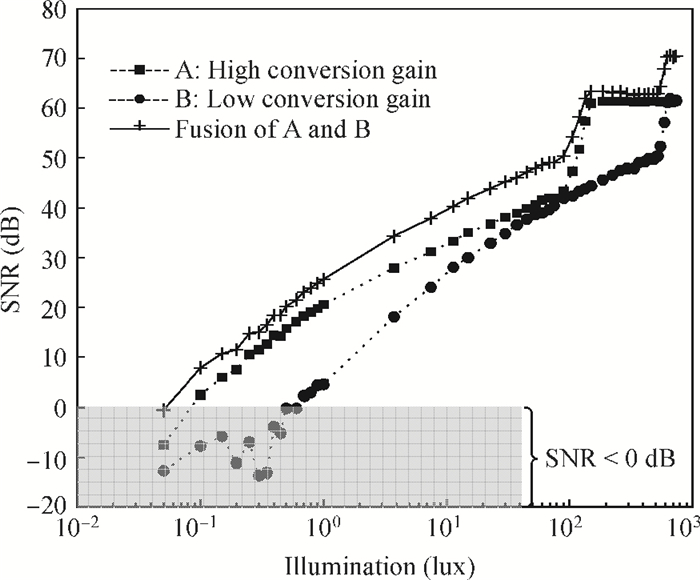

Fig. 12.  SNR curves before and after fusion process.

DownLoad: Full-Size Img PowerPoint
